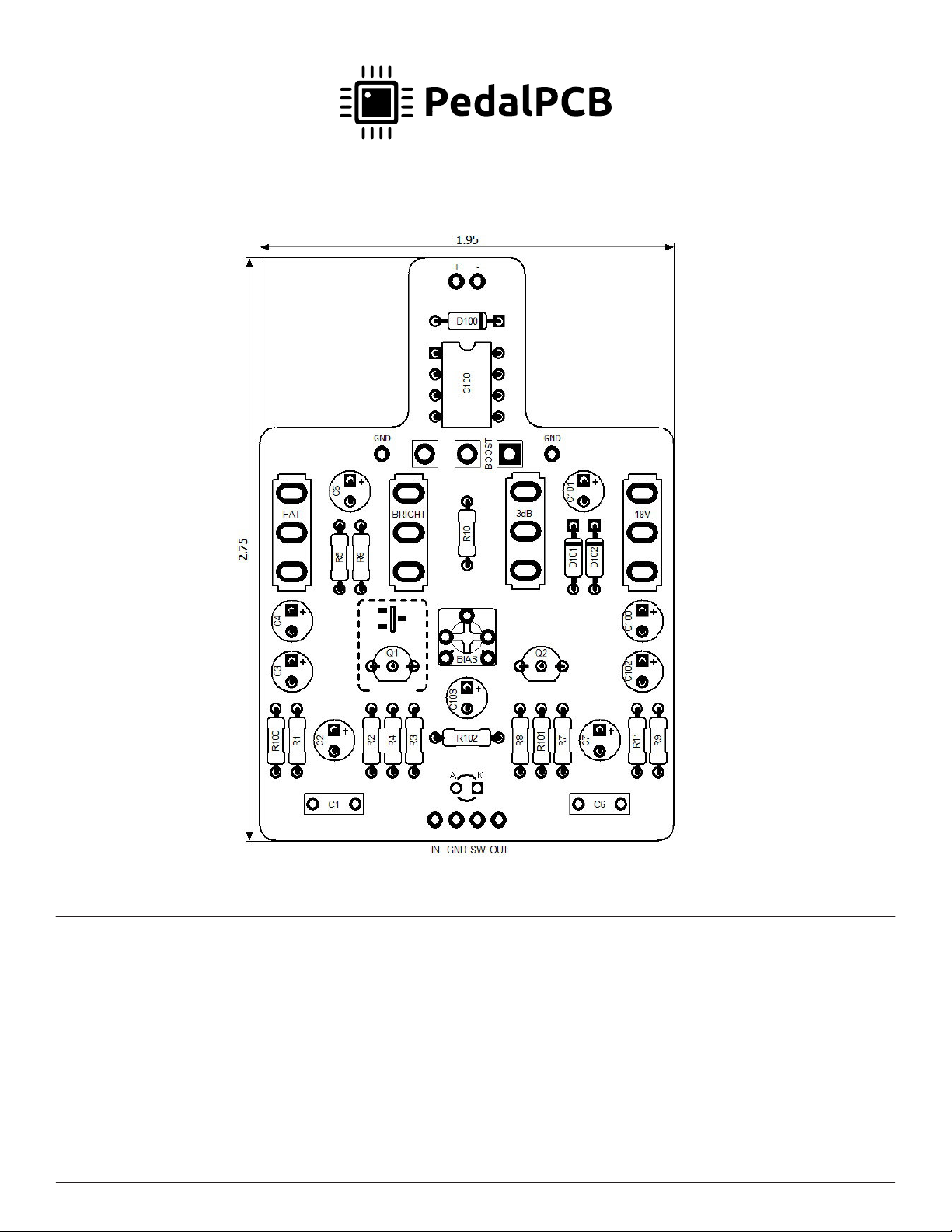

PedalPCB Episode Boost Manual de usuario

Copyright © 2021 - PedalPCB.com Page 1 of 5Episode Boost

Episode Boost

Revised 11/19/21

All trademarks and registered trademarks are the property of their respective owners. The company, product, and service names used in this web site

are for identication purposes only. Use of these names, logos, and brands does not imply endorsement.

• Boost

• 9V/18V (Toggle switch)

• 3dB Gain (Toggle switch)

• Bright (Toggle switch)

• Fat (Toggle switch)

CONTROLS AND FEATURES

Copyright © 2021 - PedalPCB.com Page 2 of 5

Episode Boost

Episode Boost

Parts List (Page 1 of 1)

LOCATION VALUE TYPE NOTES

R1 1M Resistor, 1/4W

R2 33K Resistor, 1/4W

R3 1M Resistor, 1/4W

R4 4K7 Resistor, 1/4W

R5 1K Resistor, 1/4W

R6 15K Resistor, 1/4W

R7 1M Resistor, 1/4W

R8 10K Resistor, 1/4W

R9 100R Resistor, 1/4W

R10 18K Resistor, 1/4W

R11 47K Resistor, 1/4W

R100 4K7 Resistor, 1/4W

R101 10K Resistor, 1/4W

R102 10K Resistor, 1/4W

C1 47n Film capacitor, 7.2 x 2.5mm

C2 10u Electrolytic capacitor, 5mm �25V minimum

C3 1u Electrolytic capacitor, 5mm �25V minimum

C4 10u Electrolytic capacitor, 5mm �25V minimum

C5 100u Electrolytic capacitor, 5mm �25V minimum

C6 3n3 Film capacitor, 7.2 x 2.5mm

C7 10u Electrolytic capacitor, 5mm �25V minimum

C100 100u Electrolytic capacitor, 5mm �25V minimum

C101 10u Electrolytic capacitor, 5mm �25V minimum

C102 10u Electrolytic capacitor, 5mm �25V minimum

C103 10u Electrolytic capacitor, 5mm �25V minimum

D100 1N5817 Schottky diode, DO-41

D101 1N5817 Schottky diode, DO-41

D102 1N5817 Schottky diode, DO-41

Q1 2N5457 JFET transistor, N-channel *Alternate MMBF5457

Q2 2SC1815 BJT transistor, NPN TO-92

IC100 TC1044SCPA Charge pump IC, DIP8

BIAS 50K Trimmer potentiometer, 3362P type

BOOST C10K 16mm right-angle PCB mount pot

18V ON/ON Toggle switch, SPDT 2-position (ON/ON)

BRIGHT ON/ON Toggle switch, SPDT 2-position (ON/ON)

3dB ON/ON Toggle switch, SPDT 2-position (ON/ON)

FAT ON/OFF/ON Toggle switch, SPDT 3-position (ON/OFF/ON)

Copyright © 2021 - PedalPCB.com Page 3 of 5

Episode Boost

Episode Boost

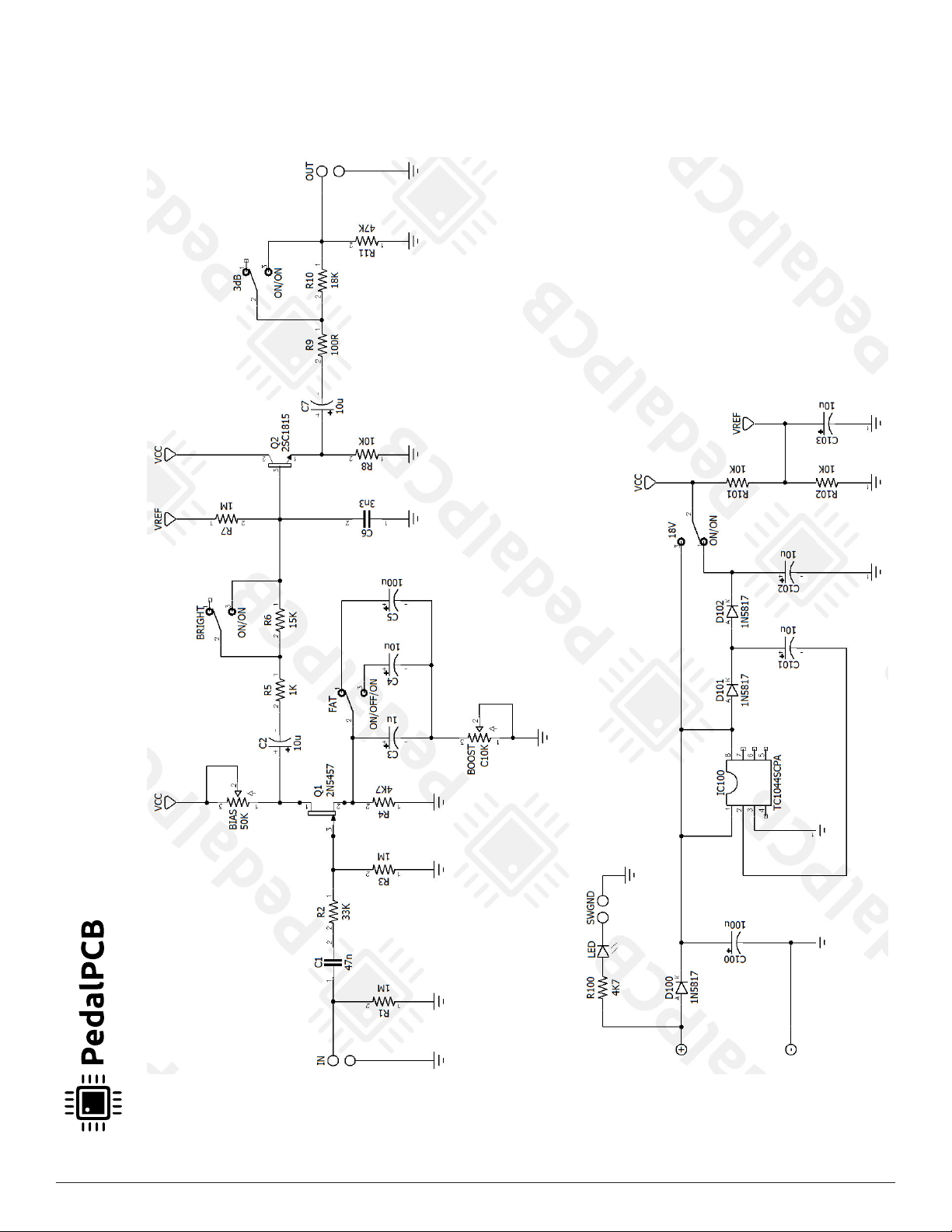

Schematic Diagram

Copyright © 2021 - PedalPCB.com Page 4 of 5

Episode Boost

Episode Boost

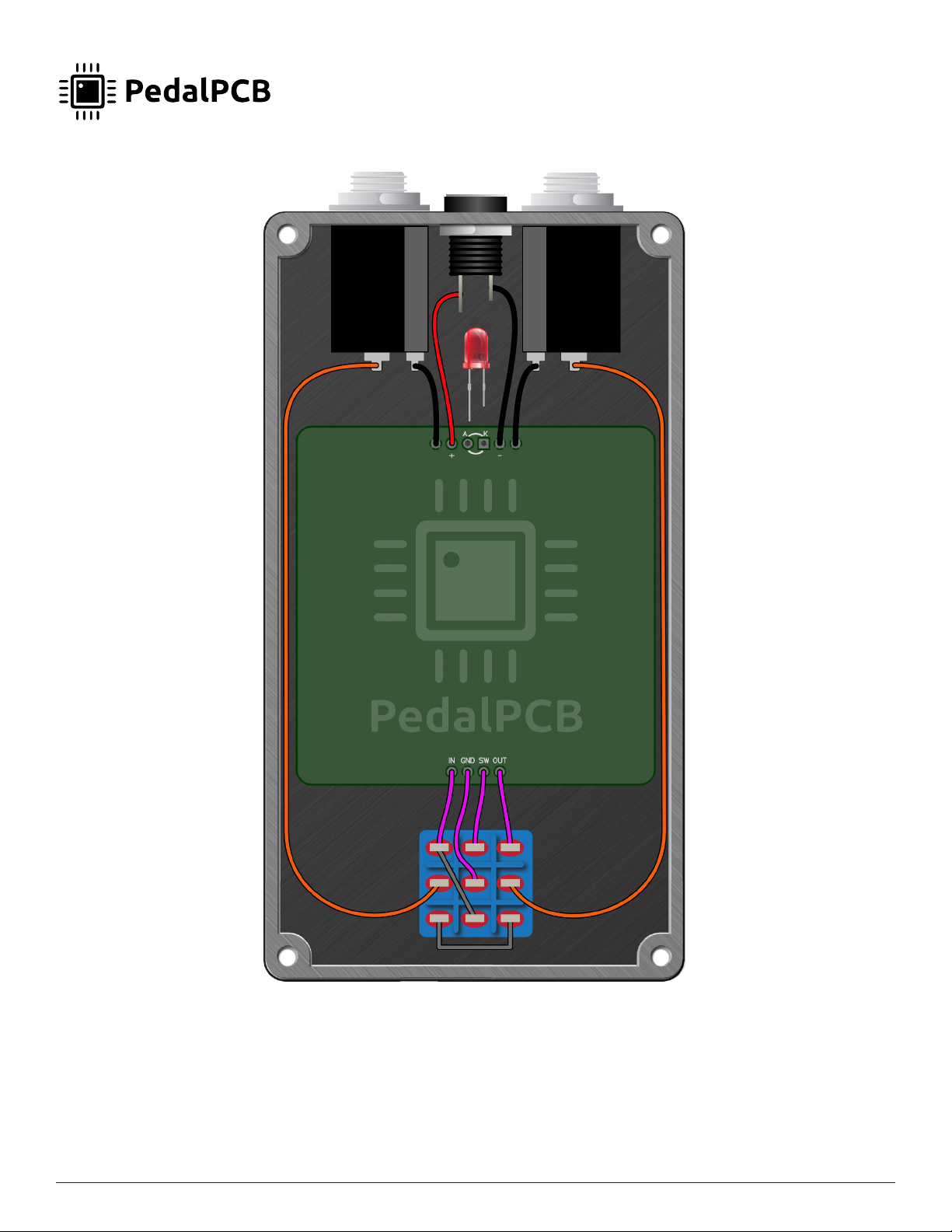

Wiring Diagram

F

O

O

T

S

W

I

T

C

H

T

O

G

G

L

E

S

W

I

T

C

H

T

O

G

G

L

E

S

W

I

T

C

H

T

O

G

G

L

E

S

W

I

T

C

H

T

O

G

G

L

E

S

W

I

T

C

H

P

O

T

E

N

T

I

O

M

E

T

E

R

L

E

D

D

C

J

A

C

K

I

N

P

U

T

J

A

C

K

O

U

T

P

U

T

J

A

C

K

Copyright © 2021 - PedalPCB.com Page 5 of 5

Episode Boost

Episode Boost

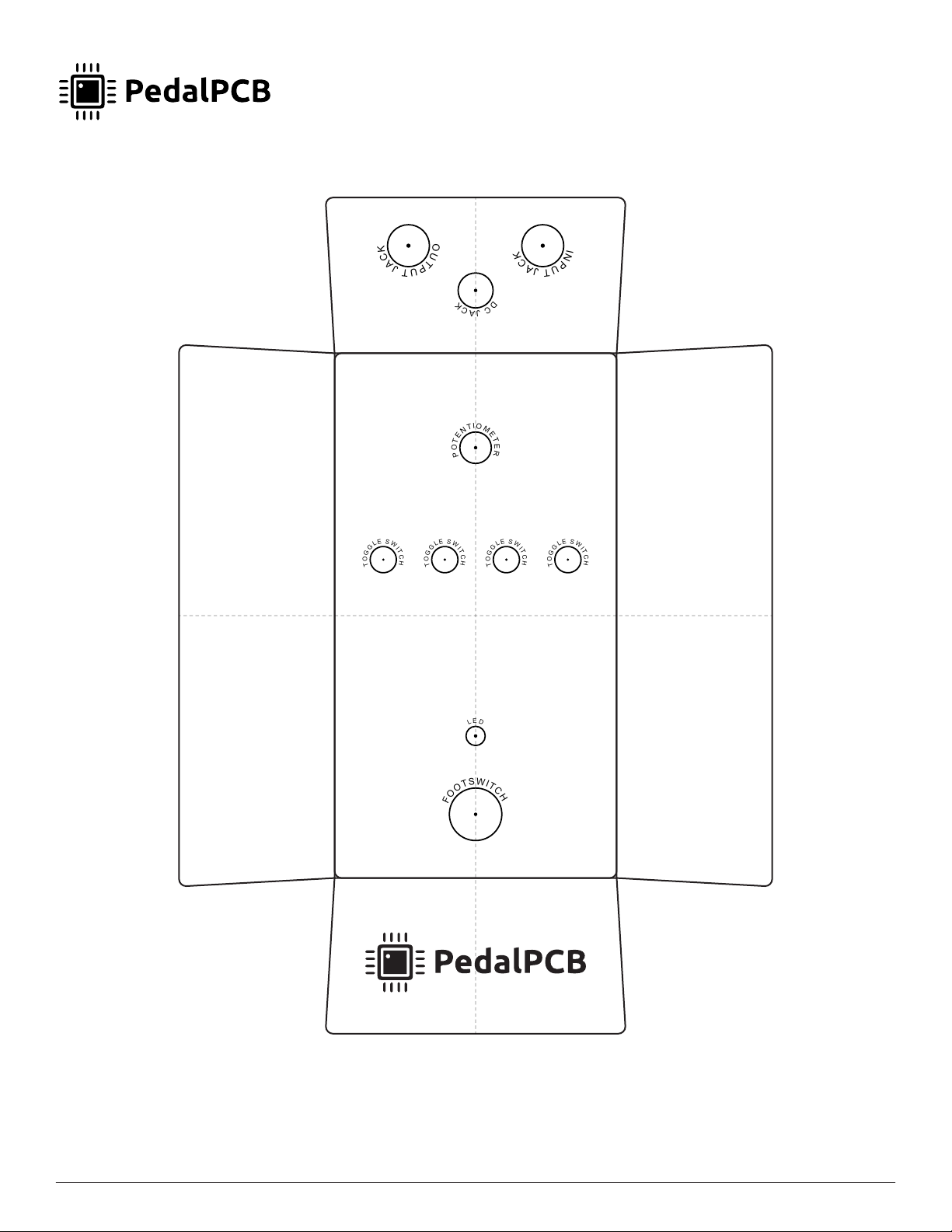

Drill Template

125B Enclosure

Boost

18V

9V

3dB Bright Fat
