USER MANUAL

E1500

PRO

[email protected]

FUNCTION INTRODUCTION

① ② DC 12V~18V Charging Port

③

DC 12V/USB/ Wireless Switch

⑤ ⑥ AC 100V~120V Output

⑧

LCD Display

AC 100V~120V Switch

⑨

⑦Wireless Charger

DC 32V~95V Charging Port

⑩DC12V XT60 Output

DC12V(5525)Output

⑫

DC12V Auxiliary Output

⑪USB-A/USB-C Ports

⑬

④Fuse

AC 100V~120V Input

E1500

PRO

①

②

③

④

⑤

⑥

⑧

⑨

⑩

⑪

⑬

⑦

⑫

[email protected]

SPECIFICATIONS

OUTPUT SPECS

INPUT SPECS

Lithium-ion(NCM)

1000CycleLife＞80%

Dimension

L14.8*W9.4*H10.6 in

L377*W238*H270

Capacity Battery Type

DC Charging(32V~95V)

Max 800W

5521

DC Charging(12V~18V)

Max 100W

Net Weight

Around 33.1lb

Around 15Kg

E1500

PRO

1450Wh

(51.8V28Ah)

Protections

Over-Voltage,

Overheat,

Overload,

Short-Circuit,

Self-Recovery

Temperature

0℃~45℃/32°F~113°F

(Charging)

-20℃~45℃/-4°F~113°F

(Discharging)

AC Out*3

Pure sine wave

100V~120V

Rated 2000W

USB-A*4

5V-2A*3

(5V,9V,12V,

Max 18W)*1

(5V,9V,12V,

Max 18W)*1

(5V,9V,12V,20V,

Max 100W)*1

USB-C*2

DC 12V-10A

Cigar Port

Max 15W

Wireless Charger

DC 12V-30A

XT60 Output

GX16MF

UPS SPECS

AC100V~120V

Max 15A

AC100V~120V

Charging Time

AC: 1H to 80%

PV/DC: 2H to100%

1.5H to100%

DC 12V-5A

DC 5525 Output

AC Input

[email protected]

HOW TO USE THE E1500 PRO

press and hold to turn on / off DC / USB / Wireless Charger

press and hold to turn on / off AC (

Please turn off the AC

function if there is no AC load on the unit)

Over load

℃

LCD SMART DISPLAY

AC Overload Alarm Icon

E1500 PRO can power most devices with power

consumption less than 2000 watts.

If your device is more than 2000W, The AC overload

alarm will flash, The power supply will stop working.

Temperature Alarm Icon

E1500 PRO can power your devices at temperatures

ranging from -20~45℃.

If your working temperature is more than 45℃, the

temperature alarm will flash,the unit may stop working.

Time Indicator

DC Out

Temperature Alarm

Battery Soc(%)

Voltage(V)

AC Overload Alarm

Charge Indicator

Discharge Indicator

Net Input/Output Wattage

AC Out

AC Input Wattage(W)/Voltage(V)

PF Value/Remaining Charging/

Discharging Time(Hrs)

E1500

PRO

[email protected]

PACKING LIST

RECHARGE TIME

Around 1.5Hours

Electric Generator

Around 18Hours

Car Charger

Around 1.5Hours

Wall Charger

800W(×4)

2~2.5 Hours

Recommended

MC4 Solar

Charging Cable

pecron 200W

SOLAR CHARGE TIME

The solar charging time depends on weather conditions.

E1500 PRO has a built-in MPPT charge controller that supports

32~95V, 15A PV charging up to 800W.

200W(×1)

9~10 Hours

Recommended

400W(×2)

4~5 Hours

Recommended

600W(×3)

3~3.5 Hours

Recommended

Anderson Solar

Charging Cable*1

Pecron

E1500 PRO

AC Charing Cable*1

MC4 Solar

Charging

Cable

(LSMC4-5GX16)*1

Car Charging

Cable

12V Alligator Clips*1

E1500

PRO

UPS Function

The E1500 PRO supports UPS function. It can provide the loads(such as computers, data centers, telecommunication equipment)

near-instantaneous(within 8~20ms) protection from unexpected power interruptions of the main power supply.

Note: Not applicable to specific applications that need transfer time under 8ms, such as servers and workstations.

This UPS function only support protection for loads under 1600W, we recommend that you only connect one device

at a time to avoid overload and thus result in protection failure.

Pecron is not responsible for any devices damege or loss of data resulting from failing to follow the instructions.

[email protected]

E1500

PRO

[email protected]

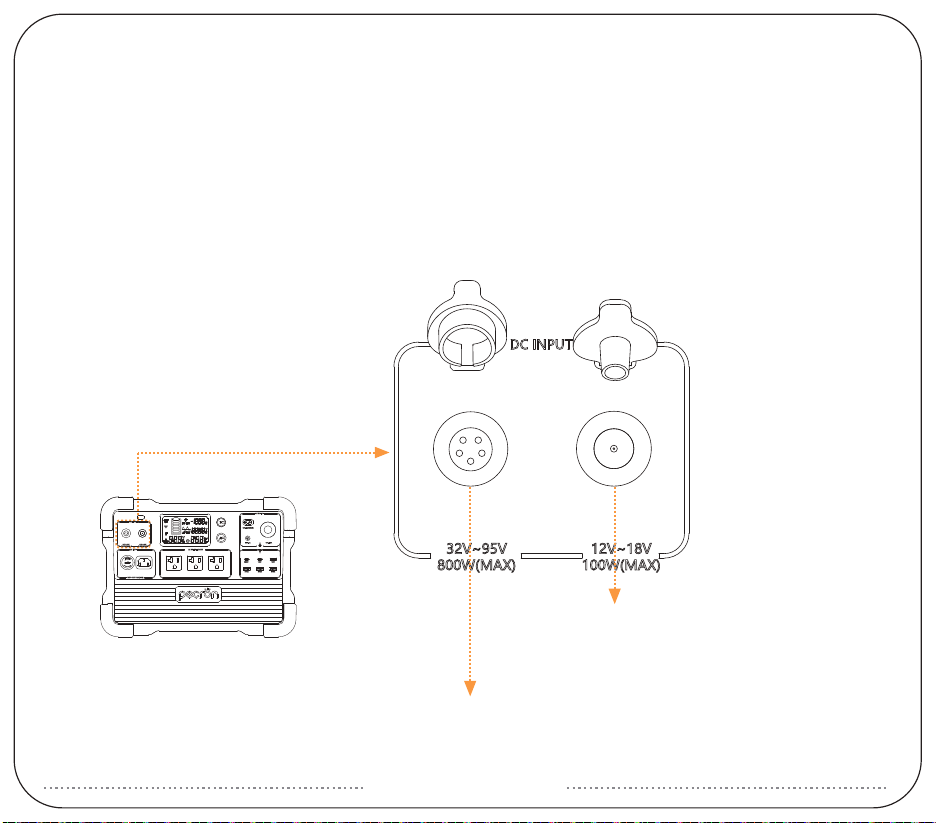

USING SOLAR PANELS TO CHARGE THE E1500 PRO

1. DC5521 Charging Port: PV/DC 12V~18V, 100W maximum; VOC(open circuit voltage) of solar panel must be than 25V;

2. GX16MF-5 Charging Port: PV(operating voltage) range 32V~95V, 800W maximum; VOC(open circuit voltage) of solar

panel/array must be than 95V, otherwise, it will damage the unit! Do not wire more than two 36V(AKA 24V) solar

panels in series, or more than four 18V(AKA 12V) solar panels in series.

(18V/36V stands for Vmp, the operating voltage, of the solar panel)

3. If you have any questions, Please feel free to contact us：[email protected]

DC5521 Charging Port:

PV12V~18V-100W Maximum Input

GX16MF-5 Charging Port:

PV32~95V-800W Maximum Input

E1500

PRO

[email protected]

Using the pecron 100W /18V*1（100W）to charge the E1500 PRO

pecron 100W

18V

pecron 100W*1

USING SOLAR PANELS TO CHARGE THE E1500 PRO

36V 36V

MC4 Solar

Charging Cable*1 pecron 200W*1

Using the pecron 200W /36V*1（200W）to charge the E1500 PRO

※ 18V is the operating voltage of the solar panels

※ 36V is the operating voltage of the solar panels

36V

72V

Using the pecron 200W /36V*2（400W）to charge the E1500 PRO

MC4 Solar

Charging Cable*1 pecron 200W*2

※ 36V is the operating voltage of the solar panels

[email protected]

USING SOLAR PANELS TO CHARGE THE E1500 PRO

DO NOT wire three solar panels in series！

※ PV(GX16MF-5) Port Only work within 32V~95V Open Circuit voltage,exceeding 95V

will damage the machine.

36V

108V

36V

Using the pecron 200W /36V*3（600W）to charge the E1500 PRO

MC4 Solar

Charging Cable*1

Y Branch MC4 Charging Cable(+)*1

Y Branch MC4 Charging Cable(-)*1

pecron 200W*3

（NOTE：This parallel charging cable sold separately）

※ 36V is the operating voltage of the solar panels

[email protected]

USING SOLAR PANELS TO CHARGE THE E1500 PRO

36V

Using the pecron 200W /36V*4（800W）to charge the E1500 PRO

MC4 Solar

Charging Cable*1

Y Branch MC4 Charging Cable(+)*1

Y Branch MC4 Charging Cable(-)*1

pecron 200W*4

（NOTE：This parallel charging cable sold separately）

※ 36V is the operating voltage of the solar panels
