PCE Instruments PCE-PFG Series Manual de usuario

PCE-PFG Series Force Gauge

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 2 February 2021

v1.0

English


 © PCE Instruments


Contents
1Safety notes........................................................................................... 1
2Specifications........................................................................................2
3Delivery scope.......................................................................................2
4Dimensions............................................................................................ 3
5Key functions ........................................................................................4
6Battery.................................................................................................... 5
7Switching on and off.............................................................................5
8Measuring modes.................................................................................. 6
8.1 Real Time......................................................................................................................... 6
8.2 Peak................................................................................................................................. 6
8.3 Average mode.................................................................................................................. 6
8.4 Save mode (Automatic memory).....................................................................................12
9Alarm limits..........................................................................................14
10 Rotate display...................................................................................... 16
11 Communication interface and output interface...............................16
12 More settings.......................................................................................17
12.1 Product information.........................................................................................................19
13 Warranty...............................................................................................19
14 Disposal ...............................................................................................19




1 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The

device may only be used by qualified personnel and repaired by PCE Instruments personnel.

Damage or injuries caused by non-observance of the manual are excluded from our liability and

not covered by our warranty.

•The device must only be used as described inthis instructionmanual. If used otherwise,

this can cause dangerous situations for the user and damage to the meter.

•The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

•Do not expose the device to shocks or strong vibrations.

•The case should only be opened by qualified PCE Instruments personnel.

•Never use the instrument when your hands are wet.

•You must not make any technical changes to the device.

•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

•The device must only be used with accessories from PCE Instruments or equivalent.

•Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

•Do not use the instrument in explosive atmospheres.

•The measurement range as stated in the specifications must not be exceeded under

any circumstances.

•Non-observance of the safety notes can cause damage to the device and injuries to

the user.

We do not assume liability for printing errors or any other mistakes in this manual.

We expressly point to our general guarantee terms which can be found in our general terms of

business.

If you have any questions please contact PCE Instruments. The contact details can be found at

the end of this manual.

2 Specifications

Model

Measurement range

Resolution

PCE-PFG 20

0 … 20 N

0.005 N

PCE-PFG 50

0 … 50 N

0.01 N

PCE-PFG 100

0 ... 100 N

0.02 N

PCE-PFG 200

0 … 200 N

0.05 N

PCE-PFG 500

0 … 500 N

0.1 N

PCE-PFG 2K

0 … 2000 N

0.5 N

Accuracy

0.3 % of measurement range

Units

N, kgF, lbF

Sampling rate

500 Hz

Display

1.8" graphic display

Alarm modes

Below, Inside, Outside

Memory

100 measurements

Power supply

Lithium battery 3.7 V / 1500 mAh

Battery life

up to 36 h

Mains adaptor / USB charging adaptor

5 V / 1 A

Outputs

Interface: USB B,

switching output / alarm modes: MD6 with

2.85 V when active

Protection class

IP 54

Operating and storage conditions

5 ... 45 °C,

35 ... 65 % RH, non-condensing

Dimensions

189 x 707 x 34 mm

Weight

450 g

Models with external load cell

Dimensions / weight load cell

L 52 mm / H 72 mm / W 19 mm / M12 thread

/ 490 g

Cable length external load cell

approx. 1.8 m

Handheld dimensions

189 x 707 x 34 mm

Handheld weight

240 g

3 Delivery scope

For force gauges PCE-PFG 20, 50, 100, 200 and 500:

1 x flat head adaptor Ø13 mm

1 x pointed head adaptor

1 x hook adaptor

1 x extension rod (75 mm)

1 x USB cable

1 x USB charger

1 x user manual

1 x plastic carrying case

For the force gauge PCE-PFG 2K:

1 x 2000 N S measuring cell

2 x M12 joint eyes

2 x pressure fittings

1 x USB cable

1 x USB charger

1 x user manual

1 x plastic carrying case

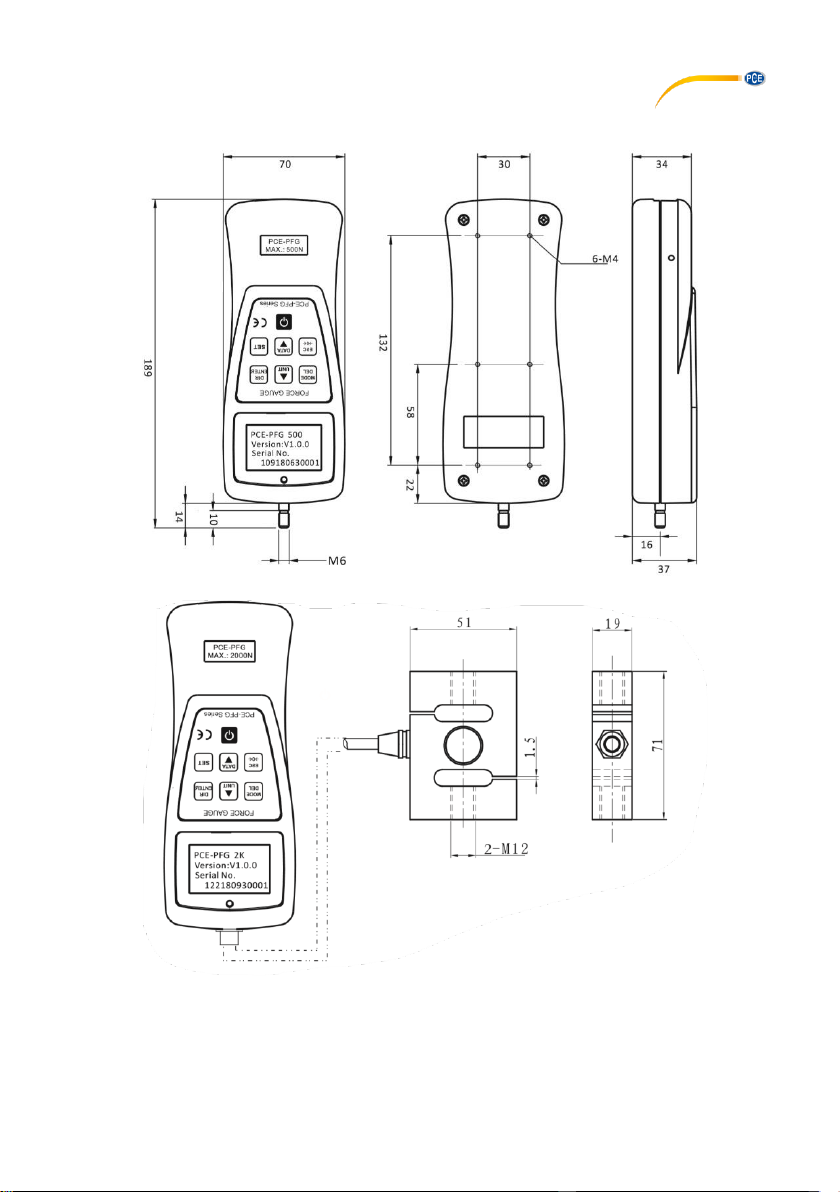

4 Dimensions

Dimensions for models with internal measuring cell

Dimensions for models with external measuring cell

5 Key functions

Key

Description

"Power" key for switching the meter on and off

"MODE" key to select between the individual modes

"DEL" key to delete individual values

"UNIT" key

- Setting the unit in measuring mode

- Increasing displayed parameter

- Selecting the next item in the menu

"Enter" key to confirm the entry or to open a menu item

"DIR" key for switching between compressive and tensile alarm display

"ESC" key to exit the menu

"Zero" key to reset the zero point

"DATA" key:

- Select the next item in the menu

- Call up data memory

"SET" key:

- to enter the menu

- to select a menu item

- to apply settings

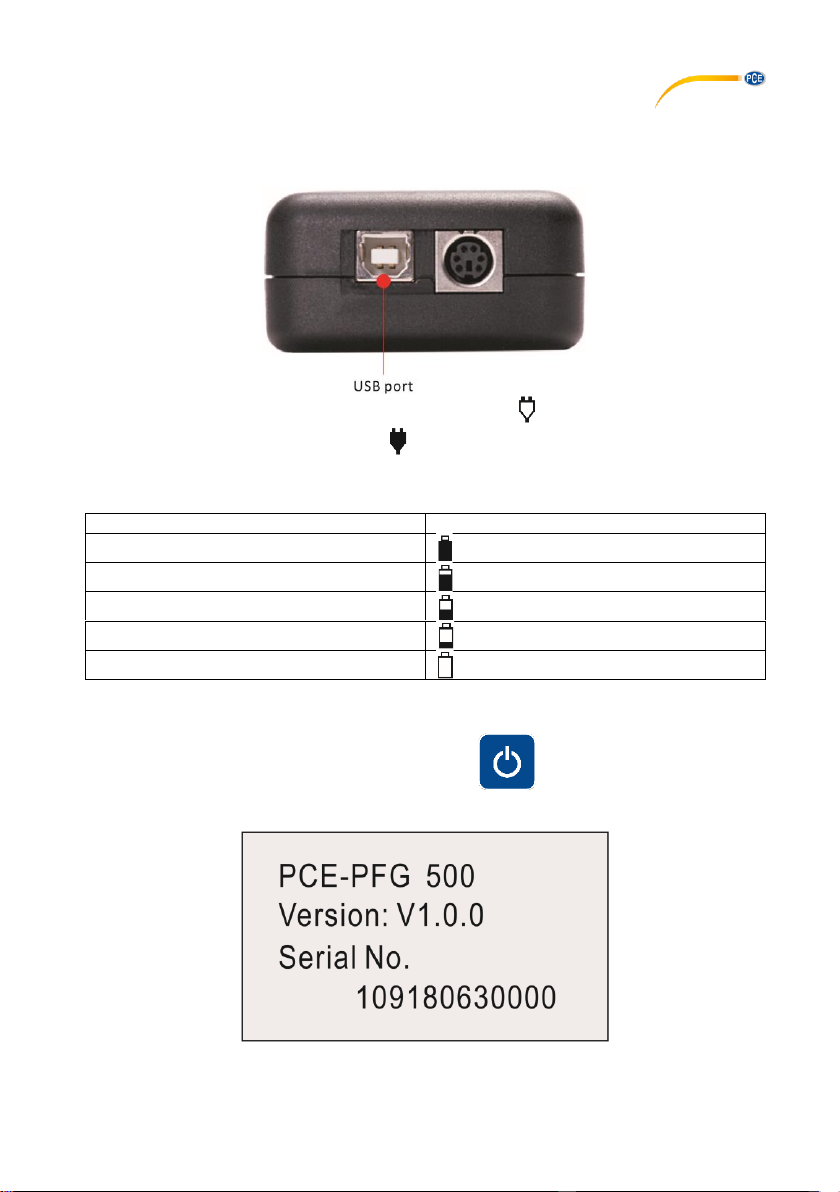

6 Battery

The force gauge has a built-in 3.7V rechargeable battery. If the meter is storedfor a longer period

of time, it should be recharged because the battery discharges itself. The battery is recharged

after approx. 6 hours.

When the battery is charging, the following icon is displayed:

When the battery is fully charged, the icon appears on the display.

When switched on, the battery indicator shows the current battery capacity when no charger is

connected.

Battery capacity

Icons

100 %

75 %

50 %

25 %

0 %

As soon as the battery is discharged, the force gauge switches itself off.

7 Switching on and off

To switch the force gauge on/ off, press and release the key once. When the force gauge

is switched on, the model, version number and serial number are displayed.

8 Measuring modes

There are four different measuring modes in this force gauge. If the tensile or compressive force

is outside the measurement range, "OVER" is shown on the display. An acoustic signal is also

generated. Only when the measured value is back within the measurement range, a normal

measurement can be resumed.

To select between the modes, press the key in the current measuring mode. The current

measuring mode is displayed below the measured value.

Note: Zeroing can only be performed withing the range of 10 % of the total capacity.

8.1 Real Time

In Real Time (RT) measuring mode, the current measured value is continuously displayed.

8.2 Peak

In peak mode (PK), the highest measured value is displayed and held. This measuringmode can

be used for tensile and compressive force. The peak value is reset with the key .

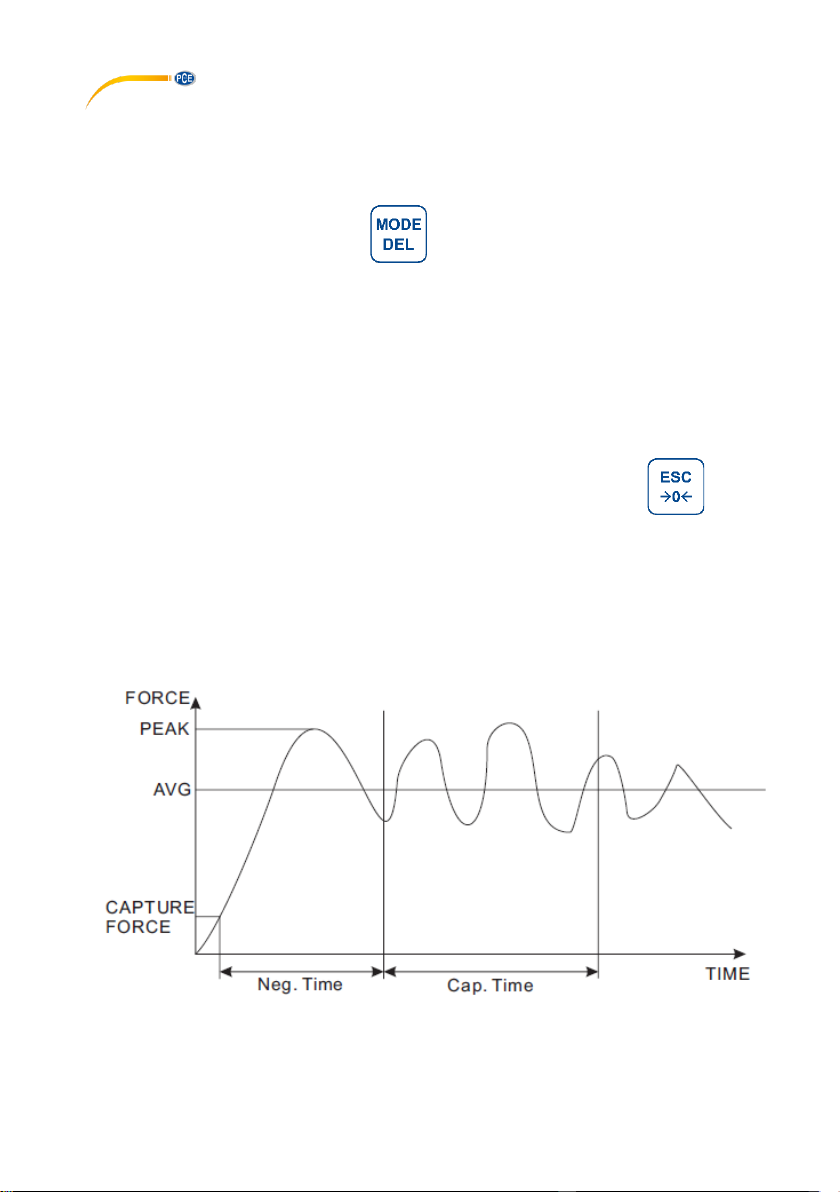

8.3 Average mode

In Average (AVG) mode, the average value of a measurement is displayed. This mode can be

used, for example,for peel force, friction force and other tests where an average value is required.

There are two different functions in this measuring mode.

MOD1: With this function, the average value of the force curve is displayed from the set smallest

force and over the set period of time.

MOD2: This function calculates the average above the set smallest measured value. When the

measured value falls below the set smallest measured value again, the measurement is finished.

This measuring procedure is possible over a period of 10 minutes.

As long as the measurement time of 10 minutes is not exceeded, this measurement can be

resumed at any time.

To make settings in this measuring mode, press the key twice.

To select a parameter, use the arrow keys. Press the key to select a parameter. Use

the arrow keys again to change the parameter properties. Press the key to apply the

settings you have made.

Setting

Meaning

A.M.C.F.

Average Minimum

Capture Force

Here you set the force at which the average measurement is

to start.

Neg. Time

Neglectful Time

Here you enter the time span at the beginning of the

measurement that is not yet to be taken into account in the

average measurement. Available settings: 0.0 ... 300.0 s.

Resolution: 0.1 s. This parameter only affects the MOD1

function.

Cap. Time

Capture Time

Here you set the measuring time for the average

measurement. Available settings: 0.0 ... 300.0 s. Resolution:

0.1 s. This parameter only affects the MOD1 function.

Ave. Mode

Here you select between the MOD1 and MOD2 function.

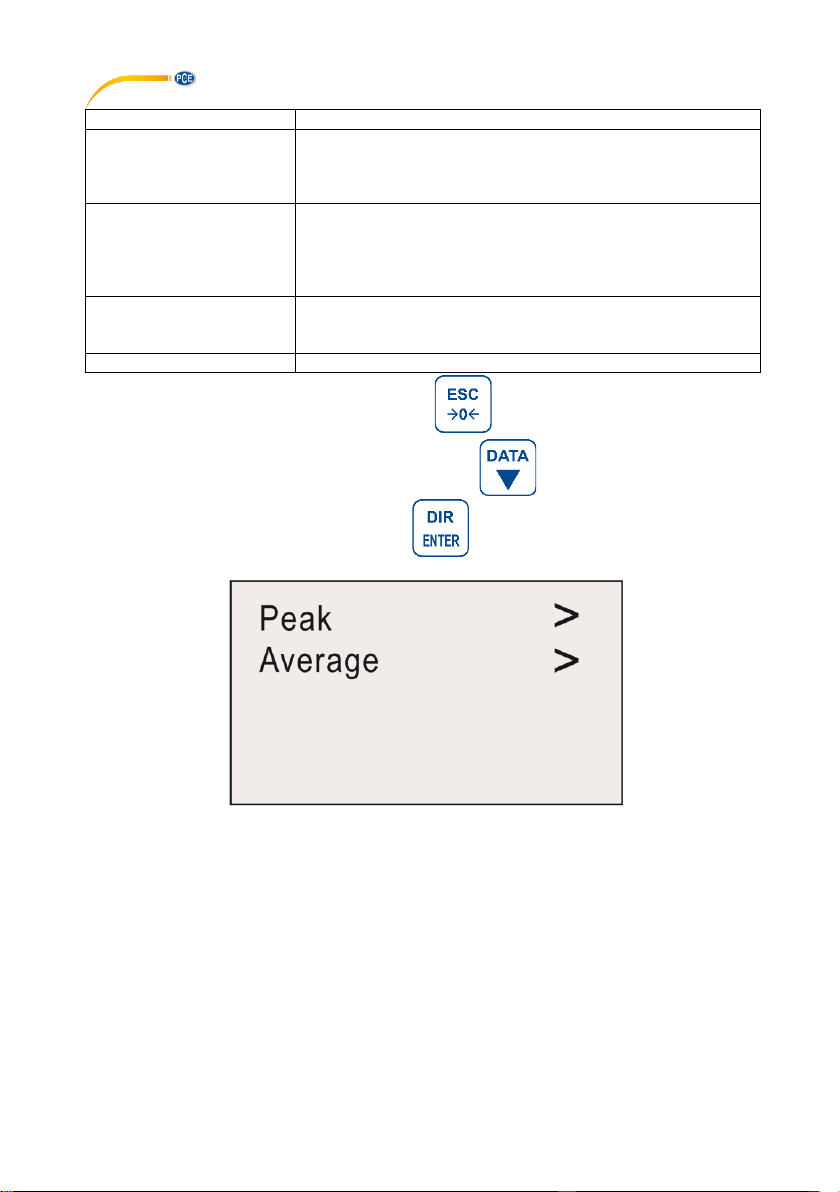

To reset and save the average value, press the key. Up to 20 average values can be

saved. To view, delete or export these data, press the key. Now select "Average" with

the arrow keys. Confirm the selection with the key.
