Patton electronics 2192 Manual de usuario

USER

MANUAL

Model 2192/USB/V.92

USB Modem

SALES OFFICE

+1 (301) 975-1000

TECHNICAL SUPPORT

+1 (301) 975-1007

www.patton.com

Part# 07M2192 Rev. A

Doc# 09401U2-001

Revised 10/26/04

An ISO-9001

Certiﬁed Company

CONTENTS

1.0 Compliance and Trademarks..................................................... 3

1.1 FCC Notice................................................................................... 3

1.2 FCC Requirement......................................................................... 3

1.3 Trademark Acknowledgements.................................................... 4

2.0 General Information.................................................................... 5

2.1 Package Contents ........................................................................ 5

2.2 V.92 Features............................................................................... 5

QuickConnect............................................................................... 6

PCM Upstream............................................................................. 6

Modem-on-Hold (MOH)................................................................ 6

V.44 Data Compression ............................................................... 6

3.0 Installation................................................................................... 7

3.1 Setting Up the Modem in Windows 98.......................................... 7

3.2 Setting Up the Modem in Windows ME...................................... 11

3.3 Setting Up the Modem in Windows 2000.................................... 12

3.4 Setting Up the Modem in Windows XP....................................... 13

4.0 Setting Up and Using Modem-on-Hold................................... 16

4.1 Configuring Modem-on-Hold....................................................... 16

Configuring V.92 settings ........................................................... 16

Selecting the country/area.......................................................... 18

Enabling the speaker (optional).................................................. 19

4.2 Connecting and logging onto your ISP....................................... 20

4.3 Using Modem-on-Hold................................................................ 20

Making an outgoing call while online.......................................... 21

Receiving a call while online....................................................... 22

5.0 Diagnostics ............................................................................... 25

5.1 Windows 98/ME.......................................................................... 25

5.2 Windows 2000/XP ...................................................................... 25

1.0 COMPLIANCE AND TRADEMARKS

1.1 FCC NOTICE

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of FCC Rules.These limits are

designed to provide reasonable protection against harmful interference

in a residential installation.This equipment generates, uses and can radi-

ate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communi-

cations.However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient of relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

This unit was tested with shielded cables on the peripheral devices.

Shielded cables must be used with the unit to insure compliance.This

statement can be deleted if unit was not tested with shielded cables.

The manufacture is not responsible for any radio or TV interference

caused by unauthorized modiﬁcations to this equipment.Such modiﬁca-

tions could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference that may cause undesired

operation.

1.2 FCC REQUIREMENT

This equipment complies with Part 68 of the FCC Rules.On the base

unit of this equipment is a label that contains, among other information,

the FCC Registration Number and Ringer Equivalence Number (REN)

for this equipment. If requested, this information must be given toTele-

phone Company.

The REN is useful in determining the quantity of devices you may con-

nect to your telephone line and still have those entire devices ring when

your telephone number is called.In most, but not all area, the sum of the

RENs of all devices connected to one line should not exceed ﬁve (5).To

be certain of the number of devices you may connect to your line, as

determined by the REN, you should contact your local telephone com-

pany to determine the maximum REN for your calling area.

If your equipment causes harm to the telephone network, the telephone

company may discontinue your service temporarily. If possible, they will

notify you in advance. But if advance notice is not practical, you will be

notiﬁed as soon as possible.You will be informed of your right to ﬁle a

complain with the FCC.Your telephone company may make changes in

its facilities, equipment, operations or procedures that could affect the

proper functioning of your equipment.If they do, you will be notiﬁed in

advance to give you an opportunity to maintain uninterrupted telephone

service.

The telephone company may not use the equipment on coin service.

Connection to party lines is subject to state tariffs.

1.3 TRADEMARK ACKNOWLEDGEMENTS

The terms

Microsoft

Windows 98, Windows 2000, Windows ME

, and

Windows XP

are registered trademarks of Microsoft Corporation in the

United States and other countries.The term

Linux

is a registered trade-

mark of Linus Torvalds.

2.0 GENERAL INFORMATION

Congratulations on your purchase of this USB Modem.The Model

2192/USB/V.92 Modem features the latest innovations in high speed

modem design to make electronic communication faster and easier,

including V.92 compatibility.This manual will show you how to install and

properly use the modem in order to take full advantage of its features.If

any questions or problems arise during installation or use of this product,

contact Patton Electronics Technical Support at

+1 (301) 975-1007

Note

Follow all cautions and instructions in this manual to avoid dam-

aging the product.

2.1 PACKAGE CONTENTS

Carefully unpack and remove the carton contents.Contact your dealer

immediately if any of the following items are missing or damaged:

2.2 V.92 FEATURES

The Patton 2192 USB modem is compatible with the V.92 modem stan-

dard and, when operated in conjunction with services provided by your

local phone company and Internet service provider (ISP), provides the

following capabilities:*

• QuickConnect

• PCM Upstream

Modem carton Model 2192/USB/V.92 Modem

CD-ROM (contains modem

driver software and user manual) RJ-11 tele-

phone cable USB

cable

* Your ISP and local phone company must supportV.92.If they do, the

USB modem will automatically detect that it can use V.92.

• Modem-on-Hold

• V.44 Data Compression

QuickConnect

Allows your modem to connect to the ISP faster than before.Very simply,

QuickConnect shortens the time it takes to make a connection by

remembering the phone line and ISP characteristics, then storing them

for later usage.QuickConnect cuts the modem handshake time in half for

most calls.

PCM Upstream

Boosts the upstream data rates between you and your ISP to reduce

upload times for large ﬁles and email attachments.Although previous

modem standards likeV.90 may have shown a downstream connection

rate of up to 57.6 the actual upload speeds were limited to 33.6 kbps.

V.92 raises the upload rate to a maximum of 48 kbps so e-mails and ﬁle

transfers can upload much faster.

Modem-on-Hold (MOH)

Many households use the same phone line for voice calls and for surﬁng

the Internet.Before MOH, the user browsing the Internet prevented

incoming or outgoing phone calls.Now, modem-on-hold enables users to

receive incoming calls while remaining connected to the Internet.** Also,

you can make a voice call while connected to the Internet and keep the

modem connection active.Typically, you can spend up to 10 minutes on

a voice call without affecting your online connection, then, when you

hang up the phone, you can resume browsing.For more information on

using modem-on-hold, go to Section 4.0, “Setting Up and Using Modem-

on-Hold” on page 16.

V.44 Data Compression

Automatically compresses your data to boost your effective data delivery

rates from 10 to 120% faster than those achieved by using the V.42bis com-

pression protocol.The most popular activity on the Internet is browsing web

sites, and this is whereV.44 delivers the greatest improvement overV.42bis.

Most web pages use HTML content that can be highly compressed to

increase your data throughput by up to 120%.V.44 increases data through-

put for email by up to 27%,Word documents by up to 21%, PowerPoint ﬁles

by up to 10%, and C source ﬁles by up to 45%.V.44 will not typically

increase your data delivery rate for already compressed ﬁles like JPEG and

GIF pictures, andTAR, SIT, and ZIP archived software downloads.

** Call-Waiting service from your phone company is required.

3.0 INSTALLATION

This chapter contains the following sections that describe installing the

modem driver software:

• Section 3.1, “Setting Up the Modem in Windows 98” on page 7

• Section 3.2, “Setting Up the Modem in Windows ME” on page 11

• Section , “Congratulations! The modem is installed.” on page 12

• Section , “Congratulations! The modem is installed.” on page 13

3.1 SETTING UP THE MODEM IN WINDOWS 98

This section describes how to install your Model 2192 USB modem in

Windows.When installed, the installation should look like the diagram

shown in Figure 1.

Note

The connection diagram in Figure 1 includes an optional RJ-11

modular T adapter so the USB modem and a telephone can

share the same telephone wall jack.If you will not be sharing the

wall jack, it is not necessary to install a T adapter.

Figure 1.

Connection diagram

1. Insert the CD into your CD-ROM and the system will execute the

setup.exe

automatically.The

Modem Installation

window (see

Figure 2) will appear. Click to begin installing the modem

driver.

Figure 2.

Modem Installation window

2. When the

Setup Complete

message displays (see Figure 3),

Click .

Figure 3.

Modem Installation window—Setup Complete

3. Connect one end of the USB cable supplied with the modem to the

USB port on the modem (see Figure 4).

Figure 4.

USB port location

4. Connect the other end of the cable to one of the PC’s USB ports.

The port is usually labeled with the symbol shown in Figure 5.

Figure 5.

USB symbol

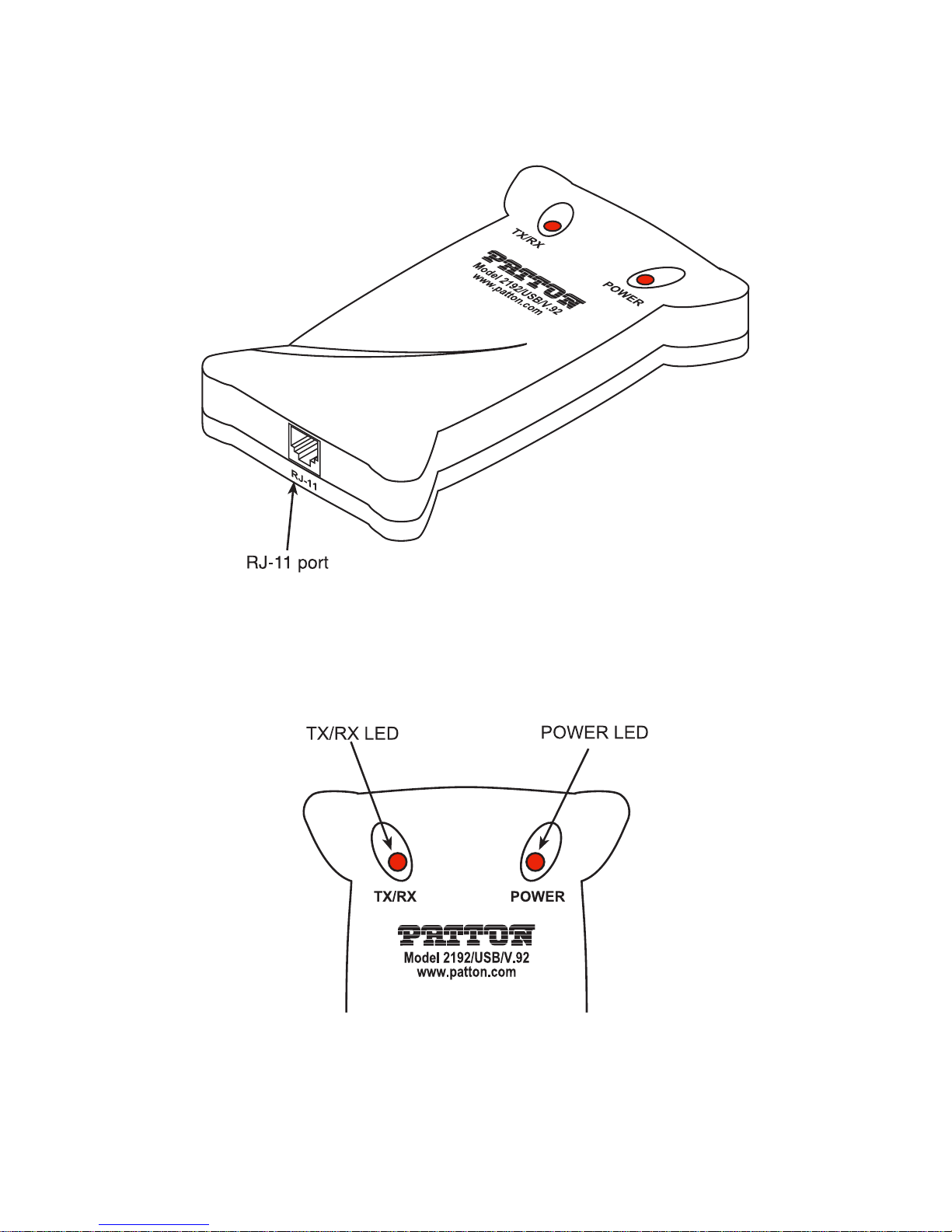

5. Plug one end of the RJ-11 cable supplied with the modem into the

RJ-11 jack (see Figure 6).

Figure 6.

RJ-11 port location

6. Plug the other end of the RJ-11 cable into the modular jack on the

wall outlet or optional T adapter.

7. Verify that the red POWER LED on the modem (see Figure 7) is lit.

Figure 7.

Model 2192 LEDs

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Módem de Patton electronics

Patton electronics

Patton electronics 1088/K Manual de usuario

Patton electronics

Patton electronics 1080A Manual de usuario

Patton electronics

Patton electronics 1006 Manual de usuario

Patton electronics

Patton electronics 1012B Manual de usuario

Patton electronics

Patton electronics 1025 Manual de usuario

Patton electronics

Patton electronics DIAMONDLINK 3201 Manual de usuario

Patton electronics

Patton electronics 2703-X21 Manual de usuario

Patton electronics

Patton electronics 1140 Manual de usuario

Patton electronics

Patton electronics 1203 Manual de usuario

Patton electronics

Patton electronics OnSite 1052 Series Manual de usuario

Patton electronics

Patton electronics MODEL 1012AR Manual de usuario

Patton electronics

Patton electronics 1004A Manual de usuario

Patton electronics

Patton electronics 1010A Manual de usuario

Patton electronics

Patton electronics 1180/35 Manual de usuario

Patton electronics

Patton electronics NetLink 1082/144 Manual de usuario

Patton electronics

Patton electronics 1093 Manual de usuario

Patton electronics

Patton electronics 1058 Manual de usuario

Patton electronics

Patton electronics 2703 Manual de usuario

Patton electronics

Patton electronics 1020 Manual de usuario

Patton electronics

Patton electronics NetLink 1082/I Manual de usuario

Patton electronics

Patton electronics 1140RC Manual de usuario

Patton electronics

Patton electronics 1000 Manual de usuario

Patton electronics

Patton electronics 2190 Manual de usuario

Patton electronics

Patton electronics 2703RC Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
