Parrot UNIKA Manual de usuario
Parrot UNIKA for Hyundai cars
Parrot UNIKA is a universal interface that allows you to control the Parrot RKi8400 directly
with the OEM steering wheel commands. Parrot UNIKA can work with car protocols such as
CAN, KBUS or resistive systems.
Installation
Compatibility
Car models
Hyundai Santa Fe: > 2006
For Parrot RKi8400
Parrot UNIKA : PI090020AB
Parrot
reference
We recommend you to install the Parrot RKi before installing the
UNIKA. Make sure the installation is correctly performed by checking if the
«Good bye» message is displayed when you turn off the ignition.
► Refer to the documentation of your Parrot RKi for more information.
Installation of
the Parrot RKi
Selecting the
protocol
Use the DIP switches located on one side of the UNIKA to select the
protocol (resistive or CAN Bus / KBus) on which the vehicle is based.
Warning: Make sure the UNIKA is not powered before selecting the
protocol.
Installation

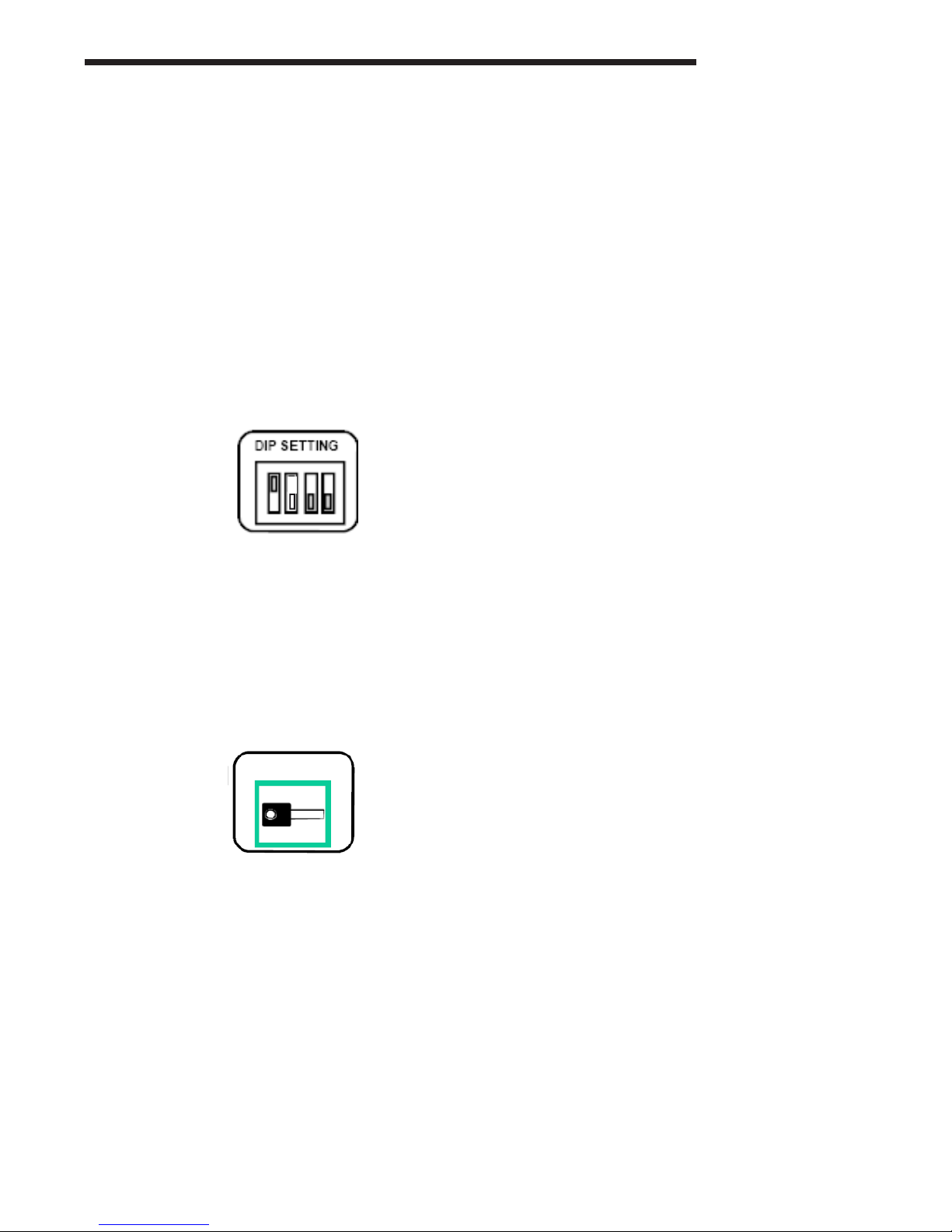

For your car set the DIP this way.
12V ignition is not provided.
Get the 12V ignition from the car.
Warning : Connect the ignition to the Parrot car kit if the vehicle is
based on a resistive or a K-Bus protocol. Don’t connect the ignition
if the vehicle is based on a CAN protocol as this signal is supplied by
the Parrot UNIKA.
Replace the MKi part on the UNIKA cable by the provided RKi part.•
Connect the UNIKA between the Parrot RKi8400 and the vehicle wiring.•
Installing the
UNIKA with
the Parrot
RKi8400
Connect +12V
Resistive protocol
The wires corresponding to the resistive protocol must be connected correctly to your car
stereo’s. It is important to follow the wiring diagram for your vehicle.
In case of problem or if you have installed the UNIKA interface in another
car, reset the UNIKA by holding down the Reset button until the LED turns
off (if the vehicle is based on a CAN Bus / KBus protocol) or blinks red (re-
sistive protocol). You can then release the reset button.
Reset
procedure
Once your UNIKA interface has been fitted, the LED should light up green
and should turn amber while pressing a button on your steering wheel.
If the LED does not light up, check the power supply connections. If the
LED is red or blinks red, check the connections.
Checking the
wiring
Warning : Once the installation is complete, turn the ignition off until the UNIKA LED
switches off.
COM Hyundaï
The wires corresponding to the Hyundai protocol configuration must be connected correctly
to your car stereo’s information. It is important to follow the wiring diagram for your vehicle.
We would advise our customers to have the interface fitted by a professional.
Connect the pink wire corresponding to V1 to pin 6.
Connect the gray/black wire corresponding to V2 to pin 18.
N° Color Functio
n Connectors
6 Pink V1
18
Gray/Black
V2
UNIKA
If you do not have 7 buttons on your steering wheel, hold down the last
button for two seconds until the LED turns green.
Specific case
Warning : Once the installation is complete, turn the ignition off until the UNIKA LED
switches off.
1- Programming Parrot UNIKA for your car
The wires corresponding to the resistive protocol must be connected correctly to your car
stereo’s. It is important to follow the wiring diagram for your vehicle.
If your vehicle is based on a resistive protocol, you have to define the
mode manually:
1. Turn the ignition on.
> The LED blinks red once.
2. Press the buttons on the steering wheel in the following order:
s r c .
> Each time you press a button, the LED blinks in red.
Defining the
mode
In case of problem or if you have installed the UNIKA interface in another
car, reset the UNIKA by holding down the Reset button until the LED turns
off (if the vehicle is based on a CAN Bus / KBus protocol) or blinks red (re-
sistive protocol). You can then release the reset button.
Reset
procedure

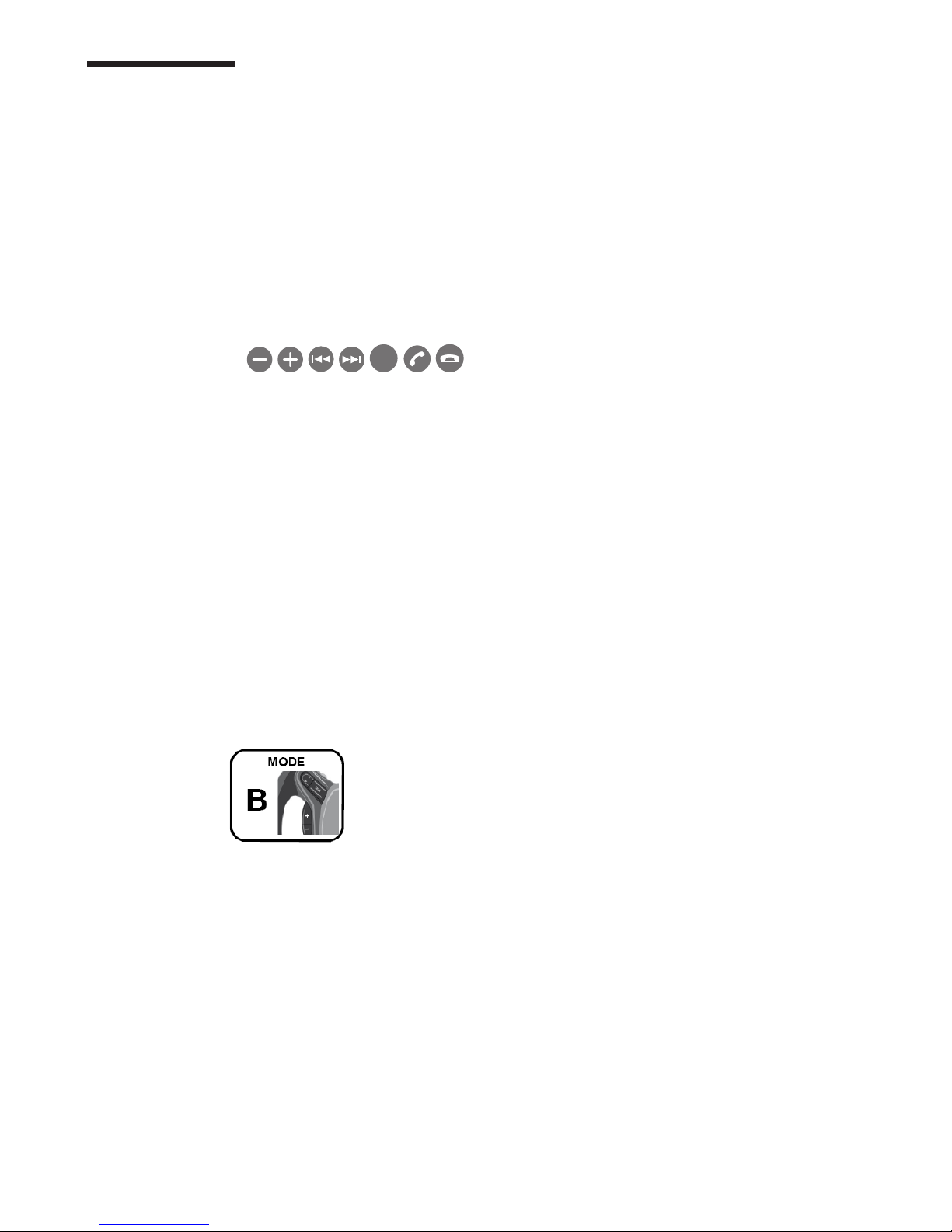

Your system runs on B mode.
The wires corresponding to the resistive protocol must be connected correctly to your car
stereo’s. It is important to follow the wiring diagram for your vehicle.
In case of problem or if you have installed the UNIKA interface in another
car, reset the UNIKA by holding down the Reset button until the LED turns
off (if the vehicle is based on a CAN Bus / KBus protocol) or blinks red (re-
sistive protocol). You can then release the reset button.
Reset
procedure
Once your UNIKA interface has been fitted, the LED should light up green
and should turn amber while pressing a button on your steering wheel.
If the LED does not light up, check the power supply connections. If the
LED is red or blinks red, check the connections.
Checking the
wiring
Warning : Once the installation is complete, turn the ignition off until the UNIKA LED
switches off.
Resistive protocol
Depending on the steering wheel control in your vehicle, the UNIKA
interface will enable you to take full advantage of the telephone and music functions in 4
different modes: Mode A (4 buttons), Mode B (5 buttons), Mode C (6 buttons) and Mode D
(7 buttons).The selection of this mode depends on the protocol of the vehicle.
Note : Pictograms on the buttons depend on the model of the vehicles.

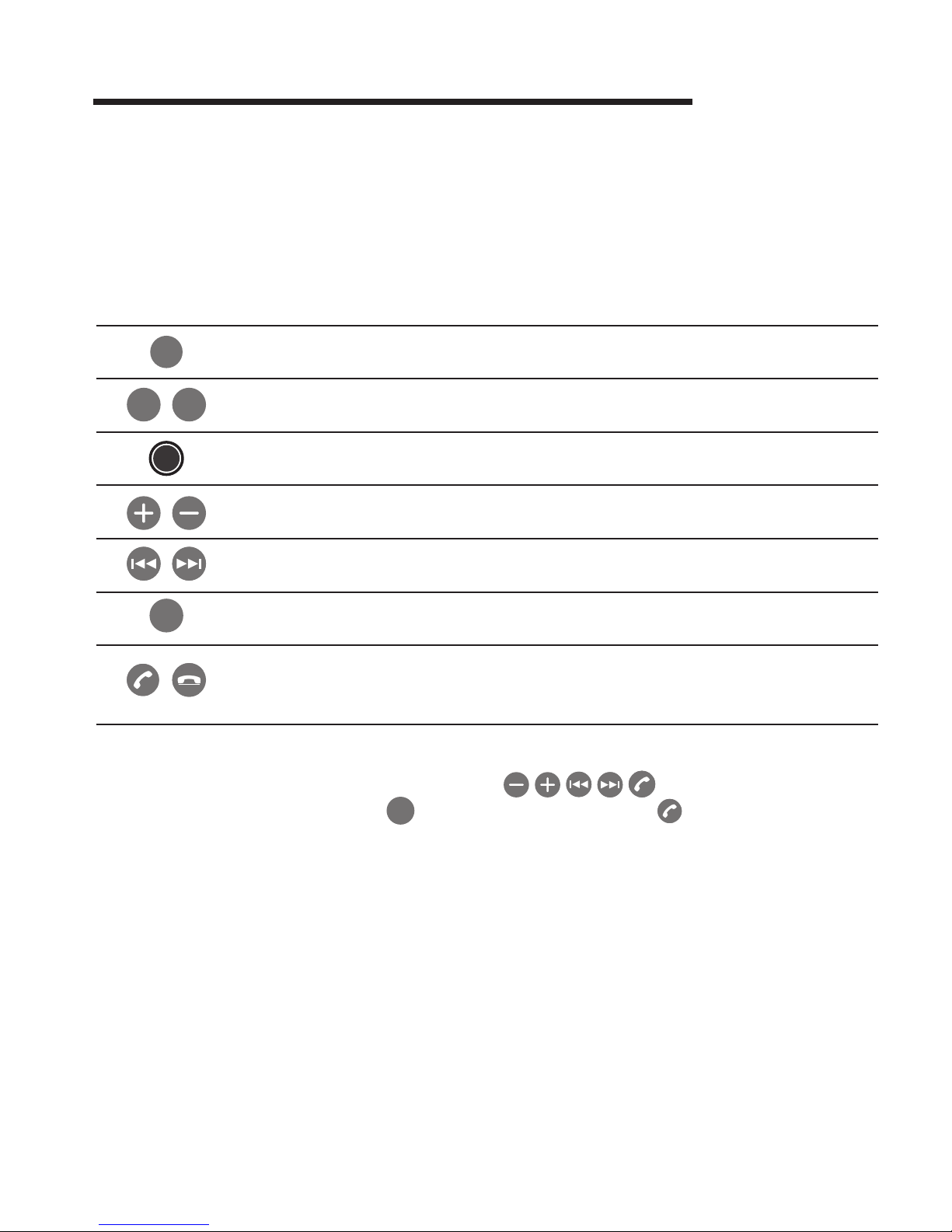

2 - Features
Warning : The mode you will use depends on the number of available buttons and not on
the pictograms. For instance, if you have the
buttons, you will use the
UNIKA in mode B : consider the SRC buttons is replaced by the button.
Short press
Long press
Volume
2 short presses
Seek
SRC Source
Pick up - Hang up
/Adjust the volume / Modifier le volume / Ajustar el volumen / Einstellung
der Lautstärke / Modificare il volume / De geluidssterkte regelen
s r c s r c
Answer an incoming call / Répondre à un appel / Descolgar una llamada
/ Entgegennehmen eines eingehenden Anrufs / Rispondere a una chia-
mata / Een inkomend gesprek opnemen
s r c
Refuse an incoming call / Refuser un appel / Colgar una llamada / Been-
den eines eingehenden Anrufs / Rifiutare una chiamata / en inkomend
gesprek weigeren
s r c Hang up / Raccrocher / Rechazar / Ablehnen / Riagganciare / Ophangen
s r c Redial function / Fonction Bis / Función de rellamada / Wiederholung
des letzten Anrufs / Funzione Bis / Bis functie
/ Next - previous / Suivant - précédent / Siguiente - precedente / Vor-
hergehende - nächsten / Precedente - successivo
s r c s r c Discreet mode / Mode discret / Modo discreto / Diskreter Modus / Mo-
dalità privata / Privacy mode
s r c s r c
Exit discreet mode / Sortir du mode discret / Salir del modo discreto /
Beenden des Diskreter Modus / Disattivare la modalità privata / De dis-
crete modus opheffen
s r c s r c
Start the voice recognition feature / Lancer la reconnaissance vocale /
Iniciar el modo de reconocimiento de voz / Aktivieren der Spracherken-
nung / Attivare la funzione di ricon. vocale / De modus Spraakherken-
ning sluiten
s r c Selecting a music source / Sélectionner une source audio / Seleccionar
una fuente de audio / Auswahl der Audioquelle / Selezionare l’audio
/ Next - previous / Suivant - précédent / Siguiente - precedente / Vor-
hergehende - nächsten / Precedente - successivo
Mode B
