Parrot CK3100 Series Manual de usuario
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
The VOLKSWAGEN POLO marque and VOLKSWAGEN logo are the property of the VOLKSWAGEN France Group s.a or VOLKSWAGEN AG.
This document is only valid for the vehicle model POLO V® year 2009 to 2011, excluding all other models in the same range and excluding later
modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.
POLO V
Installation manual:
Parrot MKi + Parrot
CK3100 range
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
Disassembly
40min
Mounting kit
30min
Reassembly
40min
Testing
15min
Total
2h 05min
NO
+IGN
NO
ISO
YES
UNIKA
FRONT LOUDSPEAKER
TEL mode
ALL
MUSIC mode

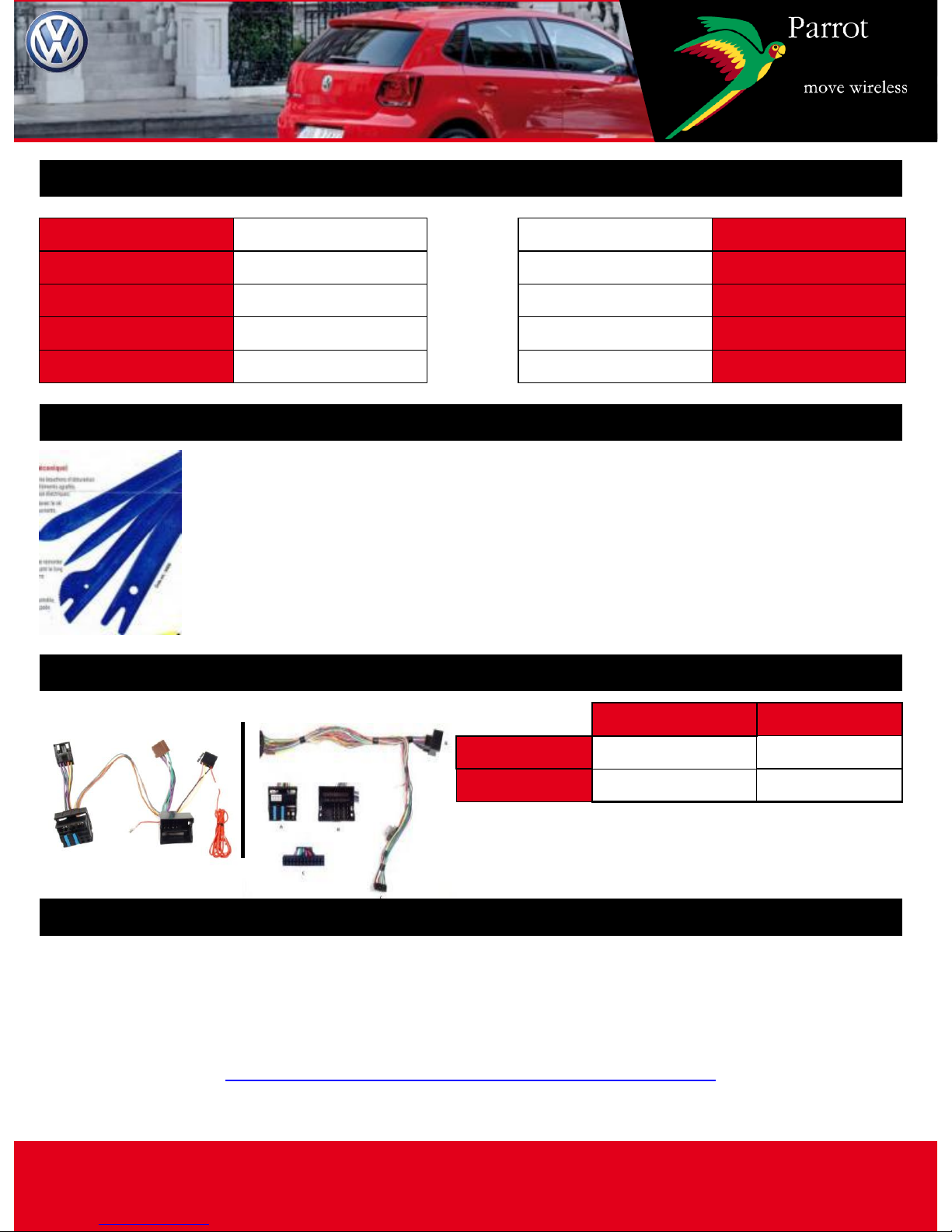

Fitting time (estimated) / Main features
Tools
-TORX screwdriver
- Cutting pliers
- Crimping pliers
- Multimeter or Test lamp
- Wire tie
- Electrical tape
Plastic trim removal
tools
FACOM / BOJO
Accessories required
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
http://www.parrot.com/usa/support/downloads
Updating
- Round male terminal
- Flat 1.5 mm terminal
- Jumper
- Soldering iron
- Solder
"Please contact your retailer to purchase
accessories. List of retailers available at
www.certified.parrot.com"
Kram ref.
Dealer ref.
CK range
86 200
YY 138 CABL 2
MKi range
84 942
YY 138 CABL 2
Photos for illustration purposes
CK range MKi range
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
Disassembly
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
Disassembly 1 / 2
Release the panel by inserting the
plastic trim tools underneath. Remove screws 1 and 2.
Unclip the cabin light and
disconnect it.
Using the plastic trim tools,
unclip the courtesy light from the
left-hand side.
5 6
Using the plastic trim tools,
unclip the car stereo and air
conditioning surround. Unplug
the airbag indicator connector.
Remove screws 3, 4, 5 and 6
around the radio. Disconnect the
connector and the aerial cables.
1 2
3
4
4
5
1
3
2
4
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V

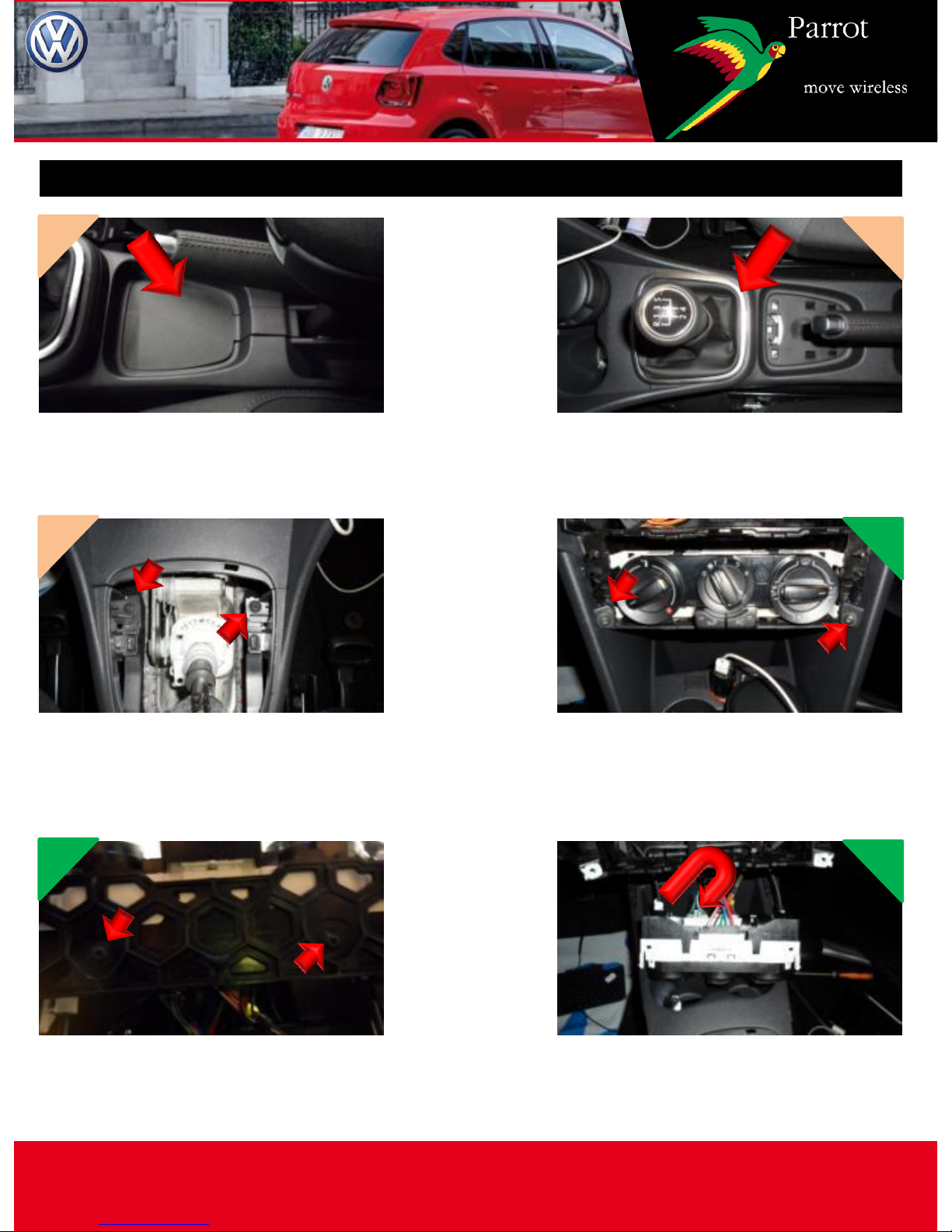

Disassembly 2 / 3
Using the plastic trim tools, unclip
the storage compartment cover
under the handbrake.
Using the plastic trim tools, unclip
the gear lever cover without
dismantling it.
Unscrew screws 7 and 8 under
the gear lever cover.
Unscrew screws 9 and 10 at the
top of the central console, pull
hard to unclip it, then remove it.
7
9
8
10
11 12
Unscrew screws 11 and 12 under
the air conditioning control.
Push to the bottom of its
housing raise it and remove it
from below.
7
8
9
10
11
12
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
Disassembly 3 / 3
Remove the door seal.
15 10
Using the plastic trim tools, unclip
the left hand side of the
dashboard.
14
Unclip the fusebox cover.
13
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V

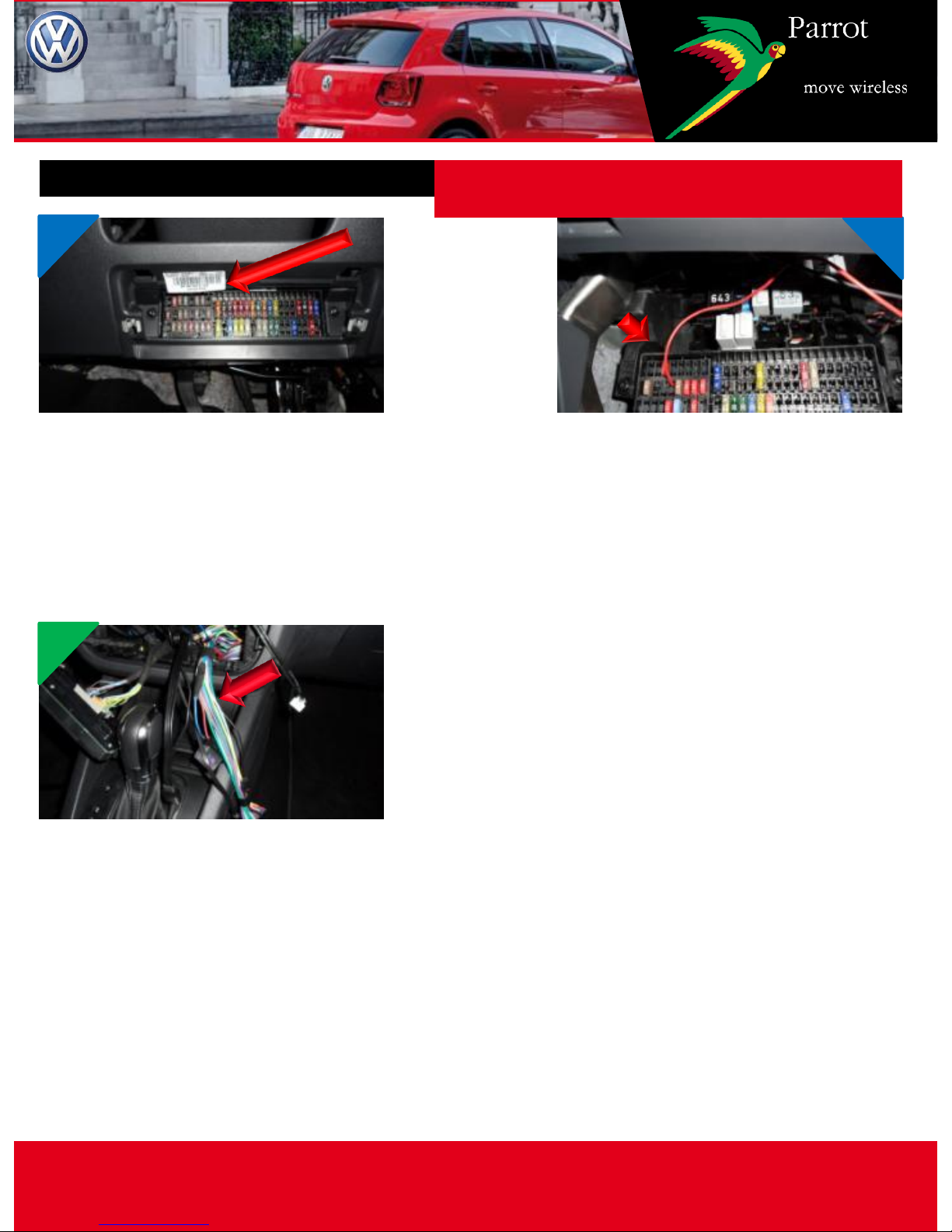

Finding an ACC wire
Using a guide, feed an electric
wire from under the steering
wheel to the air conditioning
control housing. Feed the wire to
the left into the fusebox housing.
Fit a 1.5 mm terminal and insert it
into one of the small fuse slots to
the left of the box (using a
multimeter, check that the +12V
supply is indeed controlled by the
ignition key).
Connect the +IGN using a male
round terminal to the blue wire
of the 84942 adapter in front of
the fuse holder or on the red
wire of the 86200 or
YY138CABL2 adapter.
1
3
2
Option 1: Via the fusebox (automatic air
conditioning)
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
Finding an ACC wire
Make a pigtail connection on the
large gauge red/white cable
behind the air conditioning
control. Then connect a blue
cable using a jumper or by
soldering, and insulate using
adhesive tape (using a
multimeter, check that the +12V
supply is indeed controlled by the
ignition key).
Connect the +IGN wire using a
male round terminal to the blue
wire of the adapter in front of the
fuse holder.
1 2
Option 2: Via the air conditioning control (manual air
conditioning)
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V
Wiring the microphone 1 / 2
Using a guide, feed the cable from
the windscreen to the cabin light.
Locate the microphone at the side
of the cabin light facing the user.
Using a guide, feed the cable
from the cabin light to the
courtesy light.
Using a guide, feed the cable
from the courtesy light to the
driver's side door.
4
5 6
Slide the cable along the driver's
door pillar while replacing the
door seal.
Feed the cable from the left
hand, driver's side of the
dashboard.
1
3
2
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
authorisation of Parrot SA. Pictures for information only.
POLO V

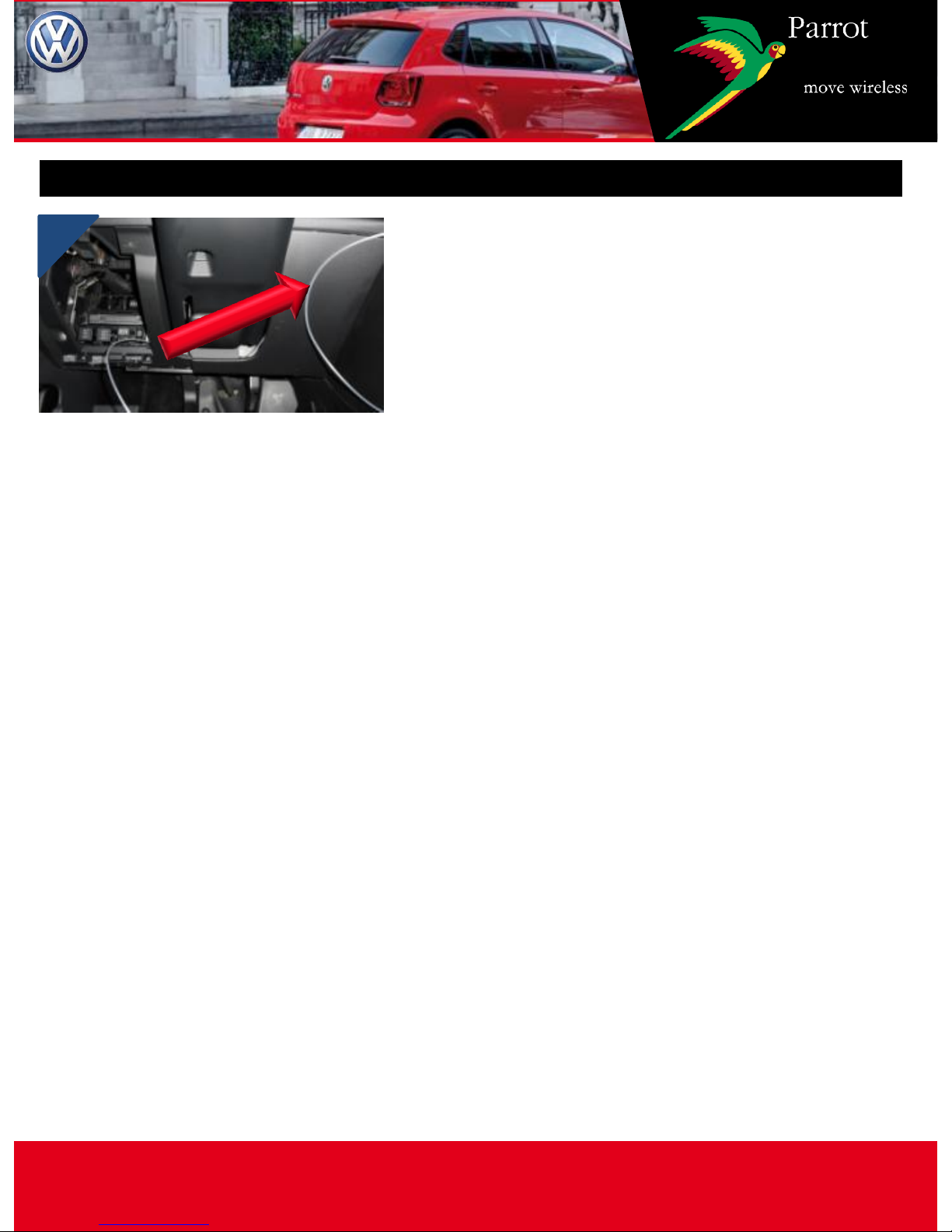

Wiring the microphone 2 / 2
Using a guide, feed the cable
under the steering wheel towards
the car stereo housing.
7
