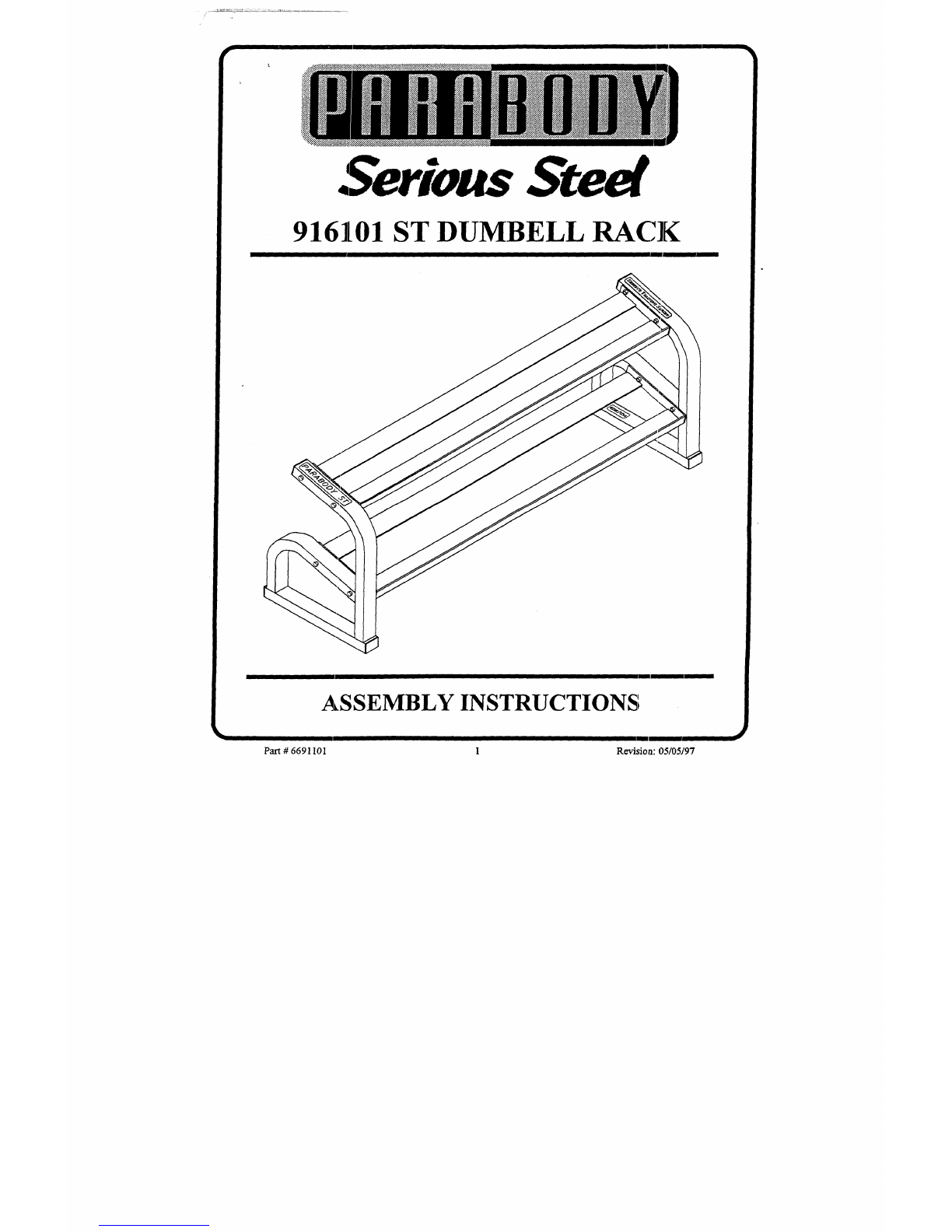

I II I 916101 ST DUMBELL RACK

L

ASSEMBLY INSTRUCTIONS

Part # 6691101 1 Revision: 05/05/97

iIMPORTANT NOTES

I

The~reis a risk assumedby individuals whouse this type of equipment.Tominiraize risk, please

followthese rules:

1. Consult your physician before beginning any exercise program.

2. Inspect equipmentdaily. Tighten all loose connectionsand replace wornp~a’ts immediately.

Failure to doso mayresult in serious injury.

3. Donot allow minorsor children to play on or aroundthis equipment.

4. Exercisewithcare., to avoidinjury.

5. If unsureof properuse of equipment,call yourlocal Parabodydistributor or call the

Parabodycustomer service department at (800) 328-9714.

Please note:

* Thankyou for purchasing the Parabody916101STDumbbell.Please read these

instructions thoroughly and keep themfor future reference. This product mustbe assembled

ona flat, level surfaceto assureits properfunction.

* Werecommendcleaning your product (pads and frame) on a regular basis, using warmsoapy

water. Touch-uppaint can be purchasedfrom your Parabodycustomerservice representative

at (800) 328-9714.

ITools Requi,red for Assembly

I

*3/4" wrench

* Ratchet with 3/4"

* Tape measure socket

Bolt LengthRuler

NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.

0123456

PARTS LIST ’,’1

KEY PART# DESCRIPTION QTY

16688301 UPRIGHTFRAME 2

26688701 TOP TIER 1

36689001 BOTfOMTIER 1

4 3202103 1/2-13 X 4" BOLT 8

5 3102502 1/2" WASI-~R 8

63102801 1/2" LOCKNUT 8

STEP 1: Loosely attach BoTroMTIER (3) between the UPRIGHTFRAMES(1) using fi)ur 1/2

BOLTS(4) four 1/2" WASHERS(5), and four 1/2" LOCKNUTS(6) as showr~ in figure

(NOTE: BoTroM TIER (3) is wider than TOP TrER (2).

FIGURE 1

1/2 X4"

I 1/2 I

STEP2: Loosely attach TOPTIER(2) between the UPRIGHTFRAMES(1) using lobar 1/2

BOLTS(4), four 1/2" WASHERS(5), and four 1/2" LOCKNUTS(6) as shc,wn in figure

(NOTE:BOTTOMTIER (3) is wider than TOPTIER (2).

FIGURE 2

STEP 3: SECURELN TIGHTEN ALL BOLT CONNECTIONS.

3[ I I I

0 [ I I I

I I 4
