Panasonic MC-CL934 Manual de usuario

Thank you for purchasing this vacuum cleaner.

Please read these instructions carefully before using the vacuum cleaner

and save these instruction for future reference.

This product complies with the directive 2006/95/EC and 2004/108/EC.

Operating Instructions

VACUUM CLEANER

(HOUSEHOLD)

Model No. MC-CL934

Washable Filter

TABLE OF CONTENTS

Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Caution for AC Mains Lead (UK and Ireland only) . . . . . . . . . . . . . . . . . . . . . 3

Important Safety Instructions for the User . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

To Operate Vacuum Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Performance/Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Routine Care of Vacuum Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Reminder for Customer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Disposal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

- 2 -

To avoid damaging the

vacuum cleaner, never let

the vacuum cleaner pick

up wet matter, mud,

burning ashes or large and

sharp objects.

Do not pull on the mains

lead when disconnecting

the appliance from the

mains socket, always pull

on the plug body itself.

Keep the vacuum

cleaner away from heat

sources such as

radiators, fires, direct

sunlight, etc.

CAUTIONS

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and

convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has rating

of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the

fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is

obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN

YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF

AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL

SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following

code:

Blue : Neutral

Brown : Live

As the colours of the wire in the mains lead of this appliance may not correspond with

the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal in the plug which

is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which

is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the earth terminal

of the three pin plug, marked with the letter E or the Earth Symbol

How to replace the Fuse:

• There are two types of the supplied AC Mains Lead : A and B as shown below.

1 Open the fuse compartment with a screwdriver.

2 Replace the fuse and fuse cover if detachable.

ASA

TYPE A TYPE B

- 3 -

CAUTION FOR AC MAINS LEAD (UK and Ireland only)

• Do not leave the vacuum cleaner plugged into mains socket.

Unplug from the socket when not in use and before cleaning the

appliance or undertaking maintenance operations.

• This appliance can be used by children aged 8 years and above

and persons with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge if they have been given

supervision or instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

• Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervisions.

• Do not use if the mains lead or mains plug is damaged. If the mains

lead or mains plug is damaged it must be replaced by the

manufacturer, it’s service agent or similarly qualified persons to

avoid hazard.

• If the vacuum cleaner is not working as it should be, or has been

dropped, damaged, left outdoors, or come into contact with water,

consult an authorised Panasonic Service Centre.

• Do not pull or carry by the mains lead, use the mains lead as a

handle, close a door on the mains lead, pull the mains lead around

sharp edges or corners. Do not run over the mains lead with the

vacuum cleaner. Keep the mains lead away from heated surfaces.

• Do not handle plug or vacuum cleaner with wet hands.

• Do not put any object into openings. Do not use with any opening

blocked; keep free of dust, lint, hair and anything that may block or

reduce air flow.

• Keep hair, loose clothing, fingers, and all parts of body away from

openings and moving parts.

• Do not use the vacuum cleaner without filters and /or dust cup in

place.

• Do not use wet filters after wash, see Primary Filter (page 14).

• Turn off all controls before unplugging.

• Do not use to pick up flammable or combustible materials, or others

that may become so or use in areas where they may be present.

• This appliance should be serviced by an authorised Panasonic

Service Centre, and only genuine Panasonic spare parts should

be used.

• Use extra care when cleaning on stairs. Keep hold of the handle to

prevent the vacuum cleaner from falling.

NOTE: This vacuum cleaner is designed for general household use

only and is not suitable for use in a garage, garden or to suck up

liquids.

Before using the vacuum cleaner, please read these basic

precautions.

WARNING: To reduce the risk of fire, electric shock, or injury.

- 4 -

IMPORTANT SAFETY INSTRUCTIONS FOR THE USER

- 5 -

PARTS IDENTIFICATION

CONSUMABLE PARTS

HEPA Media Exhaust Filter AC38KDWCZV07

Washable Primary Filter AC44KDSCZ000

Handle

Suction

Control

Crevice Tool

Hose

Telescopic

Wand

Hose

Swivel

Dusting

Brush

Handle Quick Release

Mains Lead

Washable Primary

Filter (inside)

Cord Rewind

Button

Carrying

Handle

HEPA Media Exhaust

Filter (inside)

Exhaust Filter

Tray

Dust Cup

On/Off Switch

Floor

Brush

Carpet/Bare

Floor Selector

Dusting

Brush

Quick Release

Pedal

Wand

Button

Parquet

Nozzle

- 6 -

➢Insert handle into wand until lock

button snaps in place.

To remove:

➢Press handle quick release button and

pull up on handle.

➢

To adjust, simply push down on the wand

and slide the wand to the desired height.

Handle

Telescoping

Wand

Lock Button

Handle Quick

Release

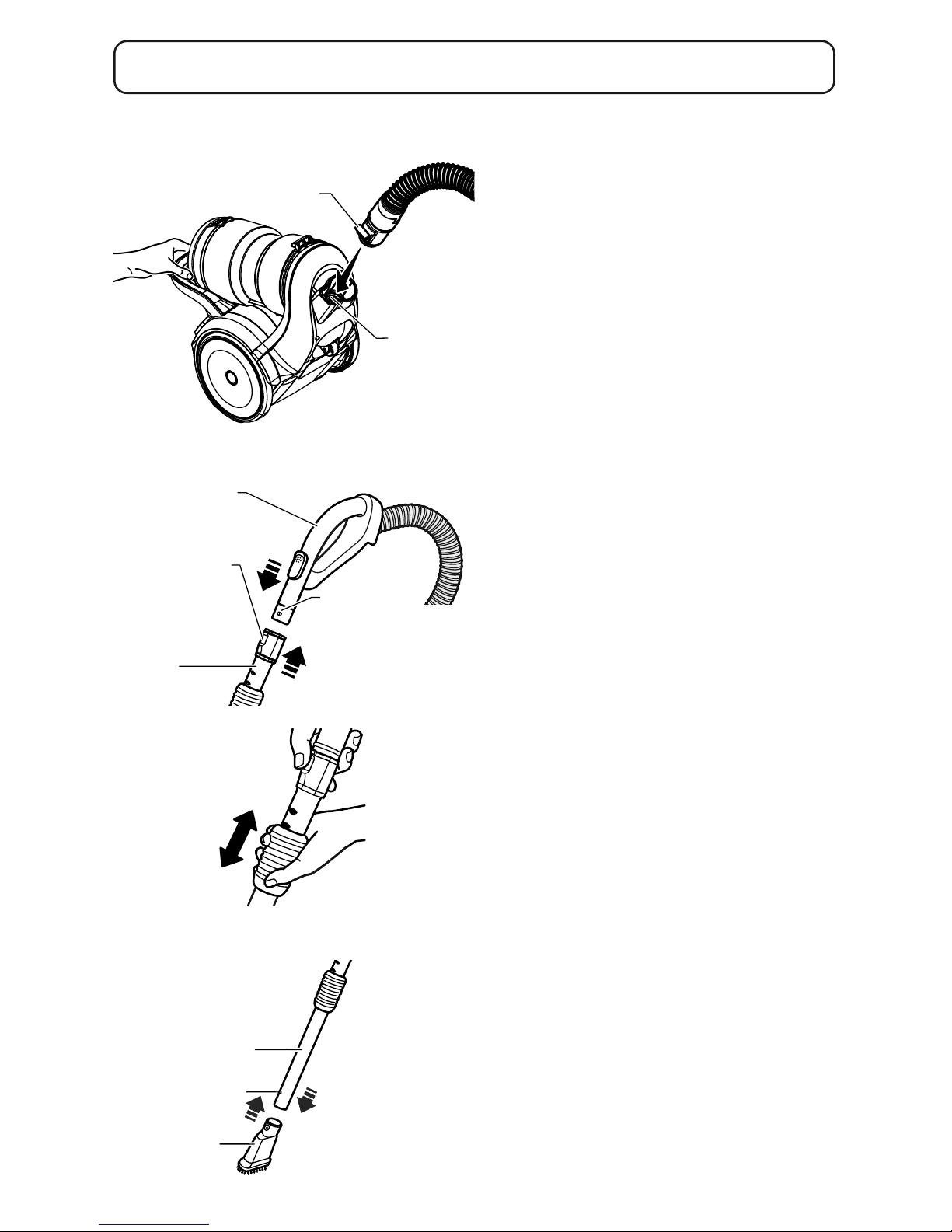

ASSEMBLY

➢Tilt the canister back.

➢Align the hose latch tab and notch in

canister and insert hose into canister

until it snaps in place.

To remove:

➢Press hose latch tab inward and pull

out on hose.

Hose Latch

Tab

Notch

Hose

Telescopic

Wand

Button

Dusting

Brush

Dusting Brush

➢Place dusting brush onto wand until

the wand button snaps into place.

To remove:

➢Press wand button and remove

dusting brush from wand.

Handle and Telescopic Wand

➢

Pull mains lead out of canister to

desired length.

➢

The mains lead will not rewind until the

rewind button is pushed.

➢

Plug the mains lead into a mains socket

located near the floor.

To rewind:

➢

Unplug the vacuum cleaner.

➢

Hold the plug while rewinding to prevent

damage or injury from the moving cord.

➢

Push rewind button.

On-Off Switch

On/Off

Switch

➢

To turn vacuum cleaner on or off, press

on the on/off switch.

TO OPERATE VACUUM CLEANER

Mains Lead

Telescopic

Wand

Floor

Brush

Quick

Release

Pedal

Floor Brush

➢Insert wand into floor brush until the

wand button snaps into place.

To remove:

➢Press quick release pedal and pull the

wand straight up and out of floor

brush.

- 7 -

- 8 -

ATTACHMENTS ON HANDLE

➢Press handle quick release button and

pull up on handle.

➢Slide attachments firmly on handle as

needed.

ATTACHMENTS ON WAND

➢Press quick release pedal and pull the

wand straight up and out of floor brush.

➢Slide attachments on wand as needed.

➢Parquet nozzle can be used for

cleaning wood floors.

Handle Quick

Release Button

Quick Release

Pedal

Tools

➢The floor brush can be adjusted to suit

the floor.

Carpet/Bare Floor Selector

Suction Control

Suction

Control

Increase

Suction

Decrease

Suction

➢Suction control allows you to change

vacuum cleaner suction for different

fabric and carpet weight.

➢Opening control decreases suction for

draperies and lightweight rugs.

➢Closing control increases suction for

upholstery and carpets.

- 9 -

Thermal Protector

This vacuum cleaner has an internal thermal protector which automatically trips to protect

the vacuum cleaner from overheating.

If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor

off automatically. This allows the motor to cool in order to prevent possible damage to the

vacuum cleaner.

To correct problem:

➢Turn the vacuum cleaner off and unplug the mains lead from the mains socket to allow

the vacuum cleaner to cool and the thermal protector to reset.

➢Check for and remove clogs, if necessary (See REMOVING CLOGS p. 10). Also

check and replace any clogged filters and empty dust cup, if necessary.

➢Wait approximately fifty (50) minutes and then plug the vacuum cleaner in and turn

back on to see if the motor protector has reset.

Motor Protection System

Motor Protector

This vacuum cleaner also has a motor

protector bypass valve which prevents

motor overheating and damage. The valve

opens to provide cooling air when a clog

prevents normal air flow to the vacuum

cleaner suction motor. You will notice a

change of sound as air rushes through the

valve opening.

To correct problem:

➢

Empty the dust cup and clean the primary filter and pre-filter.

➢

Check for and remove clogs, and empty dust cup if necessary. See REMOVING CLOGS

(page 10).

NOTE: Do not block motor protector.

NOTE: The motor protector may open when using attachments or when cleaning new carpet

due to reduced airflow caused by the attachments themselves or by new carpet.

Motor

Protector

Dust

Cup

PERFORMANCE / SAFETY FEATURES

- 10 -

Pre-Filter

Floor

Brush

Dust Cup

Primary

Filter

Exhaust

Filter

Telescopic Wand

Handle

Airflow Passage

Removing Clogs

ROUTINE CARE OF VACUUM CLEANER

The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the

dust cup through the airflow passages. The dust cup lets the air pass through, while it traps

the dirt.

For best cleaning results, keep the airflow passage open. Check the starred areas

occasionally for clogs. Turn off and unplug vacuum cleaner from outlet before checking.

Cleaning Exterior and Tools

➢Unplug mains lead from wall outlet.

➢Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid

detergent and water and wrung dry.

➢DO NOT drip water on vacuum cleaner. Wipe dry after cleaning.

➢DO NOT clean tools in dishwasher or clothes washer.

➢Wash tools in warm soapy water, rinse and air dry.

➢DO NOT use tools if they are wet.

Tabla de contenidos

Otros manuales de Aspiradora de Panasonic

Panasonic

Panasonic MC-CG461 Manual de usuario

Panasonic

Panasonic MCV5210 - COMMERCIAL VACUUM Manual de usuario

Panasonic

Panasonic MC-SB33JW046 Manual de usuario

Panasonic

Panasonic MCV210 - COMMERCIAL VACUUM Manual de usuario

Panasonic

Panasonic MC-CG955 Manual de usuario

Panasonic

Panasonic MC-V5004 Manual de usuario

Panasonic

Panasonic M-CV5481 Manual de usuario

Panasonic

Panasonic MCV120 - COMMERCIAL VACUUM Manual de usuario

Panasonic

Panasonic MC-E6003 Instrucciones de construcción

Panasonic

Panasonic MC-CG301 Manual de usuario

Panasonic

Panasonic MC-CG711A249-AE Manual de usuario

Panasonic

Panasonic MCV7582 - UPRIGHT VACUUM Manual de usuario

Panasonic

Panasonic EY37A3 Manual de usuario

Panasonic

Panasonic MCCG381 - CANISTER VACUUM - MULTI LANGUAGE Manual de usuario

Panasonic

Panasonic MC-V5239 Manual de usuario

Panasonic

Panasonic MCCG973 - CANISTER VAC - MULTI LANGUAGE Manual de usuario

Panasonic

Panasonic MCCG467 - CANISTER VAC - MULTI LANGUAGE Manual de usuario

Panasonic

Panasonic MCV5278 - UPRIGHT VACUUM-PLATI Manual de usuario

Panasonic

Panasonic MCV5117 - UPRIGHT VACUUM-QKDR Manual de usuario

Panasonic

Panasonic MC-UL712 Manual de usuario

Panasonic

Panasonic MC-E593 Manual de usuario

Panasonic

Panasonic MC-E4061-00 Manual de usuario

Panasonic

Panasonic MC-CL789 Manual de usuario

Panasonic

Panasonic MC-SBU1F Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario

Nobles

Nobles 608669 Manual del producto
