Panasonic EBX70 - CELL PHONE Manual de usuario

Issue 1

Revision 0

Unauthorized copying and distribution is a violation

of law.

Order Number: PMCD030901C8

Digital Cellular Phone

EB-X70

Talk and standby time will be dependent on network conditions, SIM card, backlight usage

and network condition.

Service Manual

900 MHz 1800 MHz 1900 MHz

Tx Frequency Range: 880 - 915MHz 1710 -1785 MHz 1850 - 1910 MHz

Rx Frequency Range: 925 - 960 MHz 1805 -1880 MHz 1910 - 1990 MHz

Tx / Rx separation 45 MHz 95 MHz 60 MHz

RF Channel Bandwidth 200 kHz

Number of RF channels 174 374 299

Speech coding Full rate/Half rate/Enhanced Full rate

Operating temperature -10 °C to +55 °C

Type Class 4 Handheld Class 1 Handheld Class 1 Handheld

RF Output Power 2 W maximum 1 W maximum 1Wmaximum

Modulation GMSK (BT = 0.3)

Connection 8 ch / TDMA

Voice digitizing 13 kbps RPE-LTP / 13 kps ACLEP / 5.6 kps CELP / VSLEP

Transmission speed 270.833 kbps

Signal Reception Direct conversion

Antenna VSWR < 2.1 : 1

Dimensions Height: 87.3 mm

(excluding Width: 47.1 mm

antenna) Depth: 24 mm

Volume 80 cc

Weight 95 g

Main Display LCD, 176 x 132 pixels, 65,536 colours

Sub Display LCD, 96 x 28 pixels, monochrome

Illumination 10 LEDs for Keypad Backlighting (White)

4 LEDs for LCD Backlighting (White)

3 LEDs for Sub LCD (Blue, Green, Orange)

Keys 17-key Keypad, Navigation key, 1 memo key

SIM 3 V Plug-in type only

External DC Supply

Voltage

5.8 V

Battery 3.7 V nominal, 680mAh, Li-Ion

Standby Time

Ta l k T i m e

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general

public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to

service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to

service or repair the product or products dealt with in this service manual by anyone else could result in serious injury or

death.

All manuals and user guides at all-guides.com

all-guides.com

Issue 1 – ii – PMCD030901C8

Revision 0 Service Manual

COMPANY LIABILITY

Every care has been taken to ensure that the contents of this manual give an accurate representation of the equipment.

However, Panasonic Mobile Communications Development of Europe Ltd. accepts no responsibility for inaccuracies which

may occur and reserves the right to make changes to the specification or design without prior notice.

The information contained in this manual and all rights in any design disclosed therein, are and remain the exclusive property

of Panasonic Mobile Communications Development of Europe Ltd.

Other patents applying to material contained in this publication:

CP8 PATENTS

Comments or correspondence concerning this manual should be addressed to:

Panasonic Mobile Communications Development of Europe Ltd.,

2 Gables Way

Thatcham,

Berkshire.

RG19 4ZB.

ENGLAND

CONTENTS Page Page

1INTRODUCTION 1

1.1 Purpose of this Manual 1

1.2 Structure of the Manual 2

1.3 Servicing Responsibilities 2

2GENERAL DESCRIPTION 3

2.1 General 3

2.2 Features 3

2.3 Telephone Handset Main Kit 3

3OPERATING INSTRUCTIONS 4

3.1 General 4

3.2 Controls and Indicators 4

3.3 Liquid Crystal Displays 5

3.4 Alpha Entry 5

3.5 Features Menu Structure 6

3.6 IMEI and Software Identification 7

3.7 SIM Personalisation 7

4TECHNICAL DESCRIPTION 9

4.1 RF Overview 9

4.2 Transmitter 11

4.3 Receiver 12

4.4 Baseband Overview 13

4.5 CALYPSO+ 16

4.6 SYREN 18

4.7 Bluetooth Module 19

4.8 Power Supplies 20

5REPAIR PROCEDURES 25

5.1 Introduction 25

5.2 Underfill Resin Paste 25

5.3 Lead Free (PbF) solder 25

5.4 Jigs and Tools 26

5.5 Using the Channel Box software 28

6DISASSEMBLY / REASSEMBLY 29

6.1 General 29

6.2 Disassembly 30

6.3 Reassembly 35

7INTERFACES AND TEST POINTS 39

7.1 Interfaces 39

7.2 Test Points 44

8FAULT FINDING 46

8.1 RF Waveforms 46

8.2 BGA Fault Identification 48

8.3 Power on fault analysis 49

9CALIBRATION PROCEDURES 51

9.1 Introduction 51

9.2 Carrier Power Calibration 51

9.3 RSSI 54

9.4 Battery Calibration 55

9.5 Camera Calibration 56

10 REPLACEMENT PARTS LIST 57

10.1 Sub-Assemblies 57

10.2 Main PCB Variants 59

10.3 Language Packs 59

10.4 Main PCB Components 59

10.5 Display PCB 63

10.6 Bulk Pack items 64

10.7 Jigs and Tools 64

10.8 Document Packs 64

11 CIRCUIT DIAGRAMS 65

12 LAYOUT DIAGRAMS 74

All manuals and user guides at all-guides.com

INTRODUCTION

PMCD030901C8 Section 1 Issue 1

Service Manual – 1 – Revision 0

1INTRODUCTION

1.1. Purpose of this Manual

This Service Manual contains the information and procedures required for installing, operating and servicing the Panasonic

GSM Personal Cellular Mobile Telephone system operating on GSM Digital Cellular Networks.

WARNING

The equipment described in this manual contains polarised capacitors utilising liquid electrolyte. These devices are

entirely safe provided that neither a short-circuit or a reverse polarity connection is made across the capacitor terminals.

FAILURE TO OBSERVE THIS WARNING COULD RESULT IN DAMAGE TO THE EQUIPMENT OR, AT WORST,

POSSIBLE INJURY TO PERSONNEL RESULTING FROM ELECTRIC SHOCK OR THE AFFECTED CAPACITOR

EXPLODING. EXTREME CARE MUST BE EXERCISED AT ALL TIMES WHEN HANDLING THESE DEVICES.

WARNING

A Naphthalene-based resin paste is used to bond underfill components on this phone. When heated, this paste may give

off traces of Naphthalene.

Therefore, it is recommended that work on the PCB be carried out in a well-ventilated area, especially when using hot air

blowers or soldering irons.

The following components are bonded using the paste:.

CALYPSO+ (U100).

SYREN (U120)

Bluetooth IC (U500)

Caution

The equipment described in this manual contains devices sensitive to electrostatic discharge (ESD). Damage can occur

to these devices if the handling procedures described in this manual are not adhered to.

Caution

This equipment contains an internal battery in addition to the external battery packs. These batteries are recyclable and

should be disposed of in accordance with local legislation. They must not be incinerated, or disposed of as ordinary

rubbish.

Caution

The equipment uses a Printed Circuit Board PCB manufactured using Lead Free (PbF) solder. The procedures described

in this manual should be adhered to when repairing these items.

All manuals and user guides at all-guides.com

INTRODUCTION

Issue 1 Section 1 PMCD030901C8

Revision 0 – 2 – Service Manual

1.2. Structure of the Manual

The manual is structured to provide service engineering personnel with the following information and procedures:

1. General and technical information - provides a basic understanding of the equipment, kits and options, together with

detailed information for each of the major component parts.

2. Installation and operating information - provides instructions for unpacking, installing and operating the equipment.

3. Servicing information - provides complete instructions for the testing, disassembly, repair and reassembly of each major

component part. Step-by-step troubleshooting information is given to enable the isolation and identification of a

malfunction, and thus determine what corrective action should be taken. The test information enables verification of the

integrity of the equipment after any remedial action has been carried out.

4. Illustrated parts list - provided to enable the identification of all equipment components, for the ordering of spare /

replacement parts.

1.3. Servicing Responsibilities

The procedures described in this manual must be performed by qualified service engineering personnel, at an authorised

service centre.

The service engineering personnel are responsible for fault diagnosis and repair of all equipment described in this manual.

All manuals and user guides at all-guides.com

GENERALDESCRIPTION

PMCD030901C8 Section 2 Issue 1

Service Manual

– 3 –

Revision 0

2GENERALDESCRIPTION

2.1. General

This section provides a general description and kit composition details for the Digital Cellular Phone and optional kits.

2.2. Telephone Handset Main Kit

Figure 2.1: Telephone Handset Main Unit Kit Contents

2.3. Features

The Panasonic Phone Model X70 is a high performance, small, light, telephone handsets for business and domestic use on

General Packet Radio Service (GPRS) running on GSM networks. The following features are provided:

•Triple Band, EGSM900, GSM1800 and GSM1900 operation.

•Triple Rate, which includes Full Rate, Half rate and Enhanced Full Rate (EFR) speech, codec.

•GPRS-compatible (Class8).

•65,000-colour Thin Film Transistor (TFT) Main Display and monochrome LCD Sub-Display.

•Integral Digital Camera.

•Multimedia Message Service (MMS) and Short Message Service (SMS) messaging.

•POP3-compliant email client.

•Tegic T9 Text Entry.

•Bluetooth connectivity.

•Infrared communications port (IrDA).

•Voice Recorder.

•WAP2.0 and WAP1.2.1 compliant Browser.

•Backup Battery.

•16-voice polyphonic ringtones.

•Downloadable pictures, animations and polyphonic melody ring tones.

•Clock, Calculator and Unit Converter.

ITEM DESCRIPTION PART NUMBER

1MainUnit EB-X70

2Battery, Standard EB-BSX70

3Travel Charger EB-CAX70

-User Guide

All manuals and user guides at all-guides.com

OPERATING INSTRUCTIONS

Issue 1 Section 3 PMCD030901C8

Revision 0 – 4 – Service Manual

3 OPERATING INSTRUCTIONS

3.1. General

This section provides a brief guide to the operation and facilities available on the telephone handset. Refer to the Operating

Instructions supplied with the telephone for full operational information.

3.2. Controls and Indicators

Figure 3.1: Location of Controls and Indicators

The phone has 17-keys and Navigation key on the main keypad area. Their functions are summarised as follows:

Figure 3.2: Navigation and Keypad keys

10686-1

Main Display

Navigation Key

Earpiece

Left Softkey Right Softkey

Power / End Key

Call Key

Keypad

Accessory

Connector

Microphone

Antenna

Camera Lens

Sub Display

IrDA port

(Infrared)

Personal Handsfree

connector

Self-Portrait

Mirror

Voice Memo /

Camera Shutter

Key

Photolight /

Charge LED /

Camera LED

10687-1

Navigation Key:

Press centre to select an item or

sub-menu.

Press outer ring to move cursor in

required direction on the phone display.

Right Softkey:

Used primarily for cancelling the

previous action.

Power / End Key:

Press to end a call or stop the WAP

Browser.

Press and hold to switch the phone on

or off.

Vibrate enable / disable Key:

Press and hold to enable or disable

the vibrate alert.

Left Softkey:

Used primarily for accessing the

Phonebook or for switching between

character sets.

Send Key:

Answer a call or call a dialled number.

Digit Keys 0-9:

Used to dial numbers directly or

entering alphanumeric characters in

messaging modes.

Browser Key:

Starts the WAP Browser from the

Idle screen.

All manuals and user guides at all-guides.com

all-guides.com

OPERATINGINSTRUCTIONS

PMCD030901C8 Section 3 Issue 1

Service Manual

– 5 –

Revision 0

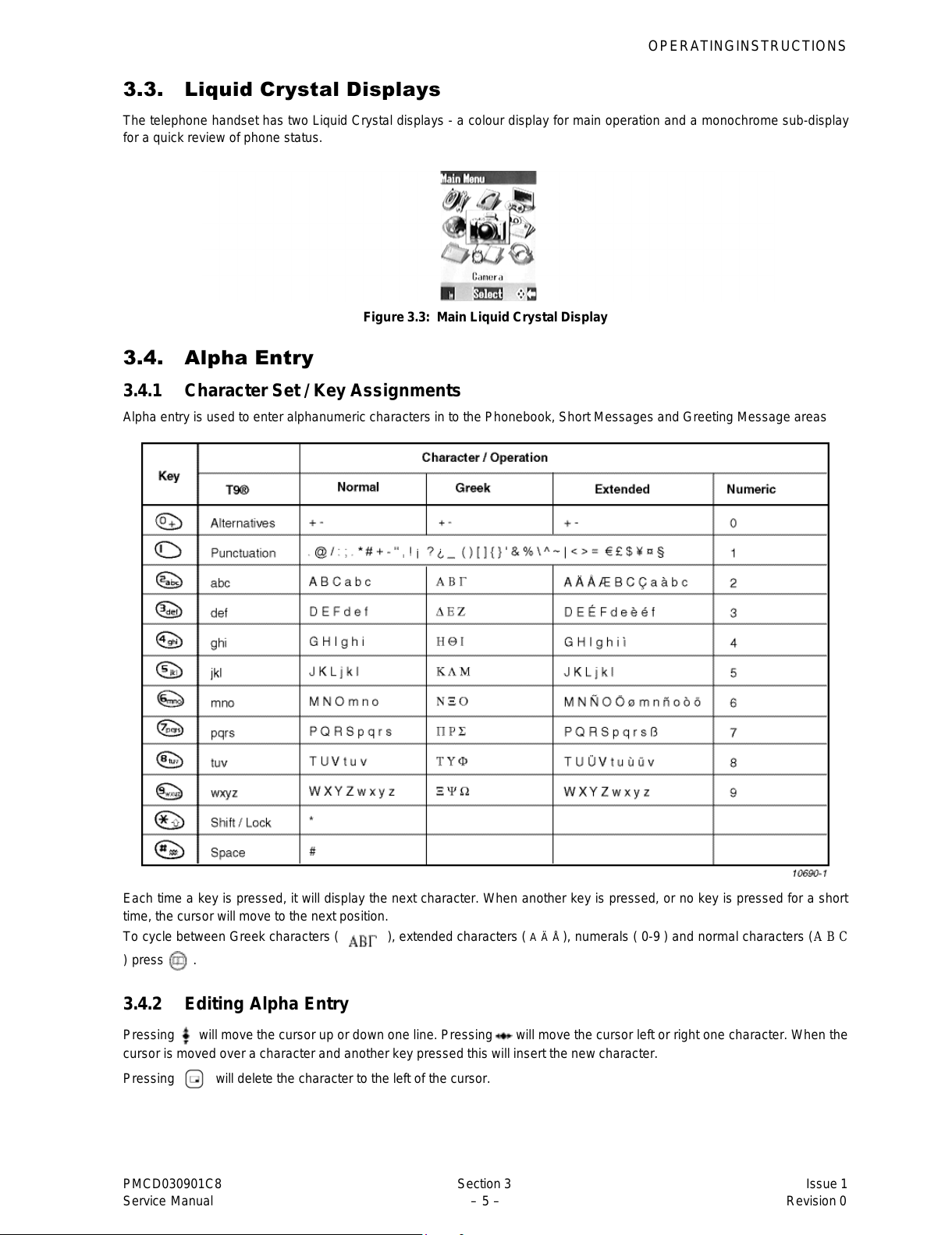

3.3. Liquid Crystal Displays

The telephone handset has two Liquid Crystal displays - a colour display for main operation and a monochrome sub-display

for a quick review of phone status.

Figure 3.3: Main Liquid Crystal Display

3.4. Alpha Entry

3.4.1 Character Set / Key Assignments

Alpha entry is used to enter alphanumeric characters in to the Phonebook, Short Messages and Greeting Message areas

Each time a key is pressed, it will display the next character. When another key is pressed, or no key is pressed for a short

time, the cursor will move to the next position.

To cycle between Greek characters ( ), extended characters ( A Ä Å), numerals ( 0-9 ) and normal characters (A B C

) press.

3.4.2 Editing Alpha Entry

Pressing will move the cursor up or down one line. Pressing will move the cursor left or right one character. When the

cursor is moved over a character and another key pressed this will insert the new character.

Pressing will delete the character to the left of the cursor.

All manuals and user guides at all-guides.com

OPERATING INSTRUCTIONS

Issue 1 Section 3 PMCD030901C8

Revision 0 – 6 – Service Manual

3.5. Features Menu Structure

Figure 3.4: Features Menu Structure

Sort By

Search By

Separator

Hot Key Dialling

Voice Dial

10732-1

4. Browser

2. Contact List Browse

Create

Voice Dial

Groups

Settings

SIM

Storage

My Pictures

My Sounds

My Themes

User 1 **

User 2 **

User 3 **

User 4 **

User 5 **

Record

Playback

Delete

Feature is SIM / Network / 3rd Party Service dependent.

User defined.

MMS

SMS

6. Messaging

View

Bluetooth

Infrared

Bluetooth

Infrared Dialup

Receive Object

Sync Schedule

Sync Contacts

Server List

Restore Schedule

Restore Contacts

Language

DTMF Length

All Tones

Active Flip

Warning Tones

Camera Tones

User Messages

1. Settings

Ring Volume

Ring Type

Quiet Mode

Vibration Alert

Melody Composer

Voice Recorder

Auto Answer

Wallpaper

On/Off Show

Brightness

Backlight Time

Key Baclight

Clock/Calendar

Case Screen

Create

Edit

3. Games / STK Game 1 *

Game 2 *

News

Instructions

Settings

Home Page

Bookmark

Enter URL

Page Memo

Push Message

Browser Settings

Server List

Last Status

7.Data Folders

8. Organiser

Colour Priority

Font Size

Arrange Colour

Browser Images

Bookmarks

Push Reception

5. Camera

9. Connect

Display

Alerts

Keys

Phone Settings

Clock

Call Service

Call Divert

Security

Network

Defaults

Phone Lock

Call Bar

PIN1

PIN2

Fixed Dial

Barred Dial

Settings

Inbox

Broadcasts

Voice Mail

Create

e-mail

Data Folders

Outbox

SMS Chat

Receive

Message List

Topics

Languages

Data Receive

Dial-Up

Synchronization

Contacts List

Converter

Business Card

Schedule

Calculator

Alarm

Memo

Receive Object

Enable

Disable

MMS

SMS

MMS

SMS

MMS

SMS

Family

Friends

Business

Useful

VIPs

User1

User2

User3

User4

All manuals and user guides at all-guides.com

OPERATING INSTRUCTIONS

PMCD030901C8 Section 3 Issue 1

Service Manual – 7 – Revision 0

3.6. IMEI and Software Identification

To check the IMEI number of the phone:

Press: * # 0 6 #

To identify the software version installed on the phone:

Press: * # 9 9 9 9 # within five seconds of switching on.

3.7. SIM Personalisation

3.7.1 Introduction

SIM personalisation will limit the use of the telephone to a single SIM, a SIM supplied by one Network / Sub-network / Service

Provider or a SIM purchased by a company (corporation). If a personalised handset contains a SIM that is from a different

source, it will display the message “SIM ERROR” when switched on. This personalisation is sometimes referred to as SIM

lock or SIM latch.

3.7.2 Testing

To test a personalised handset when the user has not supplied the SIM, a SIM configured for test purposes (e.g. test SIM or

soft SIM) should be used. The mobile will recognise that the SIM is for testing purposes only and operate as normal.

3.7.3 Personalisation Function

Personalisation is activated during manufacture. Enabling / disabling is available by entering a special key sequence

immediately after power on. Once the enable / disable menu is shown it is possible to select the type of personalisation. When

personalisation is enabled it is only possible to disable it if the mobile contains a SIM and the 8 or 16 digit Control Key (CK) is

known. For security reasons, when CK is enabled, it cannot be read by the user.

There are two special key sequences to enter the enable / disable menu:

3.7.4 Disabling Procedure

Can only disable personalisation

Can both enable and disable personalisation

Notes

Key Sequence

52824

746

1. Press or

2. Scroll up / down to select:

"SIM" for SIM Personalisation

"Network" for Network Personalisation

"Sub-Network" for Sub-Network Personalisation

"ServiceProvider" for Service Provider Personalisation, or

"Corporate" for Company Personalisation.

3. Press

4. Enter the 8 or 16 digit Control Key and press

5. Confirm by entering the 8 or 16 digit Control Key again and press

The display will confirm which type of Personalisation has been disabled.

824

746

All manuals and user guides at all-guides.com

OPERATING INSTRUCTIONS

Issue 1 Section 3 PMCD030901C8

Revision 0 – 8 – Service Manual

3.7.5 Enabling Procedure

1. Press

2. Scroll up / down to select:

"SIM" for SIM Personalisation

"Network" for Network Personalisation

"Sub-Network" for Sub-Network Personalisation

"ServiceProvider" for Service Provider Personalisation, or

"Corporate" for Company Personalisation.

3. Press

4. Enter the 8 or 16 digit Control Key and press

5. Confirm by entering the 8 or 16 digit Control Key again and press

The display will confirm which type of Personalisation has been enabled.

824

All manuals and user guides at all-guides.com

Otros manuales para EBX70 - CELL PHONE

Tabla de contenidos

Otros manuales de Teléfono de Panasonic

Panasonic

Panasonic KX-TS2308HGW Manual de usuario

Panasonic

Panasonic KX-TGF850 Manual de usuario

Panasonic

Panasonic KX-NS1000 Manual de usuario

Panasonic

Panasonic KX-TS500EX Manual de usuario

Panasonic

Panasonic KX-TS105LXW Manual de usuario

Panasonic

Panasonic KX-TC1040LAB Manual de usuario

Panasonic

Panasonic KX-TA824 Manual de usuario

Panasonic

Panasonic KX-TD500 Manual de usuario

Panasonic

Panasonic KX-TH102M Manual de usuario

Panasonic

Panasonic KX-TG9541 Manual de usuario

Panasonic

Panasonic KX-TG1061 Manual de usuario

Panasonic

Panasonic VE-GP30 Manual de usuario

Panasonic

Panasonic KX-TG7120FXT Manual de usuario

Panasonic

Panasonic KX-TC1713B Manual de usuario

Panasonic

Panasonic KX-NT551 Manual de usuario

Panasonic

Panasonic KX-A114EX/E Manual de usuario

Panasonic

Panasonic KX-TG9331CT Manual de usuario

Panasonic

Panasonic DBS 576 Manual de usuario

Panasonic

Panasonic KX-T336 Manual de usuario

Panasonic

Panasonic KX-TG4732B Manual de usuario

Panasonic

Panasonic EB-G450 Guía de inicio rápido

Panasonic

Panasonic KX-TS500HG Manual de usuario

Panasonic

Panasonic KX Series Manual de usuario

Panasonic

Panasonic KX-TS560ML Manual de usuario

Manuales populares de Teléfono de otras marcas

GE 2-9480 Manual de usuario

Geemarc

Geemarc PHOTOPHONE 155 Manual de usuario

D-Link

D-Link DWR-720/PW Manual de usuario

Interquartz

Interquartz Gemini IQ333 Manual de usuario

SSS Siedle

SSS Siedle HT 840-0 Manual de usuario

Motorola

Motorola TITANIUM Manual de usuario

LG H870DS Manual de usuario

Samsung

Samsung GT-I9500 Manual de usuario

AT&T

AT&T Trimline 205 Manual de usuario

Selta

Selta zenyth 600 Manual de usuario

Doro

Doro AFTI 20 Manual de usuario

UNIQCELL

UNIQCELL A1 Manual de usuario

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manual de usuario

BT Decor 425 Manual de usuario

NEC

NEC SV8500 Manual de usuario

Teledex

Teledex PEARL Manual de usuario

Ericsson

Ericsson Dialog 3213 Manual de usuario

Yealink

Yealink VP530 Manual de usuario
