Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

Model No. WV-CL920

WV-CL924

Color CCTV Cameras

Operating Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK),

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The serial number of this product may be found on the top

of the unit.

You should note the serial number of this unit in the space

provided and retain this book as a permanent record of

your purchase to aid identification in the event of theft.

Model No.

Serial No.

The lightning flash with arrowhead sym-

bol, within an equilateral triangle, is

intended to alert the user to the pres-

ence of uninsulated "dangerous volt-

age" within the product's enclosure that

may be of sufficient magnitude to con-

stitute a risk of electric shock to per-

sons.

The exclamation point within an equilat-

eral triangle is intended to alert the user

to the presence of important operating

and maintenance (servicing) instruc-

tions in the literature accompanying the

appliance.

WARNING:

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

NOTE: This equipment has been tested and found to com-

ply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference

when the equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

FCC Caution: To assure continued compliance, (example -

use only shielded interface cables when connecting to com-

puter or peripheral devices). Any changes or modifications

not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate this equip-

ment.

For U.S.A

SA 1965

SA 1966

-3-

CONTENTS

PREFACE ...................................................................................................................................................................... 4

FEATURES .................................................................................................................................................................... 4

PRECAUTIONS ............................................................................................................................................................. 5

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ....................................................................................... 6

CONNECTIONS ............................................................................................................................................................ 9

FOCUS OR FLANGE-BACK ADJUSTMENT ................................................................................................................. 13

INSTALLATION OF CAMERA ....................................................................................................................................... 14

SETUP ........................................................................................................................................................................... 16

1. CAMERA SETUP MENU ........................................................................................................................................ 16

2. SETUP OPERATION .............................................................................................................................................. 19

SETTING PROCEDURES .............................................................................................................................................. 21

PREVENTION OF BLOOMING AND SMEAR ................................................................................................................ 39

SPECIFICATIONS ......................................................................................................................................................... 40

STANDARD ACCESSORIES ......................................................................................................................................... 42

OPTIONAL ACCESSORIES .......................................................................................................................................... 43

-4-

1. The following functions are built in.

(1) Auto Light Control (ALC)/Electronic Light

Control (ELC)

(2) Back Light Compensation (Auto: Factory pre-

set, Manual: Manual photometric measuring

area set)

(3) Various External Sync Functions, including

Gen-Lock

(4) Auto/Manual White Balance Function

(5) Electronic Shutter Function

2. Signal-to-noise ratio of 50 dB

3. Minimum illumination of 0.3 lux (0.03 footcandle)

with F1.4 lenses (Color mode)

4. Minimum illumination of 0.02 lux (0.002 footcandle)

with F1.4 lenses (Black and White mode)

5. 570 lines of horizontal resolution (Black and White

mode)

480 lines of horizontal resolution (Color mode)

zontal pixels (picture elements), and digital signal pro-

cessing LSI's. This model offers cutting-edge technolo-

gy for advanced video surveillance.

PREFACE

Panasonic's WV-CL920 (WV-CL924) series digital color

camera introduces a new level of high picture quality

and high resolution through the use of a 1/2-inch frame

interline transfer CCD image sensor having 768 hori-

FEATURES

6. High quality picture:

(a) 2H type vertical enhancer for greater picture

sharpness

(b) Chroma averaging circuit for better color sig-

nal to noise ratio

(d) Expanded dynamic range by use of knee cir-

cuit

(e) Highlight aperture correction for greater pic-

ture detail of bright objects

7. Ability to shoot indoor scenes with fixed iris lens by

use of Electronic Light Control (ELC) function.

8. Selectable electronic sensitivity enhancing modes

including: AUTO, MANUAL and OFF

9. Built in Digital Motion Detector

10. Auto Black/White mode enables the camera to

switch between C/L and B/W in response to input

lights.

-5-

1. Do not attempt to disassemble the camera.

To prevent electric shock, do not remove screws or

covers.

There are no user serviceable parts inside. Ask a

qualified service person for servicing.

2. Handle the camera with care.

Do not abuse the camera. Avoid striking, shaking,

etc. The camera could be damaged by improper

handling or storage.

3. Do not expose the camera to rain or moisture,

or try to operate it in wet areas.

Turn the power off immediately and ask a qualified

service person for servicing. Moisture can damage

the camera and also create the danger of electric

shock.

4. Do not use strong or abrasive detergents when

cleaning the camera body.

Use a dry cloth to clean the camera when dirty.

In case the dirt is hard to remove, use a mild deter-

gent and wipe gently.

5. Clean the CCD faceplate with care.

Do not clean the CCD with strong or abrasive

detergents. Use lens tissue or a cotton tipped

applicator and ethanol.

6. Never face the camera towards the sun.

Do not aim the camera at bright objects. Whether

the camera is in use or not, never aim it at the sun

or other extremely bright objects. Otherwise,

blooming or smear may be caused.

7. Do not operate the camera beyond the specified

temperature, humidity or power source ratings.

Use the camera under conditions where tempera-

ture is between −10°C - +50°C (14°F - 122°F), and

humidity is below 90 %. The input power source is

120 V AC 60 Hz for WV-CL920 and 12 V DC/24 V

AC for WV-CL924.

Caution:

To prevent fire or electric shock hazard, use a

UL listed cable (VW-1, style 1007) for the 12 V

DC or 24 V AC Input Terminal.

PRECAUTIONS

-6-

<WV-CL920>

<WV-CL924>

WV-

CL920

FB LOCK

Hi-Z G/L 75

Ω

WV-

CL920

VIDEO OUT

GEN-LOCK

120V AC 60Hz

VIDEO OUT

GEN-LOCK

AC 24V

DC 12V

GND

q w

!0 i

ytuo

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

Slide the panel to the left until it locks.

-7-

qAuto Iris Lens Connector

This connector is used to connect the auto iris lens

with a 4-pin male connector supplied as a standard

accessory (Part No. YFE4191J100).

wFlange-back Adjusting Ring (FB)

This ring is used to adjust the back focal length or

picture focus. Rotate this ring upward or downward

for a CS-mount lens. In case of using a C-mount

lens, adjust it with the C-mount adapter.

eFocus Fixing Screw (LOCK)

rCamera Mounting Screw Hole

This hole is used to mount the camera onto a

mounting bracket.

tDown Button ( )

This button is used to move the cursor downward.

It is also used to select items in the CAM SET UP

menu.

yRight Button ( )

This button is used to move the cursor to the right.

It is also used to select the mode and can be used

to adjust some levels.

uLeft Button ( )

This button is used to move the cursor to the left. It

is also used to select the mode and can be used to

adjust some levels.

iUp Button ( )

This button is used to move the cursor upward. It is

also used to select items in the CAM SET UP menu.

oSet Button ( )

This button is used to activate an item selected in

the CAM SET UP menu.

!0 Gen-lock Termination Switch (Hi-Z, G/L 75Ω)

Set this switch to Hi-Z when a gen-lock video input

signal is looped through. In all other cases, set this

switch to 75 Ω.

!1 Gen-lock Input Connector (GEN-LOCK)

This connector is used to connect an external sys-

tem for synchronization.

!2 Video Output Connector (VIDEO OUT)

This connector is used to connect with the VIDEO

IN connector of the monitor.

-8-

!3 Power Cord Socket

This socket is used to connect the power cord

(supplied as a standard accessory).

!4 AC/DC Compatible Input Terminal

(DC 12V IN/AC 24V IN)

This terminal is for connecting the 12 V DC or 24 V

AC power supply cord.

Cautions:

1. Connect to 12 V DC (10.5 V-16 V) or 24 V AC

(19.5 V-28 V) class 2 power supply only. Make

sure to connect the grounding lead to the GND

terminal when the power is supplied from a 24 V

AC power source.

2. To prevent fire or electric shock hazard, use a

UL listed cable (VW-1, style 1007) for the Input

Terminal.

-9-

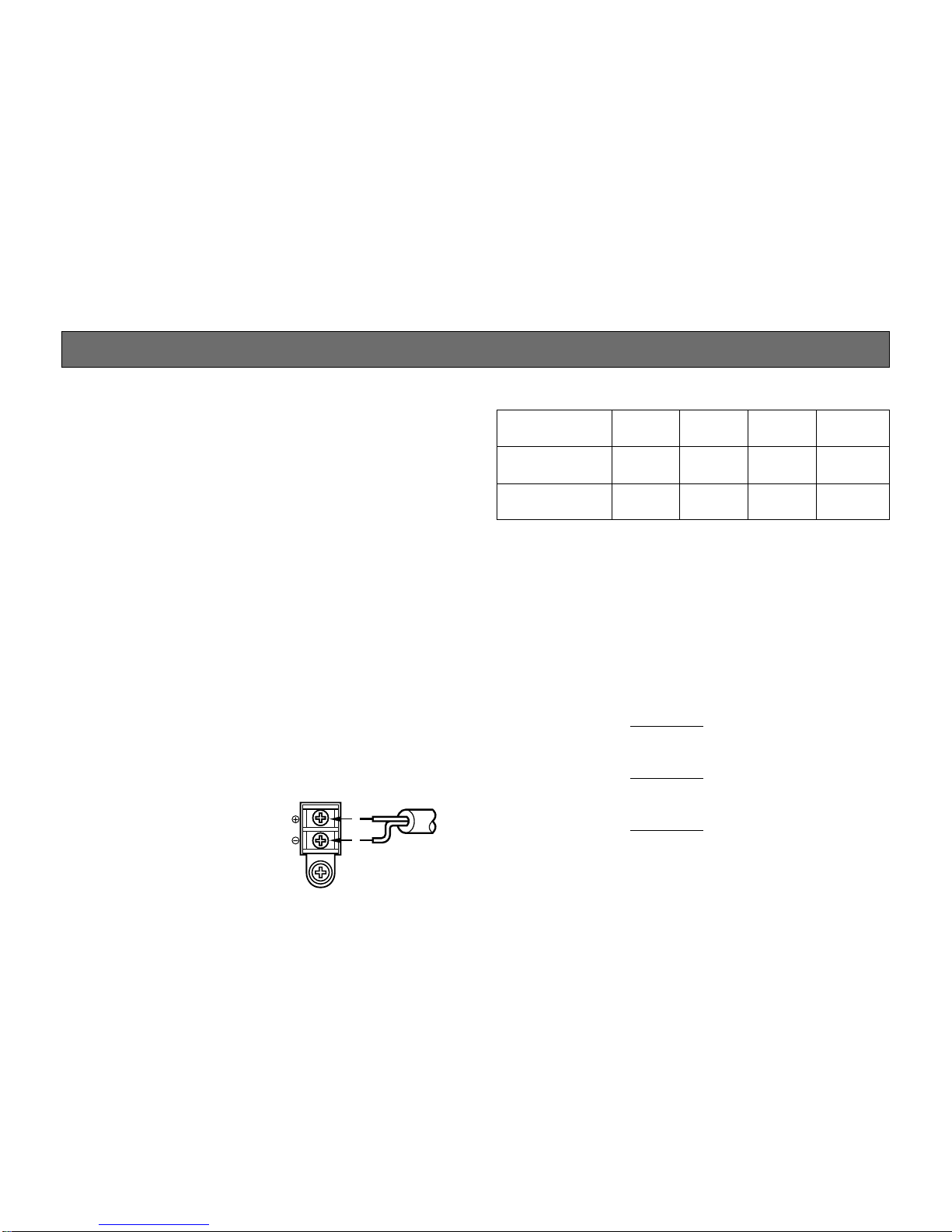

Copper wire #24 #22 #20 #18

size (AWG) (0.22 mm2) (0.33 mm2) (0.52 mm2) (0.83 mm2)

Resistance 0.078 0.050 0.030 0.018

Ω/m

Resistance 0.026 0.017 0.010 0.006

Ω/ft

A. WV-CL920 (120 V AC 60Hz)

1. Plug the AC power cord (supplied as standard

accessory) into the AC Inlet Socket.

2. Connect the AC power cord to a 120 V AC 60 Hz

outlet.

Notes:

• Connect the power cord firmly.

• The power cord should be long enough for pan-

ning and tilting.

If the cable is too short, the power cord plug may

be pulled off the camera when the camera pans or

tilts.

B. WV-CL924 (12 V DC/24 V AC)

The WV-CL924 has an AC/DC compatible input termi-

nal. The 12 V DC or 24 V AC power supply cord can be

connected to this terminal. The camera detects the

power source automatically.

1. 12 V DC Power Supply

Connect the power cord to

the AC/DC compatible

input terminal on the rear

panel of the camera.

Resistance of copper wire [at 20°C (68°F)]

AC 24V

DC 12V

GND

12 V DC

(10.8 V - 16 V)

• Calculation of maximum cable length between

camera and power supply.

10.8 V DC ≤VA−(R x 0.42 x L) ≤16 V DC

L : Cable length (m)

R : Resistance of copper wire (Ω/m)

VA: DC output voltage of power supply unit

VA−12

L standard = (m)

0.42 x R

VA−16

L minimum = (m)

0.42 x R

VA−10.5

L maximum = (m)

0.42 x R

CONNECTIONS

-10-

2. 24 V AC Power Supply

Connect the power cable to the AC/DC compatible

input terminal on the rear panel of the camera.

Copper wire #24 #22 #20 #18

size (AWG) (0.22 mm2) (0.33 mm2) (0.52 mm2) (0.83 mm2)

Length (m) 95 150 255 425

of Cable

(Approx.) (ft) 314 495 842 1 403

Recommended wire gauge sizes for 24 V AC line.

AC 24V

DC 12V

GND

24 V AC, 60 Hz

(19.5 V - 28 V)

Caution:

To prevent fire or electric shock hazard,use a

UL listed cable (VW-1, style 1007).

Video Cable

1. It is recommended to use a monitor whose resolu-

tion is at least equal to that of the camera.

2. The maximum extensible coaxial cable length

between the camera and the monitor is shown

below.

Type of RG-59/U RG-6/U RG-11/U RG-15/U

coaxial cable (3C-2V) (5C-2V) (7C-2V) (10C-2V)

Recommended (m) 250 500 600 800

maximum

cable length (ft) 825 1 650 1 980 2 640

Otros manuales para WVCL920 - COLOR CAMERA

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Panasonic

Panasonic

Panasonic BL-C230 Series Manual de usuario

Panasonic

Panasonic WV-SW314 Manual de usuario

Panasonic

Panasonic WJND400 - NETWORK DISK RECORDER Manual de servicio

Panasonic

Panasonic GP-MF130E Manual de usuario

Panasonic

Panasonic Super Dynamic III WV-CW484S Manual de usuario

Panasonic

Panasonic i-Pro WV-SFN130PJ Manual de usuario

Panasonic

Panasonic WV-SF438 Manual de usuario

Panasonic

Panasonic WV-X5550LT Manual de usuario

Panasonic

Panasonic Super Dynamic III WV-CS954 Manual de usuario

Panasonic

Panasonic OneHome BB-HCM311A Manual de usuario

Panasonic

Panasonic WV-CL920A Series Manual de instalación y operación

Panasonic

Panasonic WV-BP140 Manual de usuario

Panasonic

Panasonic WV-SW175 Manual de usuario

Panasonic

Panasonic WV-CP280 Series Manual de usuario

Panasonic

Panasonic WV-NW470S Manual de usuario

Panasonic

Panasonic WV-CW240S Manual de usuario

Panasonic

Panasonic AKHC900 - COLOR CAMERA Manual de usuario

Panasonic

Panasonic WV-SP508 Manual de usuario

Panasonic

Panasonic BB-HCM381A - Network Camera Manual de usuario

Panasonic

Panasonic WVCS574 - COLOR CCTV CAMERA Manual de usuario

Panasonic

Panasonic AW?HE50HE Manual de usuario

Panasonic

Panasonic WV-CF624 Manual de usuario

Panasonic

Panasonic OneHome KX-HCM110A Manual de usuario

Panasonic

Panasonic WV-X4573L Guía de instalación

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
