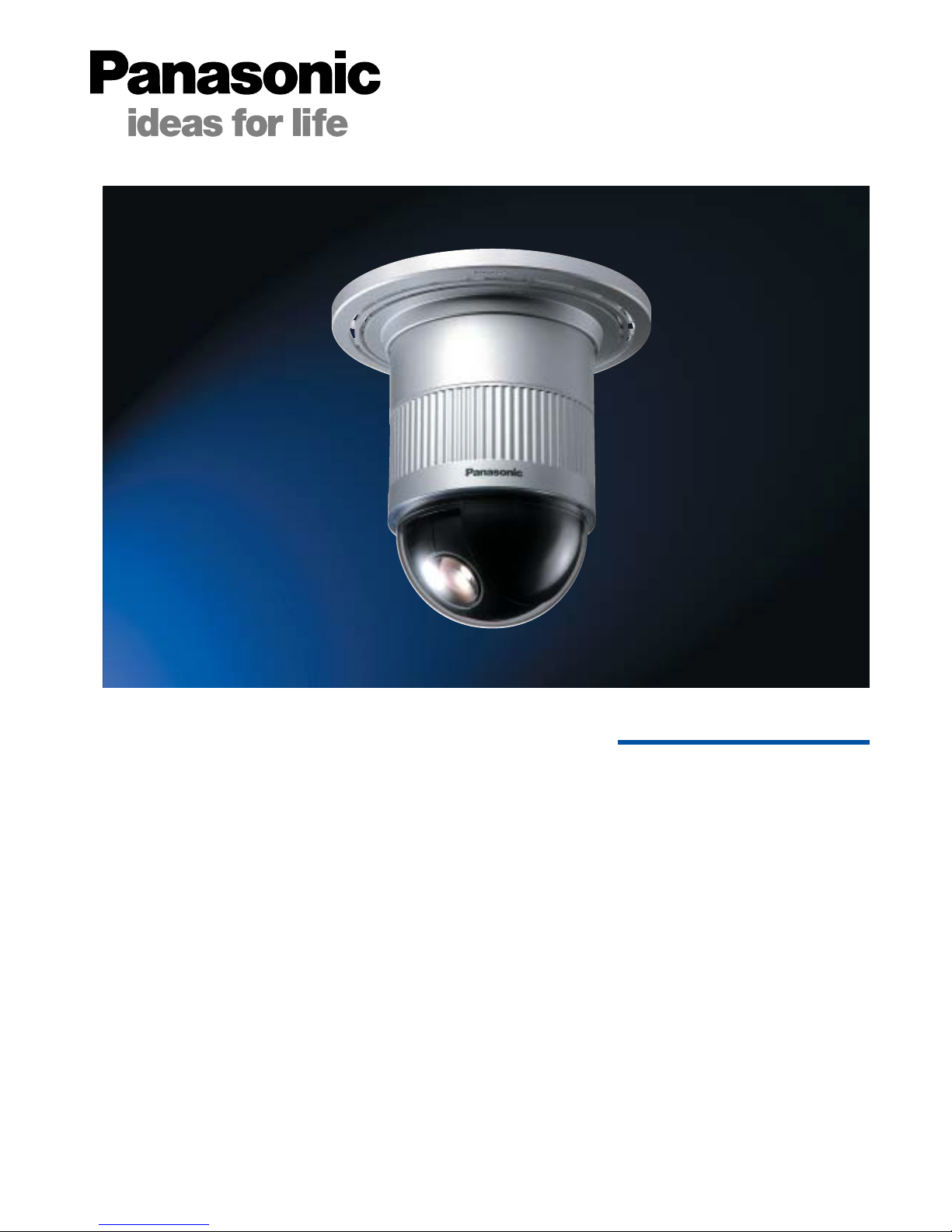

Combination Colour Dome Cameras

WV-CS570 Series

Panasonic introduces the WV-CS570 Series colour dome

cameras. A compact 110mm, all-in-one unit contains

both a 22x optical zoom lens and a pan/tilt rotating chassis.

510 lines of horizontal resolution (at High Position)

deliver colour images of outstanding quality. Ultra sensitive,

this camera also operates in light as low as 1 lux.

Superb basic features capture subjects with definitive clarity.

With continuous 360˚ horizontal rotation and 180˚ vertical

pan, this camera provides coverage across a wide area.

It can be preset for up to 32 positions and shift sequentially

from one preset position to another at max. 300˚/second,

while the Image Hold feature prevents image blurring

during rapid rotation.

Privacy Zone Masking blocks scenes that should not be

displayed. Patrol Learning remembers and repeats manual

camera controls. Digital Motion Detection automatically

senses movement in the image. These and other advanced

features make surveillance simple.

Combining high performance and versatile features,

the WV-CS570 Series provides reliable colour surveillance

in a broad range of applications.

KEY FEATURES

•Compact 110mm diameter dome all-in-one colour unit.

•510-line of horizontal resolution (at High position).

•

Digital-FLIP by memory read out allows automatic 180-degree turn.

•Minimum illumination of,

1 lux at colour imaging (Sens up off: AGC High)

•Privacy zone masking function.

•Linear 32x electronic sensitivity enhancement function.

•Digital motion detector.

•Patrol Learn function.

•Auto panning function with 32 preset positions.

•360˚ panning and speed of max. 300˚/s at preset mode.

•Image hold function during panning.

•22x optical zoom lens (3.79 - 83.4mm at F1.6) plus 10x

electronic digital zoom for total zoom capacity of 220x.

•Auto focus lens.

•Multiplex-coaxial or RS-485 data communication.

•Four (4) alarm inputs and two (2) outputs terminals.

•16 alphanumeric character display.

•Internal/Line-lock/Multiplexed Vertical Drive (VD2)

synchronization.

•Optional smoked and mirror dome covers, ceiling and wall

mounts brackets are available for various applications.

High Performance & A Wide Range of Features

PA L

AC Power Connector for WV-CS574

Camera Mounting Base

Camera Lock Plate

Safety Wire

Decoration Cover

Video Output Connector

AC Power Cable for WV-CS570

Alarm Input Connector

Wire Colour

Black

Brown

Red

Orange

Yellow

Sky Blue

Blue

Purple

Function

IN 1

GND

IN 2

GND

IN 3

GND

IN 4

GND

Alarm Output Connector

Wire Colour

Gray

White

Pink

Green

Function

OUT 1

GND

OUT 2

GND

Data

Transmission

Brown GND

T (B)

T (A)

R (B)

R (A)

Red

Orange

Yellow

Green

Data

Reception

RS-485 Data Port

PRODUCT CONSTRUCTION

Colour Monitor x 2

RGB Monitor

Digital Disk Recorder

WJ-HD316A

2 drive bays

LAN/WAN

Internet

Ethernet

(10Base-T/100Base-TX)

System Controllers (Max. 4)

WV-CU650

PS-Data

CH1 CH2 CH8 CH9 CH15 CH16

WV-CS570 Series x 8 WV-CP480 Series x 8

SYSTEM EXAMPLE

Model No. WV-CS570 WV-CS574

Effective Pixels 752 (H) x 582 (V)

Scanning Area 3.65 mm (H) x 2.71 mm (V), 1/4-type CCD

Synchronization Internal / Line-lock / Multiplexed Vertical Drive (VD2)

Horizontal Scanning Frequency

15.625 kHz

Vertical Scanning Frequency 50 Hz

Video Output 1.0 V [p-p] PAL composite / 75 Ω

Horizontal Resolution

510 lines at centre (Colour at High), 480 lines at centre (Colour at normal)

Signal-to-Noise Ratio 50 dB (AGC OFF, weight on)

Minimum Illumination 1 lux at colour imaging (Sens up off: AGC High)

Zoom Speed approx. 4.5 s (TELE / WIDE) in manual mode

Focus Speed approx. 5 s (FAR / NEAR) in manual mode

Iris automatic (open / close is possible) / manual

Maximum Aperture Ratio 1:1.6 (WIDE) - 3.0 (TELE)

Focal Length 3.79 - 83.4 mm

Angular Field of View H 2.6˚ - 52.3˚

V2.0˚ - 39.9˚

Electronic Shutter

1/50 (OFF), 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s

AGC ON(LOW) / ON(MID) / ON(HIGH) / OFF

Sens Up MAX. 32 times, AUTO / FIX

Zoom Ratio x22 + digital zoom x10

Iris Range F1.6 - 22, CLOSE

Auto Focus MANUAL / AUTO

Auto Mode OFF / SEQ / SORT / AUTO PAN / PATROL

Auto Pan Key SEQ / SORT / AUTO PAN / PATROL PLAY

Digital Flip ON / OFF

Image Hold ON / OFF

Camera ID preset ID, camera ID, area title: up to 16 characters

Motion Detector ON / OFF

Alarm IN 4 inputs (ALARM IN 1 - 4)

Alarm OUT 2 outputs (ALARM / AUX1, B/W / AUX2)

Privacy Zone ON / OFF, up to 8 zones

Proportional PAN / TILT ON / OFF

Patrol LEARN / PLAY / STOP, up to 60 seconds

Cleaning ON / OFF

Panning Range 360˚ endless

Panning Angle Setting possible (in auto-pan mode)

Panning Mode manual / sequential position / sort position / auto pan

Panning Speed

manual: approx. 0.1˚/s - 120˚/s 8-step/64-step sequential position: maximum approx. 300˚/s

Tilting Range –5˚ - 185˚

Tilting Mode manual / sequential position / sort position

Tilting Speed

manual: approx. 0.1˚/s - 120˚/s 8-step/64-step sequential position: maximum approx. 300˚/s

Controls pan / tilt, lens, 32 preset positions, home position

Controller Interface Multiplex-coaxial / RS-485

Power Source 220 V - 240 V AC, 50 Hz 24 V AC, 50 Hz

Power Consumption 15 W 13 W

Ambient Operating Temperature

–10 ˚C - +50 ˚C

Dimensions ø120 (D) x 191 (H) mm

Weight approx. 2 kg

SPECIFICATIONS

OPTIONAL ACCESSORIES

Smoke Cover

WV-CS2S

Mirror Cover

WV-CS2M

Direct

Ceiling Installation

WV-Q105

Embedded

Ceiling Installation

WV-Q106

Suspended

Ceiling Installation

WV-Q117

Wall Installation

WV-Q118

ø190

ø110

ø120

131 25

191

83.5

Unit : mm

APPEARANCE

DISTRIBUTED BY:

Panasonic is the brandname of Matsushita Electric.

Printed in Japan

WV-JKCS570T(2N-743)

Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.

• Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
