Panasonic BB-HCM381 Manual de usuario

Additional Feature table

The following features are added to the camera. Read both Operating Instructions

manuals before starting to use the product.

Additional Features Contents Page

Adding Manual Setup on the

Initial Setting Window

Manual Setup is added on the initial

setting window.

page 3

Digital Zoom Feature A 10x digital zoom feature is added. page 3

Changing the Name of

Viewnetcam.com to

"DynamicDNS", Moving the

Position of Buffer/Transfer, and

Adding the Menu

The name of Viewnetcam.com is

changed, the position of Buffer/

Transfer is moved, and the menu on

the Setup window is added.

page 7

Registering User-specified

DynamicDNS

DynamicDNS service is a service that

allows you to assign an easy-to-

remember name to the camera,

similar to your favorite web site.

DynamicDNS service also allows you

to easily access the camera, even

when your ISP changes the IP

address. Panasonic Communications

recommends you to register with it for

the Internet access to the camera.

page 8

[Time] on the Camera Page [Time] of Return to Specified Position

on the Camera page is changed.

page 10

Operating Instructions (Additional Features)

Model No. BB-HCM381

Network Camera

Operating Instructions (Additional Features)

Trademarks

• Hotmail is either registered trademarks or trademarks of Microsoft Corporation

in the United States and/or other countries.

• SD mark is a trademark of the SD Card Association.

• All other trademarks identified herein are the property of their respective

owners.

• This software is based in part on the work of the Independent JPEG Group.

Abbreviations

• "Network Camera" is called "Camera" in this Operating Instructions.

Buffering or Transferring

Images by Motion Detection

Signal

Motion Detection feature that detects

movement, such as people, based on

the preset threshold and sensitivity of

Camera is added.

page 24

Setting the Motion Detection The sensitivity of the Motion

Detection can be adjusted.

page 35

Notifying Setup of an Alarm Log Once a day, an alarm log sent at a

specified time can be checked.

page 38

Changing the Time Stamp

Setting

The Time stamp setting is changed

on the Image Display page.

page 40

Format the SD memory card The format specification is changed. page 41

Stop the SD Memory Recording The recording specification is

changed.

page 42

Start the SD Memory Recording The SD memory recording can be

started on the Trigger page.

page 43

Adding [Alarm Log] on the

Maintenance Window

[Alarm Log] is added on the

Maintenance window.

page 44

Displaying Alarm Logs Up to 50 Alarm Logs in order of time

are displayed.

page 44

Viewing Still Images on Your

Mobile Phone

Registered preset positions and

alarm logs can be viewed on your

mobile phone.

page 46

Additional Features Contents Page

Operating Instructions (Additional Features)

Adding Manual Setup on the Initial Setting Window

Manual Setup is added on the initial setting window.

Digital Zoom Feature

A 42x magnifying capacity (a 21x optical zoom and a 2x digital zoom) can be

operated with a mouse.

The 10x digital zoom feature can be used on the Multi Camera screen, and the

Buffered Image screen (only while playing video).

There are two methods of increasing/decreasing the size of the object (only while

playing video).

1. Clicking the right mouse button

Clicking the right mouse button on the upper third of the Single Camera

screen zooms in, and clicking on the lower third of the Single Camera

screen zooms out.

2. Rotating the mouse wheel

Rotating the mouse wheel away from you zooms in, and rotating it towards

you zooms out.

Clicking the right mouse button

Clicking the right mouse button on the upper third zooms in, and clicking on the lower third

zooms out. Zooming in and out is also available by moving the mouse up with pressing the

right mouse button, or moving the mouse down with pressing the right mouse button.

Zoom out

Zoom in

Operating Instructions (Additional Features)

Note

The performance of the mouse varies according to your OS.

When Zoom Control is disabled or enabled on Access Level

The zoom type is difference as follows.

•When Zoom Control is disabled on Access Level

A 10x digital zoom feature that described the previous page is can be

used.

•When Zoom Control is enabled on Access Level

A 42x optical zoom feature is can be used. The magnification will not be

displayed.

Rotating the mouse wheel

On a screen, rotating the mouse wheel away from

you zooms in, and rotating it towards you zooms

out.

Zoom in

Zoom out

Operating Instructions (Additional Features)

Viewing the Image

1. Click or select the home position,

alarm position or registered preset

position.

• The camera takes each position,

and the image is displayed.

Note

• The registered preset positions

can be viewed on your mobile

phone.

• The preset position may be

developed into a gap.

Home Position,

Alarm Position

and Preset

Position

Pan/Tilt

Putting the

cursor displays

the preset

name.

Home

Position

UpperLeft

Operating Instructions (Additional Features)

Changing or Deleting the Settings

1. Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving

changes.

2. Pan and tilt the camera to a desired

position.

• When deleting, this step is not

necessary.

3. Zoom to the desired position.

4. Adjust the focusing if necessary.

5. Click the home position, alarm position

or a preset number (1—20).

6. Click [Save] after setting the preset

name or click [Delete].

• If you quit to change or delete

settings, click [Back], and then

[Cancel].

• If "Success!" is displayed, click

[Back].

Note

The home position or the alarm position

cannot be deleted, and these position

names cannot be changed either.

Pan/Tilt

Changing

the name

Preset

number

The deleted

button turns

white.

Home

Position

Operating Instructions (Additional Features)

Changing the Name of Viewnetcam.com to "DynamicDNS",

Moving the Position of Buffer/Transfer, and Adding the Menu

Changing to the name of "DynamicDNS", and moving Buffer/Transfer ,and adding

the menu on the Setup window.

Basic

(1) DynamicDNS Registers with the DynamicDNS service.

(2) Camera Sets camera name, white balance, pan/tilt range, return to

specified position and color night view settings.

Buffer/Transfer

(3) Trigger

Sets image buffer or transfer by timer or alarm or motion detection.

(4) Motion

Detection

Sets the threshold and the sensitivity.

(5) Alarm Log Sets the information to notify the log by e-mail.

Advanced

(6) Image Display

Sets resolution, image quality and refresh interval of Single Camera

and Multi-Camera page, time stamp setting, language and banner.

(1)

(3)

(4)

(5)

(6)

(2)

Operating Instructions (Additional Features)

Registering User-specified DynamicDNS

DynamicDNS service is a service that allows you to assign an easy-to-remember

name to the camera, similar to your favorite web site. DynamicDNS service also

allows you to easily access the camera, even when your ISP changes the IP

address. Panasonic Communications recommends you to register with it for the

Internet access to the camera.

1. Click [DynamicDNS] on the Setup page.

2. Check [User-specified DynamicDNS], and click [Next].

• Clicking [Cancel] cancels your settings without saving changes.

3. Set each parameter.

• You can get DynamicDNS information from the DynamicDNS service

industry company.

4. Click [Save] after finished.

• New settings are saved.

• When finished, "Success!" is displayed.

5. Click [Go to DynamicDNS page].

• The DynamicDNS page is displayed.

Operating Instructions (Additional Features)

Note

• It may take several minutes for the registered URL to connect.

• Some DynamicDNS service is not connected.

Confirming the Internet access

Due to the router specifications, the image may not be displayed even if you access

the camera from your PC on the same LAN as the camera. In this case, access the

camera in the following procedures.

• Accessing from the PC on another network

• Accessing from your mobile phone (see page 46)

Operating Instructions (Additional Features)

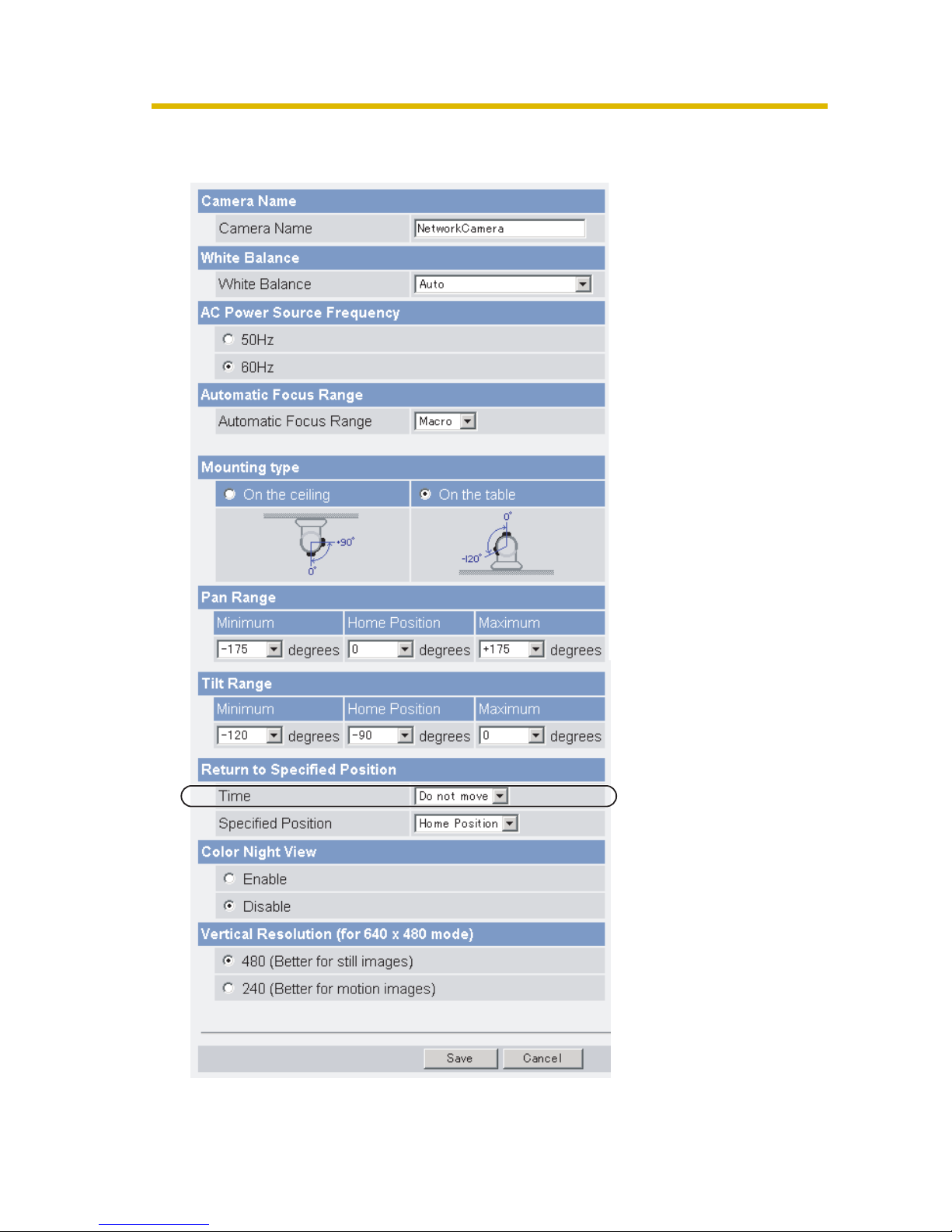

[Time] on the Camera Page

[Time] of Return to Specified Position on the Camera page is changed.
