Panasonic AWE860 - COLOR CAMERA Manual de usuario

Panasonic Broadcast

AW-E860 Mechanical Parts

CONTENTS

CHASSIS FRAME ASSEMBLY (1) ................................................................................................. PRT-1

CHASSIS FRAME ASSEMBLY (2) ................................................................................................. PRT-3

FRONT UNIT ASSEMBLY............................................................................................................... PRT-5

POWER P.C.B ASSEMBLY ............................................................................................................ PRT-7

DSP / DSP-SUB P.C.B ASSEMBLY................................................................................................ PRT-8

PACKAGING PARTS ASSEMBLY .................................................................................................. PRT-9

PRT-1

CHASSIS FRAME ASSEMBLY (1)

112

113 106

E12

111

115

111

104

6107

101

105

CHASSIS FRAME ASSEMBLY (2)

(See PRT-3)

PRT-2

Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks

CHASSIS FRAME ASSEMBLY (1)

1 1A1A234A BLANK PANEL 1

2 1C1A073A SHIELD PLATE 1

3 4C1A004C REAR ESCUTCHEON 1

4 1C1A112A GASKET (A) 1

5 1C1A113A GASKET (B) 1

6 1C1A130A GASKET (C) 4

7 V2GA0065A4 CABLE CLAMP 1

8 VGQ7831-1 SIDE COVER 1

9 VKM5543-3 FAN MOUNTING BASE 1

10 VMA0G54-1 FAN HOLD PLATE (BOTTOM) 1

11 VMA0G53-1 FAN HOLD PLATE (UPPER) 1

12 L6FAHBAH0003 FAN MOTOR 1

13 VGNB0098 MAIN LABEL 1

14 VQL1B22 CAUTION LABEL 1

15 7G1B018A CAUTION LABEL 1

101 XSB2+4FJK SCREW 1

104 XSB26+4FN SCREW 2

105 XSN26+5FN SCREW 2

106 XYN26+J10FN SCREW 1

107 XSN26+8FN SCREW 4

111 XSB2+4FJ SCREW 6

112 XQN2+C3FN SCREW 1

113 XYN4+J8FN SCREW 2

115 XQG26+A3FN SCREW 1

E12 WE750PKY1A FAN P.C.BOARD 1

PRT-3

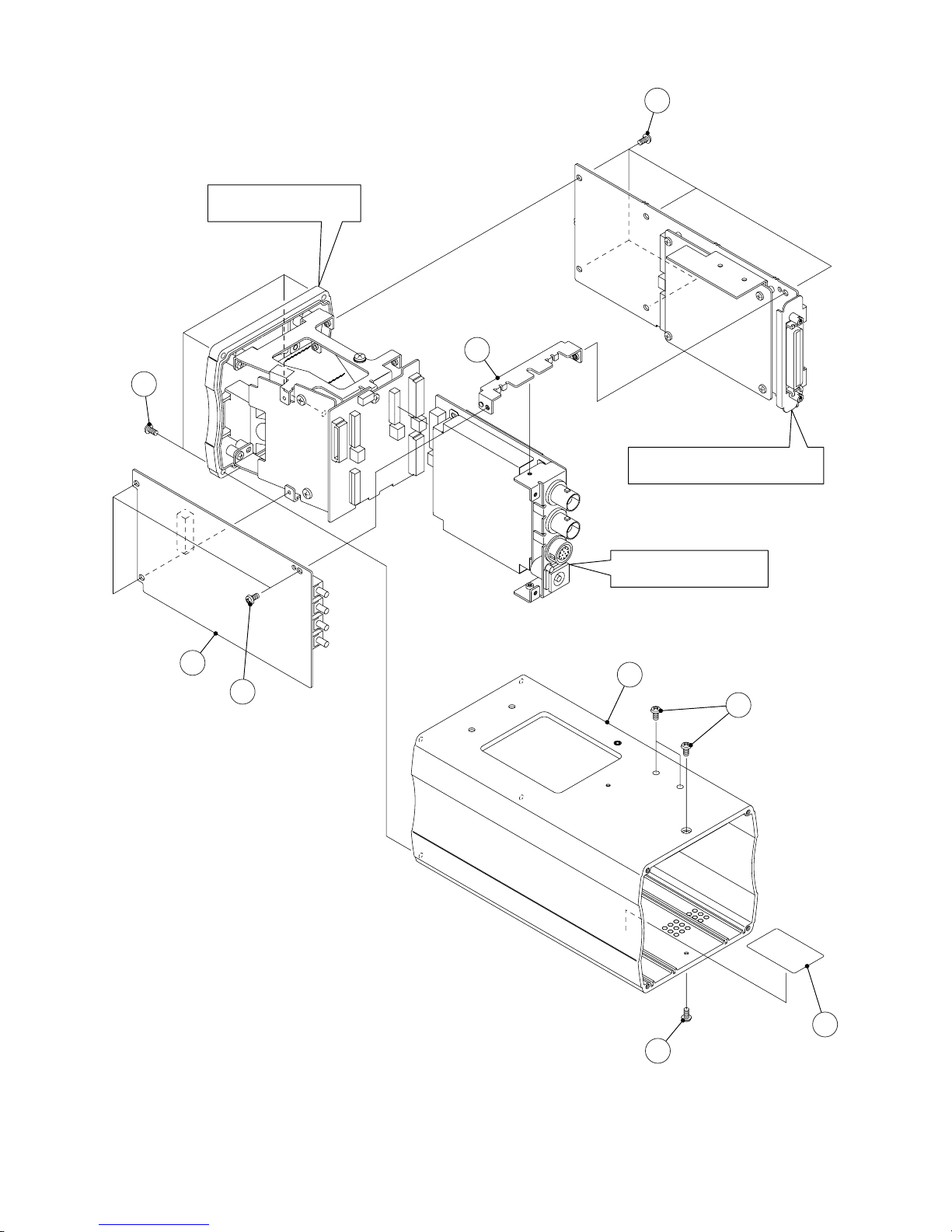

CHASSIS FRAME ASSEMBLY (2)

104

110

104 22

105

FRONT UNITASSEMBLY

(See PRT-5)

DSP/DSP-SUB P.C.BASSEMBLY

(See PRT-8)

POWER P.C.BASSEMBLY

(See PRT-7)

PRT-4

Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks

CHASSIS FRAME ASSEMBLY (2)

21 1B1B009A P.C.B GUIDE ANGLE 1

22 VGQ7830-1 MAIN CASE 1

23 VQL1B29 FUSE REPLACEMENT LABEL 1

104 XSB26+4FN SCREW 8

105 XSN26+5FN SCREW 4

110 XSN26+8FJK SCREW 4

E9 WE750PKZ1A PREPROCESS P.C.BOARD 1

PRT-5

FRONT UNIT ASSEMBLY

104

102

37 114

104

PRT-6

Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks

FRONT UNIT ASSEMBLY

31 V9BA0537AN CCD BLOCK ASS’Y 1

32 4D1A037C FRONT ESCUTCHEON 1

33 V9AB0315A3 2/3” BAYONET MOUNTASS’Y 1

34 IRE800T1R0 IR FILTER 1

35 5S1A006A LOW PASS HOLDER 1

36 LPFE800 LOW PASS FILTER 1

37 WN-0003 CAP 1

38 WE655L02 FLEXIBLE FLAT CABLE 2

39 WE655L04 FLEXIBLE FLAT CABLE 1

40 WE750L01 FLEXIBLE FLAT CABLE 1

51 VMK0597 P.C.B CHASSIS 1

52 VSC5573-1 SHIELD SHEET (WIND) 1

53 WE655L03 FLEXIBLE FLAT CABLE 2

54 WE655L08 FAN CABLE 1

102 XQN2+A3FJK SCREW 3

104 XSB26+4FN SCREW 12

114 XSN3+8FN SCREW 6

E1 WE860PKB1A CCD-R P.C.BOARD 1

E2 WE860PKC1A CCD-G P.C.BOARD 1

E3 WE860PKD1A CCD-B P.C.BOARD 1

E4 WE860PKB4A DRIVE P.C.BOARD 1

E5 WE860PKC4A PREAMP P.C.BOARD 1

E8 WE750PKD2A JOINT P.C.BOARD 1

PRT-7

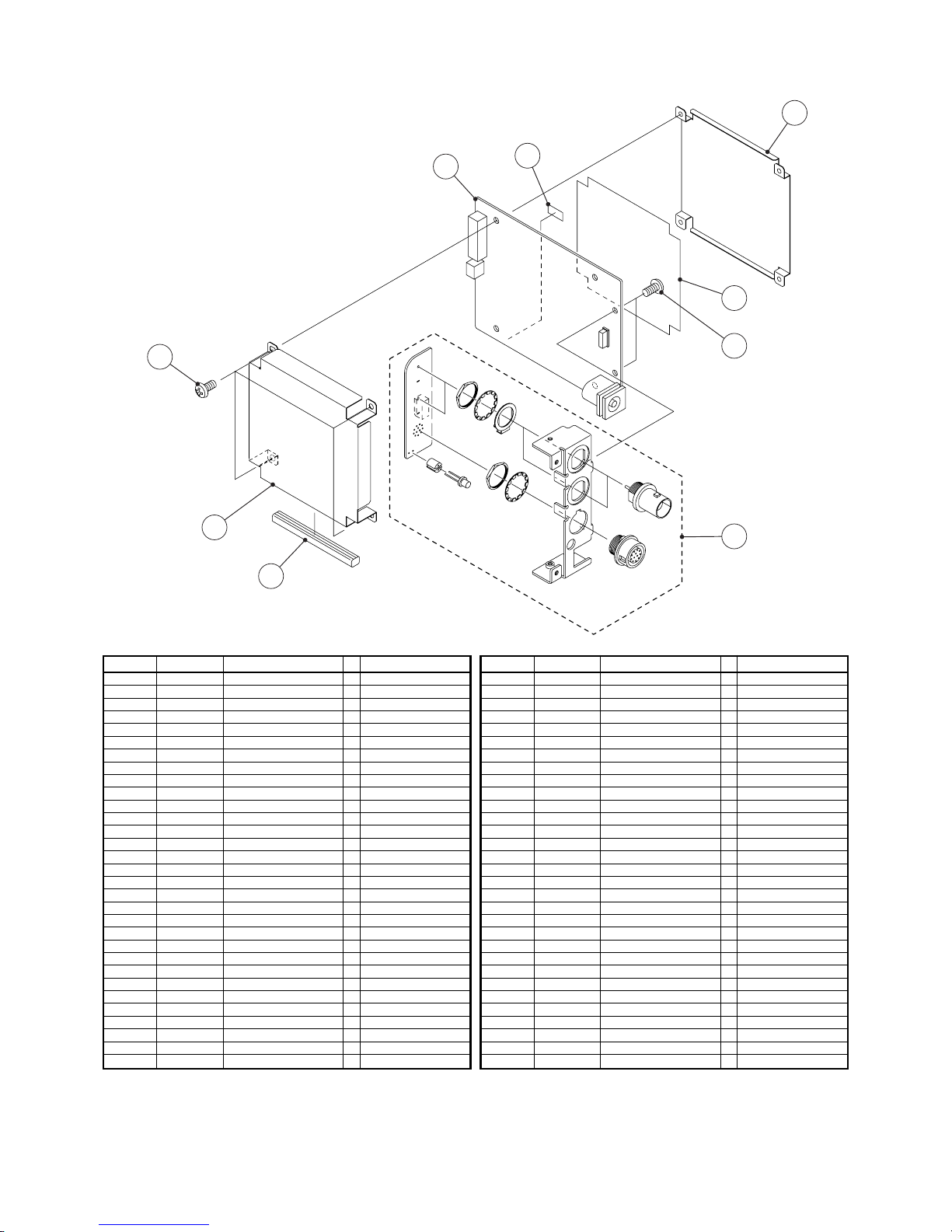

POWER P.C.B ASSEMBLY

61 VSC5568 POWER SHIELD (BACK) 1

62 VMZ3431 INSULATE SHEET 1

63 VSC5567 POWER SHIELD (FRONT) 1

64 VSCB0001 GASKET 1

65 VQLB0095 BLANK LABEL 1

104 XSB26+4FN SCREW 6

E6 WE750PKB2A POWER P.C.BOARD 1

E7 WE750PKC2A POWER-SUB P.C.BOARD 1

Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks

104

Ref. No. Part No. Part Name & Description Pcs Remarks

PRT-8

DSP / DSP-SUB P.C.B ASSEMBLY

71 VMAB0091 HEAT SINK (A) 1

72 VMXB0010 D-SUB CONNECTOR SCREW 2

73 VMGB0019 SHEET (A) 1

74 VMGB0021 SHEET (B) 1

75 VMGB0022 SHEET (C) 1

76 VMAB0092 HEAT SINK (B) 1

77 VMGB0023 SHEET (D) 1

78 VMXB0039 SPACER 4

103 XSB25+4FN SCREW 2

104 XSB26+4FN SCREW 8

109 XWA25FN WASHER 2

E10 WE860PKZ2A DSP P.C.BOARD 1

E11 WE860PKZ3A DSP-SUB P.C.BOARD 1

Ref. No. Part No. Part Name & Description Pcs Remarks

E11

104

72 109

103 104

E10

PRT-9

Ref. No. Part No. Part Name & Description Pcs Remarks Ref. No. Part No. Part Name & Description Pcs Remarks

PACKAGING PARTS ASSEMBLY

1 YWT050803 POLYETHYLENE BAG 1

2 VMG1371 RUBBER SHEET 1

3 VHD1432 MOUNTING SPACER 1

4 XYN4+J8FN SCREW 2

5 YWT10X10C03 POLYETHYLENE BAG 1

6 VKM5550-3 MOUNTING ADAPTER 1

7 VQTB0088 OPERATING INSTRUCTIONS 1

8 VQC4626 SAFETY CARD 1

9 VQA0689 SERVICE CENTER LIST 1

10 VQA0690 WARRANTY CARD 1 (NORTH AMERICA)

11 XZB89X190KG2 WARRANTY CARD BAG 1

12 VQA0855 WARRANTY CARD 1 (JAPAN)

13 PE26X40C05B POLYETHYLENE BAG 2

14 V9CA4933AN PACKAGING ASS’Y 1

15 V8FA1095B4 PACKAGING LABEL 3

16 VQL8185 OPERATION LABEL 1

17 V8FA0070A4 CAUTION LABEL 1

AW-E860N

2 3 4 5 6

8 9

710 11 12
