Panasonic ET-LAL510 Manual de usuario

Operating Instructions

Replacement Lamp Unit

Model No. ET-LAL510

DPQX1363ZB/X1

Thank you for purchasing this Panasonic product.

■Please read these operating instructions and the projector operating in-

structions carefully, and then use this product correctly.

zTo download the "Operating Instructions – Functional Manual" of the projector, please visit

the Panasonic website (https://panasonic.net/cns/projector/).

■Beforeusingthisproduct,besuretoread“Readthisrst!”(Æpage 2 ).

■Please save this manual for future use.

2 - ENGLISH

Read this rst! Always follow these precautions

Notice (USA only)

Hg-LAMP CONTAINS MERCURY, Manage in Accord with Disposal Laws.

See: www.lamprecycle.org or 1-888-411-1996.

This lamp is used in projectors.

It is not intended to be used for indoor lighting of ordinary homes.

2009 / 125 / EC

WARNING:

 Do not remove unspecied screws during the lamp unit

replacement.

Doing so can cause electric shocks, burns, or injury.

 Do not disassemble the lamp unit.

If the lamp breaks, it could cause injury.

 Lamp replacement

The lamp has high internal pressure. If improperly handled, an explosion and severe

injury or accidents will result.

zThe lamp can easily explode if struck against hard objects or dropped.

zBefore replacing the lamp, be sure to disconnect the power plug from the wall outlet. Electric

shocks or explosions can result if this is not done.

zWhen replacing the lamp, turn the power off and allow it to cool for at least 1 hour before

handling it otherwise it can cause burns.

CAUTION:

 Do not use the old lamp unit.

If used it could cause lamp explosion.

 If the lamp has broken, ventilate the room immediately.

Do not touch or bring your face close to the broken pieces.

Failure to observe this will cause the user to absorb the gas which was released

when the lamp broke and which contains nearly the same amount of mercury as

uorescentlamps,andthebrokenpieceswillcauseinjury.

zIf you believe that you have absorbed the gas or that the gas has got into your eyes or mouth,

seek medical advice immediately.

zAsk your dealer about replacing the lamp unit and check the inside of the projector.

ENGLISH - 3

English

Manufactured by: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importer: Panasonic Connect Europe GmbH

Authorized Representative in EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Importer for UK:

Panasonic Connect UK,

a branch of Panasonic Connect Europe GmbH,

Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT

Français Fabriqué par: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japon

Importateur: Panasonic Connect Europe GmbH

Représentant autorisé dans l’UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hambourg, Allemagne

Español Fabricado por: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japón

Importador: Panasonic Connect Europe GmbH

Representante Autorizado para la UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgo, Alemania

Deutsch Hergestellt von: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importeur: Panasonic Connect Europe GmbH

Vertretungsberechtigter in der EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Deutschland

Italiano Fabbricato da: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Giappone

Importatore: Panasonic Connect Europe GmbH

Rappresentante autorizzato nell’UE: Panasonic Testing Centre

Winsbergring 15, 22525 Amburgo, Germania

Български Производител: Panasonic Connect Co., Ltd.

4-1-62Minoshima,Hakata-ku,Fukuoka812-8531,Япония

Вносител: Panasonic Connect Europe GmbH

Упълномощен представител в ЕС: Panasonic Testing Centre

Winsbergring15,22525Hamburg,Германия

4 - ENGLISH

Čeština Vyrobil: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko

Dovozce: Panasonic Connect Europe GmbH

Oprávněný zástupce v EU: Panasonic Testing Centre

Winsbergring15,22525Hamburk,Německo

Dansk Fremstillet af: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importør: Panasonic Connect Europe GmbH

Autoriseret repræsentant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Eesti Tootja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Jaapan

Maaletooja: Panasonic Connect Europe GmbH

Volitatud esindaja ELis: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Saksamaa

Ελληνικά Κατασκευάστηκε από: Panasonic Connect Co., Ltd.

4-1-62Minoshima,Hakata-ku,Fukuoka812-8531,Ιαπωνία

Εισαγωγέας: Panasonic Connect Europe GmbH

Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ: Panasonic Testing Centre

Winsbergring15,22525Hamburg,Γερμανία

Hrvatski Proizvodi: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Uvoznik: Panasonic Connect Europe GmbH

Ovlašteni zastupnik u EU-u: Panasonic Testing Centre

Winsbergring15,22525Hamburg,Njemačka

Latviešu Ražotājs: Panasonic Connect Co., Ltd.

4-1-62Minoshima,Hakata-ku,Fukuoka812-8531,Japāna

Importētājs: Panasonic Connect Europe GmbH

Ociālais pārstāvis ES: Panasonic Testing Centre

Winsbergring15,22525Hamburg,Vācija

Lietuvių Gamintojas: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonija

Importuotojas: Panasonic Connect Europe GmbH

Įgaliotasis atstovas ES: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgas, Vokietija

ENGLISH - 5

Magyar Gyártotta: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japán

Importőr: Panasonic Connect Europe GmbH

Hivatalos képviselő az EU-ban: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Németország

Nederlands Geproduceerd door: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importeur: Panasonic Connect Europe GmbH

Bevoegde vertegenwoordiger in de EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Duitsland

Norsk Produsert av: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importør: Panasonic Connect Europe GmbH

Autorisert representant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Polski Wyprodukowano przez: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia

Importer: Panasonic Connect Europe GmbH

Upoważniony przedstawiciel w UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Niemcy

Português Fabricado por: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japão

Importador: Panasonic Connect Europe GmbH

Representante Autorizado na UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgo, Alemanha

Română Fabricat de: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia

Importator: Panasonic Connect Europe GmbH

Reprezentant autorizat în UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germania

Slovenčina Výrobca: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko

Dovozca: Panasonic Connect Europe GmbH

Autorizovaný zástupca v EÚ: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Nemecko

6 - ENGLISH

Slovenščina Proizvaja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonska

Uvoznik: Panasonic Connect Europe GmbH

Pooblaščeni zastopnik v EU: Panasonic Testing Centre

Winsbergring15,22525Hamburg,Nemčija

Suomi Valmistaja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japani

Maahantuoja: Panasonic Connect Europe GmbH

Valtuutettu edustaja EU:ssa: Panasonic Testing Centre

Winsbergring 15, 22525 Hampuri, Saksa

Svenska Tillverkad av: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importör: Panasonic Connect Europe GmbH

Auktoriserad representant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Türkçe Tarafından Üretilmiştir: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonya

İthalatçı: Panasonic Connect Europe GmbH

AB Yetkili Temsilcisi: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Almanya

ENGLISH - 7

Illustrations in these operating instructions

zIllustrations of the lamp unit and the projector may vary from the actual product.

Term

zIn this manual, the "Wireless remote control unit" accessory of the projector is referred to as the

"Remote control".

Attention

zSince the luminous lamp is made of glass, it may burst if dropped or hit with a hard object.

Handle with care.

zWhen replacing the lamp unit, be sure to hold it by the handle because its surface is pointed and

its shape is protruded.

zDo not disassemble or modify the lamp unit.

zWhen replacing the lamp because it has stopped illuminating, there is a possibility that the lamp

may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you

should always assume that the lamp is broken, and you should stand to the side of the lamp

cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when

the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice

immediately.

zWhen the projector is mounted on a ceiling, do not work with your face close to the projector.

zAttach the lamp unit and the lamp cover securely.

zPanasonic Connect Co., Ltd. takes no responsibility for any damage or malfunction of the

product resulting from use of lamp units which are not manufactured by Panasonic Connect Co.,

Ltd.Useonlyspeciedlampunits.

zDonotremoveorloosenthescrewsotherthanspeciedoneswhenreplacingthelampunit.

zBe sure to reset the lamp counter after replacing the lamp unit.

Note

zA Phillips screwdriver is necessary when carrying out replacement.

Holdthescrewdriverrmly.

Replacing the lamp unit

8 - ENGLISH

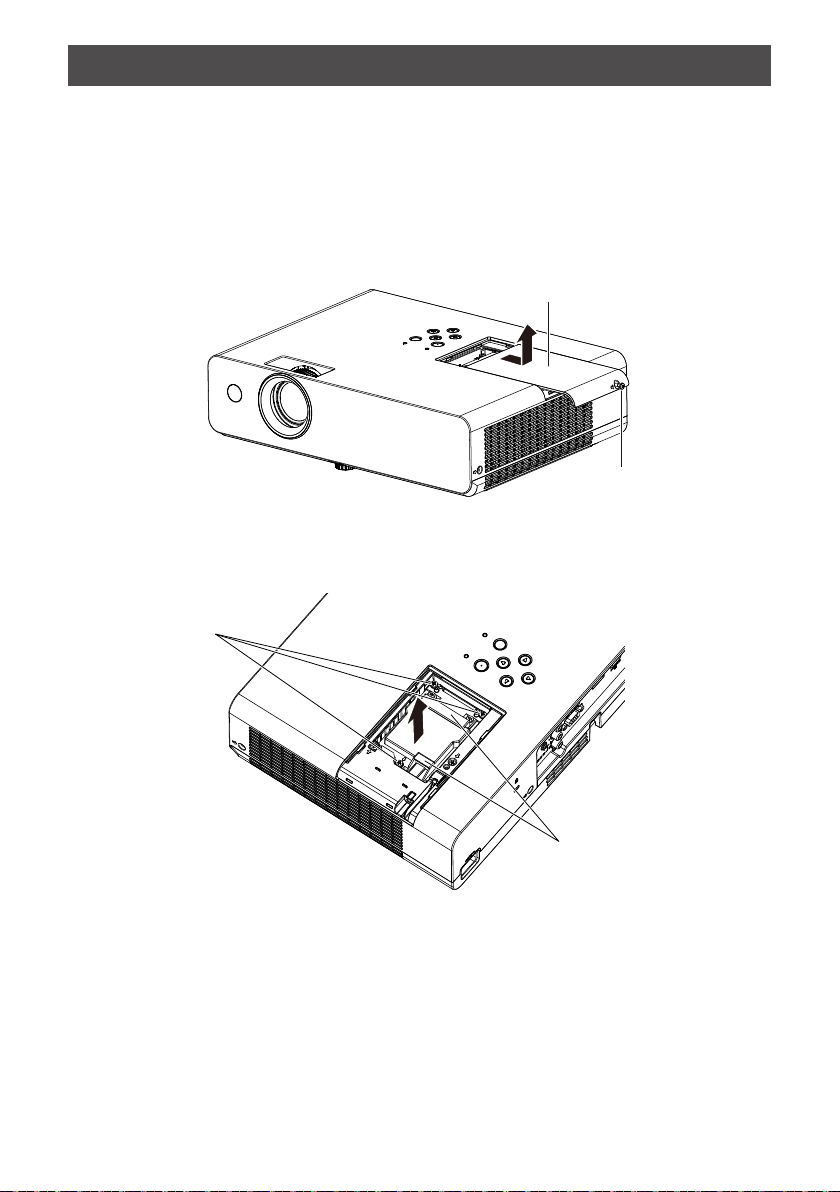

JReplacement procedure

1) Turn off the power and then remove the AC power plug from the wall outlet.

zWait at least one hour and make sure the lamp unit and surroundings are cool.

2) Use a Phillips screwdriver to loosen the lamp cover xing screw (x1) until it

turns freely and remove the lamp cover.

zRemove the lamp cover by pulling it slowly toward the direction of the arrow.

3) Use a Phillips screwdriver to loosen the lamp unit xing screws (x3) until they

turn freely.

4) Hold the used lamp unit by its handles, and pull it gently from the projector.

5) Insert the new lamp unit in correct direction. Tighten the lamp unit xing

screws (x3) securely with a Phillips screwdriver.

zWhenyouexperiencedifcultyininstallingthelampunit,removeitandtryagain.Ifyouuse

force to install the lamp unit, the connector may be damaged.

6) Attach the lamp cover. Tighten the lamp cover xing screw (x1) securely with a

Phillips screwdriver.

zPerform Step 2) in reverse direction to attach the lamp cover.

Handles

Replacing the lamp unit ( continued )

Lampcoverxingscrew

Lamp cover

Lampunitxingscrews

ENGLISH - 9

7) Connect the power plug, press the power < v/b> button on the control panel or

on the remote control.

8) While pressing the a button on the control panel, press and hold the <INPUT/

ENTER> button on the control panel for 8 seconds or more.

zThe lamp counter will be reset to 0. (At this time, there is displaying nothing.)

9) Press the <INFO.> button on the remote control.

zThe [Info.] screen is displayed.

For more details, please refer to the "Operating Instructions - Functional Manual" of the

projector.

To download the "Operating Instructions – Functional Manual", please visit the Panasonic

website (https://panasonic.net/cns/projector/).

zMake sure that the display of the [Lamp counter] is reset to [0 H].

zPlease try Step 8) again if the lamp counter has not been reset.

Attention

zThe lamp contains mercury. When disposing of the used lamp unit, ask your nearest local

authorities or dealer about proper disposal of the unit.

zAfter unpacking the lamp unit, discard the packaging material properly.

Replacing the lamp unit ( continued )

TI1118JG1062 -PT

Printed in China

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents

means that used electrical and electronic products must not be mixed with

general household waste.

For proper treatment, recovery and recycling of old products, please take them

to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and

prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local

authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance

with national legislation.

Product information (for Turkey only)

AEEEYönetmeliğineUygundur

Panasonic Connect Co., Ltd.

Web Site : https://panasonic.net/cns/projector/

Tabla de contenidos

Otros manuales de Accesorios para proyectores de Panasonic

Panasonic

Panasonic ET-LAE200C Manual de usuario

Panasonic

Panasonic ET-LAA110 Manual de usuario

Panasonic

Panasonic ET-D75LE8 Manual del sistema

Panasonic

Panasonic ET-SFR330 Manual de usuario

Panasonic

Panasonic ET-LAD7700 Guía

Panasonic

Panasonic PressIT TY-WP2B1W Instrucciones de funcionamiento

Panasonic

Panasonic ET-EMF510 Manual de usuario

Panasonic

Panasonic ET-PFD560 Manual de usuario

Panasonic

Panasonic ET-LAD510 Manual de usuario

Panasonic

Panasonic ET-DLE020 Manual de usuario

Panasonic

Panasonic ET-LAV200C Manual de usuario

Panasonic

Panasonic ET-MD77NT Manual de usuario

Panasonic

Panasonic ET-LAEF100 Manual de usuario

Panasonic

Panasonic PressIT TY-WPS1 Manual de usuario

Panasonic

Panasonic ET-LAL331 Manual de usuario

Panasonic

Panasonic ET-ELT20 Manual de usuario

Panasonic

Panasonic ET-DLE170 Manual de usuario

Panasonic

Panasonic ET-D75MRS10 Manual de usuario

Panasonic

Panasonic ET-PAD310 Manual de usuario

Panasonic

Panasonic ET-LAL100 Manual de usuario

Panasonic

Panasonic ET-LEC701 Guía

Panasonic

Panasonic TY-WPR1 Instrucciones de funcionamiento

Panasonic

Panasonic ET-LAV200 Manual de usuario

Panasonic

Panasonic ET-LAEF100 Manual de usuario

Manuales populares de Accesorios para proyectores de otras marcas

Optoma

Optoma BX-AL133B Manual de usuario

PEERLESS

PEERLESS PE 1120 Guía

Osram

Osram SIRIUS HRI Series Manual

Presentation Switchers

Presentation Switchers PS111 Manual de usuario

Kramer

Kramer VIA GO Manual de usuario

Yamaha

Yamaha PJL-112 Manual de lista de piezas

Swedstyle

Swedstyle CL23AA02ZA25E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 236CB Manual del propietario

Epson

Epson BrightLink 475Wi Manual de usuario

Acer

Acer WP100 Manual de usuario

i3 i3board Manual de usuario

CHIEF

CHIEF HB-43E Manual de usuario

Biamp

Biamp Modena Hub Manual de servicio

NEC

NEC MP10RX Manual de usuario

Panamorph

Panamorph DCR-S3 Manual de usuario

Exact solutions

Exact solutions FRAME-EVO-P10 Manual de usuario

CHIEF

CHIEF VCM103S Manual de usuario

InFocus

InFocus LP70+ Guía
