Panasonic K-NL404K/G Manual de usuario

Network Video Recorder

Quick Start Guide

Model No. K-NL404K/G

K-NL408K/G

K-NL416K/G

Version 1.0.0

Table of Contents

1Hardware Installation and Connection..........................................................................1

1.1 Preparation Work...................................................................................................1

1.2 HDD Installation .....................................................................................................1

2Front Panel/Rear Panel...................................................................................................3

3Connection ........................................................................................................................7

4GUI Operation...................................................................................................................8

4.1 Boot up ....................................................................................................................8

4.2 Device Initialization................................................................................................8

4.3 Reset Password...................................................................................................11

4.4 Startup Wizard......................................................................................................14

4.5 Registration...........................................................................................................14

4.6 Schedule ...............................................................................................................17

4.7 Instant Playback...................................................................................................20

5Web Operation................................................................................................................22

5.1 Network Connection............................................................................................22

5.2 Login ......................................................................................................................22

6Note ..................................................................................................................................26

Welcome

Thank you for purchasing our network video recorder!

This quick start guide is designed to be a reference tool for your system.

Keep it well for future reference.

Contact your local retailer ASAP if something is missing or damaged in the bag.

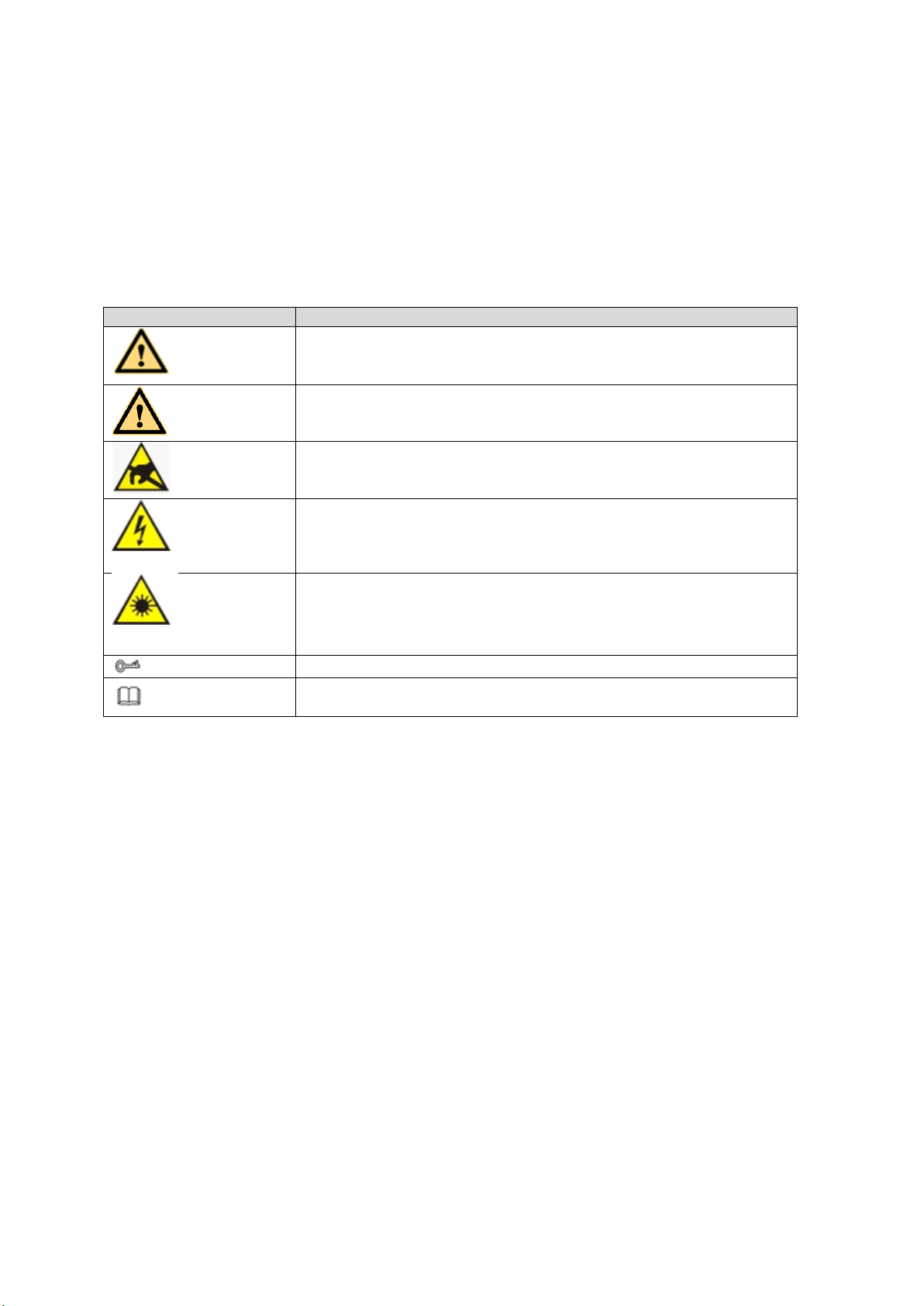

Safety Instruction

Icon

Note

DANGER

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which if not avoided,

could result in device damage, data loss, performance

degradation, or unexpected results.

Anti-static

Indicates it is the static sensitive device.

Eletric shock

risk

Indicates presence of dangerous high voltage. There is a risk of

electric shock to persons.

High power

laser radiation risk

Indicates presence of high power laser radiation.

Tips

It is intended to help you to fix a problem or save your time.

Note

Provides additional information to emphasize or supplement

important points of the main text.

iii

Important Safeguards and Warnings

．

Electrical safety

All installation and operation here should conform to your local electrical safety codes.

An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a

protective earthing connection.

Use a power supply which meets the requirements for SELV (Safety Extra Low Voltage) and

complies with Limited Power Source according to IEC 60950-1. Refer to the device label for

detailed information.

The product must be grounded to reduce the risk of electric shock.

We assume no liability or responsibility for all the fires or electric shock caused by improper

handling or installation.

．

Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage

and installation.

．

Installation

Keep upwards. Handle with care.

Do not apply power to the NVR before completing installation.

Do not place objects on the NVR.

Do not install on the wall.

．

Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

．

Environment

The NVR should be installed in a cool, dry place away from direct sunlight, inflammable,

explosive substances and etc.

This series product shall be transported, storage and used in the specified environments.

Environment which needs to comply with the following conditions:

The function of the ITE being investigated to IEC 60950-1 is considered not likely to require

connection to an Ethernet network with outside plant routing, including campus environment.

The installation instructions clearly state that the ITE is to be connected only to PoE

networks without routing to the outside plant.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury!

When replace the battery, please make sure you are using the same model!

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Hardware Installation and Connection

1.1

Preparation Work

DANGER

All the installation and operations here should conform to your local electric safety

rules.

Name

Contents

Whole

package

Appearance

There is any visible damage or not.

Package

There is any accidental clash during

transportation or not.

Front

panel and

rear

panel

The model on the front

panel

Check the model with the purchase

order.

The label on the rear

panel.

It is neat and clean or not.

Note

Do not tear off, or discard the label.

Usually we need you to represent the

serial number when we provide the

service after sales.

Case

Appearance

There is any visible damage or not.

Check the data cable,

power cable, fan cable,

main board and etc.

Check the connection is secure or not.

Note

Contact your local retailer or our

service engineer if the connection is

loosen.

1.2

HDD Installation

DANGER

Shut down the device and then unplug the power cable before you open the case to

replace the HDD!

All figures listed below for reference only!

For the first time to install, please check the HDD has been installed or not.

Refer to the user manual for HDD space information and recommended HDD brand. Please use HDD of

7200rpm or higher. Usually we do not recommend the PC HDD.

①Use the screwdriver to loose the screws

of the rear panel and then remove the front

cover.

②Put the HDD to the HDD bracket in

the chassis and then line up the four

screws to the four holes in the HDD.

Use the screwdriver to fix the screws

firmly to secure HDD on the HDD

bracket

③

Connect to the HDD data cable to the main

board and the HDD port respectively. Loosen

the power cable of the chassis and connect

another end of the power cable to the HDD

port.

④

After connect the cable, put the front

cover back to the device and then fix

screws of the rear panel.

Front Panel/Rear Panel

Note

Follow figures listed here for reference only. Please refer to the actual product for detailed information.

Refer to the user’s manual for detailed information.

The front panel is shown as in Figure 2-1.

K-NL404K/G, K-NL408K/G

K-NL416K/G

Figure 2-1

Please refer to the following sheet for front panel button information.

Name Icon Function

Power button

Power button, press this button for three seconds to boot up

or shut down NVR.

Shift Shift In textbox, click this button to switch between numeral,

English(Small/Capitalized),donation and etc.

Up/1

Down/4 

Activate current control, modify setup, and then move up and

down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4 (English character G/H/I)

Left/2

Right/3 

Shift current activated control, move left and right.

When playback, click these buttons to control playback bar.

In text mode, input number 2(English character A/B/C)

/3(English character D/E/F)

ESC ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter ENTER

Confirm current operation

Go to default button

Go to menu

Record REC Manually stop/start recording, working with direction keys

or numeral keys to select the recording channel.

Slow play/8 Multiple slow play speeds or normal playback.

In text mode, input number 8 (English character T/U/V).

Assistant Fn

One-

window monitor mode, click this button to display

assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it

for 1.5 seconds to

delete the previous character before the

cursor.

In motion detection setup, working with Fn and direction keys

to realize setup.

In text

mode, click it to switch between numeral, English

character(small/capitalized) and etc.

Realize other special functions.

Fast play/7 Various fast speeds and normal playback.

In text mode, input number 7 (English character P/Q/R/S).

Play previous/0 |In playback mode, playback the previous video

In text mode, input number 0.

Reverse/Pause/

6 ||

In normal playback or pause mode, click this button to reverse

playback

In reverse playback, click this button to pause playback.

In text mode, input number 6 (English character M/N/O).

Play Next/9 |

In playback mode, playback the next video

In menu setup, go to down ward of the dropdown list.

In text mode, input number 9 (English character W/X/Y/Z).

Play/Pause /5 ||

In normal playback click this button to pause playback

In pause mode, click this button to resume playback.

In text mode, input number 5(English character J/K/L).

USB port To connect USB storage device, USB mouse.

Network

abnormal

indication light

Net

Network error occurs or there is no network connection, the

light becomes red to alert you.

HDD abnormal

indication light HDD HDD error occurs or HDD capacity is below specified

threshold value, the light becomes red to alert you.

Record light 1-16 System is recording

or not. It becomes on when system is

recording.

Remote control

indicator light

ACT Remote control indicator light.

Status indicator

light

STATUS The light is on if device operates properly.

IR Receiver IR It is to receive the signal from the remote control.

The rear panel is shown as in Figure 2-2.

K-NL404K/G

K-NL408K/G

K-NL416K/G

Figure 2-2

Please refer to the following sheet for detailed information.

Icon Port Name Function

Network port 10M/100M/1000Mbps self-

adaptive Ethernet port.

Connect to the network cable.

HDMI

High Definition

Media Interface

High definition audio and video signal output port. It

transmits uncompressed high definition video and

multiple-channel data to

the HDMI port of the display

device. HDMI version is 1.4.

It displays Screen-1.

Otros manuales para K-NL404K/G

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Panasonic

Panasonic

Panasonic Zener Diodes MAZ8xxxG Series Manual de usuario

Panasonic

Panasonic PIN diodes MA27P02 Manual de usuario

Panasonic

Panasonic Transistors 2SC3931 Manual de usuario

Panasonic

Panasonic K-NL408KT/G Manual de usuario

Panasonic

Panasonic Transistors 2SB1462J Manual de usuario

Panasonic

Panasonic Schottky Barrier Diodes MA27D270G Manual de usuario

Panasonic

Panasonic WJ-NT104 Manual de usuario

Panasonic

Panasonic Transistors 2SC2480 Manual de usuario

Panasonic

Panasonic i-pro WJ-NT304 Manual de usuario

Panasonic

Panasonic Transistors 2SA2161J Manual de usuario

Panasonic

Panasonic Transistors 2SC5846 Manual de usuario

Panasonic

Panasonic Transistors 2SB1218G Manual de usuario

Panasonic

Panasonic Transistors 2SB0621A Manual de usuario

Panasonic

Panasonic BB-HNP17A Manual de usuario

Panasonic

Panasonic SH-ALL1C Manual de usuario

Panasonic

Panasonic WJ-SX850 Manual de usuario

Panasonic

Panasonic Transistors 2SA0720 Manual de usuario

Panasonic

Panasonic Phototransistors PNZ154NC Manual de usuario

Panasonic

Panasonic KX-HNS103C Manual de usuario

Panasonic

Panasonic Circuit Protector Elements UNHZ204 Manual de usuario

Panasonic

Panasonic Transistors 2SC3937G Manual de usuario

Panasonic

Panasonic Transistors 2SC5632G Manual de usuario

Panasonic

Panasonic PIN Diodes MA27P07 Manual de usuario

Panasonic

Panasonic Transistors 2SA1791J Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
