Transistors

Publication date: January 2003 SJC00286AED

2SA2084

Silicon PNP epitaxial planar type

For general amplification

■Features

•High collector-emitter voltage (Base open) VCEO

•Mini type package, allowing downsizing of the equipment and

automatic insertion through the tape packing

■Absolute Maximum Ratings Ta=25°C

Unit: mm

Parameter Symbol Conditions Min Typ Max Unit

Collector-emitter voltage (Base open) VCEO IC=−100 µA, IB=0 −300 V

Emitter-base voltage (Collector open) VEBO IE=−1 µA, , IC=0 −5V

Forward current transfer ratio *hFE VCE =−10 V, IC=−5 mA 30 150 

Collector-emitter saturation voltage VCE(sat) IC=−10 mA, IB=−1 mA −0.6 V

Collector output capacitance Cob VCB =−10 V, IE=0, f =1 MHz 7 pF

(Common base, input open circuited)

Transition frequency fTVCB =−10 V, IE=10 mA, f =200 MHz 50 MHz

Marking Symbol: 7N

0.40+0.10

–0.05

(0.65) 1.50+0.25

–0.05

2.8+0.2

–0.3

(0.95) (0.95)

1.9±0.1

2.90+0.20

–0.05

0.16+0.10

–0.06

0.4±0.2

5˚

10˚

0 to 0.1 1.1+0.2

–0.1

1.1+0.3

–0.1

Parameter Symbol Rating Unit

Collector-base voltage (Emitter open) VCBO −300 V

Collector-emitter voltage (Base open) VCEO −300 V

Emitter-base voltage (Collector open) VEBO −5V

Collector current IC−70 mA

Peak collector current ICP −100 mA

Collector power dissipation PC200 mW

Junction temperature Tj150 °C

Storage temperature Tstg −55 to +150 °C

1: Base

2: Emitter

3: Collector

EIAJ: SC-59

Mini3-G1 Package

■Electrical Characteristics Ta=25°C ±3°C

Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.

2. *: Rank classification

Rank P Q

hFE 30 to 100 60 to 150

This product complies with the RoHS Directive (EU 2002/95/EC).

2SA2084

SJC00286AED

VCE(sat) IChFE ICCob VCB

PTTaICVCE ICVBE

100

150

200

250

02040 8060 140120100 160

Ambient temperature T

(°C)

Collector power dissipation P

(mW)

0−12−2−10−4−8−6

Collector-emitter voltage VCE (V)

Collector current IC(mA)

−0.5 mA

−0.4 mA

−0.3 mA

−0.2 mA

−0.1 mA

−0.6 mA

−0.7 mA

−0.8 mA

−0.9 mA

IB=−1.0 mA

−80

−70

−60

−50

−40

−30

−20

−10

Ta=25°C

0−1.4−0.4 −0.6−0.2 −1.2−0.8 −1.0

−120

−100

−80

−60

−40

−20

=−10 V

=85°C

−25°C

25°C

Base-emitter voltage VBE (V)

Collector current I

(mA)

0−10 −20 −30 −40

100

f =1 MHz

=25°C

Collector-base voltage VCB (V)

Collector output capacitance

(Common base, input open circuited) Cob (pF)

−1−10 −100 −1

000

120

100

VCE =−10 V

Ta=85°C

25°C

−25°C

Forward current transfer ratio hFE

Collector current IC(mA)

−0.01

−0.1

−1

−1−100−10

/ I

=10

−0.1

=85°C

25°C−25°C

Collector-emitter saturation voltage VCE(sat) (V)

Collector current IC(mA)

This product complies with the RoHS Directive (EU 2002/95/EC).

Request for your special attention and precautions in using the technical information and

semiconductors described in this book

(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and

regulations of the exporting country, especially, those with regard to security export control, must be observed.

(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples

of the products, and no license is granted under any intellectual property right or other right owned by our company or any other

company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any other

company which may arise as a result of the use of technical information described in this book.

(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office

equipment, communications equipment, measuring instruments and household appliances).

Consult our sales staff in advance for information on the following applications:

–Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support

systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-

ucts may directly jeopardize life or harm the human body.

–Any applications other than the standard applications intended.

(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-

provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product

Standards in advance to make sure that the latest specifications satisfy your requirements.

(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions

(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute

maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any

defect which may arise later in your equipment.

 Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure

mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire

or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.

(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,

thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which

damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.

(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of Matsushita

Electric Industrial Co., Ltd.

Otros manuales de Hardware de red de Panasonic

Panasonic

Panasonic Schottky Barrier Diodes MA3XD21 Manual de usuario

Panasonic

Panasonic Switching Diodes MA36132E Manual de usuario

Panasonic

Panasonic Transistors 2SC2480 Manual de usuario

Panasonic

Panasonic Schottky Barrier Diodes MA24D70 Manual de usuario

Panasonic

Panasonic Phototransistors PNZ154NC Manual de usuario

Panasonic

Panasonic Transistors 2SC3937G Manual de usuario

Panasonic

Panasonic Schottky Barrier Diodes MA3Z7930G Manual de usuario

Panasonic

Panasonic Transistors 2SD1819G Manual de usuario

Panasonic

Panasonic Zener Diodes MAZQxxx Series Manual de usuario

Panasonic

Panasonic SH-ALL1C Manual de usuario

Panasonic

Panasonic Transistors 2SC5632G Manual de usuario

Panasonic

Panasonic Transistors 2SB1462J Manual de usuario

Panasonic

Panasonic Transistors 2SC4562G Manual de usuario

Panasonic

Panasonic PIN Photodiodes PNZ334 (PN334) Manual de usuario

Panasonic

Panasonic SH-ALL1C Manual de usuario

Panasonic

Panasonic PIN Diodes MA27P07 Manual de usuario

Panasonic

Panasonic WJ-NXF02 Manual de usuario

Panasonic

Panasonic WJ-PB85Y08 Manual de usuario

Panasonic

Panasonic WJNT204 - NETWORK IF UNIT Manual de usuario

Panasonic

Panasonic Schottky Barrier Diodes MA24D60 Manual de usuario

Panasonic

Panasonic Circuit Protector Elements UNHZ204 Manual de usuario

Panasonic

Panasonic WJPB65M16 - VIDEO OUTPUT BOARD-WJSX650... Manual de usuario

Panasonic

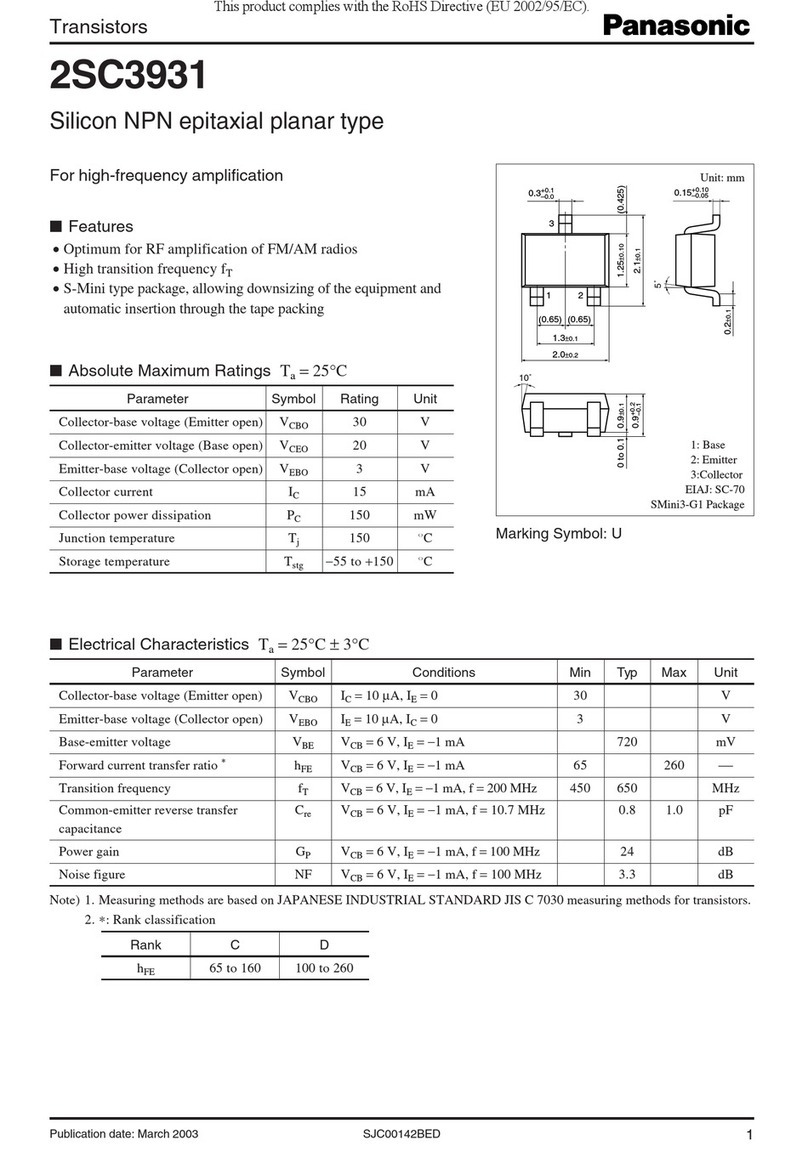

Panasonic Transistors 2SC3931 Manual de usuario
