Panasonic E series Manual de usuario

E-Series

NVR Setup Guide

Panasonic System Networks Co., Ltd.

Security Systems Business Division

V1. 7th Nov 2014

V2. 30th Jan 2015

<NOTICE>

This document is supplementary to the

operation manual.

The screens used in this document is taken from

K-NL-308K with firmware version3.20.

Depending on the firmware version, the screens

may differ from the actual screens.

3Menu tree of NVR

For System related settings :

Day & Time / Display /Account /

Firmware Update / Maintenance

For Camera related settings:

Encode / Image Adjustment /

Firmware Update

SETTING

SYSTEM

REMOTE

STORAGE

EVENT

NETWORK

For Recording related settings:

Schedule / HDD Configuration /

Others

For Event related settings:

Motion Detection /

Alarm Detection / Others

For Network related settings:

IP Address / DDNS /

E-Mail / Others

SYSTEM Settings

5General Setting

Individual numberto identify each NVR

when using remote controller

“Overwrite”: overwrite old file when all HDD storage is full

“Stop Record”:stop recording when all HDD storage is full

Time duration of one recording file

(range: 1 to 120 min. default : 60 min)

Recent time to start playback in real time playback operation

(range : 5 to 60 min default : 5 min)

Duration of no user operation

to log out automatically

(range: 0 to 60 min. default : 10 min)

Time interval to synchronize

time with camera

(range: 1 to 168 hours

default : 24 hours)

Checkingthis box makes

“Navigation Bar ” display

In live view window at bottom

side of display Uncheckthis box suppress to display

Setup wizard in boot up

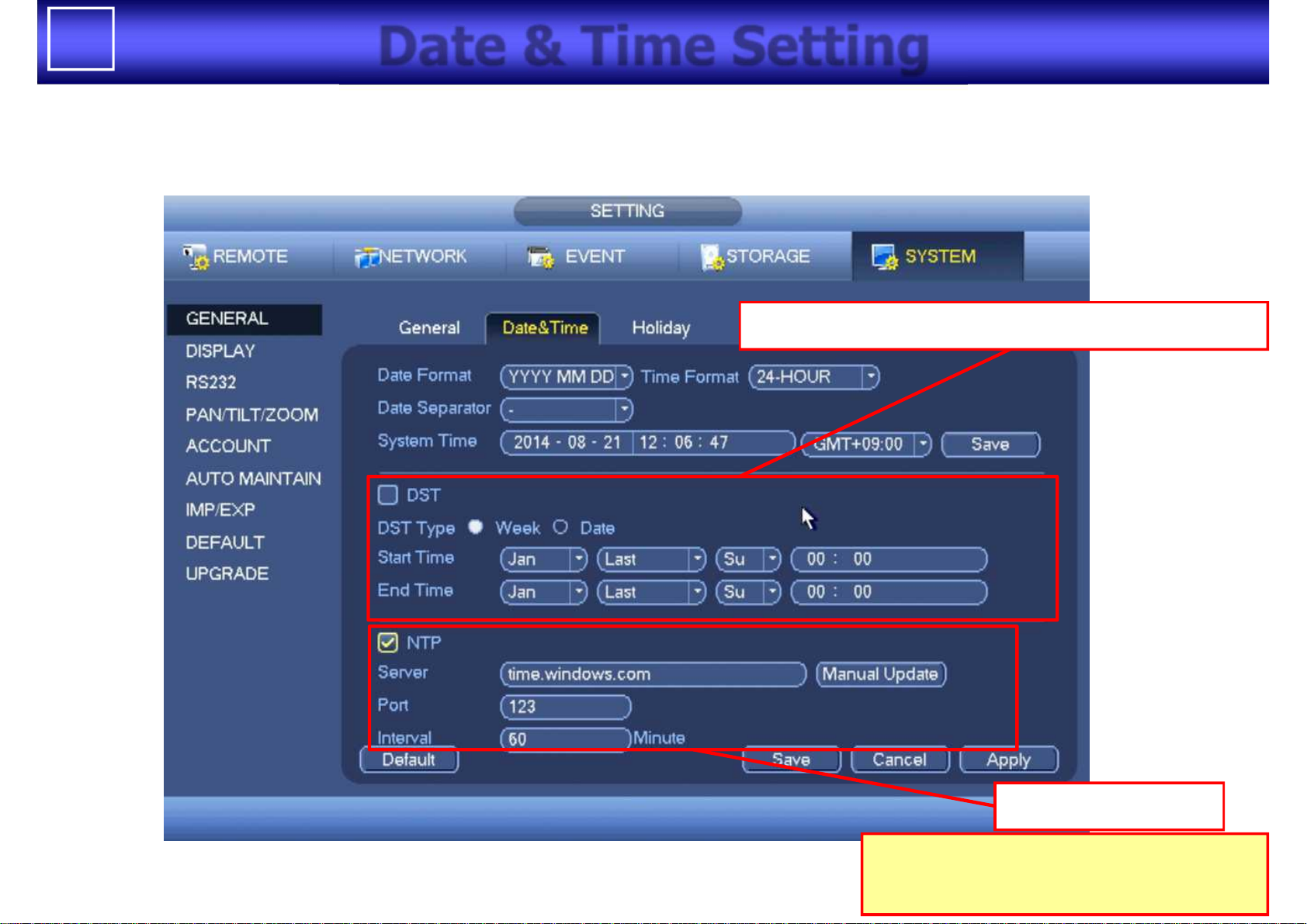

6Date & Time Setting

Daylight Saving Time( Summer Time) setting

NTP server setting

If internet connection is available,

recommend to set NTP server

7Holiday Setting

Add by date

Add by week

8Display Setting

Resolution setting for Display Monitor(HDMI / VGA)

Choose one of following option to match display supported resolution

1280x1024(default)/ 1280 x 720 / 1920 x 1080/ 1024 x 768

Check when display for time information is required

Check when keeping aspect ratio of camera resolution setting is required

Check when display for channel information is required

9Tour Setting

Can set interval time between

the sequential displays

(range : 5 sec – 120 sec)

Check window split patterns to display sequentially

Can add new channels to display sequentially

Can select window split types(view1/4/8/9)

to check camera to display below area

10 User Account Setting

Input “User Name” , “Password”, and select “Group”

Don’t forget !

Check when multiple user access using same account is allowed
