Panasonic KX-UT113 Manual de usuario
Panasonic
Configuration Guides
Version 1.0
Yeastar Information Technology Co. Ltd.
Panasonic Configuration Guides
2/11
Contents
About This Guide......................................................................................................3
Register Panasonic IP phone with MyPBX Manually ................................................4
Provisioning for MyPBX ............................................................................................8
Panasonic Configuration Guides
3/11
About This Guide
This guide is applicable to Panasonic IP Phone KX-UT113 /KX-UT123 /KX-UT133
/KX-UT136 /KX-UT248/KX-UT670/TGP500/TGP550.
Please note:
This guide has been tested with Panasonic KX-UT123 with firmware version
01.278. Be aware that different firmware versions may have different web
interface formats and functionality.
This guide will configure the IP phone with default configuration. If you are not
sure about the configuration of your IP phone, please reset your phone.
How to Reset Panasonic IP phone:
For KX-UT113 /KX-UT123 /KX-UT133 /KX-UT136 /KX-UT248
Figure 1-1 Reset Panasonic Phone
For KX-UT670
Figure 1-2 Reset Panasonic Phone
For TGP500/TGP550
Panasonic Configuration Guides
4/11
Figure 1-3 Reset Panasonic Phone
For more detailed instructions about how to reset IP phone, please refer to
Panasonic IP phone manual.
Register Panasonic IP phone with MyPBX
Manually
1. Start up the phone and identify its IP Address. In this guide, the IP Address
of the phone is 192.168.2.153, and IP Address of the MyPBX is
Panasonic Configuration Guides
5/11
192.168.2.127
Figure 1-2 Identify the IP of Panasonic Phone
2. Open the web port of Panasonic phone
Figure 1-3 Open the Web Port of Panasonic Phone
3. Point your browser to the web interface of the phone: http://192.168.2.153
and enter the login credentials (default username "admin"; default password
"adminpass")
4. We need to set the phone to register with MyPBX. Click “VoIP -> Line 1" tab,
and configure as follows:
1) In the "Phone Number" & “SIP Server” section:
Figure 1-4 Number &SIP Server
Phone number: the number of extension.
Registrar Server Address: the IP address of MyPBX.
Registrar Server Port: the port number to use for communication
with MyPBX. Default value:5060.
Proxy Server Address: the IP address of MyPBX.
Panasonic Configuration Guides
6/11
Registrar Server Port: the default value is 5060.
2) Authentication
Figure 1-5 SIP Authentication
Source Port : the SIP port number for each line must be unique,
default value: 5060 (for Line 1) and 5070 (for Line 2).
Authentication ID:same as the extension’s number in general.
Authentication Password:password of extension.
3) Set transport protocol
Figure 1-6 Transport Protocol
Transport Protocol : same as the option on extension page
4) Others
Panasonic Configuration Guides
7/11
Figure 1-7 Other Settings
Set these options by default as the figure shows
5. Click the button “Save” and the phone will register with MyPBX. This can be
verified via “Status” both of the IP phone and PBX.
Figure 1-8 VoIP Status on IP phone
Panasonic Configuration Guides
8/11

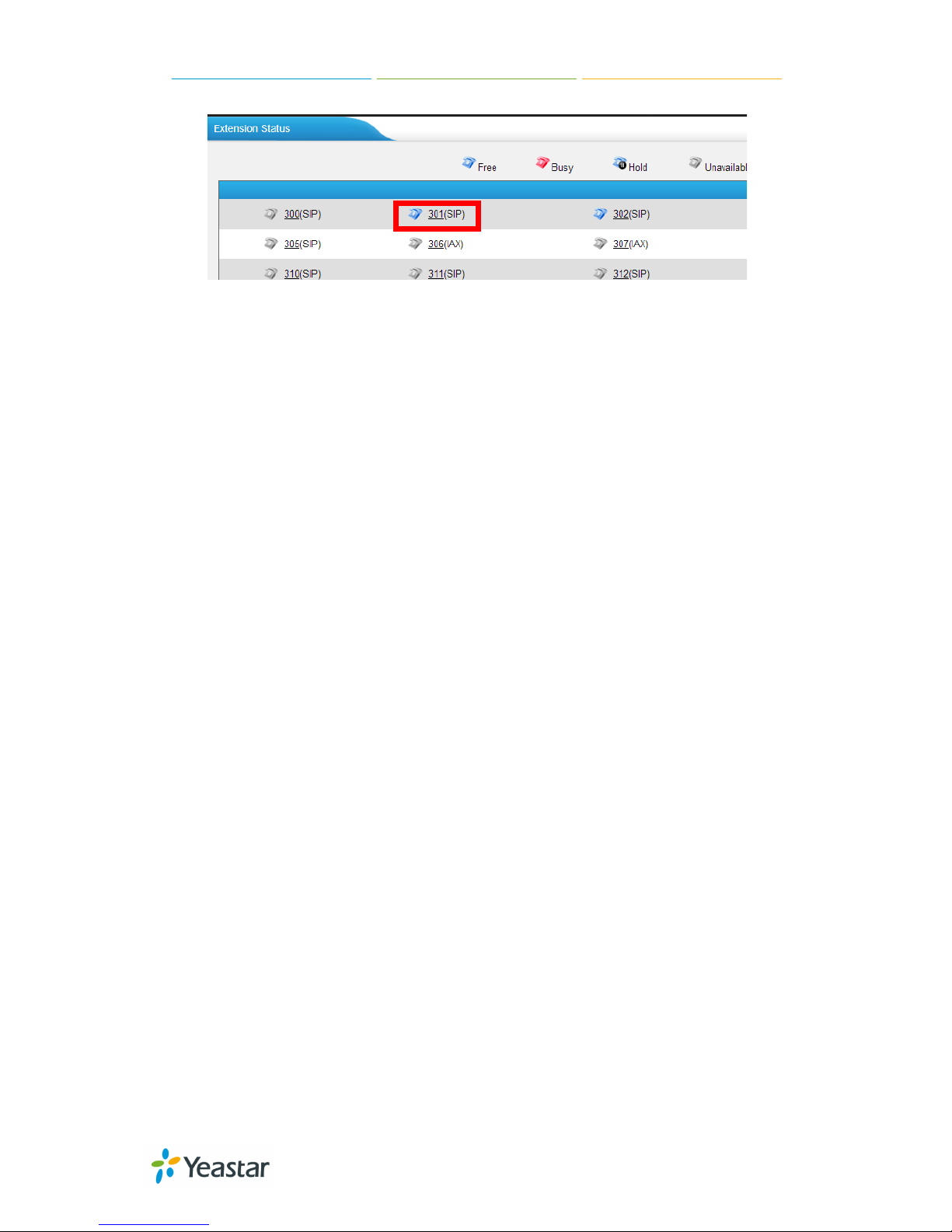

Figure 1-8 Extension Status on MyPBX
Provisioning for MyPBX
1. Verify Firmware Installed on Your Phone
Verify the firmware version currently installed on the “Status” page.
2. Plug Phone into the network
Plug your Panasonic IP phone into your LAN. (The Phone must be on the same
LAN as that of MyPBX’s IP address).
3. Approve Phone and Assign an Extension
To do provisioning with Panasonic IP phones, you need to set MyPBX as the only
Panasonic Configuration Guides
9/11
working DHCP server
Step1. Disable DHCP Server on your local network.
E.g. Disable DHCP Server on Linksys Router.
Figure 2-1 Disable DHCP Server on Linksys Router
Step2. Make sure DHCP is enabled on Panasonic IP phone. The default setting
of DHCP for IP Phone is “Automatic”, so you can skip this step and go to next
step.
If the DHCP is disabled, please follow steps below to enable it.
Figure 2-2 Enable DHCP on Panasonic phone
Step3. Enable DHCP Server on MyPBX.
Login MyPBX web interface, System -> DHCP Server ->Enable DHCP Server
Panasonic Configuration Guides
10/11
Figure 2-3 Enable DHCP Server on MyPBX
Step4. Configure phones on MyPBX Auto-Provision page.
1) Login MyPBX web interface, Basic->Extensions->Phone Provisioning->Add
Phone.
Figure 2-3 Phone Provisioning
2) Fill in the phone detail message on the pop-up windows.
Input IP Phone’s MAC address, Name, Manufacturer, Phone type,Line,
Extension and so on for the phone.
In this case, Panasonic KX-UT123 IP phone’s MAC address is 0080f005BF96
