Panasonic KX-T7730 Manual de usuario

Quick Reference Guide

Model KX-T7730

Important Information

Proprietary Telephones

When using the KX-T7730, keep the following conditions in mind.

• If there is any problem, unplug the extension line and connect a known working phone. If

the known working phone operates properly, have the defective phone repaired by a

specified Panasonic Factory Service Centre. If the known working phone does not

operate properly, check the PBX System and the internal extension wiring.

• Keep the unit away from heating appliances and electrical noise generating devices such

as fluorescent lamps and motors.

• The unit should be kept free of dust, moisture and vibration, and should not be exposed to

direct sunlight.

• Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a

soft cloth.

• Do not disassemble this product. Dangerous electrical shock could result. The unit must

only be disassembled and repaired by qualified service technicians.

• When a failure occurs which exposes any internal parts, disconnect the telephone line

cord immediately and return the unit to a service centre.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS

OBJECTS.

IMPORTANT NOTICE:

Under power failure conditions, this telephone may not opera te. Please ensure that a

separate telephone, not dependent on local power, is availab le for use in an emergency.

Notes:

• In this manual, the suffix of each model number is omitted.

• For further information, refer to the Main Unit/PBX Manuals.

This product is intended to be connected to Panasonic KX series PBX only.

This product complies with the essential requirements of the Directive 1999/5/EC Radio

and telecommunications terminal equipment directive.

A copy of the manufacturers declaration of conformity to the essential requirements of the

R&TTE directive is available at the following web address: http://doc.panasonic-tc.de

Features List

Off-hookOutside (CO)

Line button On-hook Feature number Talk

 * "Location of Controls" is shown on page 4.

Desired Function Operation

Calling

Redial

One-Touch

Dialling

To an extension To an external party

phone no.

extension no.

To program

To dial assigned as a One-touch

dialling button

phone no.

Speed Dialling

(System)

system speed dial no.

To dial

Making Calls

While on-hook

Handsfree

answerback

Picking up

a call

Receiving Calls

When the Dialled Extension is Busy/No Answer

Call Waiting

To talk to the new party

While hearing the Call Waiting tone

Features List

Desired Function Operation

During a Conversation

Holding To retrieve a call at the holding extension

To retrieve an outside call from another extension

To an extension

Holding a call

Transferring

a call

extension no. Announce.

Paging

Announce.

To page

To answer an announced page

Useful Features

third party's no.

Three-party

conference

Cancel

All calls

extension no.

Forwarding

a call

2 0

Clearing the

setting

7 9 #

*Consult your dealer for more details about the feature access numbers.*

Do Not Disturb

(DND) Set

Cancel

– 3 –

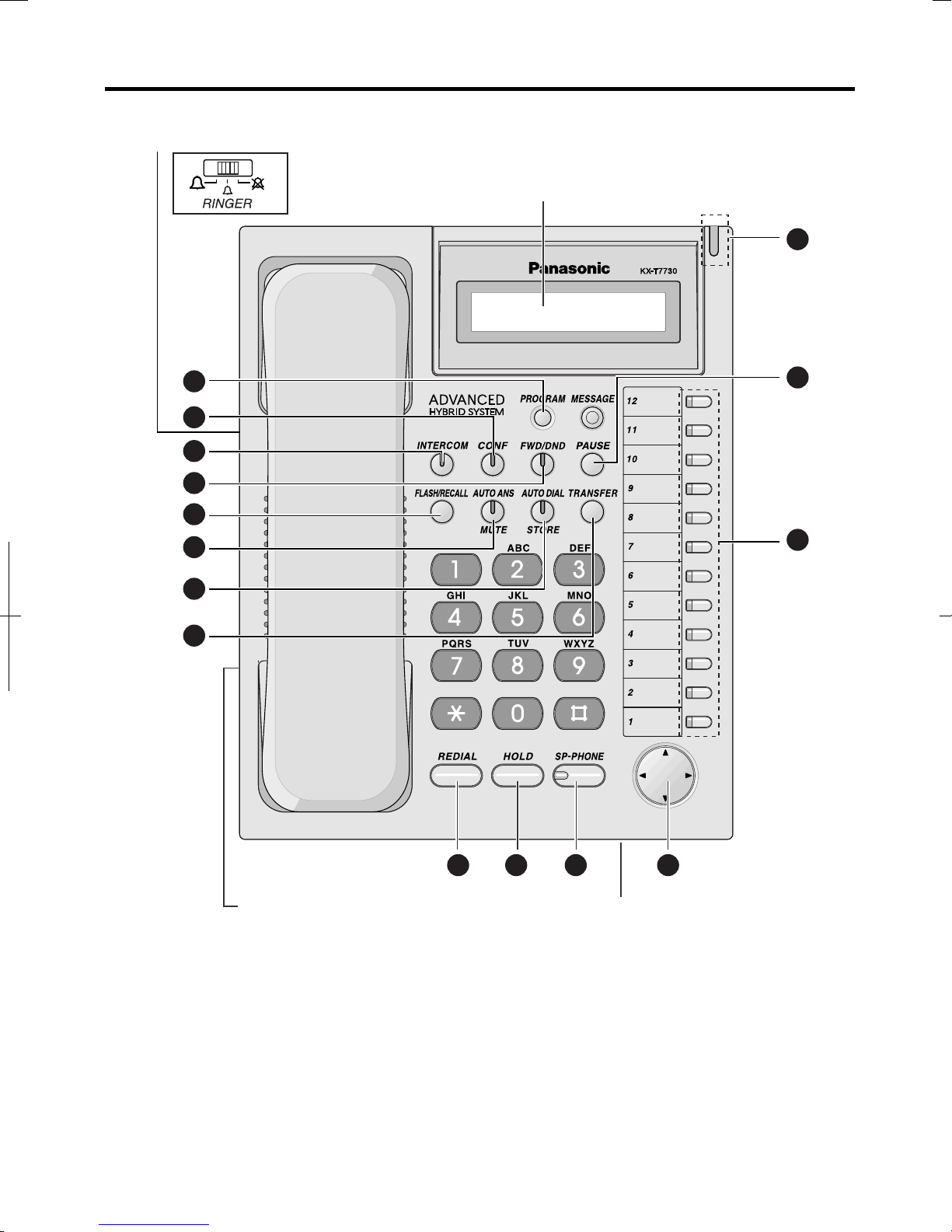

Location of Controls

*Headset (not included)

Not available: KX-T7090

Headset Jack

LCD (Liquid Crystal Display)

RINGER Volume Selector

10 11

Microphone

*The MESSAGE button does not function

when the main unit is the KX-T206.

– 4 –

7AUTO DIAL/STORE: Used for speed

dialling or storing program changes.

8TRANSFER: Used to transfer a call to

another party.

9REDIAL (ordinarily): Used to redial.

HOLD: Used to place a call on hold.

NAVIGATOR KEY: Used to adjust the

volume and the display contrast.

PAUSE: Used to insert a pause during

dialling.

Message/Ringer Lamp: The Ringer lamp

informs you visually that you have a call.

When you receive a call, the lamp flashes.

Flexible Outside (CO) Line Button:

Used to make or receive an outside call.

Pressing this button seizes an idle outside

line automatically. (Button assignment is

required.) Also used as the desired

function buttons. (Button assignment is

required.)

6AUTO ANS (Auto Answer): Used to

receive an incoming call in the hands-free

mode.

MUTE: Used to mute the microphone

during a conversation.

1PROGRAM: Used to enter and exit the

programming mode.

FWD/DND (Call Forwarding/Do Not

Disturb):

Used to perform Call Forwarding

or Do Not Disturb.

5FLASH/RECALL: Used to disconnect the

current call and make another call without

hanging up.

2CONF (Conference): Used to establish a

multiple party conversation.

3INTERCOM: Used to make or receive

intercom calls.

SP-PHONE:

Used for the handsfree

operation.

– 5 –

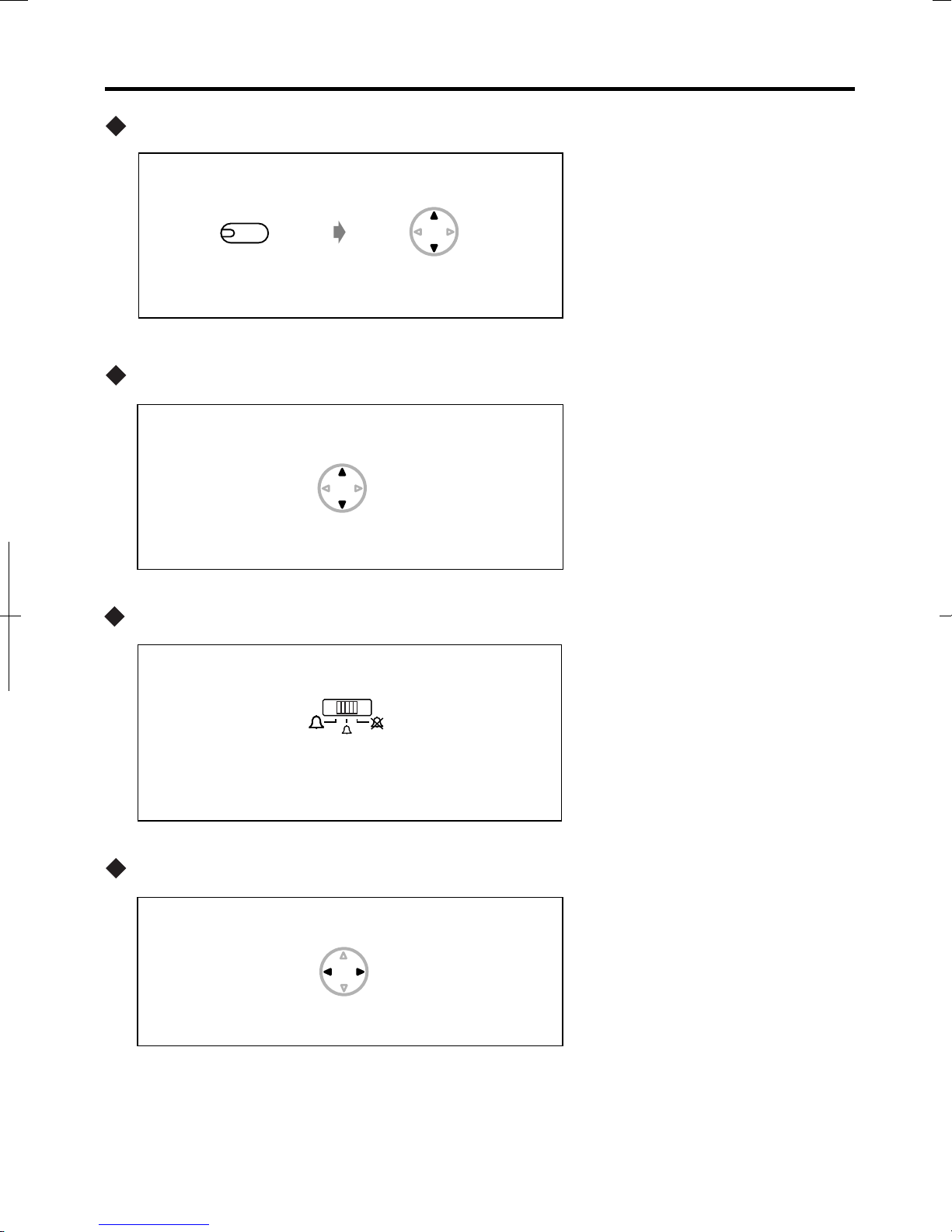

Initial Settings

Speaker volume *

Press SP-PHONE. Press Up or Down.

While in on-hook or during a conversation

Handset/Headset volume *

Press Up or Down.

While using a handset or headset

Ringer volume

SP-PHONE

Display contrast *

Press Left or Right.

While in on-hook or receiving a call

KX-T7730

While in on-hook or receiving a call

Slide the lever of the RINGER Volume Selector

to the desired setting (HIGH/LOW/OFF).

RINGER

*The above settings may return to default settings if the telephoneline cord is

disconnected or the main unit's power is interrupted.

– 6 –

Wall Mounting

1Pull down the handset hook until it locks,

so the tab holds the handset.

2Remove the attached stand.

3Mount the unit on the wall.

To temporarily place the handset down

during a conversation,

hook it over the top edge of the phone as

shown.

Connection

CAUTION

Ensure the cord is inserted in the groove

to prevent damage to the connector.

To the main unit ( )

The telephone line cord

(included)

< Back view>

TO MAIN UNIT

/PABX

Headset

– 7 –

Kyushu Matsushita Electric Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Printed in Japan PSQW1905ZA KK0502YS0 (JT)
