Panasonic EH-ND61 Manual de usuario

© Panasonic Corporation, 2014.

Unauthorized copying and distribution is a violation

of law.

Order Number PEWT1410R72CE

(Household) Hair Dryer

Model No. EH-ND61

Model No. EH-ND62

CIS

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 4

5 Wiring Connection Diagram ---------------------------------- 6

6 Schematic Diagram ---------------------------------------------- 7

7 Exploded View and Replacement Parts List ------------ 8

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

3 Troubleshooting Guide

Refer to Wiring Connection Diagram.

4

4 Disassembly and Assembly Instructions

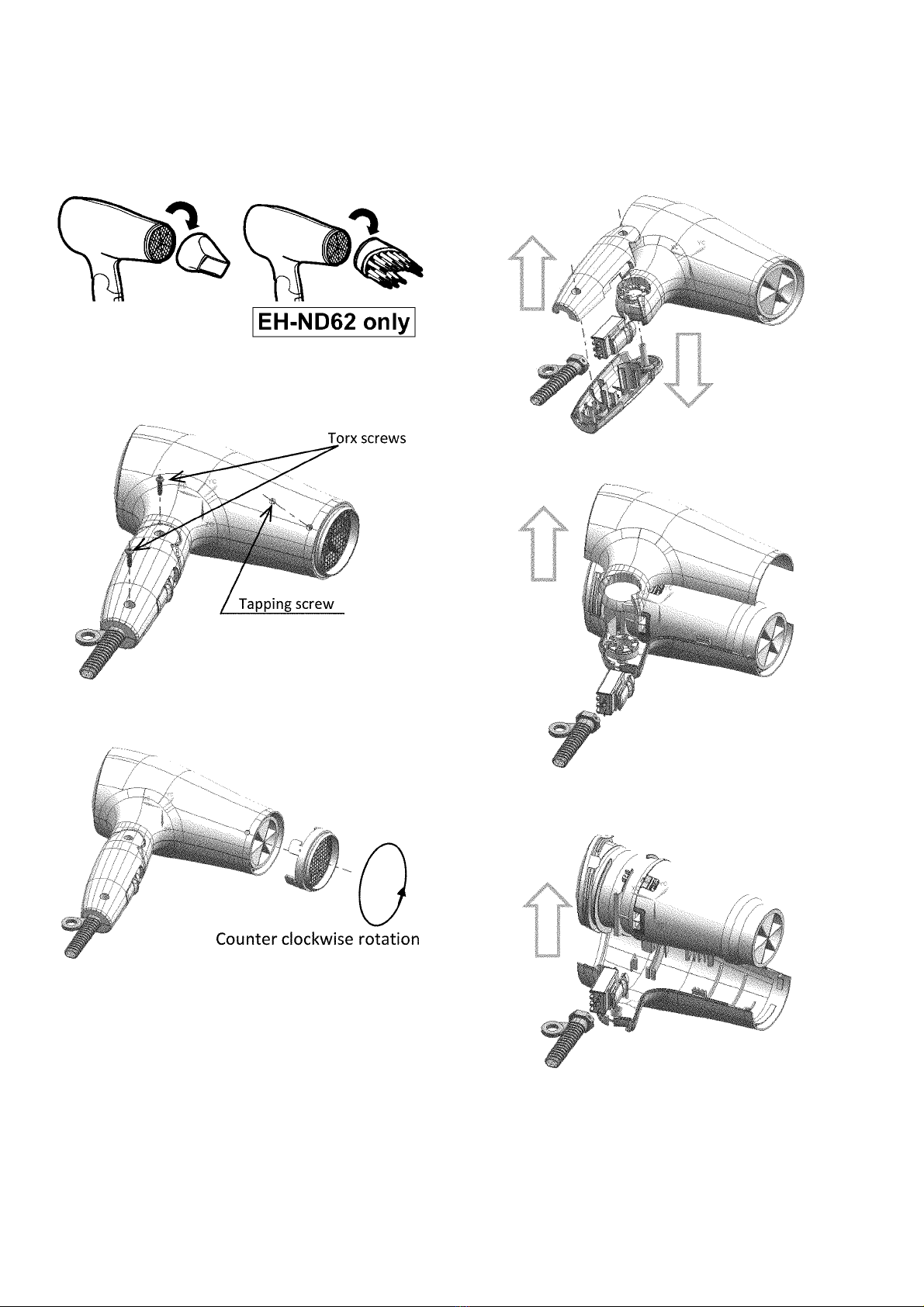

4.1. Disassembly Instructions

1. Take off NOZZLE or DIFFUSER as same direction as

below.

2. Remove a TAPPING SCREW at HOUSING A by flat-

blade screwdriver and two TORX SCREWS at HANDLE

by Driver.

3. Take off an AIR OUTLET GRILL and an AIR OUTLET

RING by rotating method as below.

4. Take off HANDLE AB then take out CLICK RING and

SWIVEL RING method as below.

5. Take off HOUSING A method as below.

6. Take off a MOTOR HEATER BLOCK ASS'Y method as

below.

5

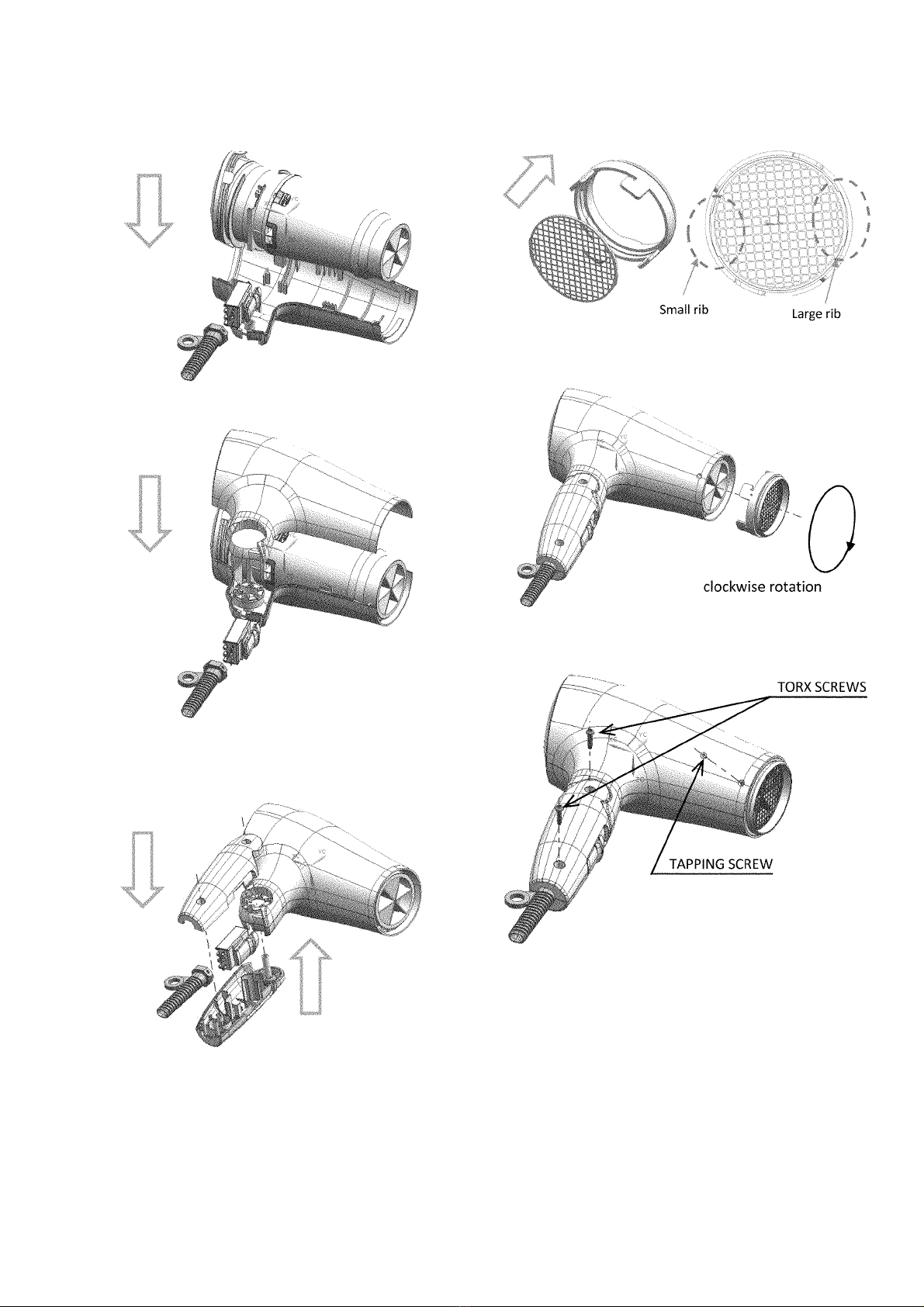

4.2. Assembly Instructions

1. Install MOTOR HEATER MOTOR BLOCK ASS'Y into

HOUSING A as below drawing.

2. Install HOUSING A method as below.

3. Install SWIVEL RING on HANDLE A and install CLICK

RING on HOUSING A then install HANDLE AB on

HOUSING AB method as below.

4. Insert an AIR OUTLET GRILL into an AIR OUTLET RING

by fix position as below.

5. Insert an AIR OUTLET RING into main body by fix posi-

tion as below.

6. Tightening screw both two TORX SCREWS and a TAP-

PING SCREW as below.

6

5 Wiring Connection Diagram

7

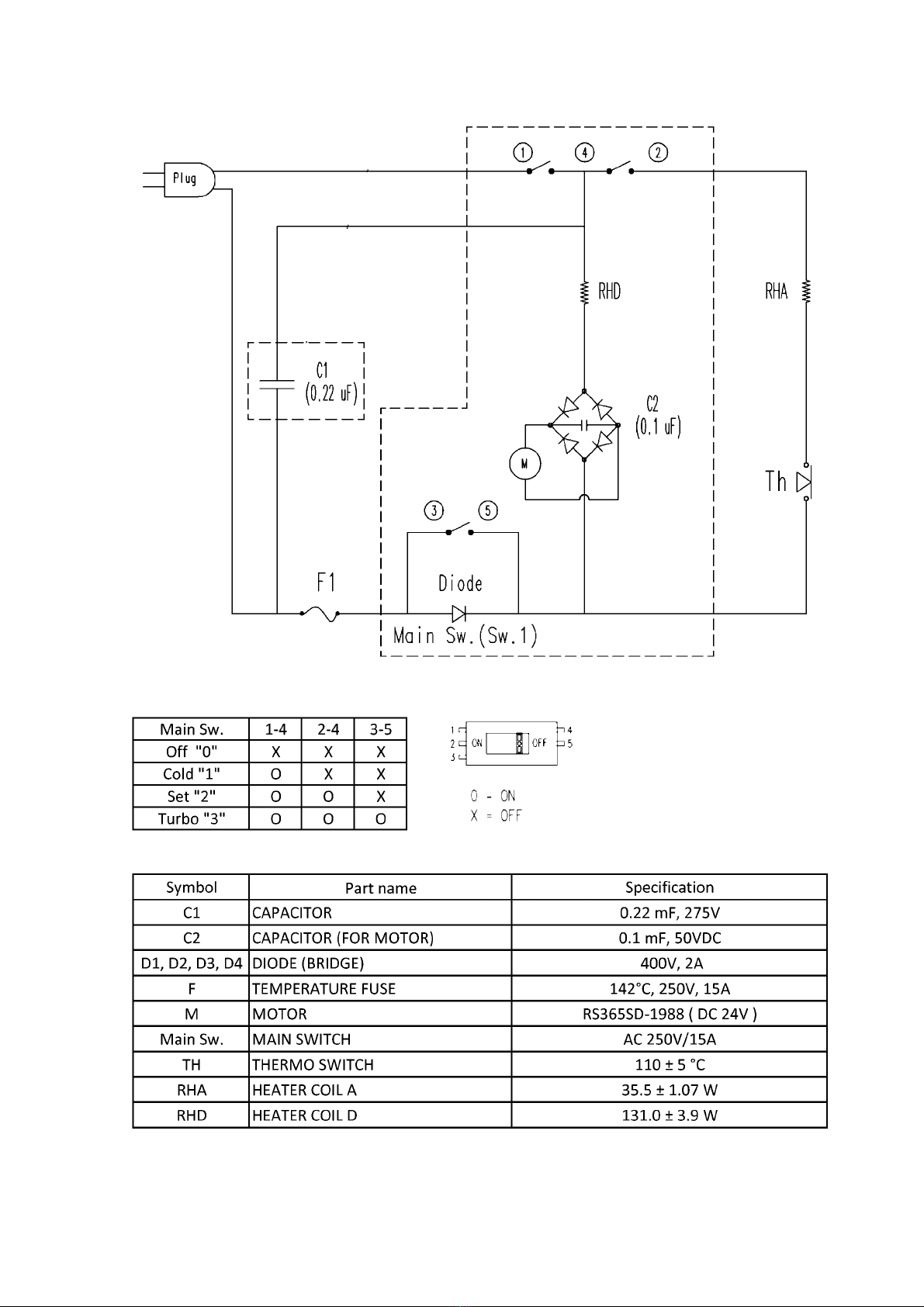

6 Schematic Diagram

8

7 Exploded View and Replacement Parts List

7.1. Exploded View for : EH-ND61

All parts are supplied from PMFTH-AP through PLAP

9

7.2. Parts List for : EH-ND61

Remarks : *1 Individual Available

Safety Ref. No. Part No. Part Name & Description Quantity Remarks

1 EHND61HS86BW HOUSING AB (BLACK) 1

2 EHND61HDBW HANDEL AB (BLACK) 1

3 EHND61T0312W TORX SCREW 3.0*12 (BLACK) 2 *1

4 EHND61CRTW CLICK RING (NATURAL) 1

5 EHND61SRTW SWIVEL RING 1

6 EHND61MH86BW MOTOR HEATER BLOCK 1 (B2-PLUG, Include 5 Insulation Tubes)

7 EHND61AORHW AIR OUTLET REGULATOR (GRAY) 1

8 EHND61AOGW AIR OUTLET GRILL 1

9 EHND61AORW AIR OUTLET RING 1

10 EHND61SNZBW SET NOZZLE (BLACK) 1

11 EHND61MSW MAIN SWITCH 1 (Include 5 Insulation Tubes)

12 EHND61MSPBW MAIN SWITCH PLATE (BLACK) 1

13 EHND61T2004W TAPPING SCREW 2.0*4 (BLACK) 1

- EHND6186S03W OPERATING INSTRUCTIONS 1

- EHND61S865KW INDIVIDUAL PACKAGE 1

10

7.3. Exploded View for : EH-ND62

All parts are supplied from PMFTH-AP through PLAP
