Panasonic Lumix DMC-LC1PP Manual de usuario

ORDERNO. DSC0401003C0

B26

Digital Camera

DMC-LC1PP / DMC-LC1EB / DMC-LC1EG / DMC-LC1GC /

DMC-LC1GD / DMC-LC1GN

Vol. 1

Colour

(K)...........Black Type

SPECIFICATIONS

Unauthorized copying and distribution isaviolation of law.

1. INTRODUCTION

1.1. INTRODUCTION

This service manual contains technical information, whichallowservice personnel’s to

understand and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changedormodified, the information will be followedbyservice manual tobe

controlledwithoriginal service manual.

1.2. ABOUTLEAD FREE SOLDER(PbF)

Distinction of PbF PCB:

PCBs (manufactured) using leadfree solderwill have a PbF stampon the PCB.

Caution:

-Pb free solder has ahigher melting point than standard solder,

Typicallythe melting point is50-70°F (30-40°C)higher.

Please use ahigh temperature soldering iron. Incase of soldering

iron with temperature control, please set itto 700±20°F (370±10°C)

-Pb free solder will tend to splash when heated too high (about

1100°F/600°C).

Whensoldering orunsoldering, please completelyremove all of the solderon the pins orsolder

area, and be sure toheat the soldering points withthe Pbfree solderuntil it melts enough.

1.3. IMPORTANTNOTICE1: (Other than U.S.A. and Canadian Market)

1. The service manual does not containthe following information,

because of the impossibilityof servicing at component level.

A. Schematicdiagram, Block Diagram and C.B.A. layout of Main

C.B.A.

B. Parts list for individual parts of MainC.B.A.

When apart replacement isrequired for repairing MainC.B.A.,

replace as an assembled parts. (MainC.B.A.)

2. The following categoryis/are recyclemodulepart. please send it/

them to Central RepairCenter.

-MAINC.B.A. (VEP56010A):Excluding replacement of Lithium

Battery

1.4. HOWTO DEFINETHEMODEL SUFFIX(NTSCor PALmodel)

There are fourkinds of DMC-LC1, regardless the colours.

-a) DMC-LC1S

-b) DMC-LC1PP

-c) DMC-LC1EB/EG/GC/GN

-d) DMC-LC1GD

(DMC-LC1S is exclusivelyJapandomestic model.)

What is the difference is that the “INITIALSETTING” data whichis storedinFlashROM

mountedon MainC.B.A.

1.4.1. Defining methods:

To define the model suffix tobe serviced, refertothe nameplate whichis puttedon the bottom

side of the Unit.

NOTE:

After replacing the MAINC.B.A., be sure to achieve adjustment.

The adjustment instruction isavailableat “software download” on

the “CS-Web from AVC”web-site in“TSNsystem”, together with

Maintenance software.

1.4.2. INITIALSETTINGS:

Whenyou replace the MainC.B.A. be sure toperform the initial settings afterachieving the

Adjustment, byordering the following procedure inaccordance withmodel suffix.

Preparation:

Insert the SD cardwhichhas a fewphotodata.

-Step 1. The temporarycancellation of factorysetting:

Set the mode dial to “[SINGLE] ”.

Whilekeep pressing [Flash] and “[UP] of Cross key”

simultaneously, turn the Power on.

-Step 2. The cancellation of factorysetting:

Set the mode dial to “[Playback] ”.

Whilekeep pressing [Flash] and “[UP] of Cross key”

simultaneously.

-Step 3. Displaythe INITIALSETTING:

Set the mode dial to “[SINGLE] ”.

Whilekeep pressing [MENU]and “[RIGHT] of Cross key”

simultaneously, turn the Power off.

-Step 4. Set the INITIALSETTING:

Select the area with pressing “[UP] / [DOWN]of Cross key”,

and then press the “[RIGHT] of Cross key”.

The onlyset area isdisplayed, and then press the "[RIGHT] of

Cross key"after confirmation. (The unitispowered off

automatically.)

Confirm the displayof “PLEASE SET THECLOCK”inEnglish

when the unitisturned on again.

-NOTE:

The displayshows“PLEASE SET THECLOCK”when turn the

Power on again.

Connect the unitto PCwith USBcableand isdetected as

removablemedia.

1) As foryourreference Default setting condition is giveninthe following table.

-Defaultsetting (After “INITIALSETTINGS”)

MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS

a) DMC-LC1S NTSC Japanese Year/Month/Date

b) DMC-LC1PP NTSC English Month/Date/Year

c) DMC-LC1EB/EG/GC/

GN PAL English Date/Month/Year

d) DMC-LC1GD NTSC English Year/Month/Date

2. SAFETY PRECAUTIONS

2.1. GENERALGUIDELINES

1. IMPORTANTSAFETY NOTICE

There are special components used inthisequipment which are

important for safety. These parts are marked byinthe

SchematicDiagrams, CircuitBoard Layout, Exploded Viewsand

Replacement Parts List. Itisessential thatthese critical parts

shouldbe replaced with manufacturer’sspecified parts to prevent

X-RADIATION, shock, fire, or other hazards. Donot modifythe

original design without permission of manufacturer.

2. AnIsolation Transformer shouldalwaysbe used during the

servicing of AC Adaptor whose chassisisnot isolated from the

AC power line. Use atransformer of adequate power rating as this

protects the technician from accidents resulting inpersonalinjury

from electrical shocks. Itwill also protect AC Adaptor from being

damaged byaccidental shorting that mayoccur during servicing.

3. When servicing, observe the original lead dress. Ifashort circuit

isfound, replace all parts which have been overheated or

damaged bythe short circuit.

4. After servicing, see to itthat all the protective devices such as

insulation barriers, insulation papers shields are properly

installed.

5. After servicing, make the following leakage current checks to

prevent the customer from being exposed to shock hazards.

2.2. LEAKAGECURRENTCOLDCHECK

1. Unplug the AC cord and connect ajumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the

jumpered AC plug and each exposed metalliccabinet part on the

equipment such as screwheads, connectors, control shafts, etc.

When the exposed metallicpart has areturn path to thechassis,

the reading shouldbe between 1M and 5.2M . When the

exposed metal does not have areturn path to the chassis, the

reading must be infinity.

2.3. LEAKAGECURRENTHOTCHECK (See Figure 1.)

1. Plug the AC cord directlyinto the AC outlet. Donot use an

isolation transformer for thischeck.

2. Connect a1.5k , 10 Wresistor, inparallel with a0.15 F

capacitor, between each exposed metallicpart on the set and a

good earth ground, as showninFigure 1.

3. Use an AC voltmeter, with 1k /Vor more sensitivity, to measure

the potential across the resistor.

4. Check each exposed metallicpart, and measure the voltage at

each point.

5. Reverse the AC plug inthe AC outlet and repeat each of the above

measurements.

6. The potential at anypoint shouldnot exceed 0.75 VRMS. A

leakage current tester (Simpson Model 229 or equivalent) maybe

used to make the hot checks, leakage current must not exceed 1/2

mA. Incase ameasurement isoutside of thelimits specified, there

isapossibilityof ashock hazard, and the equipment shouldbe

repaired and rechecked before itisreturned to the customer.

Figure. 1

3. PREVENTION OF ELECTRO STATIC DISCHARGE

(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)

DEVICES

Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such

components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical

ES devices are integratedcircuits and some field-effect transistorsand semiconductor"chip"

components. The following techniques shouldbe usedtohelpreduce the incidence of

component damage causedbyelectrostatic discharge (ESD).

1. Immediatelybefore handling anysemiconductor component or

semiconductor-equipped assembly, drainoff anyESDon your

bodybytouching aknownearth ground. Alternatively, obtainand

wear acommerciallyavailabledischarging ESDwrist strap,

whichshouldbe removed for potential shock reasons prior to

applying power to the unitunder test.

2. After removing an electrical assemblyequipped with ES devices,

place the assemblyon aconductive surface such as aluminum

foil, to prevent electrostaticcharge buildup or exposure of the

assembly.

3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES

devices.

4. Use onlyan antistaticsolder removal device. Some solder

removal devices not classified as "antistatic(ESDprotected)" can

generate electrical charge sufficient to damage ES devices.

5. Donot use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Donot remove areplacement ES device from its protective

package until immediatelybefore you are readyto install it. (Most

replacement ES devices are packaged with leads electrically

shorted together byconductive foam, aluminum foil or

comparableconductive material).

7. Immediatelybefore removing the protective material from the

leads of areplacement ES device, touch the protective material to

the chassisor circuitassemblyinto which the device will be

installed.

CAUTION :

Besure no power isapplied to the chassisor circuit, and observe

all other safetyprecautions.

8. Minimize bodilymotions when handling unpackaged replacement

ES devices. (Otherwise harmless motion such as the brushing

together of your clothes fabricor the lifting of your foot from a

carpeted floor can generate staticelectricity(ESD)sufficient to

damage an ES device).

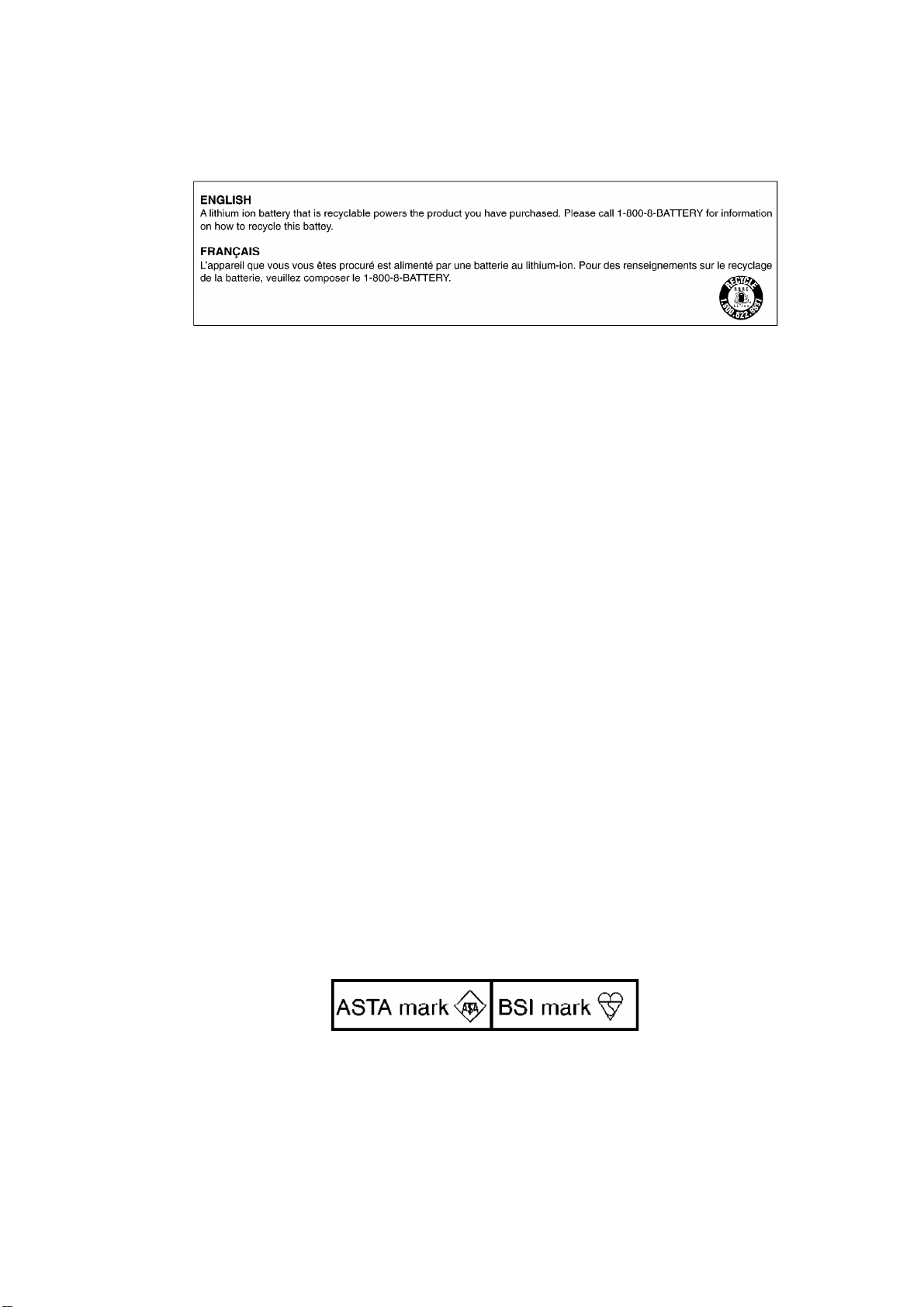

4. HOW TO RECYCLE THE LITHIUM ION BATTERY /

(U.S. ONLY)

5. CAUTION FOR AC CORD (EB only)

5.1. INFORMATIONFORYOUR SAFETY

IMPORTANT

Yourattention is drawntothe fact that recording of pre-recordedtapes ordiscs orother

publishedorbroadcast material mayinfringe copyright laws.

WARNING

To reduce the risk of fire or shock hazard, do not expose this

equipment to rainor moisture.

CAUTION

To reduce the risk of fire or shock hazard and annoying

interference, use the recommended accessories only.

FOR YOUR SAFETY

DO NOTREMOVE THE OUTER COVER

To prevent electric shock, do not remove the cover. Nouserserviceable parts inside. Refer

servicing toqualifiedservice personnel.

5.2. CAUTIONFORAC MAINSLEAD

Foryoursafety, please readthe following text carefully.

This appliance is suppliedwitha mouldedthree-pinmains plug foryoursafetyand convenience.

A 5-ampere fuse is fittedinthis plug.

Shouldthe fuse needtobe replacedplease ensure that the replacement fuse has a rating of 5

amperes and it is approvedbyASTA orBSI toBS1362

Check forthe ASRA mark orthe BSI mark on the bodyof the fuse.

If the plug contains a removable fuse coveryou must ensure that it is refittedwhenthe fuse is

replaced.

If you lose the fuse cover, the plug must not be useduntil a replacement coveris obtained.

A replacement fuse covercanbe purchasedfromyourlocal Panasonic Dealer.

If the fittedmouldedplug is unsuitable forthe socket outlet inyourhome thenthe fuse should

be removedand the plug cut off and disposedof safety.

There is a dangerof severe electrical shock if the cut off plug is insertedintoany13-ampere

socket.

If a newplug is tobe fittedplease observe the wiring code as shownbelow.

If inanydoubt, please consult a qualifiedelectrician.

5.2.1. Important

The wires inthis mains leadare colouredinaccordance withthe following code:

Blue Neutral

Brown Live

As the colours of the wires inthe mains leadof this appliance maynot correspond withthe

colouredmarkings identifying the terminals inyourplug, proceedas follows:

The wire whichis colouredBLUE must be connectedtothe terminal inthe plug whichis marked

withthe letterN orcolouredBLACK.

The wire whichis colouredBROWN must be connectedtothe terminal inthe plug whichis

markedwiththe letterLorcolouredRED.

Underno circumstances shouldeitherof these wires be connectedtothe earthterminal of the

three pinplug, markedwiththe letterE orthe EarthSymbol.

5.2.2. Beforeuse

remove the ConnectorCoveras follows.

5.2.3. Howtoreplace the Fuse

1. Remove the Fuse Cover with ascrewdriver.

2. Replace the fuse and attach the Fuse cover.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Panasonic

Panasonic

Panasonic Limux DMC-CM1P Manual de usuario

Panasonic

Panasonic DMC-L1K - Lumix Digital Camera SLR Manual de usuario

Panasonic

Panasonic Lumix DMC-SZ10 Especificaciones técnicas

Panasonic

Panasonic LUMIX DC-FZ80 Manual de usuario

Panasonic

Panasonic DMCFZ40 - DIGITAL CAMERA - ADVANCED FEATURES Especificaciones técnicas

Panasonic

Panasonic DMCFZ5K - Lumix Digital Camera Manual de usuario

Panasonic

Panasonic AJ-HDC27VP Manual de usuario

Panasonic

Panasonic Lumix DMC-LC43 Manual de usuario

Panasonic

Panasonic LUMIX DMC-F27 Instrucciones de instalación y servicio

Panasonic

Panasonic LUMIX DMC-FX50 Manual de usuario

Panasonic

Panasonic LUMIX DMC-FS6 Manual de usuario

Panasonic

Panasonic Lumix DMC-FX78 Instrucciones de instalación y servicio

Panasonic

Panasonic DMCTS2 - DIGITAL STILL CAMERA Manual de usuario

Panasonic

Panasonic DMC-TZ9 Especificaciones técnicas

Panasonic

Panasonic DMC-LZ40 Especificaciones técnicas

Panasonic

Panasonic Lumix DMC-ZS35 Manual de usuario

Panasonic

Panasonic Lumix DMC-TS1 Manual de usuario

Panasonic

Panasonic Lumix DMC-G3KPP Manual de usuario

Panasonic

Panasonic LUMIX DMC-FZ1000P Manual de usuario

Panasonic

Panasonic Lumix DMC-LC1GN Manual de usuario

Panasonic

Panasonic Lumix DMC-TZ3 Manual de usuario

Panasonic

Panasonic DMC-FH20A Manual de usuario

Panasonic

Panasonic HX-DC1P Manual de usuario

Panasonic

Panasonic KX-TGA573 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
