Basic Operating Instructions

Digital Camera

Model No. DMC-FZ70

Please read these instructions carefully before using this

product, and save this manual for future use.

More detailed instructions on the operation

of this camera are contained in “Operating

Instructions for advanced features (PDF format)”

in the supplied CD-ROM. Install it on your PC to

read it.

2 VQT5B74 (ENG)

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic

Digital Camera. Please read these Operating Instructions carefully and keep

them handy for future reference. Please note that the actual controls and

components, menu items, etc. of your Digital Camera may look somewhat

different from those shown in the illustrations in these Operating Instructions.

Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast

material for purposes other than your own private use may infringe copyright

laws. Even for the purpose of private use, recording of certain material may

be restricted.

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

•

Do not expose this unit to rain, moisture, dripping or splashing.

•Use only the recommended accessories.

•Do not remove covers.

•Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

The socket outlet shall be installed near the equipment and shall be

easily accessible.

■Product identification marking

Product Location

Digital camera Bottom

Battery charger Bottom

(ENG) VQT5B74 3

■About the battery pack

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace

only with the type recommended by the manufacturer.

• When disposing the batteries, please contact your local

authorities or dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a

long period of time with doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above

60 °C or incinerate.

■About the battery charger

CAUTION!

To reduce the risk of fire, electric shock or product damage,

•Do not install or place this unit in a bookcase, built-in cabinet or in

another confined space. Ensure this unit is well ventilated.

• The battery charger is in the standby condition when the AC power supply

cord is connected. The primary circuit is always “live” as long as the power

cord is connected to an electrical outlet.

4 VQT5B74 (ENG)

■Cautions for Use

• When using an AC adaptor, use the AC cable supplied with the AC adaptor.

• Do not use any other USB connection cables except the supplied one or a

genuine Panasonic USB connection cable (DMW-USBC1: optional).

• Use a “High Speed HDMI mini cable” with the HDMI logo.

Cables that do not comply with the HDMI standards will not work.

“High Speed HDMI mini cable” (Type C-Type A plug, up to 3 m long)

• Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

Keep this unit as far away as possible from electromagnetic equipment

(such as microwave ovens, TVs, video games etc.).

• If you use this unit on top of or near a TV, the pictures and/or sound on this

unit may be disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise

adversely affecting the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong

magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may adversely

affect this unit, disturbing the pictures and/or sound.

• If this unit is adversely affected by electromagnetic equipment and stops

functioning properly, turn this unit off and remove the battery or disconnect

AC adaptor (DMW-AC8G: optional). Then reinsert the battery or reconnect AC

adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded

pictures and/or sound may be adversely affected.

-If you see this symbol-

Information on Disposal in other Countries

outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact

your local authorities or dealer and ask for the correct

method of disposal.

(ENG) VQT5B74 5

Contents

Information for Your Safety .... 2

Care of the camera .................. 6

Standard accessories ............. 7

Names and Functions of

Main Parts ................................ 8

Attaching the lens cap/

shoulder strap........................ 10

Charging the battery ............. 11

Inserting and removing the

card (optional)/the battery .... 12

Sequence of operations ........ 13

Taking pictures with

automatic settings

[Intelligent Auto] Mode .......... 15

Taking Pictures with

different picture effects

[Creative Control] Mode ........ 17

Using the rear dial ................. 18

Setting the menu ................... 19

Reading the Operating

Instructions (PDF format) ..... 20

Keeping the pictures on

your PC ................................... 21

Specifications ........................ 23

Limited Warranty

(ONLY FOR AUSTRALIA) ...... 26

6 VQT5B74 (ENG)

Care of the camera

■Camera handling

Keep the camera away from excessive vibration, force, or

pressure.

●Avoid using the camera under the following conditions, which

may damage the lens, LCD monitor, viewfinder, or camera

body. This may also cause the camera to malfunction or

prevent recording.

• Dropping or hitting the camera against a hard surface

• Pushing with excessive force on the lens, LCD monitor, or

viewfinder

●When camera is not in use or when using the playback

feature, ensure that the lens is in the stored position,

with lens cap on.

●There are times when rattling sounds or vibrations will

come from the camera, but these are due to the motion of

the aperture, the zoom and the motor and do not indicate

a defect.

The camera is not dust resistant, splash resistant, or

waterproof.

Avoid using the camera in places with excessive dust

or sand, or where water can come into contact with the

camera.

●Avoid using the camera under the following conditions, which

present a risk that sand, water, or foreign material may enter

the camera through the lens or openings around buttons. Be

especially careful because these conditions may damage the

camera, and such damage may not be repairable.

• In extremely dusty or sandy places

• In the rain or by the shore, where the camera may be

exposed to water

■

Condensation (When the lens, the LCD monitor, or viewfinder, is fogged up)

●Condensation may occur when the camera is exposed to sudden changes

of temperature or humidity. Avoid these conditions, which may make the

lens, LCD monitor, or viewfinder, dirty, cause mould, or damage the camera.

●If condensation does occur, turn off the camera and wait about two hours

before using it. Once the camera adjusts to the surrounding temperature,

the fogging will clear naturally.

(ENG) VQT5B74 7

Standard accessories

Check that all the accessories are supplied before using the camera. Part

numbers are as of July 2013. These may be subject to change.

Battery pack

DMW-BMB9E

• Charge the battery

before use.

Battery pack is indicated as

battery pack or battery in the text.

Battery Charger

DE-A84A

Battery charger is indicated as

battery charger or charger in the

text.

AC cable

K2CJ2YY00052

Shoulder Strap

VFC4453

USB connection

cable

K1HY08YY0031

Lens Cap/

Lens Cap String

VYQ8752

CD-ROM

VFF1235

• Software:

Use it to install

the software on

your PC.

• Operating

Instructions

for advanced

features

• SD Memory Card, SDHC Memory Card and SDXC Memory Card are

indicated as card in the text.

•Cards are optional. You can record or play back pictures on the built-in

memory when you are not using a card.

• Consult the dealer or your nearest Service Centre if you lose the supplied

accessories. (You can purchase the accessories separately.)

• Please dispose of all packaging appropriately.

• Keep small parts in a safe place out of the reach of children.

• The illustrations and screens in this manual may differ from the actual product.

• A lens hood is not supplied with this unit.

•SILKYPIX Developer Studio is not provided on the supplied CD-ROM.

Download this software from the website and install it on your computer

to use. (→22)

8 VQT5B74 (ENG)

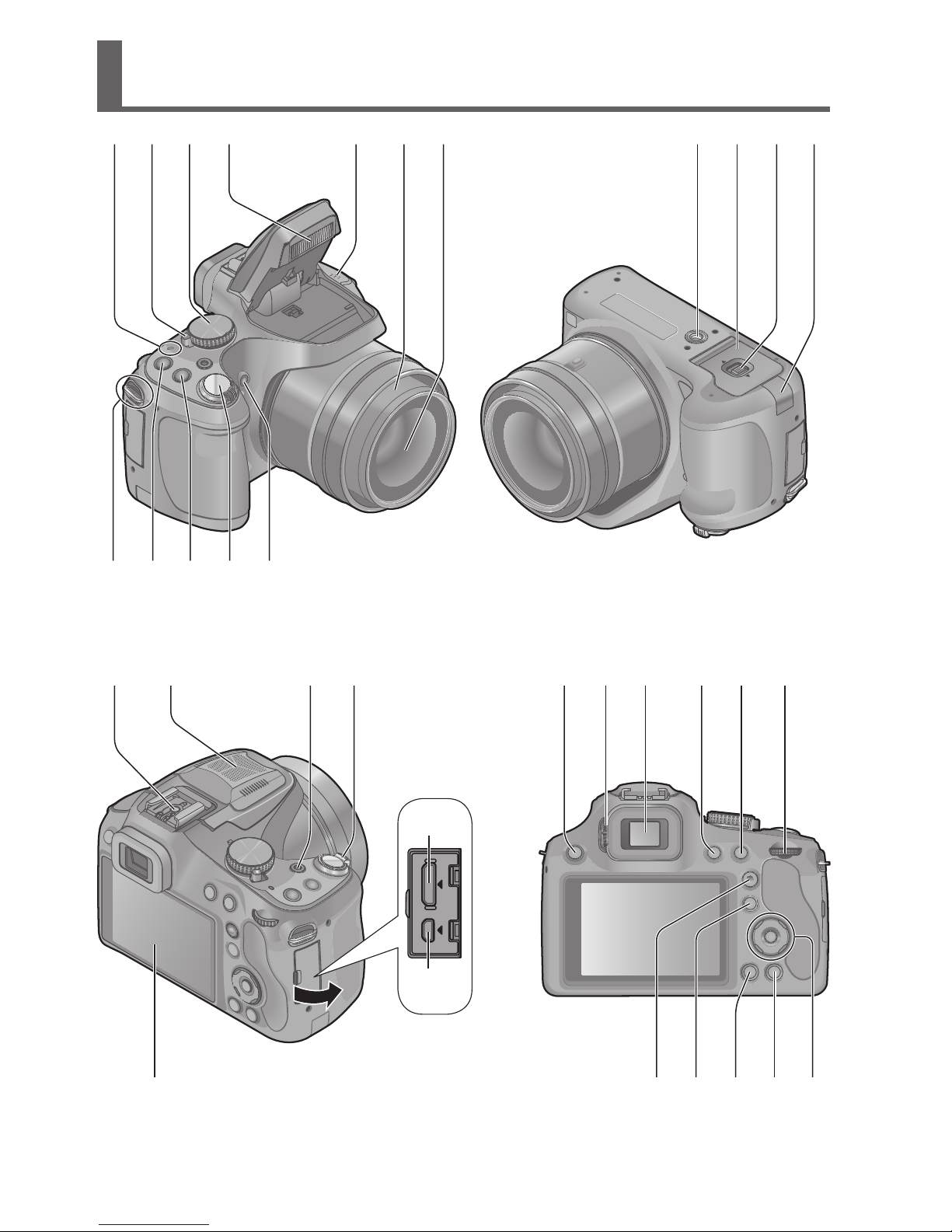

Names and Functions of Main Parts

1 2 3 4 5 6 7

8 9 10 11 12

13 14 15 16

17 18 19 20

24 25 26 27 28 29

3433323130

(ENG) VQT5B74 9

1 Power lamp

2 Camera [ON/OFF] switch

3 Mode dial

4 Flash

5 Speaker

• Be careful not to cover the

speaker with your finger. Doing

so may make sound difficult to

hear.

6 Lens barrel

7 Lens

8 Shoulder strap eyelet

9 [FOCUS] button

10 [ ] (Burst Mode) button

11 Shutter button

12 Self-timer indicator/

AF Assist Lamp

13 Tripod mount

• Do not attach to a tripod with a

5.5 mm or longer screw. Doing

so may damage this unit.

14 Card/Battery door

15 Release lever

16 DC coupler cover

• When using an AC adaptor,

ensure that the Panasonic DC

coupler (DMW-DCC6: optional)

and AC adaptor (DMW-AC8G:

optional) are used.

• Always use a genuine

Panasonic AC adaptor

(DMW-AC8G: optional).

17 Hot shoe

• Do not attach other than the

external flash on the hot shoe.

18 Stereo microphone

19 Motion picture button

20 Zoom lever

21 LCD monitor

22 [HDMI] socket

23 [AV OUT/DIGITAL] socket

24 [ ] (Flash open) button

25 Diopter adjustment dial

26 Viewfinder ([LVF])

• In this manual, “viewfinder” is

used to indicate the LVF.

27 [LVF] button

28 [AF/AE LOCK (Fn1)] button

29 Rear dial

30 [AF/AF /MF] button

31 [ ] (Playback) button

• Use this to select the recording

mode or playback mode.

32 [DISP.] button

33 [ ( Q.MENU)]

(Delete/Cancel/Quick menu)

button

34 Cursor button / [MENU/SET]

button

• In this manual, the button that is

to be used is indicated by

10 VQT5B74 (ENG)

Attaching the lens cap/shoulder strap

■Attaching the Lens Cap

• When you turn the camera off or carry the camera, attach the lens cap to

protect the surface of the lens.

Pass the string through the hole on the camera

Pass the same string through the hole on the lens cap

• Pass the lens cap through the loop of the string and tighten it.

Attach the lens cap

■Attaching the Shoulder Strap

• We recommend attaching the shoulder strap when using the camera to

prevent it from dropping.

Pass the shoulder strap through the hole at

the shoulder strap eyelet

• Attach the shoulder strap so that the “LUMIX” Logo

is on the outside.

Pass the shoulder strap through the

stopper and fasten the shoulder strap

Pull the shoulder strap 2 cm or more.

• Attach the shoulder strap to the other side of the

camera being careful not to twist it.

●Make sure that the shoulder strap does not come loose.

Otros manuales para LUMIX DMC-FZ70

Tabla de contenidos

Otros manuales de Cámara digital de Panasonic

Panasonic

Panasonic DMC-ZS10S Instrucciones de instalación y servicio

Panasonic

Panasonic Lumix DMC-TZ5; Lumix DMC-TZ4 Manual de usuario

Panasonic

Panasonic Lumix DMC-FT20 Especificaciones técnicas

Panasonic

Panasonic S-S50E Manual de usuario

Panasonic

Panasonic DC-BS1H Manual de usuario

Panasonic

Panasonic LUMIX DMC-FZ100 Manual de usuario

Panasonic

Panasonic Lumix DMC-TS20 Manual de instrucciones

Panasonic

Panasonic Lumix DMC-FX100 Guía de inicio rápido

Panasonic

Panasonic LUMIX DMC-GF8K Especificaciones técnicas

Panasonic

Panasonic DMC-F3K Especificaciones técnicas

Panasonic

Panasonic LUMIX DMC-GX85K Especificaciones técnicas

Panasonic

Panasonic SVAV30U - SD MULTI MEDIA TERMI Manual de usuario

Panasonic

Panasonic Lumix DMC-FX9 Manual de usuario

Panasonic

Panasonic DX-GX800 Manual del propietario

Panasonic

Panasonic LUMIX DMC-G80M Manual de usuario

Panasonic

Panasonic Lumix DMC-FH4PC Manual de usuario

Panasonic

Panasonic DMC-FX550EB Manual de usuario

Panasonic

Panasonic LUMIX DMC-LX2 Manual de usuario

Panasonic

Panasonic DMC-FS42 Lumix Manual de usuario

Panasonic

Panasonic DMC-F7A Manual de usuario

Panasonic

Panasonic Lumix DMC-ZS10 Manual de usuario

Panasonic

Panasonic DC-S5M2 Instrucciones de montaje

Panasonic

Panasonic Lumix DMC-LS85 Manual de usuario

Panasonic

Panasonic DMCFX700 - DIGITAL STILL CAMERA Manual de instrucciones

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
