Operating Instructions

Dual Camera

Model No. HX-WA20

HX-WA2

HX-DC2

Before use, please read these instructions completely.

VQT4F69

until

2012/2/23

- 2 -

∫About recording formats and compatibility of the unit

≥The unit is an MP4 format (MPEG-4 AVC file standard) Dual Camera

for recording high-definition motion pictures.

≥AVCHD and MPEG2 motion pictures are different formats, and are not

therefore supported by the unit.

∫Indemnity about recorded content

Panasonic does not accept any responsibility for damages directly or

indirectly due to any type of problems that result in loss of recording or

edited content, and does not guarantee any content if recording or editing

does not work properly. Likewise, the above also applies in a case where

any type of repair is made to the unit (including any other non-built-in

memory related component).

∫Handling of built-in memory

This unit is equipped with the built-in memory. When using this

component, pay attention to the following points.

Back up data periodically.

The built-in memory is temporary storage. In order to avoid erasing data

due to static electricity, electromagnetic waves, breakage, and failures,

back up the data to a PC or disc. (l144)

≥The status indicator (l17, 22) illuminates in red while the SD card or

built-in memory is being accessed (initialization, recording, playback,

deleting etc.). Do not perform the following operations when the

indicator illuminates. It may damage the built-in memory or cause a

malfunction in the unit.

jTurn the unit off (remove the battery)

jInsert and remove the SD Card

jInsert and remove the USB cable

jExpose the unit to vibrations or shock

≥About disposing of or giving away this unit. (l184)

Information for Your Safety

- 3 -

∫Cards that you can use with this unit

SD Memory Card, SDHC Memory Card and SDXC Memory Card

≥4 GB or more Memory Cards that do not have the SDHC logo or 48 GB

or more Memory Cards that do not have the SDXC logo are not based

on SD Memory Card Specifications.

≥Refer to page 32 for more details on SD cards.

∫For the purposes of these operating instructions

≥SD Memory Card, SDHC Memory Card and SDXC Memory Card are

referred to as the “SD card”.

≥Functions that can be used for motion picture recording/motion picture

playback are indicated by in these operating instructions.

≥Functions that can be used for still picture recording/still picture

playback are indicated by in these operating instructions.

≥Functions that can be used for audio recording/audio playback are

indicated by in these operating instructions.

≥Pages for reference are indicated by an arrow, for example: l00

≥“File” is used to mean “scene”, “still picture” and “audio file”.

These operating instructions are designed for use with models

, and . Pictures may be slightly different

from the original.

≥The illustrations used in these operating instructions show model

, however, parts of the explanation refer to different models.

≥Depending on the model, some functions are not available.

≥Features may vary, so please read carefully.

≥Not all models may be available depending on the region of purchase.

HX-WA20

HX-WA2

HX-DC2

- 4 -

Information for Your Safety............................................................... 2

Preparation

(Important)

About the Waterproof and Dustproof Performance of this unit

[HX-WA20]/[HX-WA2] ......................................................................... 8

Check before using underwater .................................................. 10

Using this unit underwater........................................................... 13

Caring of this unit after using it underwater................................. 13

Names and Functions of Main Parts .............................................. 17

HX-WA20/HX-WA2 ..................................................................... 17

HX-DC2....................................................................................... 20

Power supply.................................................................................... 23

Inserting/removing the battery..................................................... 23

Charging the battery ................................................................... 27

Charging and recording time....................................................... 29

Recording to a card ......................................................................... 32

Cards that you can use with this unit .......................................... 32

Inserting/removing an SD card.................................................... 34

Turning the unit on/off..................................................................... 38

About standby mode ................................................................... 38

About economy function ............................................................. 39

About the high temperature warning icon ................................... 40

Selecting a mode ............................................................................. 41

Setting date and time....................................................................... 42

Contents

- 5 -

Basic

Before recording .............................................................................. 44

Recording motion pictures ............................................................. 46

Recording still pictures ................................................................... 49

About recording still pictures during motion picture recording

and audio recording .................................................................... 52

Recording audio............................................................................... 53

Intelligent Auto Mode ...................................................................... 55

Motion picture/Still picture/Audio playback .................................. 58

Using the menu screen ................................................................... 62

Using Option Menu .......................................................................... 64

OPTION MENU 1........................................................................ 64

OPTION MENU 2........................................................................ 66

OPTION MENU 3........................................................................ 68

Advanced (Recording)

Using the zoom ................................................................................ 71

Double range zoom [HX-WA2]/[HX-DC2] ................................... 72

Zoom mode ................................................................................. 73

Image stabiliser................................................................................ 75

Recording in Slow Motion Mode [HX-WA20] ................................. 76

Burst recording ................................................................................ 78

Recording panorama still pictures................................................. 80

Recording underwater [HX-WA20]/[HX-WA2] ................................ 83

Record with colour balance and audio that are suitable for

recording underwater .................................................................. 83

Recording functions of menus ....................................................... 84

RECORDING MENU 1................................................................ 84

RECORDING MENU 2................................................................ 91

RECORDING MENU 3................................................................ 96

RECORDING MENU 4.............................................................. 103

Manual recording ........................................................................... 105

White Balance ........................................................................... 105

Manual shutter speed/iris adjustment [HX-WA20] .................... 107

Setting the focus and recording ................................................ 109

- 6 -

Advanced (Playback)

Playback Operations ..................................................................... 110

Playback using operation icon .................................................. 110

Creating still picture from motion picture................................... 112

Cutting out a section of a panorama still picture ....................... 113

Zooming in on a still picture during playback

(Playback zoom) ....................................................................... 114

Various playback functions .......................................................... 116

Changing the playback settings and playing back the

slide show ................................................................................. 116

Displaying file information ......................................................... 118

Using the playback menu.............................................................. 120

PLAYBACK MENU 1................................................................. 120

PLAYBACK MENU 2................................................................. 122

Deleting scenes/still pictures/audio files..................................... 126

Protecting a file ......................................................................... 129

Watching Video/Pictures on your TV ........................................... 130

Connecting with a HDMI micro cable/

HDMI mini cable........................................................................ 135

TV format setting....................................................................... 135

Playback using VIERA Link .......................................................... 136

Copy/Dubbing

Copying from Built-in Memory to SD card .................................. 140

Dubbing images onto other video devices.................................. 142

- 7 -

With a PC

What you can do with a PC ........................................................... 144

End User License Agreement ................................................... 147

Operating environment ................................................................. 149

Installation ...................................................................................... 153

Connecting to a PC........................................................................ 154

Use as a card reader ................................................................ 155

Using the unit as a web camera................................................ 158

Starting HD Writer VE 2.0 .............................................................. 160

Reading the operating instructions of the software

applications ............................................................................... 160

If using Mac .................................................................................... 161

Uploading files to a web service .................................................. 163

Using the Eye-Fi™transfer feature .............................................. 166

Others

LCD Display Indications................................................................ 169

Messages........................................................................................ 173

Troubleshooting............................................................................. 173

Cautions for use............................................................................. 182

About copyright ............................................................................. 189

Recording modes/approximate recordable time ........................ 191

Approximate number of recordable pictures .............................. 193

- 8 -

This does not guarantee no destruction, no malfunction, or

waterproofing in all conditions.

* This means that this unit can be used underwater for specified time in

specified pressure in accordance with the handling method established

by Panasonic.

∫Handling of this unit

≥Waterproofing is not guaranteed if the unit is subject to an impact as a

result of being hit or dropped etc. If an impact to this unit occurs, it

should be inspected (subject to a fee) by a Panasonic’s Service Centre

to verify that the waterproofing is still effective.

≥The waterproof performance may be degraded due to the strong water

pressure when this unit is used deeper than 3 m underwater.

≥When this unit is splashed with detergent, soap, hot spring, bath

additive, sun oil, sun screen, chemical, etc., wipe it off immediately.

≥Waterproof function of this unit is for sea water and fresh water only.

Preparation

(Important)

About the Waterproof and

Dustproof Performance of this unit

[HX-WA20]/[HX-WA2]

Waterproof/Dustproof Performance

This unit’s waterproof/dustproof rating complies with the

“IP58” rating. Provided the care and maintenance guidelines

described in this document are strictly followed, this unit can

operate underwater, to a depth not exceeding 3 m for a time

not exceeding 60 minutes. *

Waterproof Performance

This unit’s waterproof rating complies with the “IPX8” rating.

Provided the care and maintenance guidelines described in

this document are strictly followed, this unit can operate

underwater, to a depth not exceeding 3 m for a time not

exceeding 60 minutes. *

HX-WA20

HX-WA2

- 9 -

≥Any malfunction caused by customer misuse, or mishandling will not

be covered by the warranty.

≥The inside of this unit is not waterproof. Water leakage will cause

malfunction.

≥Supplied accessories such as battery pack etc. are not waterproof.

(excluding handstrap)

≥Cards are not waterproof. Do not handle with a wet hand. Also, do not

insert wet card into this unit.

≥Do not leave this unit for a long period of time in places where

temperature is very low (at ski resorts or at high altitude etc.) or very

high (above 35 oC), inside a car under strong sunlight, close to a

heater, on the beach, etc. Waterproof performance may be degraded.

≥Foreign objects may adhere to the inner side of the rear door

(around the rubber seal or connecting terminals) when the rear

door is opened or closed in places with sand or dust etc. This

may result in the impairment of the waterproof performance if the

rear door is closed with foreign objects adhered. Be extremely

careful since it may result in malfunction etc.

≥If any foreign object has adhered to the inner side of the rear door,

remove with the supplied brush.

≥

If any liquid such as water droplets has adhered to this unit or inner

side of the rear door, wipe off with a soft dry cloth. Do not open or

close the rear door near the water, when underwater, using wet

hands, or when this unit is wet. It may cause water leakage.

∫When inner side of the lens is fogged (condensation)

It is not a malfunction or failure of this unit. It may be caused by the

environment in which this unit is used.

≥Be careful of condensation since it causes lens stains, fungus and unit

malfunction.

What to do when inner side of the lens is fogged

≥Turn off the unit and open the rear door in a place with constant

ambient temperature, away from high temperatures, humidity, sand

and dust. The fog will disappear naturally in about 2 hours with the rear

door open when the temperature of this unit gets close to the ambient

temperature.

≥Contact Panasonic’s Service Centre if the fogging does not disappear.

- 10 -

Conditions in which inner side of the lens may be fogged

Condensation may occur and the inner side of the lens may be fogged

when this unit is used in areas that undergo a significant change in

temperature or in high humidity, such as the following:

≥When this unit is used underwater suddenly after being on a hot

beach etc.

≥When this unit is moved to a warm area from a cold area, such as

at a ski resort or at high altitude

≥When the rear door is opened in a high-humidity environment

1Open the rear door.

2Check that there are no foreign objects on the inner

side of the rear door.

≥If there are any foreign objects, such as lint, hair, sand, etc., on the

surrounding area, water will leak within a few seconds causing

malfunction.

Check before using underwater

Do not open or close the rear door in places with sand and dust,

close to water, or with wet hands. Sand or dust adhering may

cause water leaks.

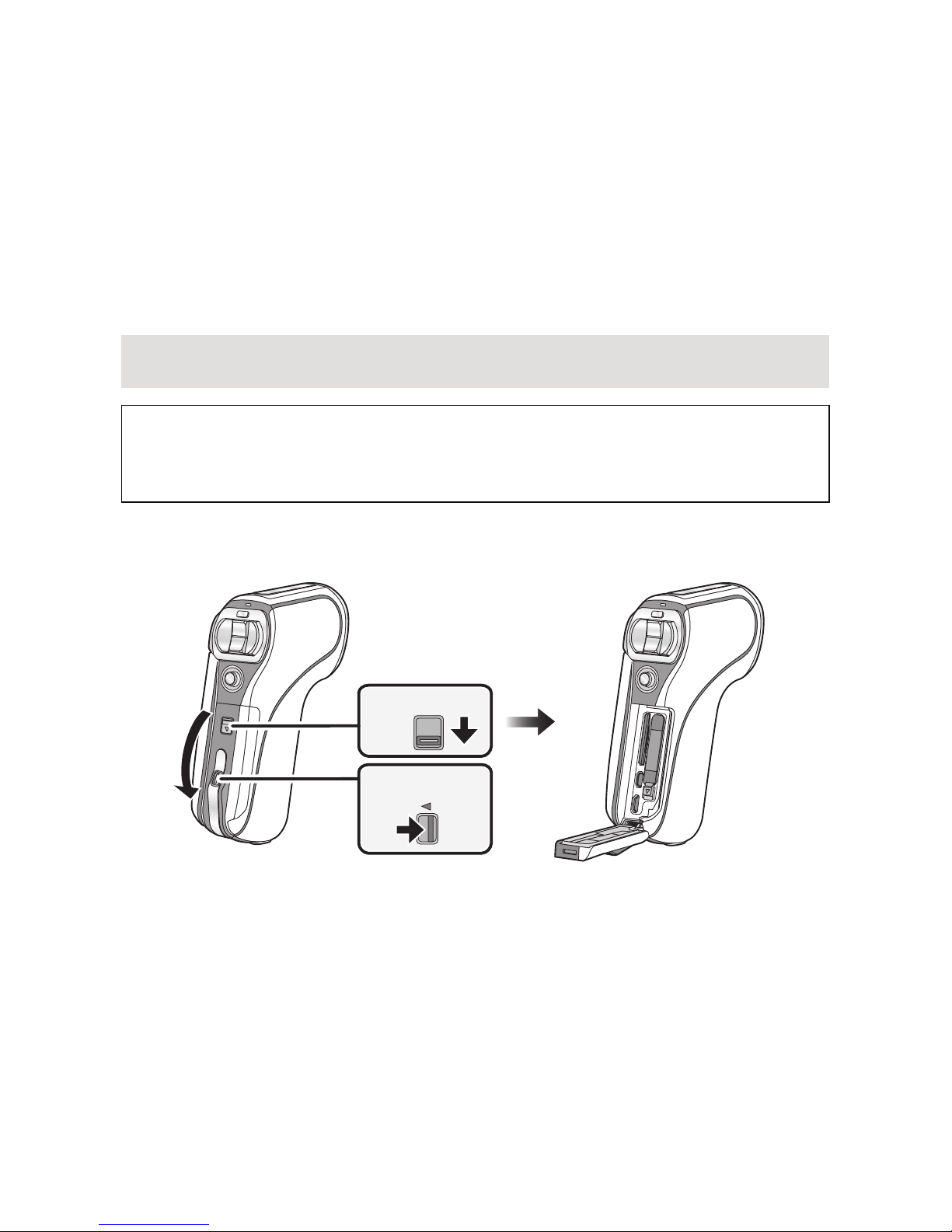

1Unlock the LOCK lever.

2Slide the open/close lever.

3Open the rear door.



LOCK

SD CARD/

BATTERY





Otros manuales para HX-WA20

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Panasonic

Panasonic

Panasonic DMC-GF6K Instrucciones de instalación y servicio

Panasonic

Panasonic LUMIX DMC-FX150 Manual de usuario

Panasonic

Panasonic Lumix DMC-LC33PP Manual de usuario

Panasonic

Panasonic Lumix DMC-LS85 Manual de usuario

Panasonic

Panasonic Lumix DMC-LS80P Manual de usuario

Panasonic

Panasonic LUMIX DC-G100D Manual de usuario

Panasonic

Panasonic Lumix DMCGX7KK Instrucciones de instalación y servicio

Panasonic

Panasonic Lumix DC-G9 Especificaciones técnicas

Panasonic

Panasonic LUMIX DMC-TS30K Manual de usuario

Panasonic

Panasonic Lumix DMC-FH27S Instrucciones de instalación y servicio

Panasonic

Panasonic Lumix DMC-G2 Manual de usuario

Panasonic

Panasonic Lumix DMC-TZ60 Especificaciones técnicas

Panasonic

Panasonic DMC-FT30EG Manual de usuario

Panasonic

Panasonic Lumix DMC-FZ1A Manual de usuario

Panasonic

Panasonic Lumix DMC-FZ60 Manual del propietario

Panasonic

Panasonic Lumix DMC-GH2 Manual de usuario

Panasonic

Panasonic LUMIX DMC-GF2C Especificaciones técnicas

Panasonic

Panasonic iPalm PV-DC3010 Manual de usuario

Panasonic

Panasonic Lumix DMC-FZ200 Manual de usuario

Panasonic

Panasonic Lumix DC-FZ10002 Especificaciones técnicas

Panasonic

Panasonic Lumix DC-GH5 Instrucciones de instalación y servicio

Panasonic

Panasonic LUMIX DMC-LX9 Manual del propietario

Panasonic

Panasonic P2HD AJ-HPX3700 Manual de usuario

Panasonic

Panasonic Lumix DMC-G10K Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
