ing and distribution is a violation of law.

ORDER NO.DSC1502009AE

B26

Digital Camera

Model No. DMC-FT30EG

DMC-FT30EP

DMC-FT30EF

DMC-FT30EB

DMC-FT30EE

DMC-FT30GC

DMC-FT30GA

DMC-FT30GN

DMC-TS30P

DMC-TS30PC

DMC-TS30PU

DMC-TS30GK

Colour

(K)...........Black Type(Except PC/GK)

(A)...........Blue Type

(R)...........Red Type

(D)...........Orange Type(Except GK)

Please use this manual together with the service manual for

Model No.DMC-FT25EB/EE/EF/EG/EP/GA/GC/GF/GN, DMC-TS25P/PC/PU/GK, Order No.DSC1302002CE

TABLE OF CONTENTS

PAGE PAGE

1 Introduction ---------------------------------------------------------3

2 Service Navigation------------------------------------------------4

2.1. How to Define the Model Suffix (NTSC or PAL

model)---------------------------------------------------------4

3 Replacement Parts List ----------------------------------------8

3.1. Electrical Component -------------------------------------8

3.2. Frame and Casing Section ------------------------------8

3.3. Packing and Accessories Section ---------------------9

1Introduction

• The purpose of issuing this Service Manual is that to introduce the following newly added models.

DMC-FT30EG/EP/EF/EB/EE/GC/GA/GN, DMC-TS30P/PC/PU/GK

• This Service Manual contains technical information which will help service personnel to understand and service the

Digital Camera; DMC-FT30EG/EP/EF/EB/EE/GC/GA/GN, DMC-TS30P/PC/PU/GK.

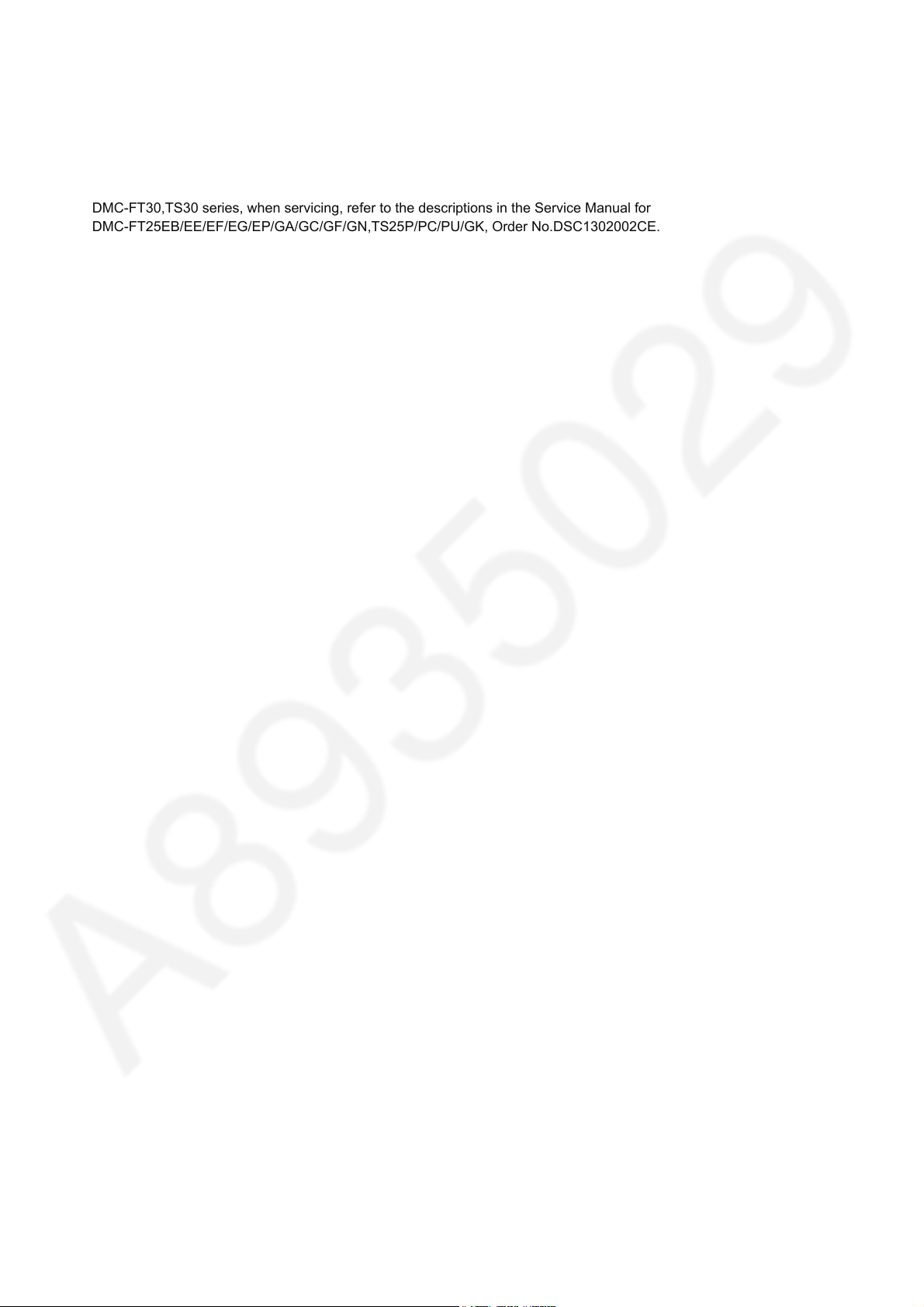

• Since this Service Manual does not cover the same part which is already described in the Original Service Manual for

DMC-FT30,TS30 series, when servicing, refer to the descriptions in the Service Manual for

DMC-FT25EB/EE/EF/EG/EP/GA/GC/GF/GN,TS25P/PC/PU/GK, Order No.DSC1302002CE.

2 Service Navigation

2.1. How to Define the Model Suffix (NTSC or PAL model)

There are seven kinds of DMC-FT30/TS30, regardless of the colours.

• a) DMC-TS30P/PC

• b) DMC-FT30EB/EF/EG/EP

• c) DMC-FT30EE

• d) DMC-FT30GN

• e) DMC-TS30GK

• f) DMC-FT30GC/GA,DMC-TS30PU

What is the difference is that the "INITIAL SETTINGS" data which is stored in Flash ROM mounted on Main P.C.B.

2.1.1. Defining methods

To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.

Note:

After replacing the Main P.C.B., be sure to achieve adjustment.

The Maintenance software (DIAS) is available at "software download" on the "Support Information from NWBG/VDBG-AVC"

web-site in "TSN system".

2.1.2. INITIAL SETTINGS

After replacing the Main P.C.B., be sure to perform the initial settings after achieving the adjustment by ordering the following

procedure in accordance with model suffix of the unit.

1. IMPORTANT NOTICE:

Before proceeding Initial settings, be sure to read the following CAUTIONS.

2. PROCEDURES:

• Precautions: Read the above "CAUTION 1" and "CAUTION 2", carefully

• Preparation:

1. Attach the Battery to the unit.

2. Set to NORMAL PICTURE mode by operating the mode button.

Note:

If the picture mode is other than NORMAL PICTURE mode, it does not display the initial settings menu.

•Step 1. The temporary cancellation of "INITIAL SETTINGS":

While keep pressing "UP of Cursor button" and MOTION PICTURE button simultaneously, turn the Power on.

•Step 2. The cancellation of "INITIAL SETTINGS":

Press the PLAYBACK button.

Press "UP of Cursor button" and MOTION PICTURE button simultaneously, then turn the Power off.

•Step 3. Turn the Power on:

Turn the Power on.

•Step 4. Display the "INITIAL SETTINGS" menu:

While keep pressing MENU/SET and "RIGHT of Cursor button" simultaneously, turn the Power off.

The "INITIAL SETTINGS" menu is displayed.

There are two kinds of "INITIAL SETTINGS" menu form as follows:

[CASE 1. After replacing Main P.C.B.]

When Main P.C.B. has just been replaced, the following model suffix list is displayed as follows. (Six pages in total)

[CASE 2. Other than "After replacing Main P.C.B."]

•Step 5. Choose the model suffix in "INITIAL SETTINGS": (Refer to "CAUTION 1")

[Caution: After replacing Main P.C.B.]

(Especially, other than "EG, EF, EB and EP" models)

The model suffix can be chosen, JUST ONE TIME.

Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can be changed.

Therefore, select the area carefully.

Select the area with pressing "UP / DOWN of Cursor buttons".

•Step 6. Set the model suffix at "INITIAL SETTINGS":

Press the "RIGHT of Cursor buttons".

The only set area is displayed. Press the "RIGHT of Cursor buttons" after confirmation.

(The unit is powered off automatically.)

•Step 7. CONFIRMATION:

Confirm the display of "PLEASE SET THE CLOCK" in concerned language when the unit is turned on again.

When the unit is connected to PC with USB cable, it is detected as removable media.

1) As for your reference, major default setting condition is as shown in the following table.

Default setting (After "INITIAL SETTINGS")

MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS

a) DMC-FT30EB PAL English Date/Month/Year

b) DMC-FT30EE PAL Russian Date/Month/Year

c) DMC-FT30EF PAL English Date/Month/Year

d) DMC-FT30EG PAL English Date/Month/Year

e) DMC-FT30EP PAL English Date/Month/Year

f) DMC-FT30GA PAL English Date/Month/Year

g) DMC-FT30GC PAL English Date/Month/Year

h) DMC-FT30GN PAL English Date/Month/Year

i) DMC-TS30GK PAL Chinese (Simplified) Year/Month/Date

j) DMC-TS30P NTSC English Month/Date/Year

k) DMC-TS30PC NTSC English Month/Date/Year

l) DMC-TS30PU NTSC Spanish Month/Date/Year

3 Replacement Parts List

3.1. Electrical Component

COMPARISON CHART:

The following tables show the difference between DMC-FT25/TS25 series and DMC-FT30/TS30 series.

3.2. Frame and Casing Section

COMPARISON CHART:

The following tables show the difference between DMC-FT25/TS25 series and DMC-FT30/TS30 series.

Safety Ref No. Original Part No.

DMC-FT25/TS25 series

New Part No.

DMC-FT30/TS30 series

Part Name & Descriptions Pcs Remarks

FP9006 K1MY15BA0235 K1MY15BA0575 CONNECTOR 15P 1

IC6002 RS10405 RS10760 IC 1

Safety Ref No. Original Part No.

DMC-FT25/TS25 series

New Part No.

DMC-FT30/TS30 series

Part Name & Descriptions Pcs Remarks

4 VEP56146B VEP56146D MAIN P.C.B. 1 (RTL) E.S.D.

6 L0AA01A00125 L0AA01A00175 SPEAKER 1

39 VYK6E06 VYK6U49 FRONT ALMI CASE UNIT 1 (-K)

39 VYK6E12 VYK6U50 FRONT ALMI CASE UNIT 1 (-R)

39 VYK6E10 VYK6U47 FRONT ALMI CASE UNIT 1 (-A)

39 ----- VYK6U48 FRONT ALMI CASE UNIT 1 (-D)

40 VKM0D26 VKM0K12 REAR ALMI CASE 1 (-A)

40 ----- VKM0J90 REAR ALMI CASE 1 (-D)

41 VKM0D28 VKM0K13 TOP CASE 1 EG-K/A/R,EP-K/A/R,EF-K/A/R,EB-

K/A/R,EE-K/R,GC-K/A/R,GA-K/A/

R,GN-K/A/R

41 VKM0D29 VKM0K13 TOP CASE 1 P-K/A/R,PC-A/R,PU-K/A/R,GK-A/R

41 ----- VKM0K13 TOP CASE 1 (-D),EE-A

3.3. Packing and Accessories Section

Safety Ref No. Part No. Part Name & Descriptions Pcs Remarks

100 VPF1458 CAMERA BAG 1 EG,EP,EF,EB,EE,GC,GA,GN,GK

101 ----- BATTERY PACK 1 EG,EP,EF,EB,EE,GC,GA,GN,GK

102 DE-A92AC/SXP BATTERY CHARGER 1 EG,EP,EF,EB,EE,GN

102 DE-A92BC/SXP BATTERY CHARGER 1 GC,GA,GK

103 K1HY08YY0031 USB CABLE 1 EG,EP,EF,EB,EE,GC,GA,GN,GK

105 VFC4297 HAND STRAP 1 EG,EP,EF,EB,EE,GC,GA,GN,GK

106 SFM0076 CD-R(SOFTWARE/INSTRUCTION BOOK) 1 EG,EP,EF,EB See "Notes"

106 SFM0079 CD-R(SOFTWARE/INSTRUCTION BOOK) 1 EE,GC,GA,GN See "Notes"

106 SFM0080 CD-R(SOFTWARE/INSTRUCTION BOOK) 1 GK See "Notes"

109 VPF1539 POLYETHYLENE BAG 1 EG,EP

109 VPF1547 POLYETHYLENE BAG 1 EF,EB,EE,GC,GA,GN,GK

111 SQT0721 BASIC O/I (GERMAN/TURKISH) 1 EG

111 SQT0724 BASIC O/I (ITALIAN) 1 EG

111 SQT0723 BASIC O/I (SPANISH/PORTUGUESE) 1 EG

111 SQT0722 BASIC O/I (FRENCH/DUTCH) 1 EG,EF

111 SQT0725 BASIC O/I (SWEDISH/DANISH) 1 EP

111 SQT0726 BASIC O/I (POLISH/CZECH) 1 EP

111 SQT0727 BASIC O/I (HUNGARIAN/FINNISH) 1 EP

111 SQT0728 BASIC O/I (ENGLISH) 1 EB

111 SQT0729 BASIC O/I (RUSSIAN/UKRAINIAN) 1 EE

111 SQT0730 BASIC O/I (ENGLISH/CHINESE(TRADITIONAL)) 1 GC,GA

111 SQT0731 BASIC O/I (ARABIC) 1 GC,GA

111 SQT0732 BASIC O/I (VIETNAMESE) 1 GA

111 SQT0734 BASIC O/I (ENGLISH) 1 GN

111 SQT0733 BASIC O/I (CHINESE(SIMPLIFIED)) 1 GK

113 SPK0051 PACKING CASE 1 EG,EP,EF,EB,EE,GC,GA,GN

113 SPK0052 PACKING CASE 1 GK

114 VQL2X49 COLOR LABEL 1 EG-K,EP-K,EF-K,EB-K,EE-K,GC-K,GA-K,GN-K

114 VQL3B09 COLOR LABEL 1 EG-R,EP-R,EF-R,EB-R,EE-R,GC-R,GA-R,GN-R

114 VQL2Z72 COLOR LABEL 1 EG-D,EP-D,EF-D,EB-D,EE-D,GC-D,GA-D,GN-D

114 VQL3B10 COLOR LABEL 1 GK-R

115 K2CQ2YY00082 AC CORD 1 EG,EP,EF,EE,GA

115 K2CT3YY00034 AC CORD 1 EB,GC

115 K2CJ2YY00052 AC CORD 1 GN

115 K2CA2YY00130 AC CORD 1 GK

119 VMG2068 SILICON JACKET 1 GN

200 VPF1458 CAMERA BAG 1 P,PC,PU

201 ----- BATTERY PACK 1 P,PC,PU

202 DE-A91BA/SXP BATTERY CHARGER 1 P,PC,PU

203 K1HY08YY0031 USB CABLE 1 P,PC,PU

205 VFC4297 HAND STRAP 1 P,PC,PU

206 SFM0075 CD-R(SOFTWARE/INSTRUCTION BOOK) 1 P,PC,PU See "Notes"

207 VQL2Y50-AM OPERATING LABEL (CANADIAN-FRENCH) 1 PC

209 VPF1547 POLYETHYLENE BAG 1 P,PC,PU

211 SQT0718 BASIC O/I (ENGLISH/SPANISH) 1 P

211 SQT0719 BASIC O/I (ENGLISH/CANADIAN FRENCH) 1 PC

211 SQT0720 BASIC O/I (SPANISH) 1 PU

213 SPK0049 PACKING CASE 1 P,PC

213 SPK0050 PACKING CASE 1 PU

214 VQL2X49 COLOR LABEL 1 P-K PU-K

214 VQL3B09 COLOR LABEL 1 P-R,PC-R,PU-R

214 VQL2Z72 COLOR LABEL 1 P-D,PC-D,PU-D

Exploded view
