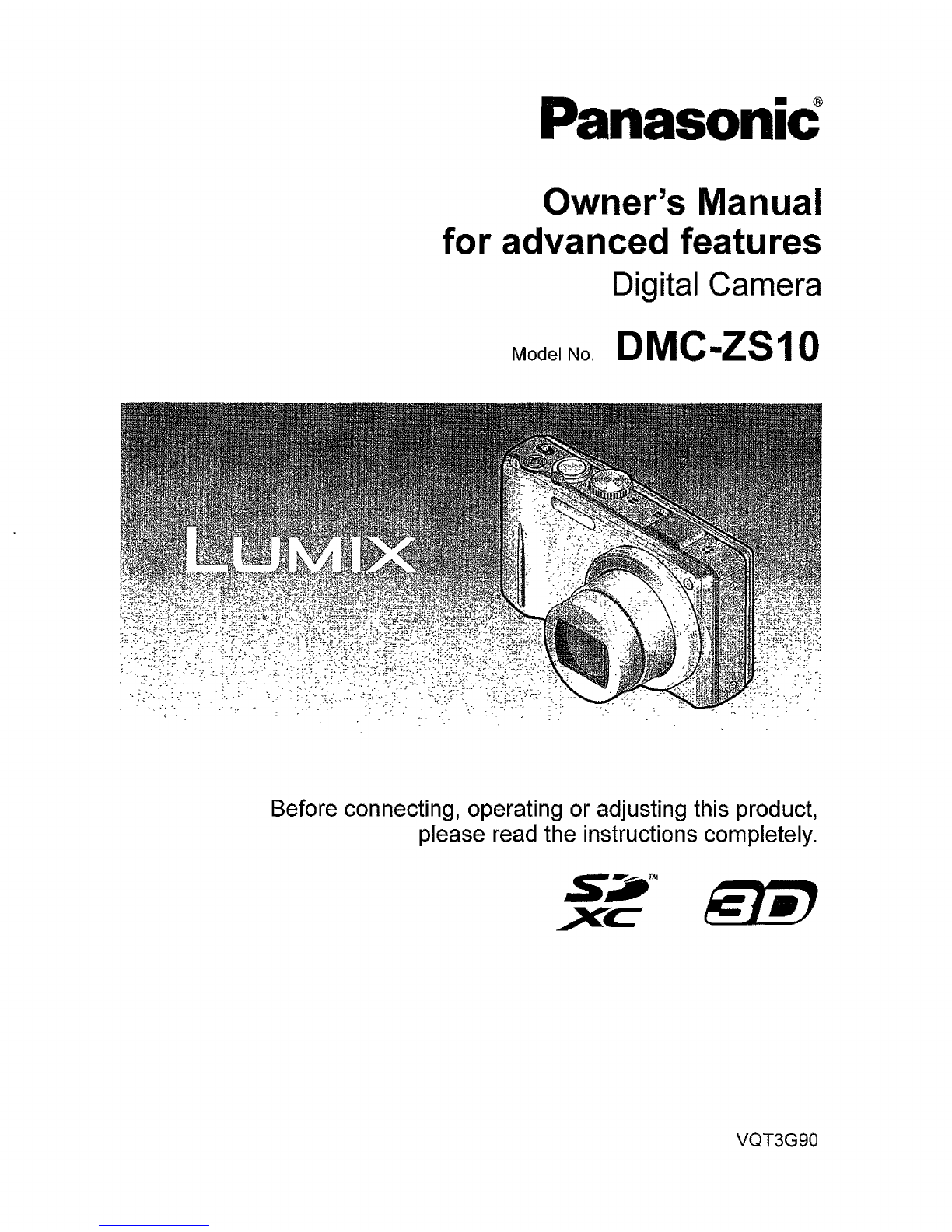

Panasonic Lumix DMC-ZS10 Manual de usuario

Panasonic

Owner's Manual

for advanced features

Digital Camera

Model No. DMC-ZSIO

Before connecting, operating or adjusting this product,

please read the instructions completely.

VQT3G90

Recording with the Face Recognition function

[Face Recog.] (Continued)

Recording Mode: _I_ [] _ t_ _I_ _ ...............................

==To set the Face Recognition function to [OFF]

• Select [Face Recog.] from the [Rec] menu

Select [OFF] with cursor button and then press [MENUISET]

Information about registered people can be edited or deleted.

Select the person or persons to be edited or deleted in step

(-_73)and press [MENU/SET]

Use cursor button to select the item and press [MENU/SET]

[Info Edit] Edit name or other registered information.(-_73)

[Priority] Set priority orderfor focus and exposure.

(_ Select the registration order with cursor button and then press [MENU!

SET]

[Delete] Delete information and face pictures of registered persons.

4 VQT3G90

m H iii ii iii i

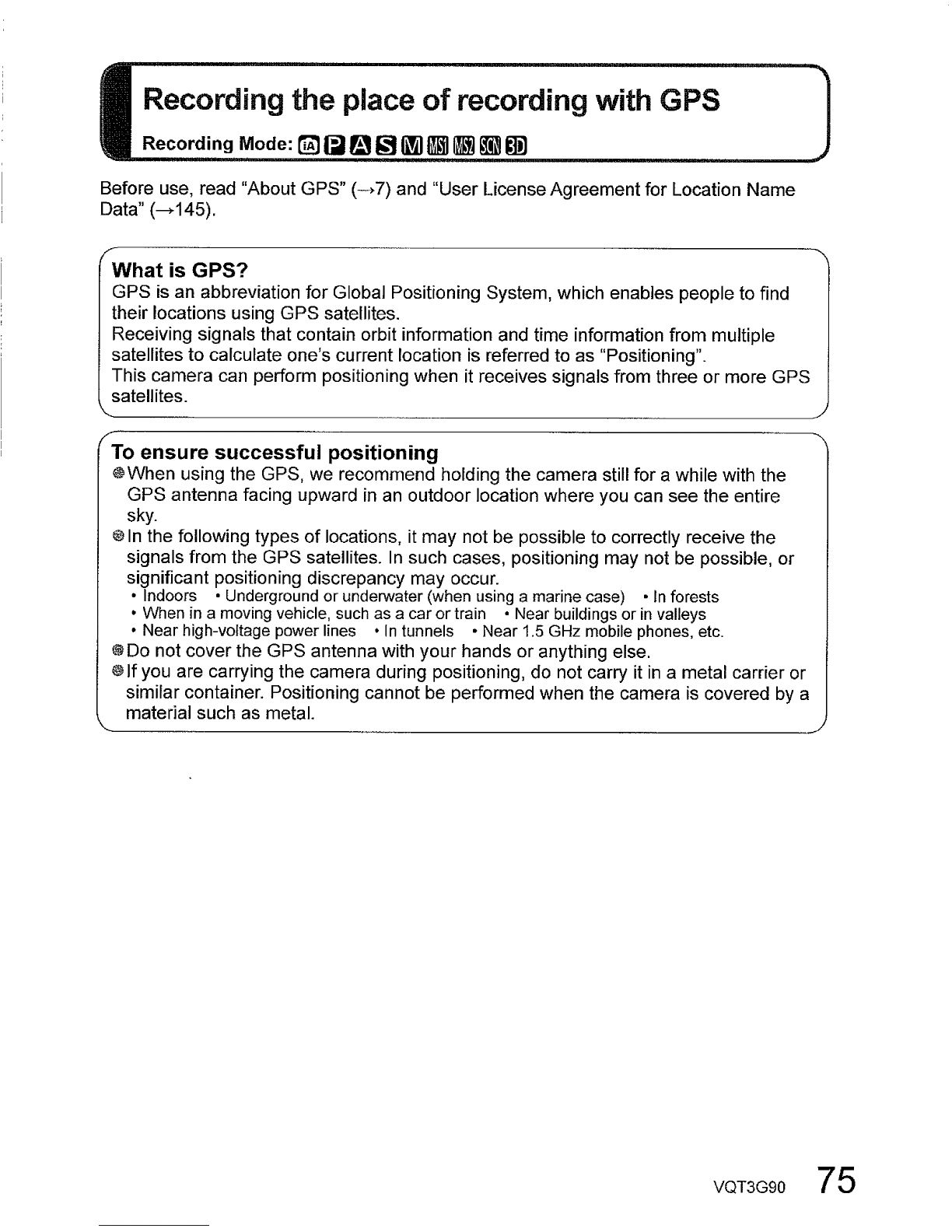

Recording the place of recording with

_Recording Mode: _ [_ _ _ _]J_l_]_ _ _]_

GPS

Before use, read "About GPS" (-,7) and "User License Agreement for Location Name

Data" (--_145).

What is GPS?

GPS is an abbreviation for Global Positioning System, which enables people to find

their locations using GPS satellites.

Receiving signals that contain orbit information and time information from multiple

satellites to calculate one's current location is referred to as "Positioning".

This camera can perform positioning when it receives signals from three or more GPS

satellites.

_To ensure successful positioning

_When using the GPS, we recommend holding the camera still for a while with the

GPS antenna facing upward in an outdoor location where you can see the entire

sky.

In the following types of locations, it may not be possible to correctly receive the

signals from the GPS satellites. In such cases, positioning may not be possible, or

significant positioning discrepancy may occur.

•Indoors •Underground or underwater (when using a marine case) • In forests

• When ina moving vehicle, such as a car or train • Near buildings or in valleys

• Near high-voltage power lines ° In tunnels • Near t.5 GHz mobile phones, etc.

@Do not cover the GPS antenna with your hands or anything else.

If you are carrying the camera during positioning, do not carry it in a metal carrier or

similar container. Positioning cannot be performed when the camera is covered by a

material such as metal.

VOT3G 075

m ....... i iii1,1,1i i ii i

Recording the place of recording with GPS

(Continued)

Recording Mode: _1_[] ___]_ ..........

................ _' ...... i t

IIpI pF][I

Select [GPS Setting] from the [GPS] menu (_38)

Use cursor button to select [ON] or G;'_Psand press [MENU/SET]

• To cancel, select [OFF]

[GPS Setting] Description

[ON] Even when the camera's power is turned off, positioning is executed

period ically.

"_0PS Positioning is executed only while the camera's power is on. (It is not

executed while the camera's power is off.)

[INFO] You can check the current reception status. (-++78)

[] Using in locations such as airplanes or hospitals

When [GPS Setting] is set to [ON], the GPS function operates even when the camera's

power is off.

Electromagnetic waves from the camera can affect instruments and meters. During

airplane takeoff and landing or in other restricted area, set [GPS Setting] to [OFF] or 0_'ps,

then turn the camera's power off.

•If the GPS status indicator lights up periodically while the camera's power is off, [GPS

Setting] is set to [ON].

6VQT3G90

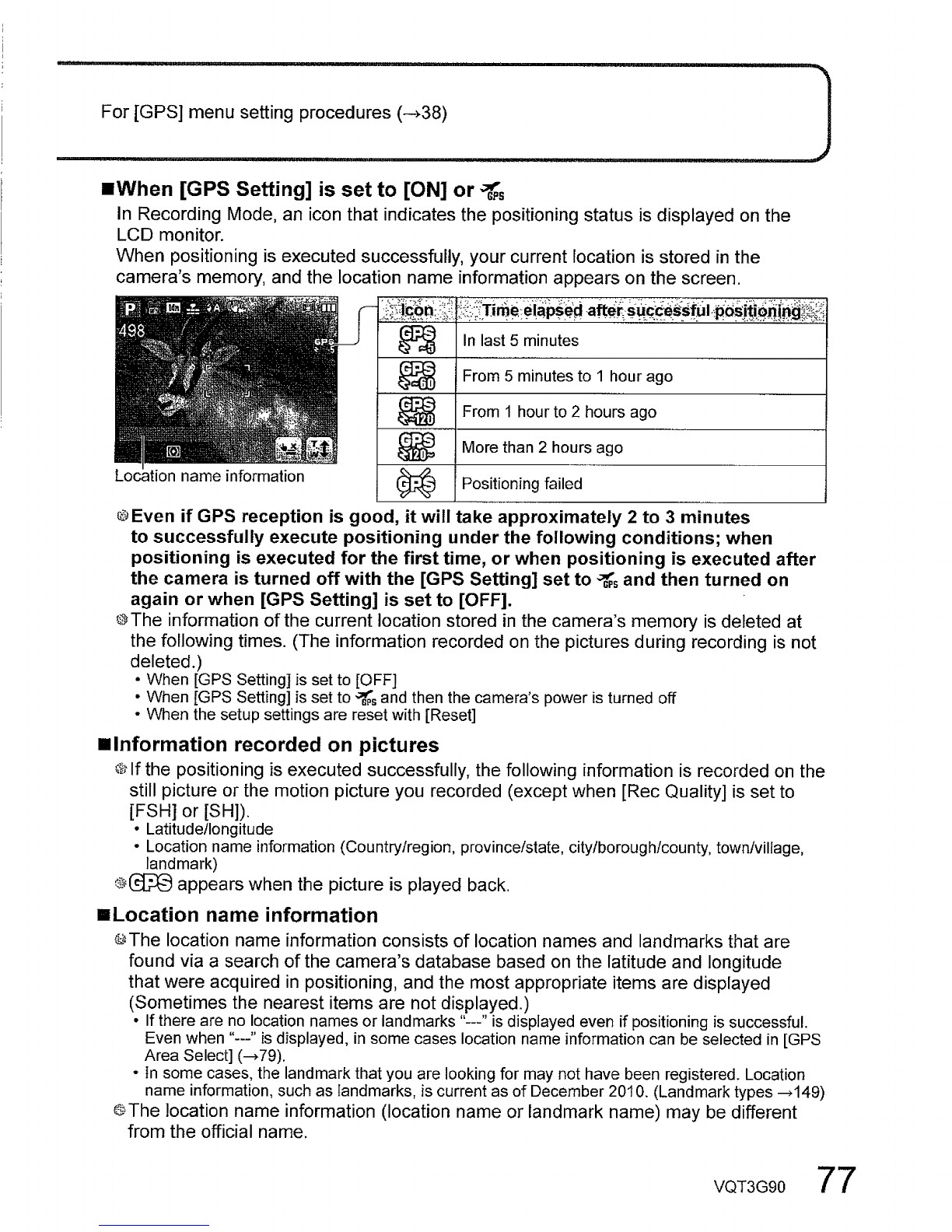

For [GPS] menu setting procedures (-_38)

==When [GPS Setting] is set to [ON] or _'_Ps

In Recording Mode, an icon that indicates the positioning status is displayed on the

LCD monitor.

When positioning is executed successfully, your current location is stored in the

camera's memory, and the location name information appears on the screen.

Location name information

!-__1_On:.'_t=:_i:!_::_Time:elapsedaft.er:Su-cce_sfulp_oS1_!_!p_! i

In last5 minutes

From 5 minutesto 1 hourago

From 1 hour to 2 hours ago

More than 2 hours ago

l_ Positioning failed

_Even if GPS reception is good, it will take approximately 2 to 3 minutes

to successfully execute positioning under the following conditions; when

positioning is executed for the first time, or when positioning is executed after

the camera is turned off with the [GPS Setting] set to 0"_Psand then turned on

again or when [GPS Setting] is set to [OFF].

'_The information of the current location stored in the camera's memory is deleted at

the following times. (The information recorded on the pictures during recording is not

deleted.)

•When [GPS Setting] is set to [OFF]

•When [GPS Setting] is set to _'_;sand then the camera's power is turned off

• When the setup settings are reset with [Reset]

='Information recorded on pictures

_lf the positioning is executed successfully, the following information is recorded on the

still picture or the motion picture you recorded (except when [Rec Quality] is set to

[FSH] or [SH]).

*Latitude/longitude

• Location name information (Country/region, province/state, city/borough/county, town/village,

landmark)

_(_[_ appears when the picture is played back.

='Location name information

_The location name information consists of location names and landmarks that are

found via a search of the camera's database based on the latitude and longitude

that were acquired in positioning, and the most appropriate items are displayed

(Sometimes the nearest items are not displayed.)

•If there are no location names or landmarks "---" is displayed even if positioning is successful.

Even when "---" isdisplayed, in some cases location name information can be selected in [GPS

Area Select] (--W9).

•In some cases, the landmark that you are looking for may not have been registered. Location

name information, such as landmarks, is current as of December 2010. (Landmark types -_149)

_;The location name information (location name or landmark name) may be different

from the official name.

VQT3G90 77

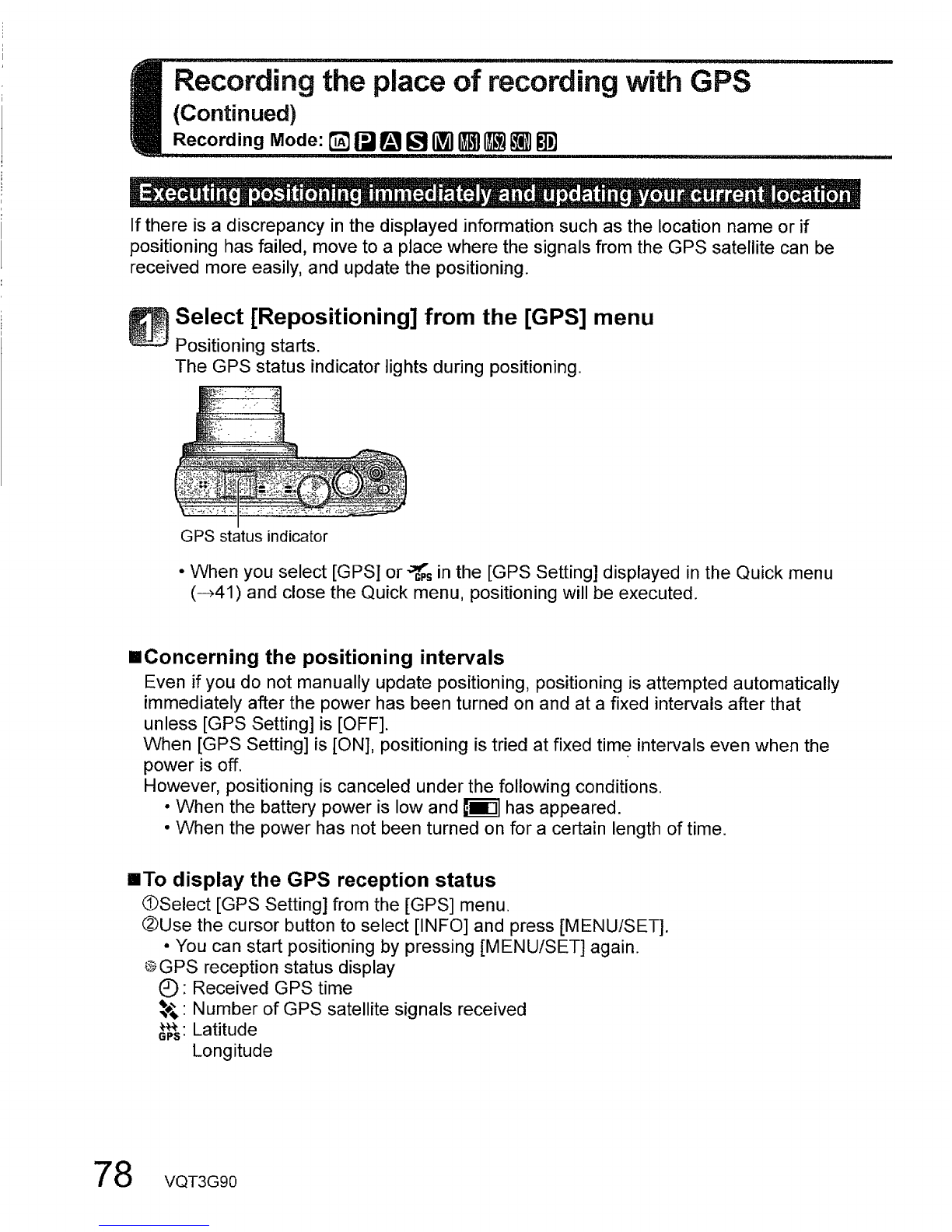

iiRecording the place of recording with GPS

(Continued)

Recording Mode: _J_ _ _ J_ J_ _k'_

If there is a discrepancy in the displayed information such as the location name or if

positioning has failed, move to a place where the signals from the GPS satellite can be

received more easily, and update the positioning.

Select [Repositioning] from the [GPS] menu

Positioning starts.

The GPS status indicator lights during positioning.

GPS status indicator

•When you select [GPS] or "_GPSin the [GPS Setting] displayed in the Quick menu

(---_41) and close the Quick menu, positioning will be executed.

=Concerning the positioning intervals

Even if you do not manually update positioning, positioning is attempted automatically

immediately after the power has been turned on and at a fixed intervals after that

unless [GPS Setting] is [OFF].

When [GPS Setting] is [ON], positioning is tried at fixed time intervals even when the

power is off.

However, positioning is canceled under the following conditions.

°When the battery power is low and _ has appeared.

° When the power has not been turned on for a certain length of time.

==To display the GPS reception status

_Select [GPS Setting] from the [GPS] menu.

_Use the cursor button to select [INFO] and press [MENU/SET].

°You can start positioning by pressing [MENU/SET] again.

_GPS reception status display

C): Received GPS time

_*_: Number of GPS satellite signals received

*_ Latitude

GPS' Longitude

8 VQT3G90

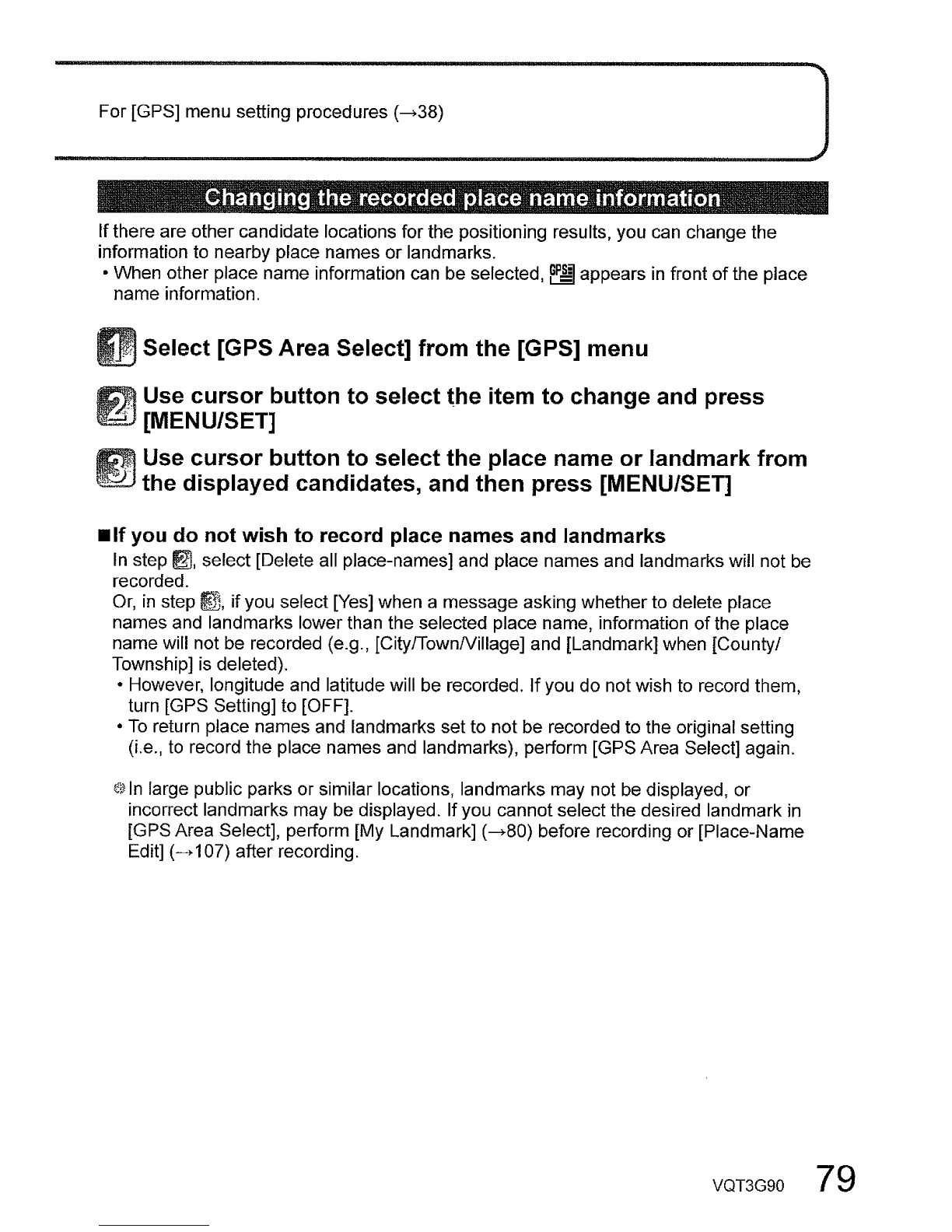

For [GPS] menu setting procedures (--_38)

-- _iL_- _'_ .....

lil! i_] ili !! il!l Ii It l_l_[tl t! I_ti [] .el_1441 i_l iiii I_tol I ii_/t [oli_

If there are other candidate locations for the positioning results, you can change the

information to nearby place names or landmarks.

• When other place name information can be selected, _ appears in front of the place

name information.

Select [GPS Area Select] from the [GPS] menu

Use cursor button to select the item to change and press

[MENU/SET]

Use cursor button to select the place name or landmark from

the displayed candidates, and then press [MENU/SET]

[] If you do not wish to record place names and landmarks

In step _, select [Delete all place-names] and place names and landmarks will not be

recorded.

Or, in step _, if you select [Yes] when a message asking whether to delete place

names and landmarks lower than the selected place name, information of the place

name will not be recorded (e.g., [City/Town/Village] and [Landmark] when [County/

Township] is deleted).

• However, longitude and latitude will be recorded. If you do not wish to record them,

turn [GPS Setting] to [OFF].

° To return place names and landmarks set to not be recorded to the original setting

(i.e., to record the place names and landmarks), perform [GPS Area Select] again.

_._lnlarge public parks or similar locations, landmarks may not be displayed, or

incorrect landmarks may be displayed. If you cannot select the desired landmark in

[GPS Area Select], perform [My Landmark] (--_80) before recording or [Place-Name

Edit] (4107) after recording.

VQT3G90 79

m iiiii Ulll.IH,... IqI I

Recording the place of recording with GPS

(Continued)

Recording Mode: [_ _ [] _ i_] I_] !_ _i_ _]_

i1_iri, ii i

You can register a personal location that has not been registered in the camera as a

landmark. The registered landmark can be displayed or recorded on the pictures. (Up to

50 landmarks)

First, move to the location that is to be registered, and operate the GPS where positioning

can be executed.

Select [My Landmark] from the [GPS] menu

Use cursor button to select [None] and press [MENU/SET]

Use cursor button to select [Yes] and press [MENUISET]

Positioning starts.

_Press [MENU/SET]

•When positioning has failed

--_ Move to a location where positioning can be executed, then select [Yes] using

cursor button and press [MENU/SET].

Input the landmark name (Characterinputmethod --,84)

[] Editing or deleting registered landmarks

@Select the landmark which was registered in step _ above, and press [MENU!SET].

@Select an item and press [MENU/SET].

[Edit] This corrects the landmark name.

[Delete] This deletes the registered landmark.

0 VQT3G90

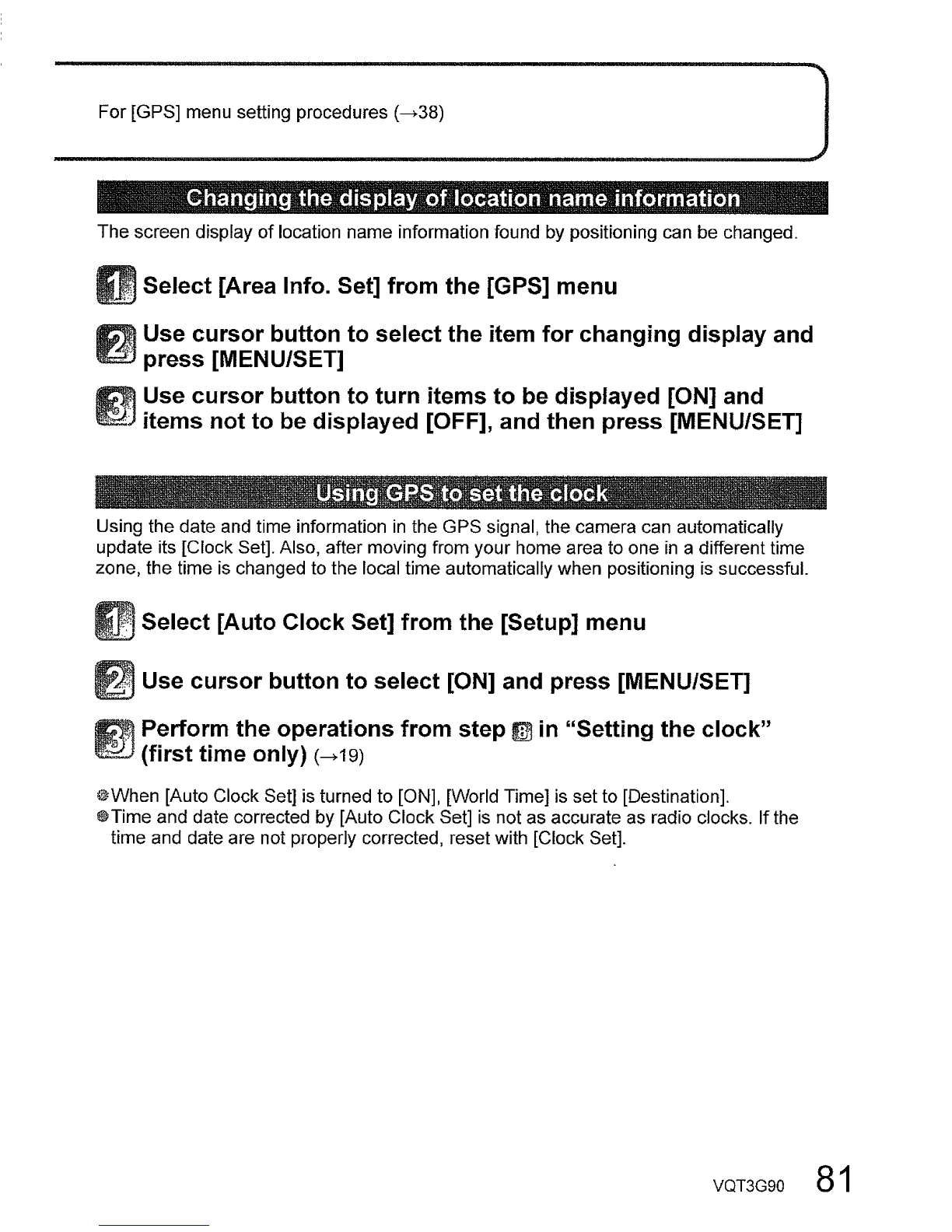

For [GPS] menu setting procedures (--,38)

The screen display of location name information found by positioning can be changed.

Select [Area Info. Set] from the [GPS] menu

Use cursor button to select the item for changing display and

press [MENU/SET]

Use cursor button to turn items to be displayed [ON] and

items not to be displayed [OFF], and then press [MENUISET]

Using the date and time information in the GPS signal, the camera can automatically

update its [Clock Set]. Also, after moving from your home area to one in a different time

zone, the time is changed to the local time automatically when positioning is successful.

Select [Auto Clock Set] from the [Setup] menu

Use cursor button to select [ON] and press [MENU/SET]

_erform the operations from step _in "Setting the clock"

(first time only) (-_19)

@When [Auto Clock Set] is turned to [ON], [World Time] is set to [Destination].

®Time and date corrected by [Auto Clock Set] is not as accurate as radio clocks. If the

time and date are not properly corrected, reset with [Clock Set].

VQT3G90 81

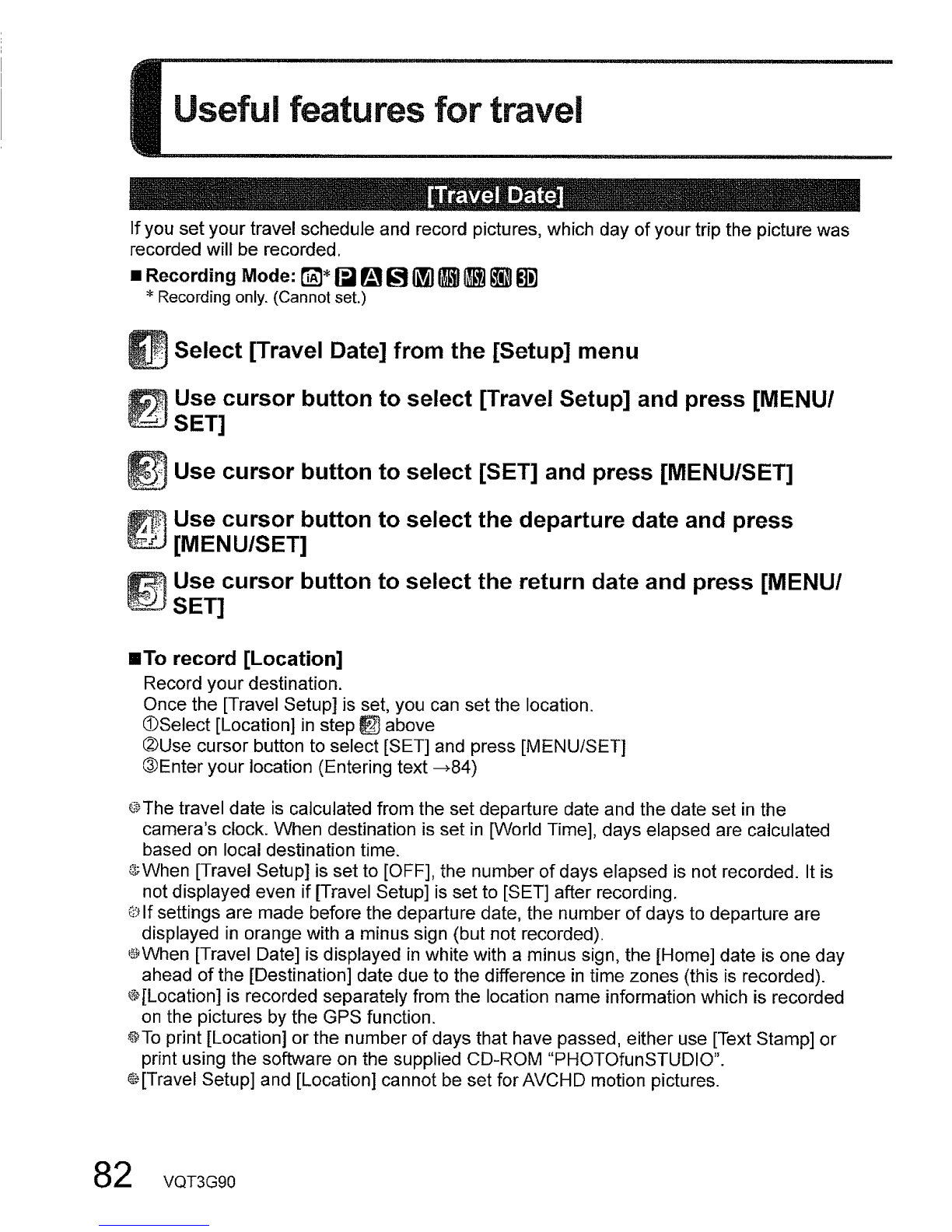

Useful features

for travel

ITIr TIl! " _n T

If you set your travel schedule and record pictures, which day of your trip the picture was

recorded will be recorded.

•Recording Mode: _* I_ _ I_ _ _ _ _

*Recording only. (Cannot set.)

Select [Travel Date] from the [Setup] menu

Use cursor button to select [Travel Setup] and press [MENU/

SET]

Use cursor button to select [SET] and press [MENU/SET]

Use cursor button to select the departure date and press

[MENU/SET]

Use cursor button to select the return date and press [MENU/

SET]

ITo record [Location]

Record your destination.

Once the [Travel Setup] is set, you can set the location.

(_Select [Location] in step _above

(_Use cursor button to select [SET] and press [MENU/SET]

®Enter your location (Entering text --,84)

_.The travel date is calculated from the set departure date and the date set in the

camera's clock. When destination is set in [World Time], days elapsed are calculated

based on local destination time.

_When [Travel Setup] is set to [OFF], the number of days elapsed is not recorded. It is

not displayed even if [Travel Setup] is set to [SET] after recording.

,;_:_lfsettings are made before the departure date, the number of days to departure are

displayed in orange with a minus sign (but not recorded).

,-#When [Travel Date] is displayed in white with a minus sign, the [Home] date is one day

ahead of the [Destination] date due to the difference in time zones (this is recorded).

_[Location] is recorded separately from the location name information which is recorded

on the pictures by the GPS function.

@To print [Location] or the number of days that have passed, either use [Text Stamp] or

print using the software on the supplied CD-ROM "PHOTOfunSTUDIO".

_[Travel Setup] and [Location] cannot be set for AVCHD motion pictures.

2 VQT3G90

Otros manuales para Lumix DMC-ZS10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Panasonic

Panasonic

Panasonic LUMIX DMC-LX2 Manual de usuario

Panasonic

Panasonic DMCFZ100 - DIGITAL STILL CAMERA Manual de usuario

Panasonic

Panasonic Lumix DMC-G5X Instrucciones de instalación y servicio

Panasonic

Panasonic Lumix DMC-ZS19 Manual de usuario

Panasonic

Panasonic LUMIX DMC-ZS1 Manual de usuario

Panasonic

Panasonic lumix VQT0W41 Manual de usuario

Panasonic

Panasonic Lumix DMC-LX3 Manual de usuario

Panasonic

Panasonic Lumix DMC-TZ20 Manual de usuario

Panasonic

Panasonic lumix DC-TZ90 Manual del propietario

Panasonic

Panasonic Lumix DMC-FH4 Manual de usuario

Panasonic

Panasonic LUMIX DC-GH6 Manual de usuario

Panasonic

Panasonic AW-RP150 Manual de usuario

Panasonic

Panasonic Lumix DMC-LC33PP Manual de usuario

Panasonic

Panasonic lumix dmctz55 Especificaciones técnicas

Panasonic

Panasonic LUMIX DMC-FZ100 Especificaciones técnicas

Panasonic

Panasonic Lumix DMC-FX8 Manual de usuario

Panasonic

Panasonic Lumix DMC-TS5 Manual de instrucciones

Panasonic

Panasonic Lumix DMC-L10 Manual de instrucciones

Panasonic

Panasonic DMC-G1K - Lumix Digital Camera Manual de usuario

Panasonic

Panasonic AG-FC100 Manual de uso y cuidado

Panasonic

Panasonic LUMIX DMC-FX33 Manual de usuario

Panasonic

Panasonic DMC-FX35A - Lumix Digital Camera Manual de instrucciones

Panasonic

Panasonic HC-VX980EG Manual de usuario

Panasonic

Panasonic DMC-GH4 Instrucciones de instalación y servicio

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
