Panasonic DMC-FS42P Manual de usuario

ing and distribution is a violation of law.

ORDER NO. DSC0905037AE

B26

Digital Camera

Model No. DMC-FS42P

DMC-FS42PC

DMC-FS42PR

DMC-FS42PU

DMC-FS42EB

DMC-FS42EE

DMC-FS42EF

DMC-FS42EG

DMC-FS42EP

DMC-FS42GC

DMC-FS42GJ

DMC-FS42GN

Vol.1

Colour

(K)..........Black Type

(S)..........Silver Type (except EF/GJ)

(P)..........Pink Type (except P/PC/EF)

Please use this manual together with the service manual for Model No.DMC-FS4P/PC/PR/PU/EB/EE/EF/EG/

EP/GC/GJ/GK/GN Vol.1 Order No.DSC0903022CE.

TABLE OF CONTENTS PAGE PAGE

1 SERVICE NAVIGATION------------------------------------------3

1.1. INTRODUCTION-------------------------------------------3

1.2. Important Notice 1:(Other than U.S.A. and

Canadian Market)------------------------------------------3

2 INITIAL SETTINGS:-----------------------------------------------4

3DIAGRAMS----------------------------------------------------------7

3.1. Overall Block Diagram------------------------------------7

3.2. CCD Flex Schematic Diagram--------------------------8

4 REPLACEMENT PARTS LIST ---------------------------------9

4.1. Frame & Casing Section -------------------------------10

4.2. Packing & Accessories Section (1)------------------ 11

4.3. Packing & Accessories Section (2)------------------13

1 SERVICE NAVIGATION

1.1. INTRODUCTION

This Service Manual contains technical information which will help service personnel to understand and service the Digital Camera

Digital Camera; DMC-FS42 series.

The Digital Camera DMC-FS4 series have been developed based on DMC-FS4 series.

Since this Service Manual does not cover the same part which is already described in the Service Manual for DMC-FS4 series,

when servicing, refer to the descriptions in the Service Manual for; DMC-FS4P/PC/PR/PU/EB/EE/EF/EG/EP/GC/GJ/GK/GN,

Order No.DSC0903022CE (Service Manual Vol. 1).

1.2. Important Notice 1:(Other than U.S.A. and Canadian Market)

When a part replacement is required for repairing MAIN PCB and/or SUB PCB, replace as an assembled parts.

The following category is/are recycle module part. please send it/them to Central Repair Center.

MAIN PCB : VEP56074D

2 INITIAL SETTINGS:

After replacing the MAIN PCB, be sure to perform the initial settings after achieving the adjustment by ordering the following

procedure in accordance with model suffix of the unit.

1. IMPORTANT NOTICE:

Before proceeding Initial settings, be sure to read the following CAUTIONS.

2. PROCEDURES:

• Precautions: Read the above “CAUTION 1” and “CAUTION 2”, carefully.

• Preparation:

1. Attach the Battery or AC Adaptor with a DC coupler to the unit.

2. Set the recording mode to the [NORMAL PICTURE] mode.

(Press the [MODE] button and select the [NORMAL PICTURE] by pressing the “[ UP ] and [DOWN] of Cursor buttons”,

then press the [MENU/SET] button.)

NOTE:

If the unit is other than [NORMAL PICTURE] mode, it does not display the initial settings menu.

•Step 1. The temporary cancellation of “INITIAL SETTINGS”:

Set the [REC]/[PLAYBACK] selector switch to “[ REC ] (Camera mark)”.

While keep pressing “[ UP ] of Cursor button” and [ DISPLAY ] button simultaneously, turn the Power on.

•Step 2. The cancellation of “INITIAL SETTINGS”:

Set the [REC]/[PLAYBACK] selector switch to “[ PLAYBACK ]”.

Press “[ UP ] of Cursor button” and [ DISPLAY ] button simultaneously, then turn the Power off.

•Step 3. Turn the Power on:

Set the [REC]/[PLAYBACK] selector switch to “[ REC ] (Camera mark)”, and then turn the Power on.

•Step 4. Display the INITIAL SETTING:

NOTE:

If the unit is other than [NORMAL PICTURE] mode, it does not display the initial settings menu.

While keep pressing [ MENU/SET ] and “[ RIGHT ] of Cursor buttons” simultaneously, turn the Power off.

The “INITIAL SETTINGS” menu is displayed.

There are two kinds of “INITIAL SETTINGS” menu form as follows:

[CASE 1. After replacing MAIN P.C.B.]

When MAIN P.C.B. has just been replaced, all of the model suffix is displayed as follows. (Four pages in total)

[CASE 2. Other than “After replacing MAIN P.C.B.”]

•Step 5. Choose the model suffix in “INITIAL SETTINGS”: (Refer to “CAUTION 1”)

[Caution: After replacing MAIN P.C.B.]

The model suffix can been chosen, JUST ONE TIME

Once one of the model suffix have been chosen, the model suffix lists will not be displayed, thus, it can be changed.

Therefore, select the area carefully.

Select the area with pressing “[ UP ] / [ DOWN ] of Cursor buttons”.

•Step 6. Set the model suffix in “INITIAL SETTINGS”:

Press the “[ RIGHT ] of Cursor buttons”.

The only set area is displayed, and then press the “[ RIGHT ] of Cursor buttons” after confirmation.

(The unit is powered off automatically.)

•Step 7. CONFIRMATION:

Confirm the display of “PLEASE SET THE CLOCK” in concernd language when the unit is turned on again.

When the unit is connected to PC with USB cable, it is detected as removable media.

1) As for your reference, major default setting condition is as shown in the following table.

•Default setting (After “INITIAL SETTINGS”)

MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS

a) DMC-FS42P NTSC English Month/Date/Year

b) DMC-FS42PC NTSC English Month/Date/Year

c) DMC-FS42PR PAL English Date/Month/Year

d) DMC-FS42PU NTSC English Month/Date/Year

e) DMC-FS42EB PAL English Date/Month/Year

f) DMC-FS42EE PAL Russian Date/Month/Year

g) DMC-FS42EF PAL French Date/Month/Year

h) DMC-FS42EG PAL English Date/Month/Year

i) DMC-FS42EP PAL English Date/Month/Year

j) DMC-FS42GC PAL English Date/Month/Year

k) DMC-FS42GJ PAL Thai Date/Month/Year

l) DMC-FS42GN PAL English Date/Month/Year

3 DIAGRAMS

3.1. Overall Block Diagram

CCD

IC3001

CCD SIGNAL

PROCESSOR

FOCUSIRIS

SDRAM/256Mbit

NAND FLASH ROM/512Mbit

CARD

(POWER SUPPLY)

BATTERY

REAR OPERATION UNIT

OVERALL BLOCK DIAGRAM

IC9101

SYSTEM IC

MOTOR DRIVE,

OIS DRIVE&

PRE PROCESS

IC6001

VENUS4

CAMERA PROCESS

J-PEG COMP/EX PANDS

MEDIA I/F

USB I/F

MAIN MICROPROCESSOR

FLASH

TOP OPERATION UNIT

IC1001

POWER

SHUTTER

IC9101

SYSTEM IC

IC6002

ZOOM

OIS CONTROL

LENS DRIVE

LCD DRIVE

AV OUT / DIGITAL

TERMINAL

COLOR LCD

PANEL

(33mm ~ 132mm)

IC9101

SYSTEM IC

MICROPHONE

MICROPHONE AMP

SPEAKER CONTROL

SPEAKER

1/2.5" 10MEGA PIX CDS, AGC,

A/D, TG,

CCD DRIVER

2.5" PANEL

230k dots

X6001

(24MHz)

X9101

(32.768kHz)

VIDEO OUT

IC8001

IGBT DRIVER

IC6004

FeRAM

IC3002

REGLATOR

IC1210

REGLATOR

3.2. CCD Flex Schematic Diagram

'0&)6

&&' )OH[

6FKHPDWLF 'LDJUDP



)

(

4 REPLACEMENT PARTS LIST

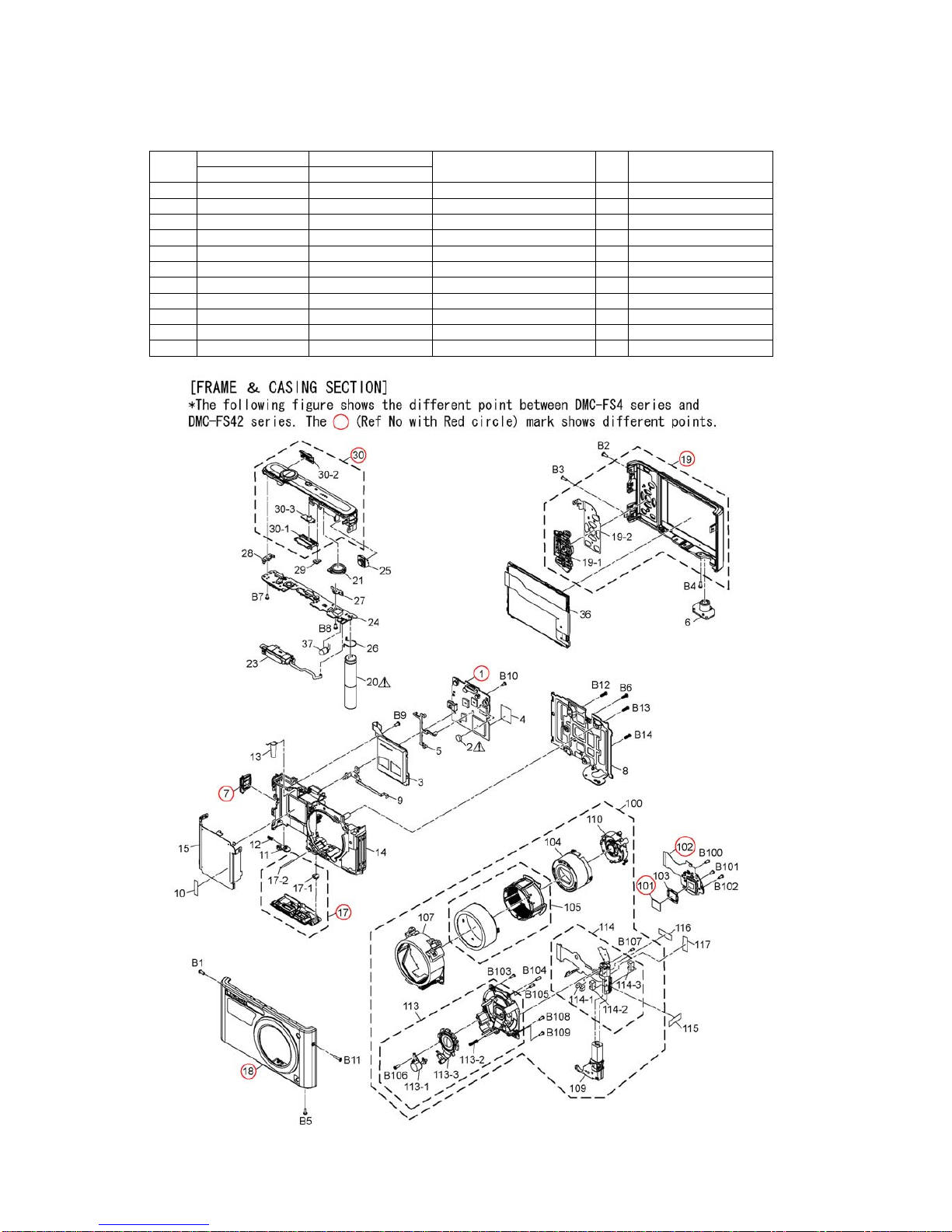

4.1. Frame & Casing Section

COMPARISON CHART:

The following table shows difference between DMC-FS4 series and DMC-FS42 series.

Ref No. Original Part No. New Part No. Part Name & Description Pcs Remarks

DMC-FS4 series DMC-FS42 series

1 VEP56074C VEP56074D MAIN P.C.B. 1 (RTL) E.S.D.

7 ----- VKF4587 JACK DOOR 1 (-P)

17 ----- VYK3J24 BATTERY DOOR UNIT 1 (-P)

18 VYK3F88 VYK3J25 FRONT CASE UNIT 1 (-S)

18 VYK3F89 VYK3J26 FRONT CASE UNIT 1 (-K)

18 ----- VYK3J27 FRONT CASE UNIT 1 (-P)

19 ----- VYK3J32 REAR CASE ASSY 1 (-P)

30 VYK3F94 VYK3J30 TOP ORNAMENT UNIT 1 (-S,-P)

30 VYK3F95 VYK3J31 TOP ORNAMENT UNIT 1 (-K)

101 VDL1950 VDL2317 OPTICAL FILTER 1 [SPC]

102 VEK0P06 VEK0P38 CCD UNIT 1 [SPC] E.S.D.
