PCI Bus S-LINK V Control Board

SL-VPCI

Instruction Manual

CMJE-SLVPCI No.0062-88V

2. Cautions

●This product is not equipped with a short-circuit protection circuit. Use a power supply having a

short-circuit protection function (e.g. fuse, etc.).

●Verify that the supply voltage variation is within the rating. Also, check the voltage variation at the end terminal of the

transmission route, since voltage drop occurs depending on the diameter or the length of the transmission cable.

●If power is supplied from a commercial switching regulator, ensure that the frame ground (F.G.)

terminal of the power supply is connected to an actual ground.

●Do not use during the initial transient time after the power supply is switched ON. Furthermore, transmission

is not possible when the system is in Busy state (during switching ON of the power supply or system setting.)

●Make sure to use an isolation transformer for the DC power supply. If an auto-transformer (sin-

gle winding transformer) is used, this product or the power supply may get damaged.

●In case a surge is generated in the power supply used, connect a surge absorber to the supply

and absorb the surge.

●In case computer power supply is turned OFF rst, note that the output hold function of the

S-LINK V output units may not work.

Power supply

●Do not run the wires together with high-voltage lines or power lines or put them in the same

raceway. This can cause malfunction due to induction.

●Make sure to carry out the installation and wiring in the power supply OFF condition.

●In order to reduce noise, make the wiring as short as possible.

● Always use the specied transmission cable.

●Take care that wrong wiring will damage the product.

Wiring

●This product has been developed / produced for industrial use only.

●In case noise generating equipment (switching regulator, inverter motor, etc.) is used in the vicin-

ity of this product, connect the frame ground (F.G.) terminal of the equipment to an actual ground.

●This product does not have a dust-proof or water-proof construction. Do not use it in a place

having excessive vapor, dust, etc.

●Take care that the product does not come in contact with water, chemicals or organic solvents,

such as thinner, etc. Furthermore, do not use it in an environment having corrosive gas.

● Do not use the product in places where the ambient temperature or the humidity exceeds the specications.

Environment

● Do not tighten the screws with a torque exceeding the specications.

Terminal

●S-LINK V system is not compatible with system.

●Please refer to “S-LINK V User's Manual” for details of the system design.

●Any protective devices or safety circuits against system malfunction should be designed to be

external to the system.

Others

1. Introduction

Thank you very much for purchasing Panasonic products. Please read this Instruction Manual

carefully and thoroughly for the correct and optimum use of this product. Kindly keep this manual

in a convenient place for quick reference.

●Never use this product in a device for personnel protection.

●In case of using devices for personnel protection, use products which meet laws and standards, such

as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.

●Before touching this product, remove any electrostatic charge that may be present on your body.

There is a danger of this product getting damaged due to the electrostatic charge.

3. Functional Description

8) Error indicator

(Red)

7) BUSY indicator

(Orange)

6) Transmission

indicator (Green)

5) System setting

button (Green)

1) S-LINK V terminal

block connector

18.42 165

SW5

SW1 SW2 SW3 SW4

107

2) Board No. setting switches

3) Transmission mode setting switches

I/O control points setting switches

4) I/O first address

setting switches

(Unit: mm)

1) S-LINK V terminal block connector

G0 D

24FG 024

View from wiring side

No. Terminal Remarks

7 F.G. Frame ground

6 +24V External power supply input

5 0V

4 +24V Brown

3 0V Blue

2 D White

1 G Black

Tightening torque of the terminal screws: 0.5 to 0.6 N·m

Terminal block connector:

MSTB2.5/7-STF-5.08 (with ange) (Made by Phoenix Contact)

2) Board No. setting switch (SW5)

If more than one board is mounted for use, it is necessary to set the board select number switch.

It is possible to use a maximum of 16 boards independently. Setting is possible in the range 0 to

F with a rotary switch.

Notes: 1) The number of boards which can be used may be limited by the computer resource.

2) In case of using the product in multiple units, do not set them to the same board No.

3) Transmission mode setting switch, I/O control number setting switch (SW2)

This switch sets each system setting. The transmission mode setting switch (SW2-1, SW2-2) per-

forms A mode, B mode and C mode setting. Furthermore, the I/O control number is set with the

I/O control number setting switch.

Setting is read in only once when power is supplied to the computer. Changing the mode switch

setting during operation is ine󰀨ective. (The setting cannot be changed with the reset command on

the S-LINK V system side.)

Transmission mode setting switch

Transmission mode SW2-1 SW2-2

A mode OFF OFF

B mode OFF ON

C mode ON OFF

(A mode) ON ON

I/O control number setting switch

I/O control

number SW2-5 SW2-6 SW2-7 SW2-8

32 points OFF OFF OFF OFF

64 points OFF OFF OFF ON

96 points OFF OFF ON OFF

128 points OFF OFF ON ON

160 points OFF ON OFF OFF

192 points OFF ON OFF ON

224 points OFF ON ON OFF

256 points OFF ON ON ON

288 points ON OFF OFF OFF

320 points ON OFF OFF ON

352 points ON OFF ON OFF

384 points ON OFF ON ON

416 points ON ON OFF OFF

448 points ON ON OFF ON

480 points ON ON ON OFF

512 points ON ON ON ON

1 7 85

SW2

642 3

Unused

Above diagram shows

in case the transmission

mode is set to B mode,

and the I/O control points

is set to 128 points.

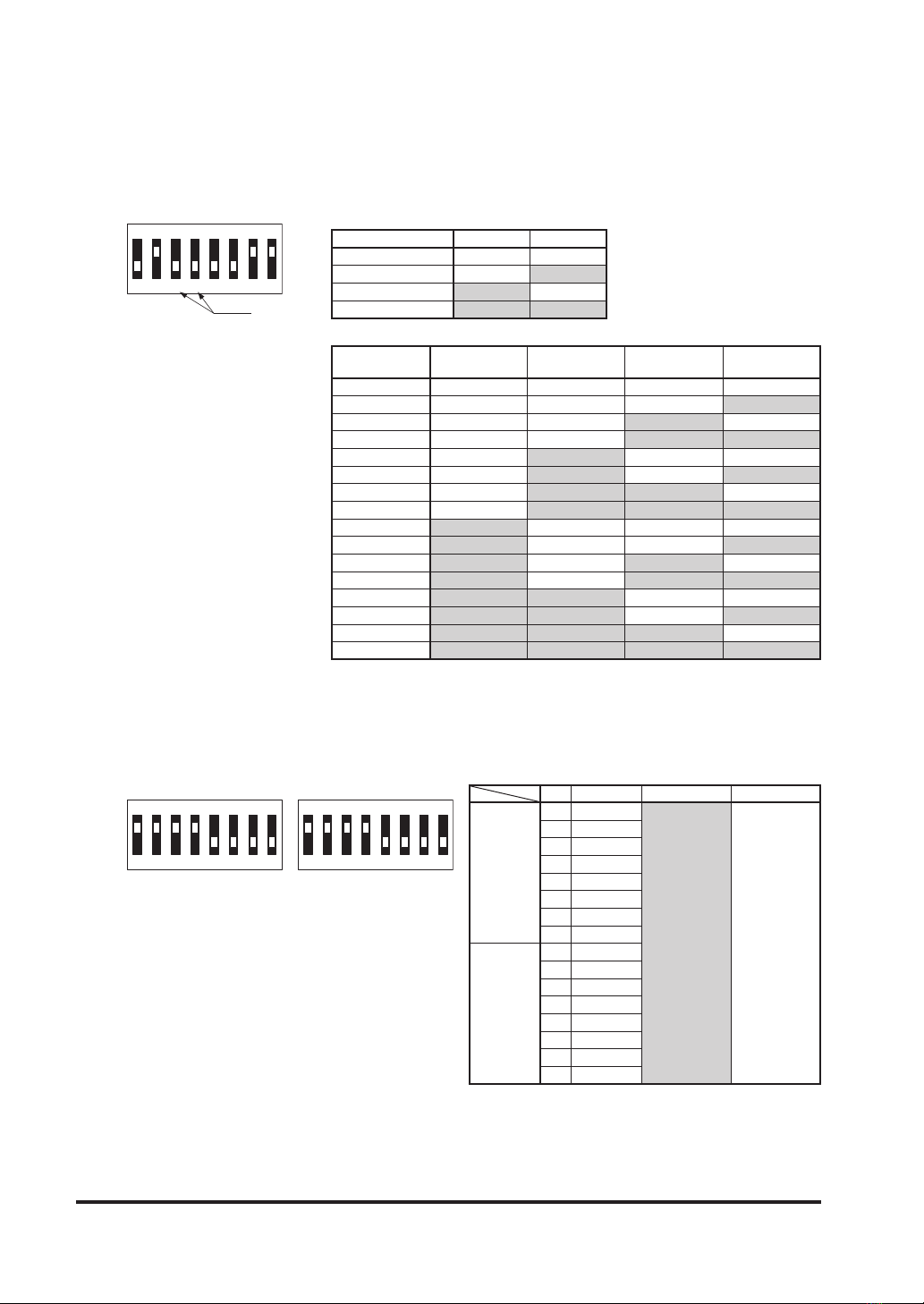

4) I/O setting switch (SW3, SW4)

I/O setting is done for each 32 points with the I/O setting switch (SW3, SW4). Setting is read in

only once when power is supplied to the computer or when the reset command is executed on

the S-LINK V system side.

Changing the switch setting during operation is ine󰀨ective.

No. Address ON OFF

SW3

1 0 to 31

Input Output

2 32 to 63

3 64 to 95

4 96 to 127

5 128 to 159

6 160 to 191

7 192 to 223

8 224 to 255

SW4

1 256 to 287

2 288 to 319

3 320 to 351

4 352 to 383

5 384 to 415

6 416 to 447

7 448 to 479

8 480 to 511

Note: When setting I/O through a program, set all the

switches to input (ON).

SW3

1 7 85 642 3

SW4

1 7 85 642 3

Above diagram shows in

case input is set to 0 to 127

and 256 to 383, while output

is set to 128 to 255 and 384

to 511.

5) System set button (SW1)

The system set button is pressed to read and memorize the connection condition of the S-LINK V

units. Later, it is possible to check Error 3, Error 4 and Error 5 using the present condition as the

basis.

Notes: 1) If the system set button is pressed when Error 3 occurs, the error is canceled. However, if the

cause of the error is not rectied, the error address is, from now on, missed out from the checked

items. (The address is considered to be in unit unconnected condition.)

2) If the system set button is pressed when Error 4 occurs, the error is canceled and the connection

condition including the addresses where Error 4 has occurred is read again and stored.

6) Transmission indicator (Green)

It blinks when communicating (during signal transmission) with the S-LINK V I/O units. (Turns

OFF during no transmission)

Blinking interval di󰀨ers depending on the transmission speed. (A mode: Fast, C mode: Slow)

7) Busy indicator (Orange)

It lights up during the system setting or transmission process conrmation.

●It lights up when the power supply (+24V and personal computer side) is switched on till I/O re-

fresh is started.

●It lights up during the system setting (after pressing the system set button or executing system

setting from the personal computer side), and turns OFF when the system setting is completed.

8) Error indicator (Red)

It lights up when an error occurs on the S-LINK V system main cable. In case the cause of the er-

ror is eliminated, it blinks, and if the error No. is cleared with program, or when the system setting

is done, it turns OFF.

Notes: 1) Error 0 to Error 6 cannot be distinguished with the error indicator. Check with a program on

the VME bus system by using “5) HML0 + 48: Error No. / Error state” in “4. Assignment on

Computer.”

2) In case of turning OFF the blinking state, conduct it on the program.

4. Assignment on Computer

Notes: 1) HML is the rst address in I/O region assigned by plug and play.

2) For “HML0 + 00 to HML0 + 3F,” the contents of the assignment vary depending on the contents of the bank

change-over request register and the bank change-over response register.

3) Reading out / Writing in “HML0 + 00 to HML0 + 3F” must be done after the contents of the bank change-

over request register and those of the bank change-over response register match.

Computer I/O ad-

dress (hexadecimal) Assignment

HML0 + 00

HML0 + 3F

Bank change-over response register R/W

00H

(Initial value)

01H 02H 03H 04H 05H 06H 07H

S-LINK V

I/O data

S-LINK V

I/O unit

connected

address

Address

where

Error 3

occurs

Address

where

Error 4

occurs

Address

where

Error 5

occurs

Occupied

address I/O state

Interruption

setting

HML0 + 40 Transmission mode / I/O control point R

HML0 + 41

HML0 + 44

I/O setting R/W

HML0 + 45

HML0 + 46 S-LINK V I/O unit connected node number R

HML0 + 47 Not usable (= 04)

HML0 + 48 Error No. / Error state R

HML0 + 49

Command execution request register

Communication frame conrmation / Error No. clear / Default / System set / Interruption

(Computer → Control board)

R/W

HML0 + 4A

Command completion response register

Communication frame conrmation indication / Error No. clear indication / Default indication /

System set indication / Busy indication / On Hold indication / Command under execution indication

(Control board → Computer)

HML0 + 4B Bank change-over request register (Computer → Control board) R/W

HML0 + 4C Bank change-over response register (Control board → Computer) R

HML0 + 4D Communication stop / Reset (Data clear / Hold) R/W

HML0 + 4E

Input hold (Hold / Hold cancel)

Input change interruption (E󰀨ective / Ine󰀨ective)

Occurrence condition for input change interruption (ON → OFF / OFF → ON)

Error interruption (E󰀨ective / Ine󰀨ective)

R/W

HML0 + 4F Unused (=00) (unable to write into it)

HML0 + 50 Board No. setting (BSN)

HML0 + 51

HML0 + 5F

System reserved (impossible to read out / write in)

(R/W: Read out / Write in, R: Read out only)

Data

area

Status

area

1) HML0 + 00 to HML0 + 3F: Data area

Relationship between “Computer I/O address” and “S-LINK V address”

Computer I/O address

(hexadecimal)

S-LINK V address

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

HML0 + 00 7 6 5 4 3 2 1 0

HML0 + 01 15 14 13 12 11 10 9 8

HML0 + 02 23 22 21 20 19 18 17 16

HML0 + 03 31 30 29 28 27 26 25 24

HML0 + 04 39 38 37 36 35 34 33 32

HML0 + 05 47 46 45 44 43 42 41 40

HML0 + 06 55 54 53 52 51 50 49 48

HML0 + 07 63 62 61 60 59 58 57 56

HML0 + 08 71 70 69 68 67 66 65 64

HML0 + 09 79 78 77 76 75 74 73 72

HML0 + 0A 87 86 85 84 83 82 81 80

HML0 + 0B 95 94 93 92 91 90 89 88

HML0 + 0C 103 102 101 100 99 98 97 96

HML0 + 0D 111 110 109 108 107 106 105 104

HML0 + 0E 119 118 117 116 115 114 113 112

HML0 + 0F 127 126 125 124 123 122 121 120

HML0 + 10 135 134 133 132 131 130 129 128

HML0 + 11 143 142 141 140 139 138 137 136

HML0 + 12 151 150 149 148 147 146 145 144

HML0 + 13 159 158 157 156 155 154 153 152

HML0 + 14 167 166 165 164 163 162 161 160

HML0 + 15 175 174 173 172 171 170 169 168

HML0 + 16 183 182 181 180 179 178 177 176

HML0 + 17 191 190 189 188 187 186 185 184

HML0 + 18 199 198 197 196 195 194 193 192

HML0 + 19 207 206 205 204 203 202 201 200

HML0 + 1A 215 214 213 212 211 210 209 208

HML0 + 1B 223 222 221 220 219 218 217 216

HML0 + 1C 231 230 229 228 227 226 225 224

HML0 + 1D 239 238 237 236 235 234 233 232

HML0 + 1E 247 246 245 244 243 242 241 240

HML0 + 1F 255 254 253 252 251 250 249 248

HML0 + 20 263 262 261 260 259 258 257 256

HML0 + 21 271 270 269 268 267 266 265 264

HML0 + 22 279 278 277 276 275 274 273 272

HML0 + 23 287 286 285 284 283 282 281 280

HML0 + 24 295 294 293 292 291 290 289 288

HML0 + 25 303 302 301 300 299 298 297 296

HML0 + 26 311 310 309 308 307 306 305 304

HML0 + 27 319 318 317 316 315 314 313 312

HML0 + 28 327 326 325 324 323 322 321 320

HML0 + 29 335 334 333 332 331 330 329 328

HML0 + 2A 343 342 341 340 339 338 337 336

HML0 + 2B 351 350 349 348 347 346 345 344

HML0 + 2C 359 358 357 356 355 354 353 352

HML0 + 2D 367 366 365 364 363 362 361 360

HML0 + 2E 375 374 373 372 371 370 369 368

HML0 + 2F 383 382 381 380 379 378 377 376

HML0 + 30 391 390 389 388 387 386 385 384

HML0 + 31 399 398 397 396 395 394 393 392

HML0 + 32 407 406 405 404 403 402 401 400

HML0 + 33 415 414 413 412 411 410 409 408

HML0 + 34 423 422 421 420 419 418 417 416

HML0 + 35 431 430 429 428 427 426 425 424

HML0 + 36 439 438 437 436 435 434 433 432

HML0 + 37 447 446 445 444 443 442 441 440

HML0 + 38 455 454 453 452 451 450 449 448

Computer I/O address

(hexadecimal)

S-LINK V address

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

HML0 + 39 463 462 461 460 459 458 457 456

HML0 + 3A 471 470 469 468 467 466 465 464

HML0 + 3B 479 478 477 476 475 474 473 472

HML0 + 3C 487 486 485 484 483 482 481 480

HML0 + 3D 495 494 493 492 491 490 489 488

HML0 + 3E 503 502 501 500 499 498 497 496

HML0 + 3F 511 510 509 508 507 506 505 504

In case [Bank change-over response register = 01H] (S-LINK V I/O unit connection address)

●The first address of S-LINK V I/O units connected on the S-LINK V system main cable is

shown.

When each bit is “1,” the S-LINK V I/O unit having the set address is connected on the main

cable.

Note: When an S-LINK V I/O unit has several I/Os, only the bit corresponding to the rst address of that unit

is “1.”

In case [Bank change-over response register = 02H] (Error 3 occurred address)

● When Error 3 occurs, the rst address of the a󰀨ected S-LINK V I/O unit is indicated.

When each bit is “1,” the S-LINK V I/O unit connected to the address is disconnected or in error.

In case [Bank change-over response register = 03H] (Error 4 occurred address)

● When Error 4 occurs, the rst address of the a󰀨ected S-LINK V I/O unit is indicated.

When each bit is “1,” an unidentied unit exists at the S-LINK V I/O unit having the allocated

address.

In case [Bank change-over response register = 04H] (Error 5 occurred address)

● When Error 5 occurs, the rst address of the a󰀨ected S-LINK V I/O unit is indicated.

When each bit is “1,” output of S-LINK V output unit of the address short-circuits or the I/O driv-

ing power breaks down.

In case [Bank change-over response register = 05H] (Occupied address)

●The addresses allocated to the recognized S-LINK V units are indicated.

When each bit is “1,” S-LINK V I/O unit is connected to the address.

In case [Bank change-over response register = 06H] (I/O state)

●Shows whether the recognized address of S-LINK V system is used in input or output.

The address is used as “Input” if the address corresponding to each bit is “1,” and as “Output” if

the address is “0.” (Unused address is “0.”)

Notes: 1) Output is maintained until overwritten with the next output data.

2) In case output data is written into a unit address which has been set as an input, the written data is

ignored and input data is set after 1 or 2 refresh times.

In case [Bank change-over response register = 00H] (Initial value) (S-LINK V I/O data)

●This is an area to read out input data and write in output data of S-LINK V I/O units.

In case of input data, “0: Input OFF” or “1: Input ON” can be read out for each bit.

In case of output data, write in “0: Output OFF” or “1: Output ON” in each bit.

In case [Bank change-over response register = 07H] (Interruption setting)

●Shows the address of S-LINK V I/O unit that is set to interruption setting.

The interruption setting is conducted by 1 point unit.

When each bit is “1,” the signal of the corresponding address of S-LINK V input unit changes,

interruption occurs. (In case the resource that generates interruption is set)

Bank change-over procedure

User’s computer

It writes bank number into the bank change-over request register.

SL-VPCI

HML0 + 00

HML0 + 3F

Data area

HML0 + 4B

Bank change-over request

HML0 + 4C

Bank change-over response

User’s

computer

Internal

circuit

SL-VPCI

Internal circuit reads out bank number of the bank change-over request register.

SL-VPCI

Internal circuit switches the data area to the information corresponding to the bank number.

SL-VPCI

The internal circuit switches to the bank change-over response register and then writes in the

bank number.

User’s computer

It reads out bank number of the bank change-over response register.

User’s computer

When the requested bank number and the bank number read from the bank change-over re-

sponse register match, information from the data area is read out.

Note: In case of S-LINK V I/O (Bank number = 00H) and interruption setting (Bank number = 07H), the

internal circuit maintains the condition even if switches to other bank.

2) HML0 + 40: Transmission mode / I/O control points

Transmission mode and I/O control points are stored.

bit

76543210

I/O control points

512 480 448 416 384 352 320 288 256 224 192 160 128

96 64 32

Indication

1010101010101010

1100110011001100

1111000011110000

1111111100000000

Transmission mode

A mode B mode C mode

Indication

0 1 0

0 0 1

Unused

(= 0)

bit 0 to 3: I/O control number information is stored.

bit 6, 7 : Transmission mode information is stored.

Note: No writing is allowed. In order to change the setting, use the dip switches on the board.

3) HML0 + 41 to HML0 + 44: I/O setting

It sets the I/O assignment of the S-LINK V I/O units.

Just after power ON / reset of the computer, it indicates the setting condition of “4) I/O setting

switch (SW3, SW4)” in “3. Functional Description.”

When setting is done by a program, I/Os can be set in units of 16. In this case, set all the I/O set-

ting switches to input (“0”: ON). (If the change is done by program, it is automatically changed

within 1 to 2 refresh times.)

bit

76543210

HML0 + 41 HML0 + 42 HML0 + 43 HML0 + 44

Address 0 to 15 Address 128 to 143 Address 256 to 271 Address 384 to 399

Address 16 to 31 Address 144 to 159 Address 272 to 287 Address 400 to 415

Address 32 to 47 Address 160 to 175 Address 288 to 303 Address 416 to 431

Address 48 to 63 Address 176 to 191 Address 304 to 319 Address 432 to 447

Address 64 to 79 Address 192 to 207 Address 320 to 335 Address 448 to 463

Address 80 to 95 Address 208 to 223 Address 336 to 351 Address 464 to 479

Address 96 to 111 Address 224 to 239 Address 352 to 367 Address 480 to 495

Address 112 to 127 Address 240 to 255 Address 368 to 383 Address 496 to 511

0: Input, 0: Output

4) HML0 + 45, HML0 + 46: S-LINK V I/O unit connected node number

It shows the number of nodes to which S-LINK V I/O units are connected. (0 to 256 nodes)

Otros manuales para S-LINK V

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Panasonic

Panasonic

Panasonic PAN1782 Manual del propietario

Panasonic

Panasonic CF-BAP0256U Manual de usuario

Panasonic

Panasonic UJ20 Series Manual de usuario

Panasonic

Panasonic CF-BAW0512U Manual de usuario

Panasonic

Panasonic CF-BAC04GU Manual de usuario

Panasonic

Panasonic FP0R Series Manual de usuario

Panasonic

Panasonic GP-KS162CUDE Manual de usuario

Panasonic

Panasonic SF-AC Manual de usuario

Panasonic

Panasonic CF-BAC02GU Manual de usuario

Panasonic

Panasonic KX-NT307 Manual de usuario

Panasonic

Panasonic INDUSTRY PAN9028 Manual de usuario

Panasonic

Panasonic Aquarea PAW-HPM1 Guía

Panasonic

Panasonic WVPS104C - CAMERA DRIVE UNIT Manual de usuario

Panasonic

Panasonic WVPS154 - CAMERA DRIVE UNIT Manual de usuario

Panasonic

Panasonic AWRC600P - REMOTE CONTROL UNIT Manual de usuario

Panasonic

Panasonic SF-C21 Manual de usuario

Panasonic

Panasonic PAN9026 Manual de instrucciones

Panasonic

Panasonic WVPS11B - CAMERA DRIVE UNIT Manual de usuario

Panasonic

Panasonic WVCU650 - SYSTEM CONTROLLER ADDENDUM Manual de usuario

Panasonic

Panasonic CF-BAV0512U Manual de usuario

Panasonic

Panasonic CF-BAJ0256U Manual de usuario

Panasonic

Panasonic YEP0PTA184 Manual de usuario

Panasonic

Panasonic GPKS162CUD - CONTROL UNIT Manual de usuario

Panasonic

Panasonic WX-CC411A Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
