DVI-D Terminal Board for PF Series

Specifications

Terminals Video Input DVI-D 24 Pin × 1

compliance with DVI Revision 1.0

udio Input Stereo mini jack (M3) × 1

0.5Vrms

Content Protection Compatible with HDCP 1.1

CONTENTS

Page Page

ORDER NO. ITD0608047CE

B34 Canada: D10

1 Safety Precautions

1.1. General Guidelines

1.When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2.After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3.After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

1.1.1. Leakage Current Cold Check

1.Unplug the AC cord and connect a jumper between the two prongs on the plug.

2.Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on

the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the

chassis, the reading should be between 1MWand 5.2MW.

When the exposed metal does not have a return path to the chassis, the reading must be .

Figure 1

1.1.2. Leakage Current Hot Check (See Figure 1.)

1.Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2.Connect a 1.5kW, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a

good earth ground such as a water pipe, as shown in Figure 1.

3.Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4.Check each exposed metallic part, and measure the voltage at each point.

5.Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6.The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may

be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits

specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to

the customer.

TY-FB9FDD

2 Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage

caused by electro static discharge (ESD).

1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum

foil, to prevent electrostatic charge buildup or exposure of the assembly.

3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4.Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can

generate electrical charge sufficient to damage ES devices.

5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable

conductive material).

7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing

together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to

damage an ES device).

TY-FB9FDD

3 About lead free solder (PbF)

Note: Lead is listed as (Pb) in the periodic table of elements.

In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.

The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).

That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d

suggest the use of Pb free solder as well, although Pb solder may be used.

PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.

Caution

Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C) higher.

Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).

Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).

If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb

solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.

After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto

the opposite side. (see figure below)

Suggested Pb free solder

There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.

However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.

TY-FB9FDD

4 Replacement

TY-FB9FDD

5 Connection

TY-FB9FDD

6 Circuit Board Layout

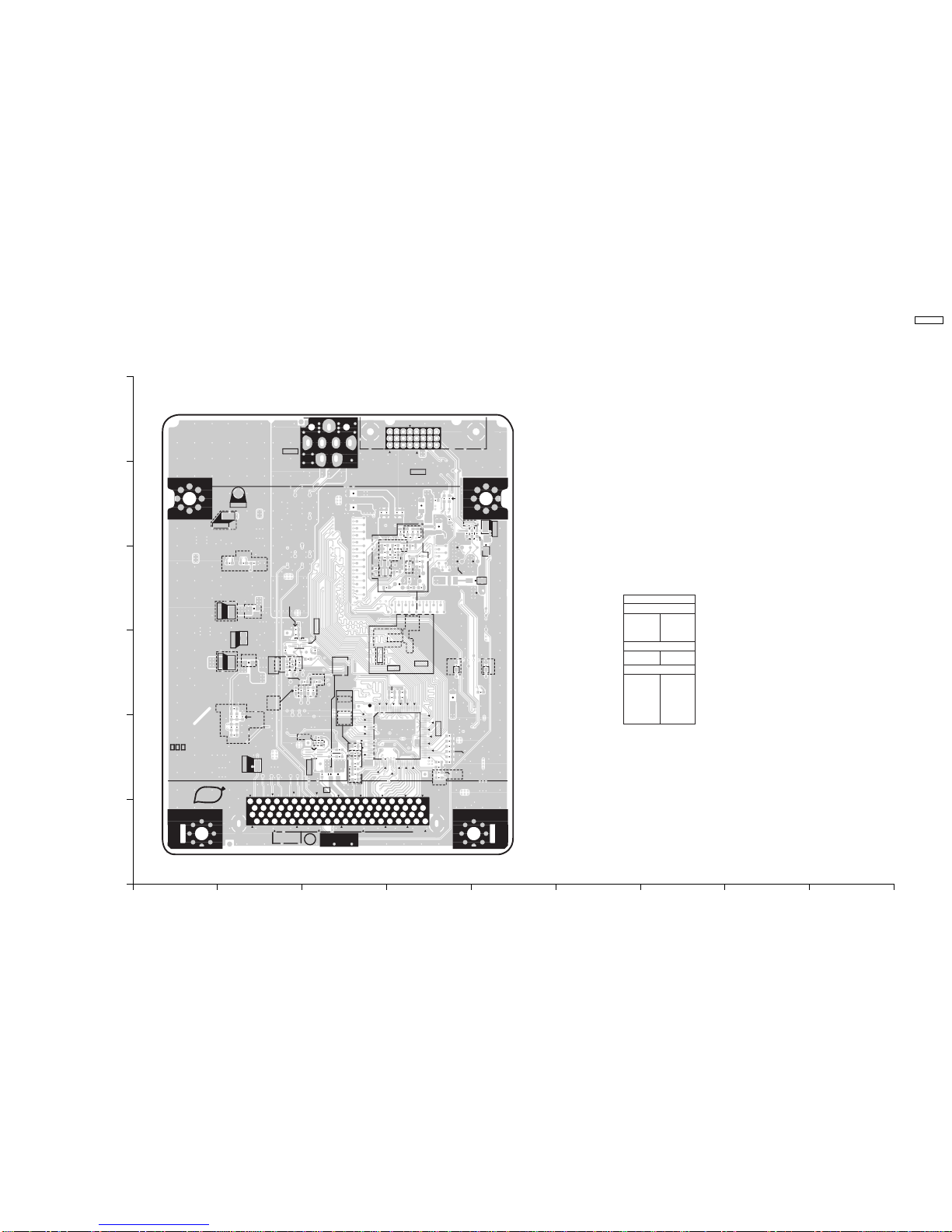

6.1. HDD-Board

ABCDEFGH I

HDD-BOARD (FOIL SIDE)

TXNHD10YQT

TY-FB9FDD

HDD-BOARD TXNHD10YQT TY-FB9FDD

HDD-BOARD TXNHD10YQT

R226

R227

R228

FL021

JK501

C101

C102

C103

Q100

C104

Q101

C105

C108

C110

C112

C113

C114

C115

R101

R102

R103

R104 R105

IC104

IC105

C143

C144

R125

R126

C924 D902

C928

D904

R901

R904

R134

R135

R137

C930

R139

C931

TP001

TP002

C932

TP003

TP004

C934

TP005

IC906

TP006

TP007

R141

R912

R142

R913

R914

R915

R145

R146

R149

C946

C947

R150

R924

R925

R926

R927

R157

R928

R158

C951

R929

R930

R931

R932

R933

R934

R173

R175

JK001

R178

R179

R180

R181

R182

R183

R184

R185

R186

FL907

C205 C214

C215

C216

C217

R001

R201

D011

R202

R203

R204

R205

R206

R207 R208

R209

IC201

R210 R211

D021

R212

D022

R213

D023

D024

R021

D025

R022

CR NO.3

TNPA4052

HDD

PbF

A40

A39

B39

B40

128

ORDER NO.

Parts Location

HDD-BOARD

IC3104 C-3

IC3105 C-3

IC3201 D-2

IC3906 C-2

TP3001 E-5

TP3002 B-3

TP3003 B-2

TP3004 B-3

TP3005 B-4

TP3006 B-5

TP3007 B-5

Q3100 D-3

Q3101 D-3

ICIC

TRANSISTOR

TY-FB9FDD

ABCDEFGH I

HDD-BOARD (COMPONENT SIDE)

TXNHD10YQT

TY-FB9FDD

HDD-BOARD TXNHD10YQT TY-FB9FDD

HDD-BOARD TXNHD10YQT

R224

R225

R229

L901

L551

L552

L553

JK501

C106

C107 C109

C111

C116

C117 C118

C501

Q501

C511

Q511

R108

R109

C901

IC101

C902

IC102

C903

IC103

C904

C905

R110 R111 R112 R113

R114 R115

R116

R117

R118

C141

R119

C911

R501

C912

R502

C142

C913

R503R504

C915

R505

R506

R507

R120R121

R122R123

R124

C921

R511

C922

R512

C923

R513R514

C925

D901

R515

C926

R516

C927

D903

R517

D905

C929

R131

R902

R132

R903

R133

R905

R906

R136

R907

R138

IC901

IC902

IC903

C933

IC904

IC905

S501

R911

C551

C552

R143

R144

R916

R147

R148

C941

C942

C943

C944

C945

S511

C948

C949

R921

R151

R922

R152

R923

R153

R154

R155

R156

C950

C952

C953

C954

C955

C956

C957

C958

R160

C959

R161

R162

R163

R164

R935

R165

R166

R167

C960

R168

R169

JK001

R187

R188

FL901

FL902

FL903

FL904

FL905

FL906

FL908

JS501

JS502

JS503

C201

C202

C203

C204

C206

C207

C208

C209

C210

C211

C212

C213

C021

D001

D002

D003D004 D005D006

D007

D008

D009

IC001

D010

R214

R215

R216

R217

R023

R218

R024

R219

R025

R026

R220

R221

R222

R223

CR NO.3

HDD

TNPA4052

PbF

SEE REVERSE FOR ORDER NO.

A39

A40

B39

B40

125

100

Parts Location

HDD-BOARD

IC3001 B-4

IC3101 C-5

IC3102 B-5

IC3103 D-3

IC3901 A-3

IC3902 A-2

IC3903 D-2

IC3904 D-3

IC3905 D-4

Q3501 C-4

Q3511 D-4

ICIC

TRANSISTOR

TY-FB9FDD
