Panasonic ET-MDNHM10C Manual de usuario

Read before use

The “Operating Instructions” explains about the interface boards to be

installed to a Panasonic display device (projector or at panel display).

For Model No. and model names, refer to the product list (x page 5).

Thank you for purchasing this Panasonic product.

■Before using this product, please read these “Operating Instructions” and

the “Operating Instructions” of the display device carefully and save the

manuals for future use.

■Before using this product, be sure to read “Read this rst!” (x pages 3 to 4).

TQZJ730-3

Printed in China

Interface Board Commercial Use

Operating Instructions

ENGLISH

Model No. ET-MDNHM10C

ET-MDNDV10C

* The illustration above is an example. In this manual, illustrations of ET-MDNHM10C

are used as an example unless otherwise specied.

2 - ENGLISH

Contents

Read this rst! 3

Precautions for use 5

Products list 5

Supported display device 5

About the handling of the product 5

Disposal 6

Accessories 6

Part names and functions 6

Installing the Interface Board 8

Before installing or removing the Interface Board 8

How to install the Interface Board 9

How to remove the Interface Board 10

Specications 11

rTrademarks

fThe terms HDMI and HDMI High-Denition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc. in the United States and other countries.

ENGLISH - 3

Read this rst!

WARNING:

Do not spill water on this product or allow this product to get wet.

Doing so may cause re, electric shock, or malfunction due to short circuit

or overheating.

fDo not place a container with liquid close to this product.

fConsult your dealer when liquid such as water is spilled on this

product.

Do not place the supplied screws in a location that a child can reach.

Accidentally swallowing them can cause a physical harm.

fSeek a medical advice immediately if a child might have swallowed a

screw.

Do not disassemble or modify.

Doing so may cause electric shock or re. It may also cause a malfunction.

Ask the qualied technician or your dealer to install or remove this

product to/from the at panel display.

Failure to do so may cause electric shock. It may also cause a

malfunction.

Turn o󰀨 the power and disconnect the power plug from the outlet

when installing or removing this product to/from the at panel

display.

Failure to do so may cause electric shock.

CAUTION:

Do not place this product in a location with excessive humidity or

dust, or in a location exposed to oil smoke or steam.

Doing so may cause re or electric shock.

Do not place this product in extremely hot location.

Doing so may deteriorate the part, or may cause re.

fDo not install or store in a location with direct sunlight or close to the

heating device, etc.

Turn o󰀨 the power and disconnect the power plug from the outlet

when installing or removing this product to/from the projector.

Failure to do so may cause electric shock.

4 - ENGLISH

Read this rst!

Name and quantity of hazardous substances contained in the

product

Parts Hazardous substances

Pb Hg Cd Cr VI PBB PBDE

Printed circuit boards

(PCB)

Accessories

This table is prepared in accordance with the provisions of SJ/T 11364.

: The amount of hazardous substances included in all homogeneous

materials for the relevant part does not exceed the limit specied in GB/T

26572.

: The amount of hazardous substances included in all homogeneous

materials for the relevant part exceeds the limit specied in GB/T 26572.

Precautions for use

ENGLISH - 5

Precautions for use

Products list

The product names and their Model Nos. described in this document are as

follows.

Product name Product Model No. Remark

Interface Board for HDMI

2 input ET-MDNHM10C An Interface Board equipped with 2

HDMI inputs.

Interface Board for DVI-D

2 input ET-MDNDV10C An Interface Board equipped with 2

DVI-D inputs.

Supported display device

The display device (projector or at panel display) supported by the Interface

Board described in this document is as follows.

(As of March 2019)

Projector PT-SRQ13KC, PT-SRQ32KC, PT-SRQ22KC

Flat panel display (Support to be determined)

Note

fThe model not described in the table may also be supported. Refer to the Operating

Instructions of your display device.

About the handling of the product

rDo not touch the connector section of the Interface Board

directly with your hands.

The component may be damaged by the static electricity. Handle this

product after removing the static in your body by touching the surrounding

metal, etc.

rAsk a qualied technician to install or remove to/from the at

panel display.

There is a danger of electric shock or a malfunction may occur due to static

electricity. Consult your dealer.

Precautions for use

6 - ENGLISH

Disposal

To dispose of the product, ask your local authorities or dealer for correct

methods of disposal.

Accessories

Make sure that the following accessories are provided with your product.

Numbers enclosed in < > show the number of accessories.

Screw <4>

(XSB3+8FN)

Attention

fAppropriately discard the packaging material after unpacking the product.

fFor missing accessories, consult your dealer.

fStore small parts in an appropriate manner, and keep them away from small children.

Note

fThe supplied screws are spare. Use them when a screw to x the slot cover of the display

device is lost.

fThe model numbers of accessories are subject to change without prior notice.

Part names and functions

rInterface Board for HDMI 2 input (Model No.: ET-MDNHM10C)

13 32

1 <HDMI 输入 1> terminal (when

installed in <SLOT 1> of the display

device), <HDMI 输入 3> terminal

(when installed in <SLOT 2> of the

display device)

This is a terminal to input the HDMI

signal.

2 <HDMI 输入 2> terminal (when

installed in <SLOT 1> of the display

device), <HDMI 输入 4> terminal

(when installed in <SLOT 2> of the

display device)

This is a terminal to input the HDMI

signal.

3 Handle

Precautions for use

ENGLISH - 7

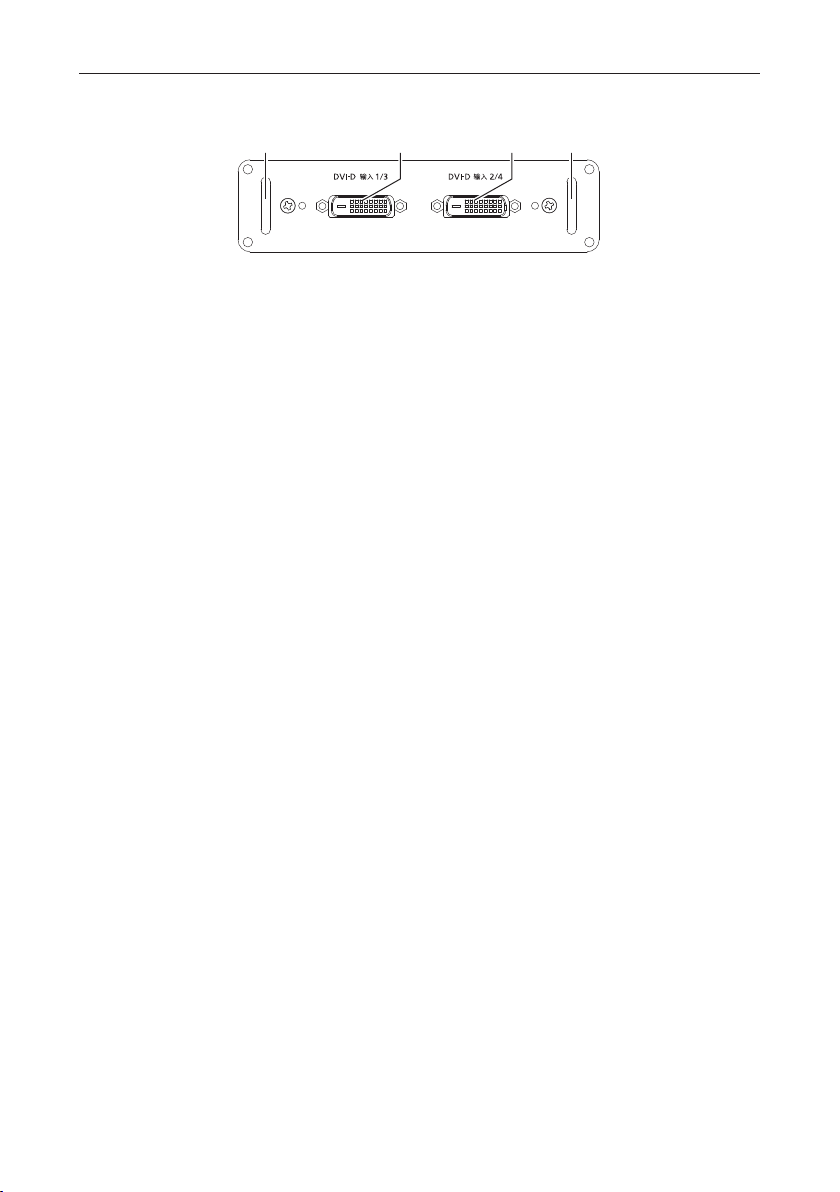

rInterface Board for DVI-D 2 input (Model No.: ET-MDNDV10C)

13 32

1 <DVI-D 输入 1> terminal (when

installed in <SLOT 1> of the display

device), <DVI-D 输入 3> terminal

(when installed in <SLOT 2> of the

display device)

This is a terminal to input the DVI-D

signal.

2 <DVI-D 输入 2> terminal (when

installed in <SLOT 1> of the display

device), <DVI-D 输入 4> terminal

(when installed in <SLOT 2> of the

display device)

This is a terminal to input the DVI-D

signal.

3 Handle

Installing the Interface Board

8 - ENGLISH

Installing the Interface Board

It is recommended to ask a qualied technician to install or remove the

Interface Board to a projector. A malfunction may occur due to static

electricity. Consult your dealer.

Ask a qualied technician to install or remove the Interface Board to/from a

at panel display. There is a danger of electric shock or a malfunction may

occur due to static electricity. Consult your dealer.

Before installing or removing the Interface Board

fAlways turn o󰀨 the power of the display device (projector or at panel

display) before installing or removing the Interface Board.

gMake sure to follow the procedure described in the Operating

Instructions of your display device when turning o󰀨 the power.

fDo not touch the connector section of the Interface Board directly with your

hands.

gThe component may be damaged by the static electricity.

fRemove the static charge from your body by touching the surrounding

metal, etc., in advance to prevent the static electricity damage.

fTake care not to get injured when installing or removing the Interface

Board.

gHands may be injured by the opening of the blank slot of the display

device or the edge of the bracket of the Interface Board.

fWhen installing the Interface Board to the slot, insert it into the connector

straight and slowly.

gIt may not operate or cause malfunction if it is not correctly installed.

fThe gure indicating the installation and removal of the Interface Board is

using the combination of the Interface Board for HDMI 2 input (Model No.:

ET-MDNHM10C) and the optional projector (Model No.: PT-SRQ13KC) as

an example. Illustration of this document may vary from the actual product.

fThe details of the installation or removal may be di󰀨erent depending on the

display device, so conrm the Operating Instructions of your display device

too.

Installing the Interface Board

ENGLISH - 9

How to install the Interface Board

Screws (4 locations) Screws (4 locations)Salient

Guide grooveSlot cover

Fig. 1 Fig. 2 Fig. 3

1) Remove the slot cover. (Fig. 1)

fRemove the four screws xing the slot cover of the display by rotating

counterclockwise with a Phillips screwdriver. The removed screws are

used to x the Interface Board.

fWhen removing the fourth screw, hold the slot cover with your hand so

it will not fall.

fTo replace from other Interface Board, remove the Interface Board

following the procedure in “How to remove the Interface Board”

(x page 10).

2) Install the Interface Board to the display device. (Fig. 2)

fInsert the guide groove of the Interface Board aligned to the salient of

the slot. Insert the bracket rmly all the way in.

3) Fix the Interface Board. (Fig. 3)

fTighten and x with the four screws removed in Step 1).

Attention

fThe removed slot cover is required when the unnecessary Interface Board is removed. Store

it so it can be attached in the future.

Installing the Interface Board

10 - ENGLISH

How to remove the Interface Board

Handle

Fig. 1

1) Remove the Interface Board. (Fig. 1)

fRemove the four screws xing the Interface Board by rotating

counterclockwise with a Phillips screwdriver. The removed screws are

used to x the slot cover.

fHold the handle of the Interface Board and remove it slowly.

2) Attach the slot cover.

fAttach the stored slot cover to the blank slot, and tighten and x with

the four screws removed in Step 1).

fTo replace with other Interface Board, attach the Interface Board

following the procedure in “How to install the Interface Board”

(x page 9).

Attention

fAlways attach the slot cover on the blank slot.

fStore the removed Interface Board inside an antistatic bag.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Panasonic

Panasonic

Panasonic 2SA2174J Manual de usuario

Panasonic

Panasonic AJ-YA931G Manual de usuario

Panasonic

Panasonic 2SA2028 Manual de usuario

Panasonic

Panasonic TY-FB7HD Manual de usuario

Panasonic

Panasonic UB-5335 Manual de usuario

Panasonic

Panasonic AV-HS04M5 Manual de usuario

Panasonic

Panasonic 2SA1790G Manual de usuario

Panasonic

Panasonic PanaXSeries MN1030 Series Manual de usuario

Panasonic

Panasonic KX-TDA6181X Manual de usuario

Panasonic

Panasonic TY-SB01DL Manual de usuario

Panasonic

Panasonic CF-BAL1024U Manual de usuario

Panasonic

Panasonic 2SB1321A Manual de usuario

Panasonic

Panasonic 2SB1463G Manual de usuario

Panasonic

Panasonic TY-FB10HMD - Monitor Terminal Expansion... Manual de usuario

Panasonic

Panasonic 2SC4808G Manual de usuario

Panasonic

Panasonic KX-W1500 Manual de usuario

Panasonic

Panasonic AV-HS04M7D Manual de usuario

Panasonic

Panasonic WJMPU955 - PROCESSING UNIT - TMU Manual de usuario

Panasonic

Panasonic CF-BAW1024AU Manual de usuario

Panasonic

Panasonic TY-UPK110 Manual de usuario

Panasonic

Panasonic 2SA2161G Manual de usuario

Panasonic

Panasonic Panaboard UB-5320 Manual de usuario

Panasonic

Panasonic TY-FB10HMD - Monitor Terminal Expansion... Guía del usuario

Panasonic

Panasonic TY-FB9FDD Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario

Advantech

Advantech ASMB-935 Series Manual de usuario
