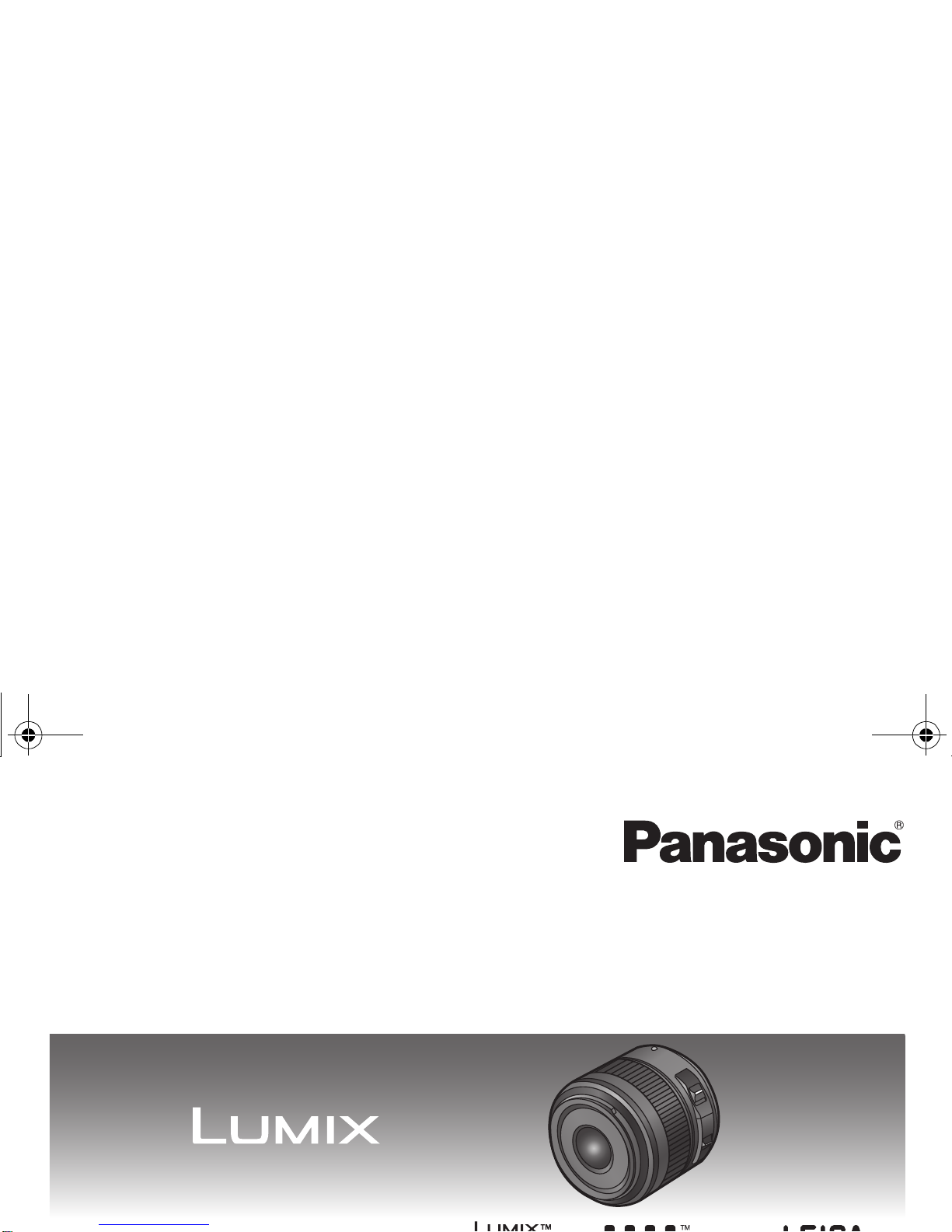

Panasonic Lumix H-ES045 Manual de usuario

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-ES045

Before connecting, operating or adjusting this

product, please read the instructions completely.

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: [email protected]

VQT2H15-1

VQT2H15_ENG_Cover.fm 1 ページ２０１０年６月２８日　月曜日　午前８時５３分

VQT2H15

Contents

Information for Your Safety.....................................2

Precautions...........................................................5

Supplied Accessories .............................................6

Attaching/Detaching the Lens.................................6

Names and Functions of Components ...................9

Cautions for Use...................................................10

Troubleshooting..................................................11

Specifications........................................................12

Limited Warranty...................................................14

-If you see this symbol-

THE FOLLOWING APPLIES ONLY IN CANADA.

Information for Your Safety

Keep the unit as far away as possible from

electromagnetic equipment (such as microwave

ovens, TVs, video games, radio transmitters,

high-voltage lines etc.).

≥Do not use the camera near cell phones because

doing so may result in noise adversely affecting

the pictures and sound.

≥

If the camera is adversely affected by electromagnetic

equipment and stops functioning properly, turn the

camera off and remove the battery and/or the

connected AC adaptor. Then reinsert the battery and/

or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera

compatible with the lens mount standard for the

“Micro Four ThirdsTM System”.

≥It cannot be mounted on the Four ThirdsTM mount

specification camera.

Information on Disposal in other Countries

outside the European Union

This symbol is only valid in the

European Union.

If you wish to discard this

product, please contact your

local authorities or dealer and

ask for the correct method of

disposal.

This Class B digital apparatus complies with

Canadian ICES-003.

H-ES045PP-VQT2H15.book 2 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

≥The digital camera illustrations in these operating

instructions show DMC-GF1 as an example.

≥The appearance and specifications of products

described in this manual may differ from the actual

products you have purchased due to later

enhancements.

≥Four ThirdsTM and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States,

the European Union and other countries.

≥Micro Four ThirdsTM and Micro Four Thirds Logo

marks are trademarks or registered trademarks of

Olympus Imaging Corporation, in Japan, the

United States, the European Union and other

countries.

≥G MICRO SYSTEM is a lens exchange type

digital camera system of LUMIX based on a Micro

Four Thirds System standard.

≥LEICA is a registered trademark of Leica

Microsystems IR GmbH. ELMARIT is a registered

trademark of Leica Camera AG. The LEICA DG

lenses are manufactured using measurement

instruments and quality assurance systems that

have been certified by Leica Camera AG based

on the company’s quality standards.

≥Other names, company names, and product

names printed in these instructions are

trademarks or registered trademarks of the

companies concerned.

ENGLISH

H-ES045PP-VQT2H15.book 3 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Electronics Company

Telephone No.: 1-800-211-PANA (7262)

H-ES045PP-VQT2H15.book 4 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

∫Lens Care

≥Sand and dust can damage the lens. Make

sure that no sand or dust gets inside the lens

or the terminals when using the lens on a

beach, etc.

≥This lens is not waterproof. If drops of water

get onto the lens, wipe the lens with a dry

cloth.

≥Do not press the lens with excessive force.

≥When there is dirt (water, oil, and fingerprints, etc.)

on the surface of the lens, the picture may be

affected. Lightly wipe the surface of the lens with a

soft, dry cloth before and after taking pictures.

≥Do not place the lens mount facing downwards.

Do not allow the lens contact point 1to become

dirty.

∫About Condensation (Fogging of the

Lens)

≥Condensation occurs when there are differences

in temperature and humidity as described below.

Condensation can cause the lens to become dirty

and lead to mold and malfunctioning, so exercise

caution in the following situations:

–When the camera is brought indoors from outside

during cold weather

–When the camera is brought into an air-

conditioned car

–When cold air from an air conditioner is directly

blown onto the lens

–In humid places

≥Put the camera into a plastic bag to allow it to

acclimatize to the surrounding temperature in

order to prevent condensation. If condensation

occurs, turn the power off and leave it for about

two hours. Once the camera acclimatizes to the

surrounding temperature the condensation will go

away naturally.

Precautions

H-ES045PP-VQT2H15.book 5 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

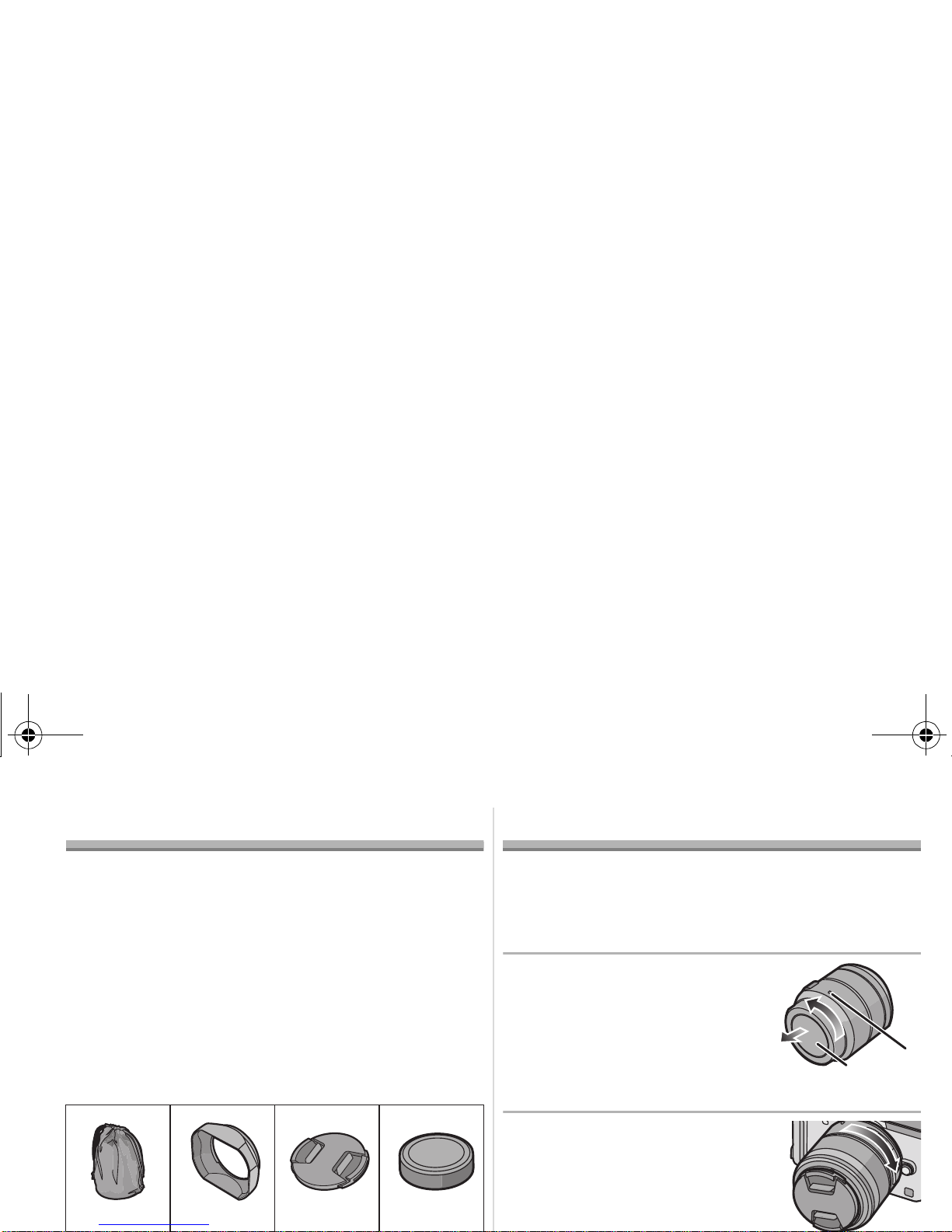

Supplied Accessories

[Inspection to be performed when you unpack the unit]

When removing the unit from its packing box, check

that the main unit and the supplied accessories are

there and also check their external appearance and

functions to verify that they have not sustained any

damage during distribution and transportation.

If you discover any trouble, contact your vendor

before using the product.

Product numbers correct as of September 2009.

These may be subject to change.

1Lens Storage Bag

2Lens Hood

3Lens Cap

4Lens Rear Cap

(The lens cap and lens rear cap are attached to

the interchangeable lens at the time of purchase.)

Attaching/Detaching the Lens

≥Refer also to the camera’s operating instructions

for attaching and detaching the lens.

∫Attaching the Lens

≥Check that the camera is turned off.

1 Turn the lens rear

cap to detach it.

A: Lens Rear Cap

2 Align the lens fitting

marks B(red marks) on

the camera body and the

lens and then rotate the

lens in the direction of

the arrow until it clicks.

•Do not press the lens release

button when you attach a lens.

•Do not try to attach the lens when holding it at an

angle to the camera body as the lens mount may

get scratched.

•Check that the lens is attached correctly.

VFC4456 VYC1005 VYF3284 VFC4315

312 4









H-ES045PP-VQT2H15.book 6 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

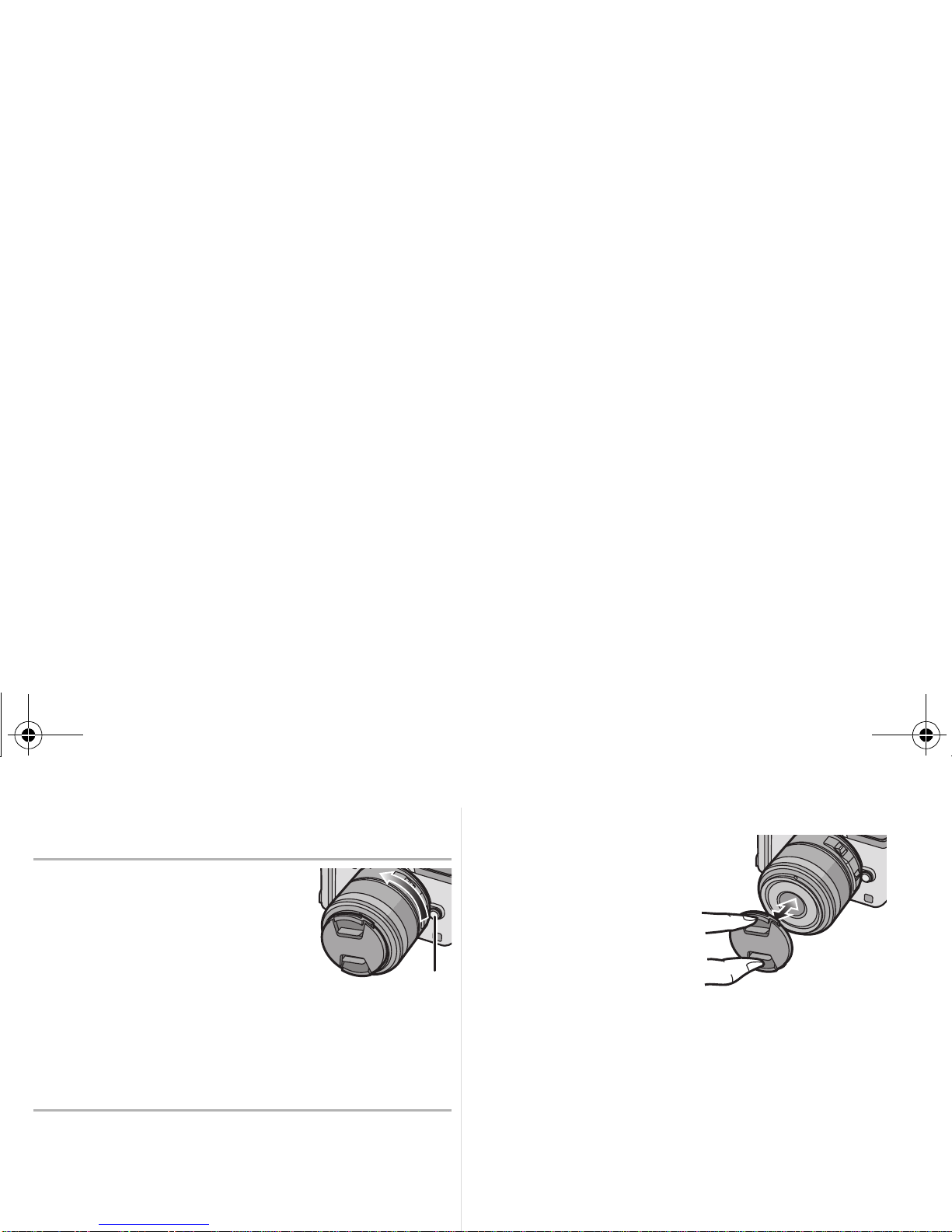

∫Detaching the Lens

≥Check that the camera is turned off.

Press the lens release

button Cwhile turning

the lens as far as

possible in the direction

of the arrow to detach it.

•Attach the lens rear cap so

that the lens contact point does not get

scratched.

•Attach the body cap to the camera so no dirt or

dust will get inside the main unit.

∫Attaching and Detaching the Lens Cap

≥Be careful not to lose

the lens cap.



H-ES045PP-VQT2H15.book 7 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

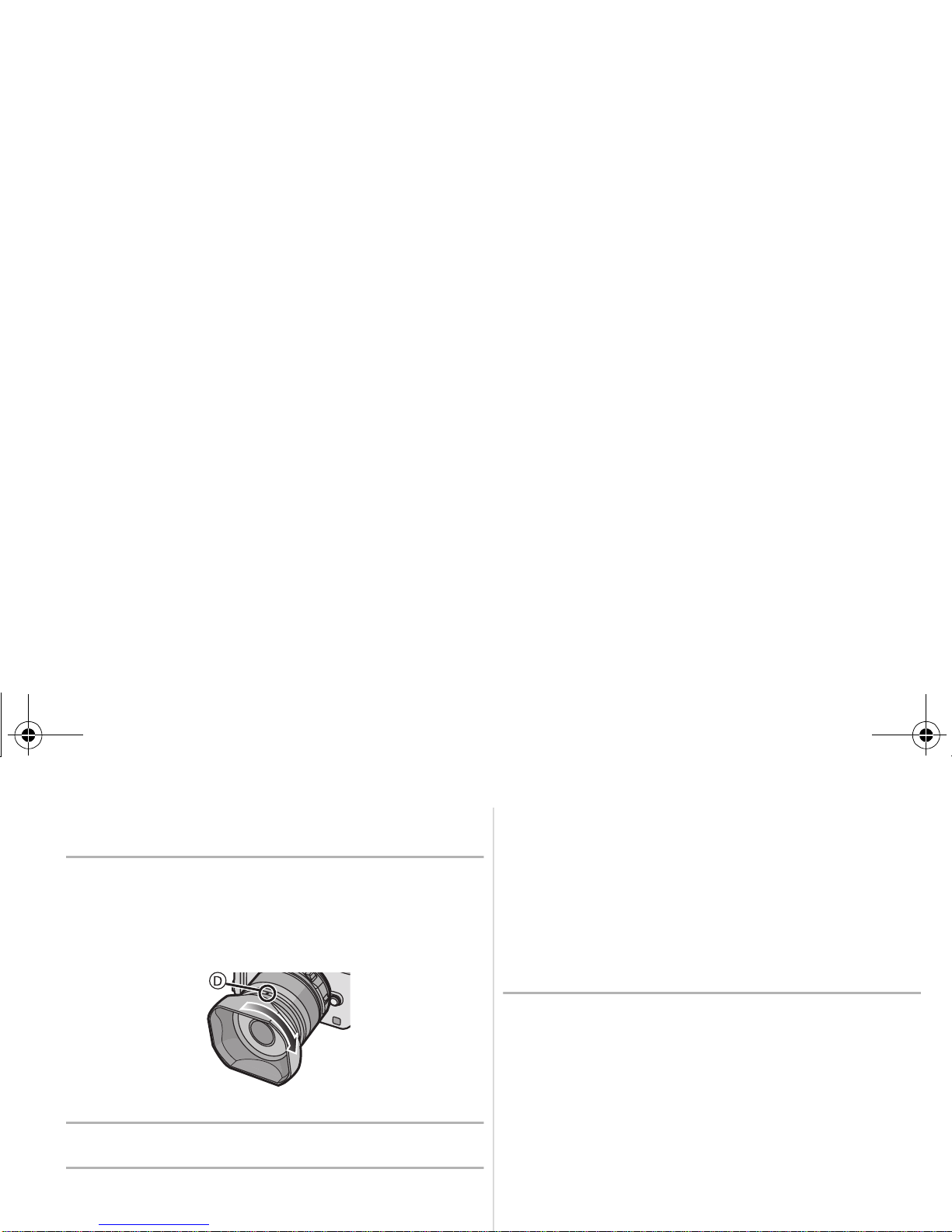

∫Attaching the Lens Hood

(Supplied Accessory)

Insert the lens hood into the lens with the

short sides at the top and bottom, and

turn in the direction of the arrow until it

stops.

D: Fit to the mark

∫Removing the Lens Hood

Turn the lens hood in the direction of the

arrow to detach it.

•When taking pictures with the flash with the lens

hood attached, the lower portion of the screen

may turn dark (vignetting effect) and the control

of the flash may be disabled because the photo

flash may be obscured by the lens hood. We

recommend detaching the lens hood.

•When using the AF assist lamp in the dark,

detach the lens hood.

∫Attaching Filters

≥Vignetting may occur if using 2 or more

MC protectors (optional:DMW-LMC46),

PL filters (optional:DMW-LPL46) or ND filters

(optional:DMW-LND46), or if using thick

protectors and/or filters.

≥The filter may become impossible to remove if

excessively tightened, so please refrain from

tightening it too strongly.

≥It is possible to attach the lens cap with the filter

already attached.

≥You cannot attach a conversion lens or adaptor to

this lens. A filter may be used, but attaching any

other element may cause damage to the lens.

H-ES045PP-VQT2H15.book 8 ページ２００９年９月８日　火曜日　午後５時４５分

VQT2H15

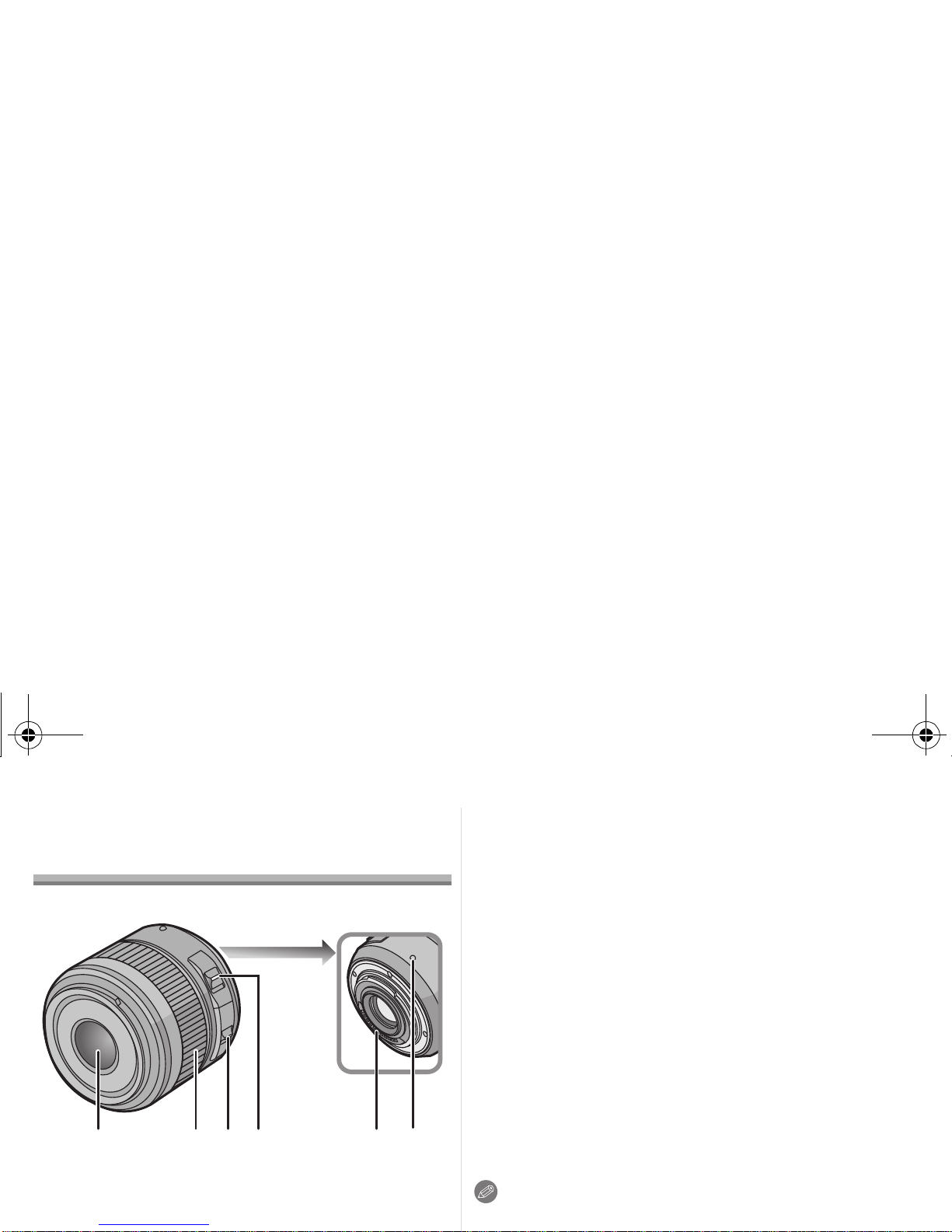

Names and Functions of

Components

∫Lens

1Lens surface

2Focus ring

Rotate to focus when taking pictures with manual

focus.

3[O.I.S.] switch

When the lens is attached to the camera the

stabilizer function is set to activate if the [O.I.S.]

switch is set to [ON].

≥Werecommend setting the [O.I.S.] switch to [OFF]

when using a tripod.

≥The stabilizer function may not be effective in the

following cases.

–When there is a lot of jitter.

–When using the digital zoom.

– When taking pictures while following a moving subject.

–When the shutter speed becomes slower to take

pictures indoors or in dark places.

–When taking close-up pictures.

4[FOCUS] switch

[FULL]: It can focus between the ranges of 0.15 m

(0.5 feet) to ¶. Use in [FULL] position to

take pictures using the macro function.

[LIMIT]:It can focus between the ranges of 0.5 m

(1.64 feet) to ¶. The speed of focusing with

auto focus will be faster.

5Contact point

6Lens fitting mark

Note

≥When flash recording with a close subject, the

light of the flash will be blocked by the lens and

part of the picture may be dark. Check the

distance from the subject when recording.

≥This lens has the following characteristics due to

its macro specifications.

–It takes time to focus.

–The range of focus is fairly small.

234

1 5

VQT2H15_ENG_Body.fm 9 ページ２０１０年６月２８日　月曜日　午前８時５３分

VQT2H15

Cautions for Use

∫About the Lens

Take care not to drop or knock the lens. Also

take care not to put a lot of pressure on the lens.

≥

Take care not to drop the bag that you inserted the

lens in as it may damage the lens. The camera may

stop operating normally and pictures may no longer

be recorded.

When using pesticides and other volatile

substances around the camera make sure that

they do not get onto the lens.

≥

If such substances get onto the lens they can

damage the exterior case or cause the paint to peel.

Do not carry the unit when it is still attached to

the camera body.

≥

Under no circumstances should the unit be stored

in any of the following locations since doing so may

cause problems in operation or malfunctioning.

–In direct sunlight or on a beach in summer

–In locations with high temperatures and humidity

levels or where the changes in temperature and

humidity are acute

–In locations with high concentrations of sand,

dust or dirt

–Where there is fire

–Near heaters, air conditioners or humidifiers

–Where water may make the unit wet

–Where there is vibration

–Inside a vehicle

≥Refer also to the operating instructions of the

digital camera.

≥When the unit is not going to be used for a

prolonged period, we recommend storing with a

desiccant (silica gel). Failure to do so may result in

performance failure caused by mold, etc. It is

recommended that you check the unit’s operation

prior to use.

≥Do not leave the lens in contact with rubber or

plastic products for extended periods of time.

≥Do not touch the lens contact point. Doing so can

cause failure of the unit.

≥Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other

similar cleaning agents to clean the lens glass or

exterior cabinet.

≥Using solvents can damage the lens or cause the

paint to peel.

≥Wipe off any dust or fingerprints with a soft, dry

cloth.

≥Use a dry, dust cloth to remove dirt and dust on

the focus ring.

≥Do not use a household detergent or a chemically

treated cloth.

H-ES045PP-VQT2H15.book 10 ページ２００９年９月８日　火曜日　午後５時４５分

Otros manuales para Lumix H-ES045

Tabla de contenidos

Idiomas:

Otros manuales de Lente de la cámara de Panasonic

Panasonic

Panasonic WV-LA1208 Manual de usuario

Panasonic

Panasonic WV-LA6B2 Manual de usuario

Panasonic

Panasonic LUMIX S PRO R1635 Manual de usuario

Panasonic

Panasonic Lumix H-H020A Manual de usuario

Panasonic

Panasonic LUMIX H-X015E Manual de usuario

Panasonic

Panasonic Lumix DMC-FX01 Manual de uso y cuidado

Panasonic

Panasonic Lumix S-X50 Manual de usuario

Panasonic

Panasonic WV-LZ61 Manual de usuario

Panasonic

Panasonic DC-GH5M Series Manual de usuario

Panasonic

Panasonic H-RS100400 Manual de usuario

Panasonic

Panasonic WV-LA6B2 Manual de usuario

Panasonic

Panasonic H-HS043 Manual de usuario

Panasonic

Panasonic Lumix H-H014 Manual de usuario

Panasonic

Panasonic Lumix H-F008 Manual de usuario

Panasonic

Panasonic H-FS35100PP Manual de usuario

Panasonic

Panasonic 5025232898695 Manual de usuario

Panasonic

Panasonic Lumix H-F007014 Manual de usuario

Panasonic

Panasonic HX025 Manual de usuario

Panasonic

Panasonic WV-LZ62/8S Manual de usuario

Panasonic

Panasonic H-FS35100 Manual de usuario

Panasonic

Panasonic ET-DLE060 Manual de usuario

Panasonic

Panasonic WV-LP6 Manual de usuario

Panasonic

Panasonic ET-D3LEW10C Manual de usuario

Panasonic

Panasonic Lumix H-FS100300 Manual de usuario

Manuales populares de Lente de la cámara de otras marcas

THORLABS

THORLABS ELL15 Manual de usuario

FUJICA

FUJICA ZC1000 Manual de usuario

Tamron

Tamron A09 Manual

Sony

Sony SEL-55210 Manual de usuario

Sony

Sony VCL-HG2037 Manual de usuario

Honeywell

Honeywell HLM25V6F12 Manual de usuario

Sony

Sony VCL-ST30 Manual de usuario

Canon

Canon FD 35 - 70 mm Manual de usuario

Sony

Sony SAL-85F14Z - 85mm f1.4 Carl Zeiss Planar T Coated Telephoto... Manual de usuario

ARRI

ARRI Lenses Manual de usuario

Nikon

Nikon AF-S VR 24-120 f/3.5-5.6G IF-ED Manual de usuario

Rokinon

Rokinon DS50M-C Manual de usuario

Olympus

Olympus M.Zuiko Digital ES 300mm f4.0 IS PRO Manual de usuario

Sony

Sony VCL-DE07T Manual de usuario

Canon

Canon FD Lens Manual

Tamron

Tamron A036 Manual de usuario

Samsung

Samsung 20-50mm F3.5-5.6 ED II Manual de usuario

Tamron

Tamron 272E Manual de usuario
