Order No.DSC1410024CE

B26

Interchangeable Lens for Digital Camera

Model No. H-FS35100PP

H-FS35100E

H-FS35100GK

TABLE OF CONTENTS

PAGE PAGE

1 Service Navigation------------------------------------------------3

1.1. Introduction --------------------------------------------------3

1.2. Important Notice --------------------------------------------3

2 Operating Guide ---------------------------------------------------4

2.1. Before Use ---------------------------------------------------4

2.2. Cautions For Use-------------------------------------------5

2.3. Components -------------------------------------------------6

3 Service Fixture & Tools -----------------------------------------9

3.1. Service Fixture and Tools --------------------------------9

3.2. Clean Box ----------------------------------------------------9

4 Disassembly and Assembly Instructions--------------- 10

4.1. Outline ------------------------------------------------------ 10

4.2. Disassembly procedure--------------------------------- 12

4.3. Assembly procedure------------------------------------- 15

5 Maintenance ------------------------------------------------------ 20

5.1. Lens Cleaning--------------------------------------------- 20

1 Service Navigation

1.1. Introduction

This service manual contains technical information, which allow service personnel’s to understand and service this model.

Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, the information will be followed by supplement service manual.

1.2. Important Notice

1.2.1. About LENS MAIN UNIT (Ref. 209)

1. LENS MAIN UNIT (Ref. 209) is not supplied due to difficulty of the transportation issue (Fragile, Dust-free packing), and

requires critical lens adjustments.

Therefore, any needs of the "LENS MAIN UNIT" (Ref. 209), carefully confirm its performance in advance.

2. Once "LENS MAIN UNIT" (Ref. 209) is confirmed as defective, place order "LENS Unit" (Ref. 200) and replace SHADING

FRAME (Ref. 202), to maintain Serial number of owner's original lens.

3. No adjustment is required when replacing the part mentioned on Fig.1-1. But, when tighten the concerned screws,apply

proper torque mentioned on "4. Disassembly and Assembly Instruction" section.

2 Operating Guide

2.1. Before Use

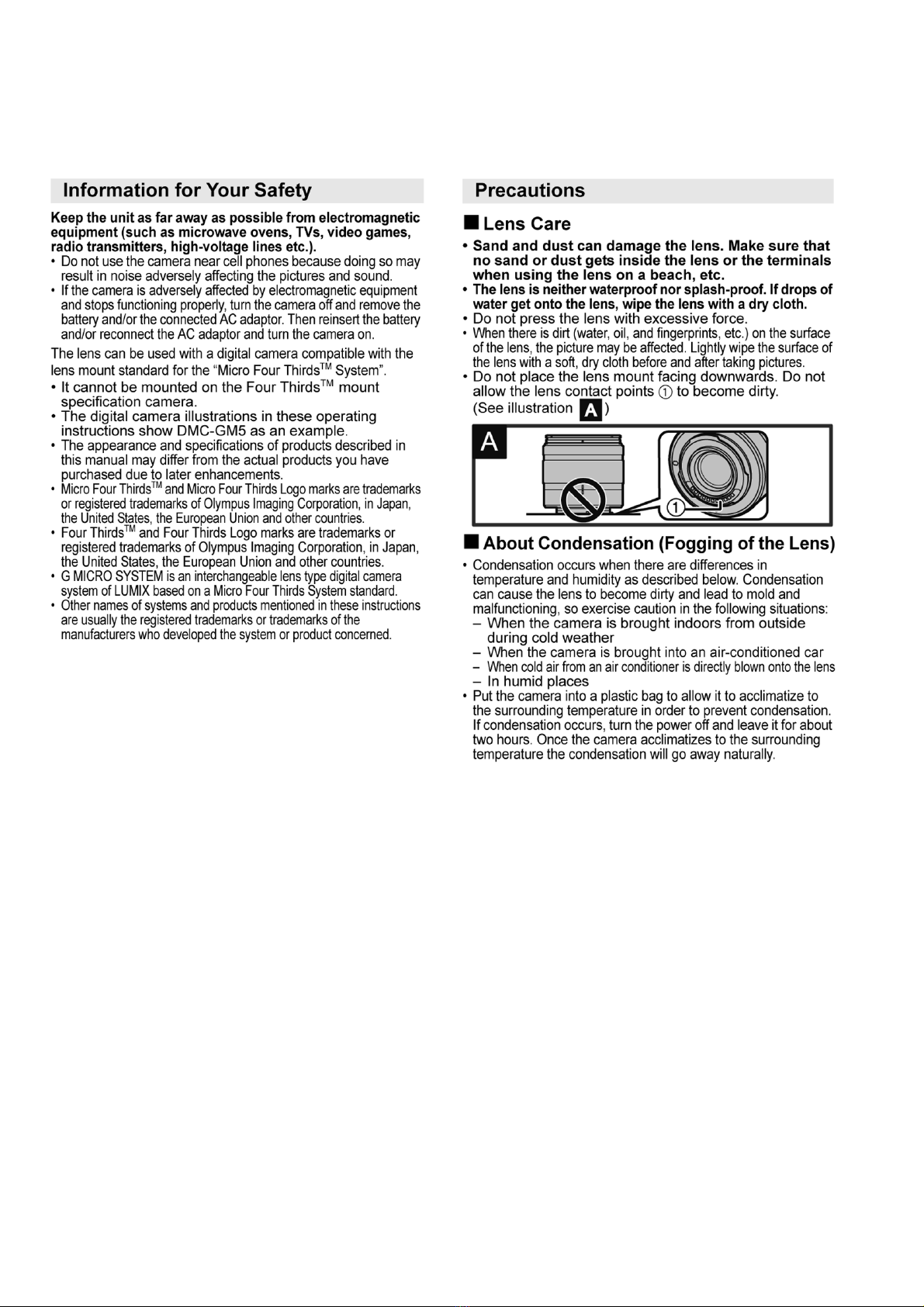

(Information for Your Safety)

2.2. Cautions For Use

2.3. Components

2.3.1. Accessories

2.3.2. Attaching/Detaching the Lens

2.3.3. Recording Preparations and How to Retract the Lens

3 Service Fixture & Tools

3.1. Service Fixture and Tools

The following Service Fixture and Tools are used for Checking & Servicing for this unit.

3.2. Clean Box

• The repair quality is considered, and it is recommended working in the environment of satisfied clean level less than class

10,000 (Federal Standard 209D).

[NOTE]

• Work in the environment of satisfied clean level less than class 10,000 (Federal Standard 209D) when cleaning the inside of a

lens.

4 Disassembly and Assembly Instructions

4.1. Outline

It is recommended dealing with clean box, to keep maintaining the dustproof environment.

(Refer to “3.2. Clean Box” section of this service manual for details.)

Important:

1. When servicing the enclosure part (refer to Fig. W1), it must be performed inside of satisfied clean level.

(Satisfied clean level: Less than class 10,000 (Federal Standard 209D))

As for procedure, refer to the “5 Maintenance” for details.

2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with lens caps (front &

rear), other than necessary cases.

3. Do not touch the surface of the lens glasses with your fingers.

4. Blow off the dust on the surface of the lens with a blower brush.

5. Use lens cleaning KIT (BK)(VFK1900BK).

Proceed disassemble/assemble, by referring the following table and Fig. W1.

NOTE:

1. When installing the screws, be sure to use the torque driver (RFKZ0456) and tighten the screws with specified torque, men-

tioned on the following table.

2. It's unnecessary to remove/install B210 for disassembly and assembly.

3. Use small driver (VFK1390) when removing/tightening B206.

Interchangeable Lens (H-FS35100)
