Panasonic KX-TCD510BXM Manual de usuario

Digital Cordless Answering System

Operating Instructions

Model No. KX-TCD510BX

Contents

Preparation

Before Initial Use..........................2

Important Information...................5

Location of Controls .....................6

Meanings of Icons above

SOFT KEYS.................................7

Meanings of Symbols

and Operations of Keys ...............8

Display .........................................9

Setting up...................................10

Cordless Telephone

Using the Telephone..................14

Caller ID .....................................19

List Menu ...................................20

Using the Phonebook.................23

Settings Menu Chart ..................32

Handset Settings........................34

Base Unit Settings .....................44

Multi-Unit User Operations.........49

Walkie-Talkie .............................56

Answering System

Answering System .....................59

Useful Information

Using the Belt Clip .....................71

Optional Headset .......................71

Wall Mounting ............................71

Before Requesting Help.............72

Character Table .........................75

Index ..........................................76

Technical Information.................77

Please read these Operating Instructions before using the unit

and save for future reference.

Charge the batteries for about 7 hours before initial use.

Caller ID Compatible

Preparation Cordless Telephone Useful InformationAnswering System

510BX_e.book Page 1 Thursday, June 5, 2003 9:43 PM

Before Initial Use

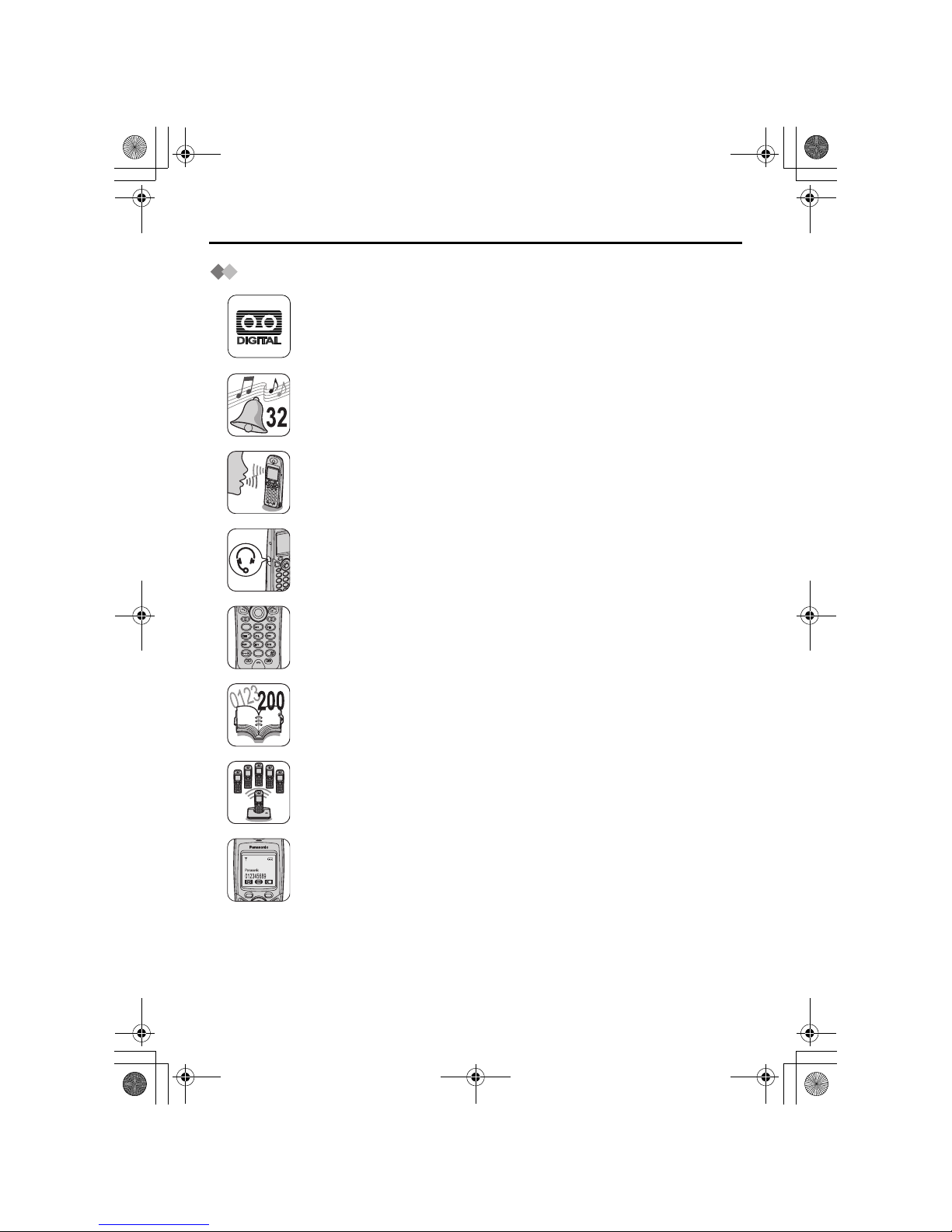

Features

Digital Answering System

Up to 30 minutes recording time or up to 64 messages, with time/day stamp

that records when messages were received and counts the total number.

32-Polyphonic Ring Tones

A variety of high-quality sounds can be reproduced for your ring tones.

You can choose from 9 pre-set melodies and 6 ring tones.

Hands-Free Speakerphone

You can talk without holding the handset.

Convenient for talking while doing something else.

Headset Jack

Plug in the optional headset and the hands-free facility provides total ease

and freedom of use.

Illuminated Keypad

Lights up when there is an incoming call or you touch any key for easier

operation even in the dark.

200+20-Station Phonebook

Stores 200 station names and numbers with the built-in telephone

directory of the handset to be recalled easily and stores 20 station names

and numbers in the base unit for Audible Caller ID feature.

Multiple Handsets

Up to 6 handsets can be registered with a single base unit for added

convenience. (Optional handset/charger is available separately.)

LCD Backlight

Lights up when there is an incoming call or you touch any key for easier

operation even in the dark.

510BX_e.book Page 2 Thursday, June 5, 2003 9:43 PM

Preparation

Before Initial Use

Thank you for purchasing your new Panasonic digital cordless telephone.

Dear purchaser,

You have acquired a KX-TCD510BX, which is a product made in accordance with the

Digital Enhanced Cordless Telecommunications (DECT). DECT technology is

characterized by high-security protection against interceptions as well as high-quality

digital transmission. This telephone was designed for a wide range of applications. For

example, this telephone can be used within a network of base units and handsets,

constituting a telephone system which:

•operates up to 6 handsets at one base unit.

•allows an intercom between 2 handsets.

•allows the operation of a handset at up to 4 base units, expanding the communication

radio area.

Caller ID Service, where available, is a telephone company service. After subscribing

to Caller ID, this phone will display the caller’s phone number.

510BX_e.book Page 3 Thursday, June 5, 2003 9:43 PM

Before Initial Use

Accessories (specific to product type)

AC Adaptor

PQLV19CE

Telephone Line Cord Rechargeable Batteries

(AAA size)

HHR-4EPT/BA2 (P03P)

one one two

Belt Clip Battery Cover Operating Instructions

one

Quick Guide

one

one one

Additional accessories are available for purchase. Contact your Panasonic Service

Centre for further details.

510BX_e.book Page 4 Thursday, June 5, 2003 9:43 PM

Preparation

Important Information

Only use the power supply included with

the product.

Do not connect the AC adaptor to any

AC outlet other than the standard

AC220-240 V.

The apparatus is approved for use with

PQLV19CE power supply.

This apparatus is unable to make calls

under the following conditions:

•The portable handset batteries need

recharging, or have failed.

•During a mains power failure.

•When the Key Lock is set to ON.

•When the unit is in Direct Call mode

(only the Direct Call Number can be

made).

Do not open the base unit or handset

(other than to change the batteries).

This apparatus should not be used near

emergency/intensive care medical

equipment and should not be used by

people with pacemakers.

Care should be taken that objects do not

fall onto, and liquids are not spilled into

the unit. Do not subject this unit to

excessive smoke, dust, mechanical

vibration or shock.

Environment

Do not use this unit near water.

This unit should be kept away from heat

sources such as radiators, cookers, etc. It

should also not be placed in rooms where

the temperature is less than 5 °C or

greater than 40 °C.

The AC adaptor is used as the main

disconnect device. Ensure that the AC

outlet is located/installed near the unit and

is accessible.

Battery Caution

1. Use only the specified batteries.

2. Only use rechargeable batteries.

3. Do not mix old and new batteries.

4. Do not dispose of batteries in a fire, as

they may explode.

Check local waste management codes

for special disposal instructions.

5. Do not open or mutilate the batteries.

Released electrolyte from the batteries is

corrosive and may cause burns or injury

to the eyes or skin.

The electrolyte may be toxic if swallowed.

6. Exercise care in handling the batteries in

order not to short circuit the batteries with

conductive materials such as rings,

bracelets and keys.

The batteries and/or conductor may

overheat and cause burns.

7. Charge the batteries in accordance with

the information provided in this operating

guide.

Location

•For maximum distance and noise-free

operation, place your base unit:

- Away from electrical appliances such

as TVs, radios, personal computers or

other phones.

- In a convenient, high, and central

location.

WARNING:

TO PREVENT THE RISK OF

ELECTRICAL SHOCK, DO NOT

EXPOSE THIS PRODUCT TO RAIN

OR ANY OTHER TYPE OF

MOISTURE.

510BX_e.book Page 5 Thursday, June 5, 2003 9:43 PM

Location of Controls

Handset

1 - LEFT SOFT KEY

2 - TALK Button

3 - JOYSTICK

4 - SPEAKERPHONE Button

5 - RECALL Button

6 - RIGHT SOFT KEY

7 - POWER/TALK OFF Button

8 - CLEAR Button

9 - INTERCOM Button

How to Use the Handset Soft Keys

3 soft keys are used to select functions displayed directly

above the keys.

Functions displayed above the keys will change depending

on the state of use.

For example, on the standby mode display, “ ”,

“ ” and “ ” are displayed above the soft keys.

Example: Standby

Mode Display

To operate “ ” (Phonebook),

press LEFT SOFT KEY.

To operate “ ” (Menu), press

JOYSTICK directly as the middle soft

key.

To operate “ ” (Redial), press

RIGHT SOFT KEY.

When “ ” is displayed above a

soft key, the soft key will not work.

•To select only “ ” (Menu), you can also select it

moving the JOYSTICK up, down, left or right.

Receive

Display

Charge

Contact

Ringer/Charge

LED

Headset

Jack

Charge

Contact

Microphone

Rear side

Speaker

H/set 1

5 Calls

25.2

21:05

510BX_e.book Page 6 Thursday, June 5, 2003 9:43 PM

Preparation

Location of Controls

Base Unit

Meanings of Icons above SOFT KEYS

Icon Function Icon Function

Go Back Alphabet

Menu Numeric

Sub-Menu Extended 1

OK Extended 2

Redial Greek

Phonebook Russian

New Phonebook Select

Search Pause

Key Lock Mute

12/24 Hour Clock Delete

No Function

LINE

PAGE Button

510BX_e.book Page 7 Thursday, June 5, 2003 9:43 PM

Meanings of Symbols and Operations of Keys

Symbol Meaning

Move the JOYSTICK up, down, left or right.

e.g., Search the main menu.

e.g., OK e.g., Display of menu items Press JOYSTICK

directly in the centre.

In this example, the

desired item is

selected.

Press Directly

e.g., Redial e.g., Standby Mode Display Press RIGHT SOFT KEY.

In this example, the telephone number

last dialled is displayed.

e.g.,

Go Back

e.g., Display of menu items Press LEFT SOFT KEY.

In this example, the display returns to the

previous menu.

has the same function.

Press POWER/TALK OFF Button.

Press this button for one or two times, then the display returns to

the standby mode any time.

To go to the next step.

“” The words in “ ” indicate the words in the display.

Ringing Phone

510BX_e.book Page 8 Thursday, June 5, 2003 9:43 PM

Preparation

Display

Display Icons

Main Menu Display

To go to the Main Menu, press JOYSTICK directly in the centre (or move )

while in the standby mode display. The selected menu icon is turned over, and its title is

displayed.

Within range of a base unit

Out of range/No registration/

No power on base unit

Paging/Intercom/

While connecting with base unit

Making or answering calls

Call Bar ON

Phonebook Mode

Answering System ON

Battery strength

Direct Call ON

Ringer Volume OFF

Handset Name (e.g., Handset 1)

New call (Caller ID only)

The line is being used by another

handset (for additional handset

users).

Example: “Caller ID”is selected. Caller ID

TAM Operation

Handset Ringer Option

Setting Handset

Setting Base Unit

Walkie-Talkie

H/set 1

IN USE

H/set 1

IN USE

Caller ID

510BX_e.book Page 9 Thursday, June 5, 2003 9:43 PM

Setting up

Connection

Plug in the AC adaptor and the telephone

line cord in order 1, 2, 3, 4.

•The AC adaptor must remain

connected at all times. (It is normal for

the adaptor to feel warm during use.)

•Never install telephone wiring during a

lightning storm.

•USE ONLY WITH Panasonic

AC ADAPTOR PQLV19CE.

Battery Installation

Please ensure the batteries are inserted

as shown. part should be inserted first.

Close the cover as indicated by the arrow.

•When you replace the batteries, part

should be removed first.

Battery Charge

At the time of shipment, the batteries are

not charged. To charge, place the

handset on the base unit. Please charge

the batteries for about 7 hours before

initial use.

During charging, the charge LED will light

as shown below.

During charging Fully charged

The handset which power is off will be

turned on automatically when it is placed

on the base unit.

The handset will not operate while it is

on the base unit.

If you do not recharge the handset battery

for more than 15 minutes, the display will

flash when the handset is lifted off

the base unit.

LINE

Fasten the AC

adaptor cord to

prevent it from

being

disconnected.

Hook

Hooks

Display icon Battery strength

High

Medium

Low

Needs to be

charged

Red Green

510BX_e.book Page 10 Thursday, June 5, 2003 9:43 PM

Tabla de contenidos

Otros manuales de Contestador automático de Panasonic

Panasonic

Panasonic KX-T4300BA Manual de usuario

Panasonic

Panasonic KXTG5456S - Refurb 5.8GHz Cordless Phone,1.4" Color LCD,Digital Answering... Manual de usuario

Panasonic

Panasonic KX-TG2226 Instrucciones de funcionamiento e instalación

Panasonic

Panasonic KX-TG9391 Manual de usuario

Panasonic

Panasonic KXTG9348 - EXPANDABLE DIGITAL CORDLESS ANS... Manual de usuario

Panasonic

Panasonic KX-TG5631S Manual de usuario

Panasonic

Panasonic KX-TG7341AL Manual de usuario

Panasonic

Panasonic KX-TG5664 Manual de usuario

Panasonic

Panasonic KX-TG2248S - 2.4 GHz Digital Cordless Phone Answering... Instrucciones de funcionamiento e instalación

Panasonic

Panasonic KX-TG2432NZ Manual de usuario

Panasonic

Panasonic KX-TG6821AL Manual de usuario

Panasonic

Panasonic KX-TG6581 Manual de usuario

Panasonic

Panasonic KX-TG8321E Manual de usuario

Panasonic

Panasonic KX-TG7861NZ Manual de usuario

Panasonic

Panasonic KX-2450NZ Manual de usuario

Panasonic

Panasonic KX-TGC260E Manual de usuario

Panasonic

Panasonic KX-TG2584S Manual de usuario

Panasonic

Panasonic KX-TG6591T Manual de usuario

Panasonic

Panasonic KX- TG2583B Manual de usuario

Panasonic

Panasonic kx-tg5438c Manual de usuario

Panasonic

Panasonic KX-TG5471 Manual de usuario

Panasonic

Panasonic KXTG313SK Manual de usuario

Panasonic

Panasonic KX-TG5431 Manual de usuario

Panasonic

Panasonic KX-F2350NZ Manual de usuario

Manuales populares de Contestador automático de otras marcas

Radio Shack

Radio Shack TAD-795 Manual de usuario

AT&T

AT&T 2455 Manual de usuario

BellSouth

BellSouth GH9488 Guía de seguridad

GE 2-9985 Manual de usuario

Krown

Krown PortaPrinter 2000STD Manual de usuario

AT&T

AT&T 1717 Manual de usuario

Alcatel

Alcatel TEMPORIS 55-CE Manual de usuario

AT&T

AT&T E2562 Manual de usuario

Telstra

Telstra Monitor 420 Manual de usuario

Kortex

Kortex IAM V90 Manual de usuario

Philips

Philips VOIP8551B/05 Manual de usuario

Topcom

Topcom LUCCA Answering Machine Manual de usuario

TIPTEL

TIPTEL Ergophone 307 Manual de usuario

Conairphone

Conairphone TAD2012 Manual de usuario

AT&T

AT&T 1738 Manual de funcionamiento

Philips

Philips SE6554B/05 Manual de usuario

Lucent Technologies

Lucent Technologies Definity System 75 Manual de usuario

Sony

Sony TAM-2000 Manual de usuario
