OSS OSS-BP-427 Manual de usuario

Expansion Backplane, 1 PCIe slot x16 3.0

Model: OSS-BP-427

www.onestopsystems.com

Installation Guide

SKU: OSS-BP-427

One Stop Systems

OSS- BP-427| 2

Table of Contents

Preface 4

Advisories 4

Safety Instructions 5

1Introduction 7

1.1 Specifications 7

1.2 Overview 8

1.2.1 Connector Pinouts 9

1.3 Block Diagram 9

1.4 Dimensions 9

1.5 x16 Target Slot Connector Pin Outs 10

1.6 x16 End Point Slot Connector Pin Outs 11

2Hardware Requirements 14

2.1 Supported Configuration 14

2.2 Unsupported / Invalid Configuration 15

2.3 Hardware to Use 17

2.3.1 PCIe Slot & Motherboard Requirement 17

2.3.2 Host and Target Cards 17

2.3.3 x8 or x16 iPass Cable 18

2.3.4 Power Supply 19

2.4 Software Requirement 20

3Installation Procedures 21

3.1 Connect Power Supply 21

3.1.1 Plug-in External Power Brick 21

3.1.2 Standard ATX Power Supply 22

3.1.3 4pin-to-12V Adapter Cable 22

3.2 Install OSS Target 23

3.3 Install Host card 23

3.5 Install PCIe card 24

3.6 Connect iPass Cable 24

3.7 Connect Power Cord 25

3.8 Power ON the system 26

4Verify Hardware 27

4.1 x8 Target & Host Cards 27

4.1.2 x8 Card LEDs 27

4.1.3 LED Definition 27

4.2 x16 Target & Host Cards 28

4.2.1 x16 Card LEDs 28

4.2.2 Bracket LED Status indicators 28

5Troubleshooting 29

5.1 The OSS-427 board is not powering ON 29

5.2 Both Target and Host cards are not linking up 29

One Stop Systems

OSS- BP-427| 3

5.3 The Red LED on the board stays LIT all the time. 29

5.4 My PCIe cards is not getting detected 29

6How to Get More Help 30

6.1 Contacting Technical Support 30

6.2 Returning Merchandise 30

6.3 Online Support Resources 30

One Stop Systems

OSS- BP-427| 4

Preface

Advisories

Five types of advisories are used throughout this manual to provide helpful information, or to alert you to the potential for

hardware damage or personal injury.

NOTE

Used to amplify or explain a comment related to procedural steps or text.

IMPORTANT

Used to indicate an important piece of information or special “tip” to help you

CAUTION

Used to indicate and prevent the following procedure or step from causing damage to the equipment.

WARNING

Used to indicate and prevent the following step from causing injury.

DANGER or STOP

Used to indicate and prevent the following step from causing serious injury or significant data loss

Disclaimer: We have attempted to identify most situations that may pose a danger, warning, or caution condition in this manual.

However, the company does not claim to have covered all situations that might require the use of a Caution, Warning, or Danger

indicator.

One Stop Systems

OSS- BP-427| 5

Safety Instructions

Always use caution when servicing any electrical component. Before handling the expansion chassis, read the following

instructions and safety guidelines to prevent damage to the product and to ensure your own personal safety. Refer to the

“Advisories” section for advisory conventions used in this manual, including the distinction between Danger, Warning, Caution,

Important, and Note.

Always use caution when handling/operating the computer. Only qualified, experienced, authorized electronics

personnel should access the interior of the computer and expansion chassis per UL and IEC 60950-1

The power supplies produce high voltages and energy hazards, which can cause bodily harm.

Use extreme caution when installing or removing components. Refer to the installation instructions in this manual for

precautions and procedures. If you have any questions, please contact Technical Support.

WARNING

Never modify or remove the radio frequency interference shielding from your workstation or expansion unit.

To do so may cause your installation to produce emissions that could interfere with other electronic equipment

in the area of your system.

When Working Inside a Computer

1. Before taking covers off a computer, perform the following steps:

2. Turn off the computer and any peripheral devices.

3. Disconnect the computer and peripheral power cords from their AC outlets or inlets in order to prevent electric shock or

system board damage.

In addition, take note of these safety guidelines when appropriate:

To help avoid possible damage to systems boards, wait five seconds after turning off the computer before removing a

component, removing a system board, or disconnecting a peripheral device from the computer.

When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a

connector with locking tabs. If you are disconnecting this type of cable, press in on the locking tabs before disconnecting

the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before

connecting a cable, make sure both connectors are correctly oriented and aligned.

CAUTION

Do not attempt to service the system yourself except as explained in this manual. Follow installation

instructions closely.

One Stop Systems

OSS- BP-427| 6

Protecting Against Electrostatic Discharge

Electrostatic Discharge (ESD) Warning

Electrostatic Discharge (ESD) is the enemy of semiconductor devices. You should always take precautions to

eliminate any electrostatic charge from your body and clothing before touching any semiconductor device or

card by using an electrostatic wrist strap and/or rubber mat.

Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedures to reduce the

risk of damage to components. We strongly encourage you to follow proper ESD procedures, which can include wrist straps and

smocks, when servicing equipment.

You can also take the following steps to prevent damage from electrostatic discharge (ESD):

When unpacking a static-sensitive component from its shipping carton, do not remove the component’s anti-static

packaging material until you are ready to install the component in a computer. Just before unwrapping the anti-static

packaging, be sure you are at an ESD workstation or are grounded.

When transporting a sensitive component, first place it in an anti-static container or packaging.

Handle all sensitive components at an ESD workstation. If possible, use anti-static floor pads and workbench pads.

Handle components and boards with care. Do not touch the components or contacts on a board. Hold a board by its edges

or by its metal mounting bracket.

One Stop Systems

OSS- BP-427| 7

1 Introduction

PCI Express backplane with one PCIe x16 expansion slot with ATX power. Supports up to Gen3 card.

1.1 Specifications

Item

Description

Form Factor

1 PCIe x16 Slot

Dimensions

1.59" x 7.0"

Power

Single 12V Input

Slot

(1) x16 PCIe Gen 3 Host Interface Slot

One OSS PCIe x16 3.0 target slot for OSS target cable adapter

(1) x16 PCIe Gen 3 Endpoint Slot

One PCIe x16 3.0 expansion slot (x16 mechanical, x16 electrical)

LED Indicator

3.3VStandby Indication

Operating Temperature

0˚C to +85˚C environment

Operating Humidity

10% to 90% relative humidity non-condensing

Storage Humidity

5% to 95% relative humidity non-condensing

Industry Specifications

PCI Express™ Card Electromechanical

Specification, Rev. 3.0

PCI Express ® Base Specification, Rev. 3.0

ATX Specification, Version 2.2

Agency Compliance

• FCC Class A

• CE

• RoHS

Operating System

Windows 10, Windows Server 2012 R2; Linux OS based

One Stop Systems

OSS- BP-427| 8

1.2 Overview

Downstream Slot: also known as endpoint slot. This is mainly for installing an add-in or plug and play PCIe card is. The

slot accommodates x2, x4, x8 and x16 PCie cards.

Target slot : Also known as Upstream slot. Designed for the Target card only. It is a Gen3 x 16 slot (electrical and

mechanical).

PS_ON : Enable force power ON. Forces the power supply to be ON all the time.

+12VDC IN Connector: ATX Input Power. Use for connecting an external power supply.

Fan Connector: For connecting external fan.

One Stop Systems

OSS- BP-427| 9

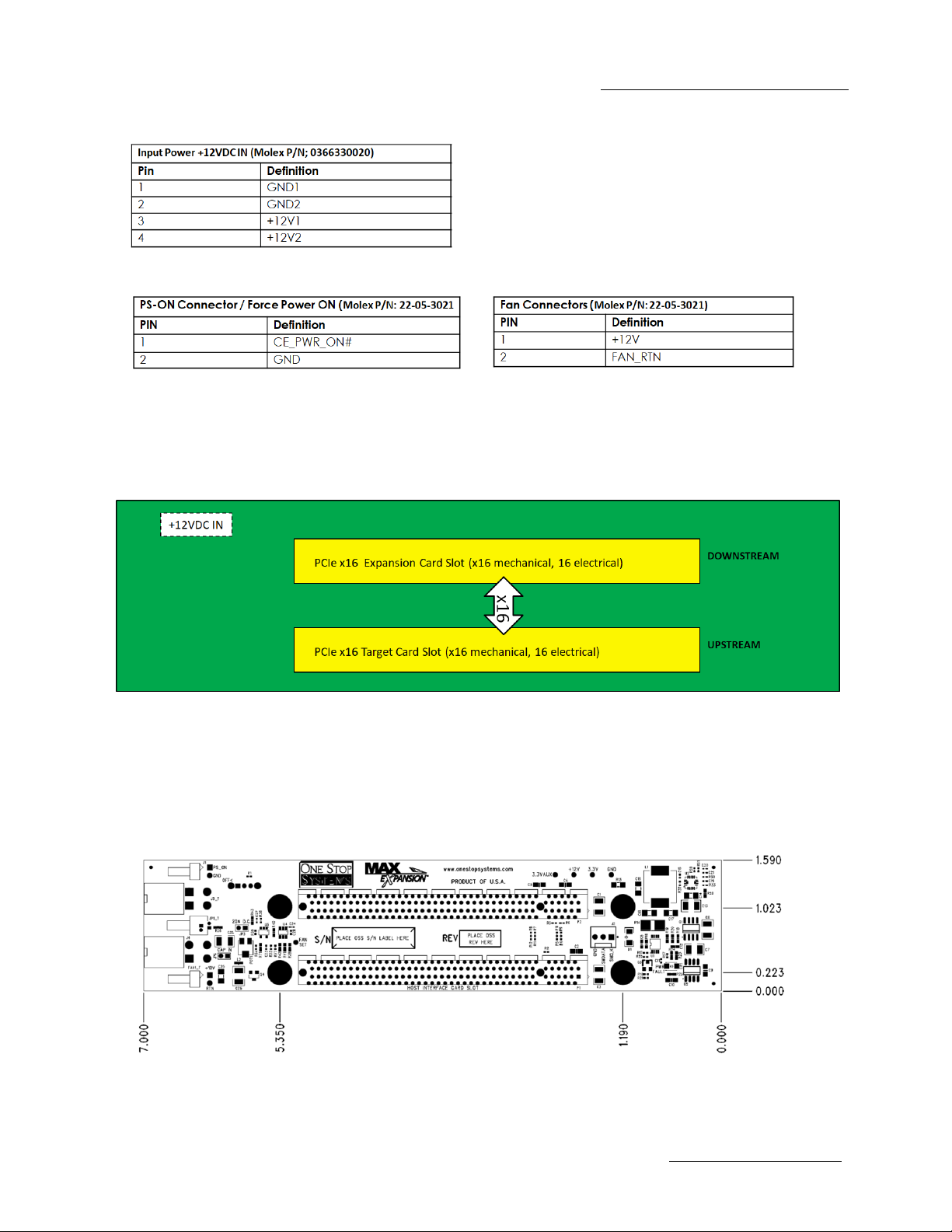

1.2.1 Connector Pinouts

1.3 Block Diagram

1.4 Dimensions

One Stop Systems

OSS- BP-427| 10

1.5 x16 Target Slot Connector Pin Outs

Pin #

Name

Pin #

Name

Mechanical

Key

+12V

GND

+12V

GND

SMCLK

SMDAT

REFCLK1+

GND

REFCLK1-

+3.3V

PS_ON#

+3.3V

B10

3.3Vaux

A10

+3.3V

B11

WAKE#

A11

PERST#

B12

RSVD

A12

GND

End of the

Connector

B13

GND

A13

REFCLK2+

B14

PETp0

A14

REFCLK2-

B15

PETn0

A15

GND

B16

GND

A16

PERp0

B17

PRSNT_X1#

A17

PERn0

B18

GND

A18

GND

B19

PETp1

A19

RSVD

End of the

Connector

B20

PETn1

A20

GND

B21

GND

A21

PERp1

B22

GND

A22

PERn1

B23

PETp2

A23

GND

B24

PETn2

A24

GND

B25

GND

A25

PERp2

B26

GND

A26

PERn2

B27

PETp3

A27

GND

B28

PETn3

A28

GND

B29

GND

A29

PERp3

B30

RSVD

A30

PERn3

B31

PRSNT_X4#

A31

GND

B32

GND

A32

RSVD

B33

PETp4

A33

RSVD

End of the

Connector

B34

PETn4

A34

GND

B35

GND

A35

PERp4

B36

GND

A36

PERn4

B37

PETp5

A37

GND

B38

PETn5

A38

GND

B39

GND

A39

PERp5

B40

GND

A40

PERn5

B41

PETp6

A41

GND

B42

PETn6

A42

GND

B43

GND

A43

PERp6

B44

GND

A44

PERn6

B45

PETp7

A45

GND

B46

PETn7

A46

GND

B47

GND

A47

PERp7

B48

PRSNT_X8#

A48

PERn7

B49

GND

A49

GND

B50

PETp8

A50

RSVD

End of the

x16

Connector

B51

PETn8

A51

GND

B52

GND

A52

PERp8
