ENGLISH

ANALOGUE QUARTZ WATCH

MULTI FUNCTION <ST(KUD), SW(KUC), SX(KUB)>

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

WARNING

CAUTION

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×××××

Reinforced

water

resistance

for daily

life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  ×××

Reinforced

water

resistance

for daily

life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ××

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

1A watch with water resistance for daily life 30m (3 bar) can be used during

face-washing, etc. but cannot be used in an environment in which it will be

submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing strong

jets of mains water onto the watch. Water pressure above the limit can

apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler than

the internal temperature of the watch. If the fogging is temporary it causes

no harm inside the watch, but if prolonged, or if water enters the watch,

consult your place of purchase and do not leave the problem untreated.

CAUTION

ENGLISH

(2) Handling the Battery

1Store the battery out of the reach of infants and other young children. Should

the battery be accidentally ingested, contact a doctor immediately.

2Do not remove the battery from the watch. Contact the place of purchase

of the watch or your nearest ORIENT authorized service center for

assistance when wanting to remove the battery.

3The battery used in this watch is not a rechargeable battery, so it cannot be

recharged and used again. Do not attempt to charge the battery as doing

so could cause it to overheat or explode.

4A skin rash or other symptom may develop if leaking battery fluid comes

into contact with skin. Do not leave depleted batteries sitting around for

long periods of time.

(3) Replacing the Battery

1Depleted batteries that are left sitting in the watch for long periods of time

may begin to leak battery acid, which could lead to malfunction. Be sure to

replace depleted batteries as soon as possible.

2Replace the watch battery only with the specified battery type.

3Battery replacement requires special-purpose tools, techniques, etc.

Reversing the polarities when inserting the battery may cause the battery

to overheat or explode. Contact the place of purchase or your nearest

ORIENT authorized service center for assistance when wanting to replace

the battery.

WARNING

CAUTION

ENGLISH

(4) Shock

1Be sure not to carry the watch when you engage in strenuous

sports, whereas playing such light sports as golf, etc., will not

adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(5) Magnetism

1If the watch is left at a location with strong magnetism for an extended

period of time, the components may be magnetized, resulting in

malfunction. Be careful.

2The watch may temporarily speed up or slow down when exposed to

magnetism. Precision is restored when placed away from magnetism. In

such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong

vibrations such as from riding motorcycles, using

jackhammers, chain saws, etc.

(7) Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch

may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes,

cosmetics, etc.), and so forth. Such may cause discoloration of the

watchcase, watchband, and dial face. Discoloration, deformation, and

damage to various resin-based component parts may also occur.

CAUTION

ENGLISH

(9) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of

children.

If any small parts are swallowed, immediately contact a doctor.

(10)Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to

contact with the watch or strap, stop wearing the watch immediately and

consult a doctor.

(11)About “luminous light”

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark

setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted

depends on various factors when the light is stored, such as the shape

of the glass, the thickness of the paint, surrounding brightness level, the

distance from the watch to the light source, and the light absorption level.

Please note that when not enough light energy is stored, the watch may

emit weak light or emit light for only a short time.

(12)Water resistant watchband

Some models employ leather and nylon bands on which a special

treatment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can be

lost depending on the period and conditions of use.

WARNING

CAUTION

ENGLISH

HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its second

and third digits indicate the caliber number of your watch.

Example:

If the model number is “□SW01004W□”, the caliber number is

“SW”.

2. Searching by the case code

See the case code on the case back of your watch.

The first two digits indicate the caliber number.

Example: When the case code is “SW01-Q0”, the caliber number is “SW”.

Case code

* The place of case code may vary and its letter size may be small and

difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual

appearance of your watch but the function and operation procedures are

the same.

FEATURES

(1) This is an analogue crystal oscillator watch.

(2) The current time is indicated by the hour, minute and second hands.

(3) The date and day of the week are indicated by hands.

(4) The 24-hour time is indicated by hand.

* SW(KUC) and SX(KUB) only

ENGLISH

SPECIFICATIONS

(1) Crystal oscillator frequency …

32,768 Hz (Hz = Oscillations per second)

(2) Wrist-worn accuracy … Mean monthly rate: ±20sec.

(at normal temperature <5°C ~ 35°C>)

(3) Operating temperature range … –5°C to +50°C

(4) Drive system … Step motor

(5) Additional functions … Reset switch, Second hand halt

mechanism, Date quick setting function

(6) Battery … SR920SW ; 1 piece

(7) Battery life … Approximately 3 years from insertion of

a new battery

* The above specifications may change without notice for improvement.



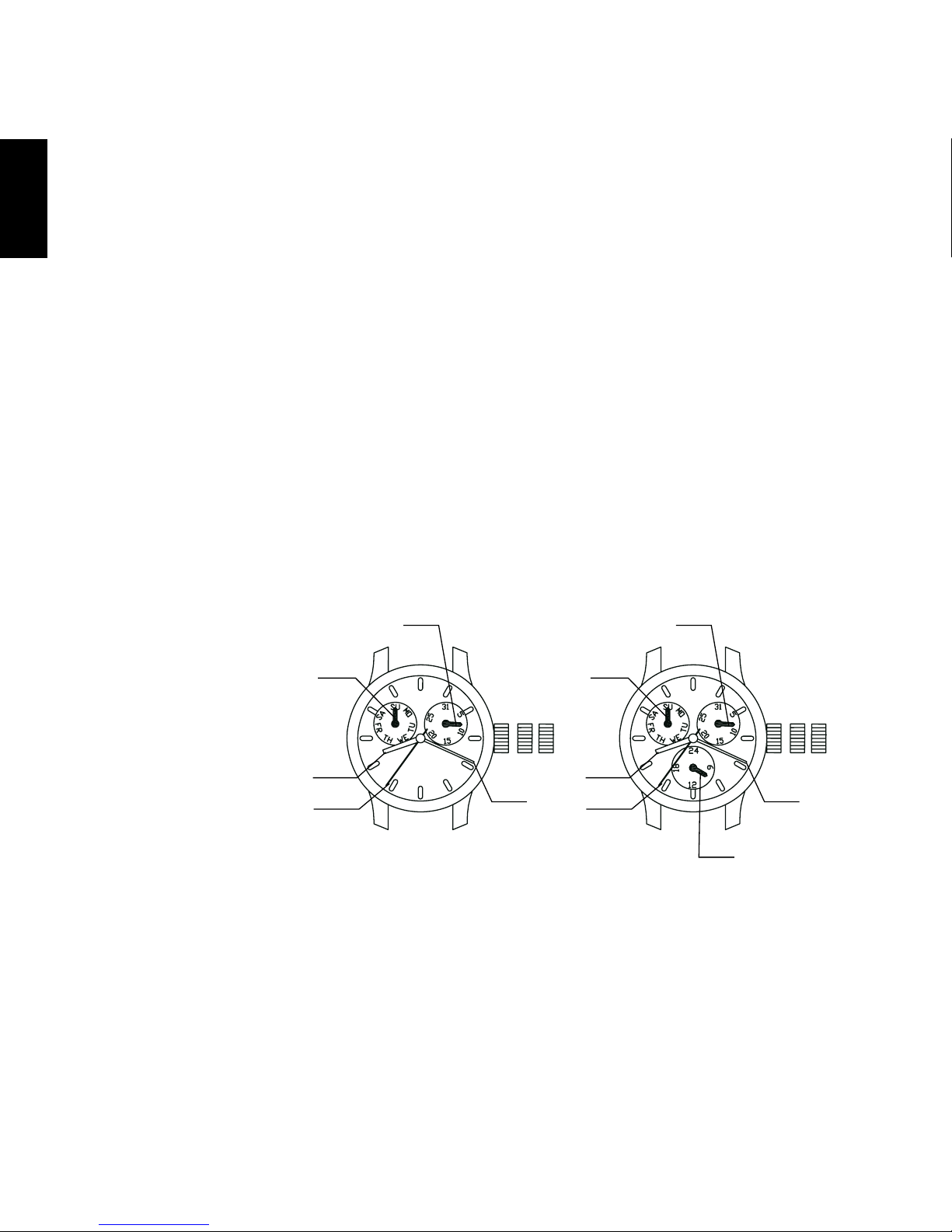

NAMES OF INDIVIDUAL COMPONENT PARTS

1 2 3

1. Normal position

2. First click: Date setting

3. Second click: Time setting, day setting

* The position of date, day of the week, 24-hour hands and crown differ on

some models.

A. Date hand

B. Day hand

C. Hour hand

D. Second hand

E. Crown

F. Minute hand

G. 24-hour hand

<SW(KUC), SX(KUB)><ST(KUD)>

ENGLISH

MODELS WITH SCREWED-DOWN CROWN

Some models have a screwed-down crown that can be locked.

For these models, perform the following procedures before setting.

(1) Before time setting and calendar setting, turn the crown counterclockwise

and loosen.

(2) After time setting and calendar setting are completed, turn the crown

clockwise and tighten.

HOW TO SET THE TIME AND CALENDAR

[How to set the time and day of the week]

* Days of the week are not automatically adjusted. Adjust the day of the week

by turning the hour and minute hands before setting the time.

(1) Pull out the crown to the second click when the second

hand is at the 12 o’clock position. The second hand

stops on the spot.

(2) Turn the crown to set the day of the week.

•Turnthecrownclockwise.

When the 12 o’clock position

is passed, the day of the

week hand begins to change.

•Advancethehourandminute

hands until the day of the

week hand indicates the next day.

•Iffurtheradjustmentofthedayoftheweekhandisrequired,turnthe

crown counterclockwise and go back 4 to 5 hours.

Turn the crown forward again to advance the day of the week hand

faster.

•Repeatthisstepandsetthedayoftheweek.

Clockwise

Counterclockwise

ENGLISH

(3) After the day of the week is set, set the time.

*This watch features a calendar function.

When setting the hour hand, check that AM/PM is

set correctly. The date changes at “0:00 a.m.”.

Check AM or PM with the 24-hour hand.

*When setting the time, first advance it 4 to 5 minutes ahead of the

desired time, and then turn it back to the exact time.

*Depending on design, 24-hour indicator does not apply to some models.

(4) Push the crown back in to the normal position.

[How to set the date]

CAUTION

* Do not set the date during the time period noted below because the date

is changing.

9:00 p.m. to 1:00 a.m.

If date is set during this time period, the date may not change properly on

subsequent days.

* Avoid this time period when setting the date.

(1) Pull out the crown to the first click.

* The crown on this watch has two click positions.

(2) [SX(KUB)]

Turn the crown clockwise and adjust the date.

[ST(KUD)], [SW(KUC)]

Turn the crown counterclockwise and adjust the

date.

Clockwise [SX(KUB)]

Counterclockwise

[ST(KUD)], [SW(KUC)]

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Mirar de Orient

Orient

Orient SDH00001 Manual de usuario

Orient

Orient XC Manual de usuario

Orient

Orient UY (KTA) Manual de usuario

Orient

Orient DB 46A Manual de usuario

Orient

Orient EMAM80 Manual de usuario

Orient

Orient cem65001b Manual de usuario

Orient

Orient SY(KFF) Manual de usuario

Orient

Orient FTD10002B0 Manual de usuario

Orient

Orient DM 48Y Manual de usuario

Orient

Orient DA 40R Manual de usuario

Orient

Orient BF J50 Manual de usuario

Orient

Orient 32A00 Manual de usuario

Orient

Orient TZ(KFE) Manual de usuario

Orient

Orient UU(KHA) Manual de usuario

Orient

Orient TV(KFC) Manual de usuario

Orient

Orient UG1R002B Manual de usuario

Orient

Orient TX(VS75) Manual de usuario

Orient

Orient AA F69 Manual de usuario

Orient

Orient BEM5L003 Manual de usuario

Orient

Orient VS75 Manual de usuario

Orient

Orient RA-KV0403S Manual de usuario

Orient

Orient DD (48C) Manual de usuario

Orient

Orient EW 46F Manual de usuario

Orient

Orient ES 46C Manual de usuario

Manuales populares de Mirar de otras marcas

Pandora

Pandora WATCH2 Manual de usuario

Casio

Casio QW-4343 Manual de usuario

Suunto

Suunto X6 Manual de usuario

Seiko

Seiko N830 Manual de usuario

MotionX

MotionX 365 Manual de usuario

Garmin

Garmin VENU SQ 2 Manual de usuario

QCY

QCY Watch GTC Manual de usuario

Canyon

Canyon Cindy CNE-KW41WP Manual de usuario

Esq

Esq Watches Guía de instalación

Crane

Crane AA5-CDSM-3A Manual de usuario

Timex

Timex W-214 Manual de usuario

DETOMASO

DETOMASO MATERA Manual de usuario

Geemarc

Geemarc Watch N Shake Manual de usuario

LORUS

LORUS W590 Manual de usuario

STENLILLE

STENLILLE Actío Manual de usuario

Casio

Casio 5594 Manual de usuario

Sinn

Sinn HUNTER'S WATCH 3. Edition Manual de usuario

Slazenger

Slazenger SLZ800 Manual de usuario
