MECHANICAL WATCH

WITH POWER RESERVE INDICATOR

(DUAL TIME & WORLD TIME)

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum

performance, please read this instruction manual carefully and familiarize

your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to

prevent any possible physical danger and property damage to you as well as

other people concerned.

... A demarcation with this symbol represents the contents

assuming possibility for death or serious injury

when the product is used in any manner different from

given instructions.

... A demarcation with this symbol represents the contents

assuming possibility of causing human injury or

material damage only when a product is used in any

manner different from given instructions.

WARNING

CAUTION

ENGLISH

IN HANDLING THE WATCH

(1) Water-resistance

Conditions

of use

Type

Underwater

operation of

crown and

operation

of crown

with drops

of water

on it

Exposure

to small

amounts

of water

(face-

washing,

rain, etc.)

Water sports

(swimming,

etc.),

frequent

contact with

water (car-

washing,

etc.)

Skin diving

(air tanks

are not

used)

Scuba

diving

(air tanks

are used)

Mixed-gas

Diving

(using

helium

gas)

Non water resistant

Without

WATER

RESISTANT

(WATER

RESIST)

××××××

Water

resistant

watches

Water

resistant for

daily life

WATER

RESISTANT

(WATER

RESIST) ×××××

Reinforced

water resist-

ance for

daily life I

WATER

RESISTANT

(WATER

RESIST)

50m (5bar)

×  ×××

Reinforced

water resist-

ance for

daily life II

WATER

RESISTANT

(WATER

RESIST)

100m (10bar)

200m (20bar)

×× ×

Diver’s

watches

Diver’s

watch for Air

Diving

AIR DIVER’S

100m / 150m

200m ××

Diver’s

watch for

Mixed-gas

Diving

He-GAS

DIVER’S

200m / 300m /...

×

* It is recommended that you use the watch correctly following the above-mentioned scope of usage

after ascertaining water resistance precautions marked on the dial or caseback.

ENGLISH

1A watch with water resistance for daily life 30m (3 bar) can be used during

face-washing, etc. but cannot be used in an environment in which it will be

submerged in water.

2A watch with reinforced water resistance for daily life I 50m (5 bar) can be

used while swimming, etc. but cannot be used during any type of diving

including skin diving.

3A watch with reinforced water resistance for daily life II 100m or 200m (10

or 20 bar) can be used while skin diving, but cannot be used while scuba

diving using oxygen tanks or saturation diving using helium gas, etc.

4Keep the crown pushed in at all times (in the normal position) while using

the watch. If the crown is the screwed-down type, check that it is securely

screwed down.

5Do not operate the crown underwater, or while the watch is wet. Water

may enter the interior of the watch and defeat the water resistance.

6If your watch is non-water resistant, beware of splashes of water (during

face washing, rain, etc.) and sweat. If the watch becomes wet from water

or sweat, wipe the moisture off with a dry, soft cloth.

7Even with a water resistant watch for everyday use, avoid directing strong

jets of mains water onto the watch. Water pressure above the limit can

apply, which may defeat the water resistance.

8With a water resistant watch for everyday use, rinse sea water off the case

after exposure, then wipe it thoroughly to avoid corrosion and other effects.

9The interior of the watch contains some amount of moisture, which may

cause fogging on the inside of the glass when the outside air is cooler than

the internal temperature of the watch. If the fogging is temporary it causes

no harm inside the watch, but if prolonged, or if water enters the watch,

consult your place of purchase and do not leave the problem untreated.

CAUTION

WARNING

ENGLISH

(2) Shock

1Be sure not to carry the watch when you engage in strenu-

ous sports, whereas playing such light sports as golf, etc.,

will not adversely influence the watch.

2Avoid a violent shock such as dropping the watch on the

floor.

(3) Magnetism

1If the watch is left at a location with strong magnetism for an extended pe-

riod of time, the components may be magnetized, resulting in malfunction.

Be careful.

2The watch may temporarily speed up or slow down when exposed to mag-

netism. Precision is restored when placed away from magnetism. In such

a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong vi-

brations such as from riding motorcycles, using jackham-

mers, chain saws, etc.

(5) Temperature

In environments below and above normal temperatures (5°C-35°C), the

watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch

may heat and cause burns.

(6)Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases,

mercury, chemicals (paint thinner, gasoline, various solvents, detergents

containing such components, adhesives, paint, drugs, perfumes, cosmet-

ics, etc.), and so forth. Such may cause discoloration of the watchcase,

watchband, and dial face. Discoloration, deformation, and damage to vari-

ous resin-based component parts may also occur.

CAUTION

ENGLISH

(7) About accessory parts

Do not attempt to disassemble or modify this product.

Store the bracelet/strap pin and other small parts out of the reach of chil-

dren.

If any small parts are swallowed, immediately contact a doctor.

(8)Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to

contact with the watch or strap, stop wearing the watch immediately and

consult a doctor.

(9) About “luminous light”

Some watch have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light

without using any radioactive material, and emits that light in a dark set-

ting. As the paint discharges the stored light, it will become dimmer over

time. The amount of light emitted and the time that light is emitted depends

on various factors when the light is stored, such as the shape of the glass,

the thickness of the paint, surrounding brightness level, the distance from

the watch to the light source, and the light absorption level. Please note

that when not enough light energy is stored, the watch may emit weak light

or emit light for only a short time.

(10)Water resistant watchband

Some products employ leather and nylon bands on which a special treat-

ment to resist perspiration and water absorption have been applied.

Please understand that the water resisting effect of this watchband can be

lost depending on the period and conditions of use.

WARNING

CAUTION

ENGLISH

HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or

the case code on the watch’s case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch.

You can also see the number on the product tag put on the watch. Its second

and third digits indicate the caliber number of your watch.

Example: If the model number is “□DH00001B□”, the caliber number is

“DH”.

2. Searching by the case code

See the case code on the case back of your watch.

The first two digits indicate the caliber number.

Example:

When the case code is “DH00-C0”, the caliber number is “DH”.

* The place of case code may vary and its letter size may be small and dif-

ficult to see depending on the characteristics of watches.

*The pictures and illustrations on this manual may differ from the actual ap-

pearance of your watch but the functions and operation procedures are the

same.









;





















Case code

ENGLISH

SPECIFICATIONS

Caliber Features Number

of jewels Date indicator 24-hour

hand

Second

hand halt

mechanism

Daily ac-

curacy Remark 1*

DH 48K Dual Time 21 Hand indicat-

ing type –○+25 - –15

sec/day

10:00 PM ~

2:00 AM

EY 46H World Time 23 Hand indicat-

ing type – – +25 - –15

sec/day

10:00 PM ~

2:00 AM

FA 46K World Time 21 Hand indicat-

ing type – – +25 - –15

sec/day

10:00 PM ~

2:00 AM

FB 46L World Time 21 Hand indicat-

ing type

Ring

indicating

type ○+10 - –5

sec/day

10:00 PM ~

2:00 AM

(1) Vibrations: 21,600 vibrations/hour

(2) Running time: More than 40 hours

(3) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following coditions:

• After 24 hours at room temperature with the mainspring wound fully and the

dial facing up.

• Due to the characteristics of the automatic winding watch, the time may devi-

ate from the stated “daily accuracy” depending on the following conditions:

amount of time the watch is worn each day, position of the watch, movement

of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

*Avoid setting the date between 10:00 p.m. and 2:00 a.m. since the calendar

changes during this time. If the date is set during this time period, the date

may not change or the watch may malfunction. Be sure to move the hour and

minute hands away from this time period when setting the date. (Remark 1)

CAUTION

ENGLISH

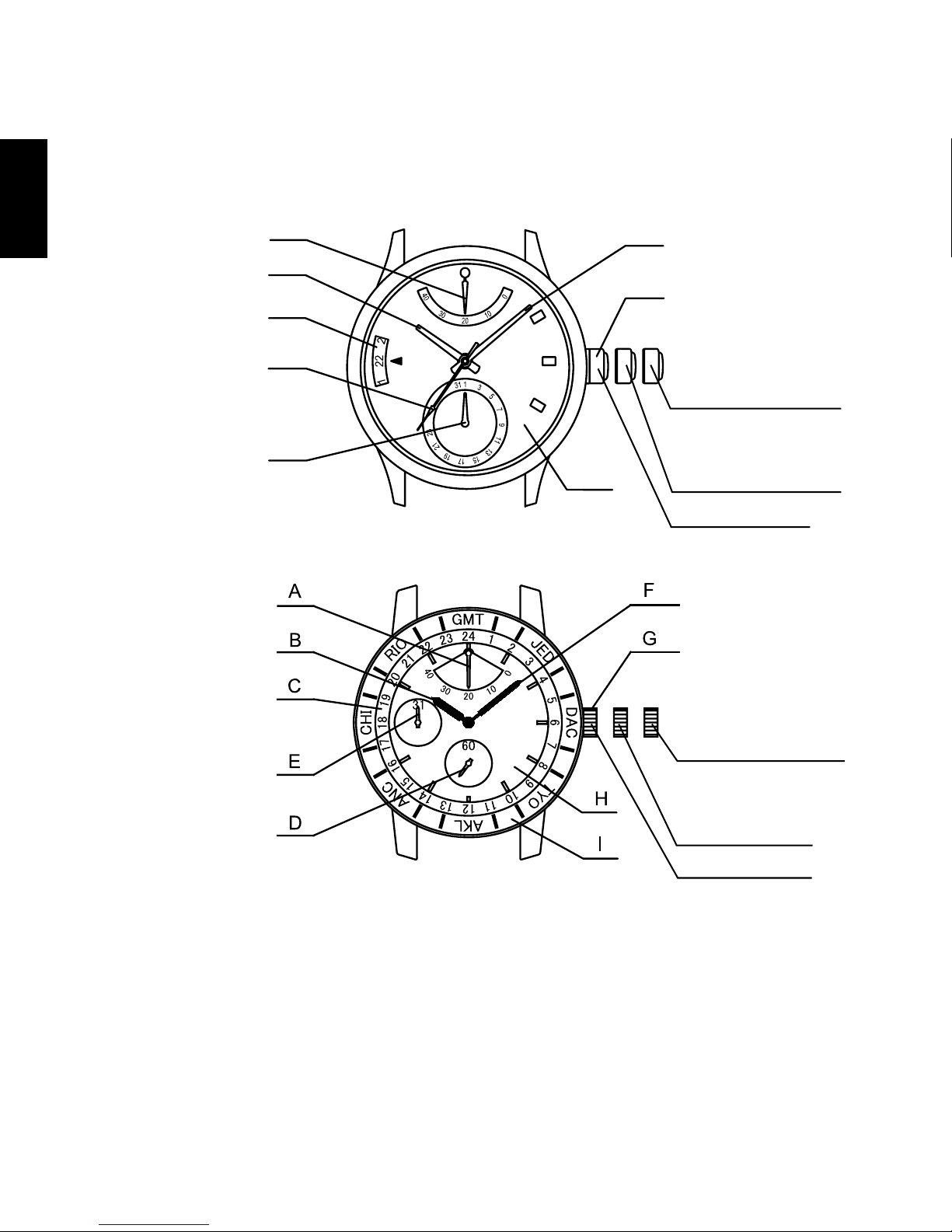

NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A: Power reserve

hand

B: Hour hand

C: Rotating

indicator ring

D: Second hand

E: Date hand

F: Minute hand

G: Crown

H: Dial

I: Bezel (or outer

indicator ring)

* Some models display dual time using times, and some display world times

using city names.

* On some models, city names for corresponding times (or times for corre-

sponding city names) displayed on the rotating indicator ring are displayed

on the bezel; on other models, they are displayed on the dial.

*The position of the crown, date indicator, etc. may vary on some models.

Second click: Time

setting

Normal position

First click: Date

and world time

setting

Second click: Time

setting (The second

hand stops)

First click: Date and

24-hour indication

setting

Normal position

ENGLISH

AUTOMATIC WINDING MECHANISM

(1) This is an automatic winding mechanical watch.

(2) The mainspring is wound by natural movements of your

arm when wearing the watch on your wrist.

(3) If your watch stops, swing the watch back and forth ten

or more times to re-start the second hand. After it starts

moving, set the date and time (dual time or World time).

(4) This watch will run approximately 40 hours after it is fully

wound. If it is not wound enough, the watch may lose ac-

curacy. In order to maintain the watch’s accuracy, we recommend wearing

the watch at least 8 hours a day.

MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without

unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time (dual time), first turn the crown to the left

to loosen the screw lock.

(2) After setting the date and time (dual time), turn the crown to the right while

pressing in, until it stops turning to securely tighten the screw.

POWER RESERVE INDICATOR

The power reserve indicator shows how

much the watch is wound, allowing you to

see how much longer the watch will run at

a glance. The time pointed to by the power

reserve hand is the remaining time.

The remaining time shown is only an ap-

proximation. The time shown may be dif-

ferent from actual remaining time.

This product has an automatic-winding system which comes with a power

reserve indicator function. The mainspring will be automatically wound by your

natural arm movements while you wear it on your wrist. The power reserve

hand is pointing to the fully-wound position (40H). The amount the watch is

wound will change with the frequency of your arm movements and the length

Power reserve

hand

ENGLISH

of time you wear the watch, so the hand will not always point to the fully wound

position. If you remove the watch from your arm and do not wind manually, the

power reserve hand will move toward zero as time passes.

HOW TO SET THE TIME

(1) Pull out the crown to the second click.

The second hand does not stop.

On calibers DH and FB, the second

hand stops. Pull the crown when the

hand reaches the 12 o’clock position.

(2) Turn the crown clockwise and set the

current time.

Since this watch comes with a calendar,

make sure that you set either a.m. or

p.m. without fail.

The date changes at [twelve o’clock

midnight].

When setting the time, first bring the

hand back slightly later the actual time

and then move it forward to the actual

time.

(3) Press the crown in to the normal posi-

tion.

Turn clockwise

Tabla de contenidos

Idiomas:

Otros manuales de Mirar de Orient

Orient

Orient UY (KTA) Manual de usuario

Orient

Orient FTD10002B0 Manual de usuario

Orient

Orient TX(VS75) Manual de usuario

Orient

Orient AA F69 Manual de usuario

Orient

Orient CFA02001B Manual de usuario

Orient

Orient EMAM80 Manual de usuario

Orient

Orient WE (KL7) Manual de usuario

Orient

Orient cem65001b Manual de usuario

Orient

Orient UU(KHA) Manual de usuario

Orient

Orient KFA (TD) Manual de usuario

Orient

Orient ST(KUD) Manual de usuario

Orient

Orient UT (H4A) Manual de usuario

Orient

Orient BF J50 Manual de usuario

Orient

Orient DA 40R Manual de usuario

Orient

Orient RK-AU0301B Manual de usuario

Orient

Orient SY(KFF) Manual de usuario

Orient

Orient UG1R002B Manual de usuario

Orient

Orient RA-KV0403S Manual de usuario

Orient

Orient OrientStar DIVER'S WATCH 200m Manual de usuario

Orient

Orient TT(KFB) Manual

Orient

Orient DM 48Y Manual de usuario

Orient

Orient UB8A002B Series Manual de usuario

Orient

Orient BEM5L003 Manual de usuario

Orient

Orient KU(RMC) Manual de usuario

Manuales populares de Mirar de otras marcas

Pandora

Pandora WATCH2 Manual de usuario

Casio

Casio QW-4343 Manual de usuario

Suunto

Suunto X6 Manual de usuario

Seiko

Seiko N830 Manual de usuario

MotionX

MotionX 365 Manual de usuario

Garmin

Garmin VENU SQ 2 Manual de usuario

QCY

QCY Watch GTC Manual de usuario

Canyon

Canyon Cindy CNE-KW41WP Manual de usuario

Esq

Esq Watches Guía de instalación

Crane

Crane AA5-CDSM-3A Manual de usuario

Timex

Timex W-214 Manual de usuario

DETOMASO

DETOMASO MATERA Manual de usuario

Geemarc

Geemarc Watch N Shake Manual de usuario

LORUS

LORUS W590 Manual de usuario

STENLILLE

STENLILLE Actío Manual de usuario

Casio

Casio 5594 Manual de usuario

Sinn

Sinn HUNTER'S WATCH 3. Edition Manual de usuario

Slazenger

Slazenger SLZ800 Manual de usuario
