Oregon Scientific BAR339P Manual de usuario

Radio-controlled Projection Clock

with

Colo

Weather Forecast

ur Weather Forecastur

Mod

el: BAR339P

USER MANUAL

BAR339P_M_EN_R1.indd 9 6/21/07 2:08:10 PM

P/N: 086L004766-034 REV1

1/70

Radio-Controlled Projection Clock

with

Colo

ur Weather Forecast

Mod

el: BAR339P

USER MANUAL

CONTENTS

Introduction ..............................................................2

Clock overview ........................................................2

Front view ..............................................................2

Back view ..............................................................2

Remote sensor ......................................................3

Getting started .........................................................3

Power supply .........................................................3

Remote sensor .........................................................3

Sensor data transmission ......................................4

Clock .........................................................................4

Clock reception .....................................................4

Manually set clock .................................................5

Alarm ........................................................................5

Weather Forecast ....................................................5

Temperature .............................................................6

Projector and backlight ...........................................6

Colour .......................................................................6

Key lock ....................................................................7

Reset .........................................................................7

Precautions ..............................................................7

Speciﬁ cations ..........................................................8

About Oregon Scientiﬁ c .........................................8

EU-Declaration of conformity .................................8

BAR339P_M_EN_R1.indd 1 6/21/07 2:07:56 PM

P/N: 086L004766-034 REV1

2/70

4. / : Toggle setting options; activate / deactivate

clock reception

5. TEMP: Toggle in / out temperature display

6. Projector (LED Aperture)

BACK VIEW

FOCUS

: Focus the projected image

2. RESET: Reset settings to default

3. °C / °F: Select temperature unit

4. EU / UK: Radio signal switch

5. Battery compartment

6. Light sensor

INTRODUCTION

Thank you for selecting this Oregon

Scientific

™

Radio-Controlled Projection Clock with Colour Weather

Forecast. Please keep this manual for instructions and

information you should know about.

CLOCK OVERVIEW

FRONT VIEW

1. SNOOZE: Snooze alarm; activate backlight; rotate

dual line projection display by 180°

2. ALARM: View alarm status; set alarm

3. CLOCK: Change display; set clock

BAR339P_M_EN_R1.indd 2 6/21/07 2:07:58 PM

P/N: 086L004766-034 REV1

3/70

7. MEM: View current, maximum and minimum

temperature

8. PROJECTION: ON / OFF switch

9. LIGHT: Backlight ON / OFF switch

10. DEMO WEATHER FORECAST: Select between

demo mode and weather forecast mode

11. Adapter socket

REMOTE SENSOR

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET hole: Reset unit to default settings

5. CHANNEL button: Select channel 1

GETTING STARTED

POWER SUPPLY

Batteries serve as a back-up power supply. For

continuous use of projector and backlight, install

adapter

The socket-outlet shall be installed near the

equipment and shall be easily accessible

NOTE will appear when power supply is not

connected.

To insert batteries:

1. Remove the battery compartment and insert

batteries, matching polarities.

2. Press RESET after each battery change.

LOCATION MEANING

Clock / alarm area Main unit batteries low

Outdoor / indoor

temperature area Sensor batteries low

REMOTE SENSOR

To set up the sensor:

1. Open the battery compartment, and insert batteries,

matching polarities.

2. Place the sensor within 30 m (98 ft) of the main

unit using the table stand or wall mount.

BAR339P_M_EN_R1.indd 3 6/21/07 2:08:01 PM

P/N: 086L004766-034 REV1

4/70

The transmission range may vary depending on many

factors. You may need to experiment with various

locations to get the best results.

NOTE We recommend that you use alkaline batteries

with this product for longer usage and consumer grade

lithium batteries in temperatures below freezing.

SENSOR DATA TRANSMISSION

Outdoor sensor

The main unit will automatically search for the outdoor

sensor. The sensor reception icon in the remote sensor

area shows the status:

ICON DESCRIPTION

Main unit is searching for

sensor(s)

A channel has been found

The sensor cannot be found.

NOTE If the sensor is not found, check the batteries,

obstructions, and remote unit location.

For best results:

• P

lace the sensor

out of direct sunlight and moisture.

• Position the sensor facing main unit, minimizing

obstructions.

• Place the sensor in a location with a clear view to

the sky, away from metallic or electronic objects.

• Position the sensor close to the main unit during

cold winter months.

CLOCK

CLOCK RECEPTION

This product is designed to synchronize its clock

automatically with a clock signal.

lide

EU / UK to select the signal received.

• EU: DCF-77 signal: within 1500 km (932 miles) of

Frankfurt, Germany.

• UK: MSF-60 signal: within 1500 km (932 miles) of

Anthorn, England.

To enable / disable signal reception

Touch and hold to enable, or to disable signal

signal reception.

NOTE Reception takes 2-10 minutes. If the signal is

weak, it can take up to 24 hours to get a valid signal.

BAR339P_M_EN_R1.indd 4 6/21/07 2:08:04 PM

P/N: 086L004766-034 REV1

5/70

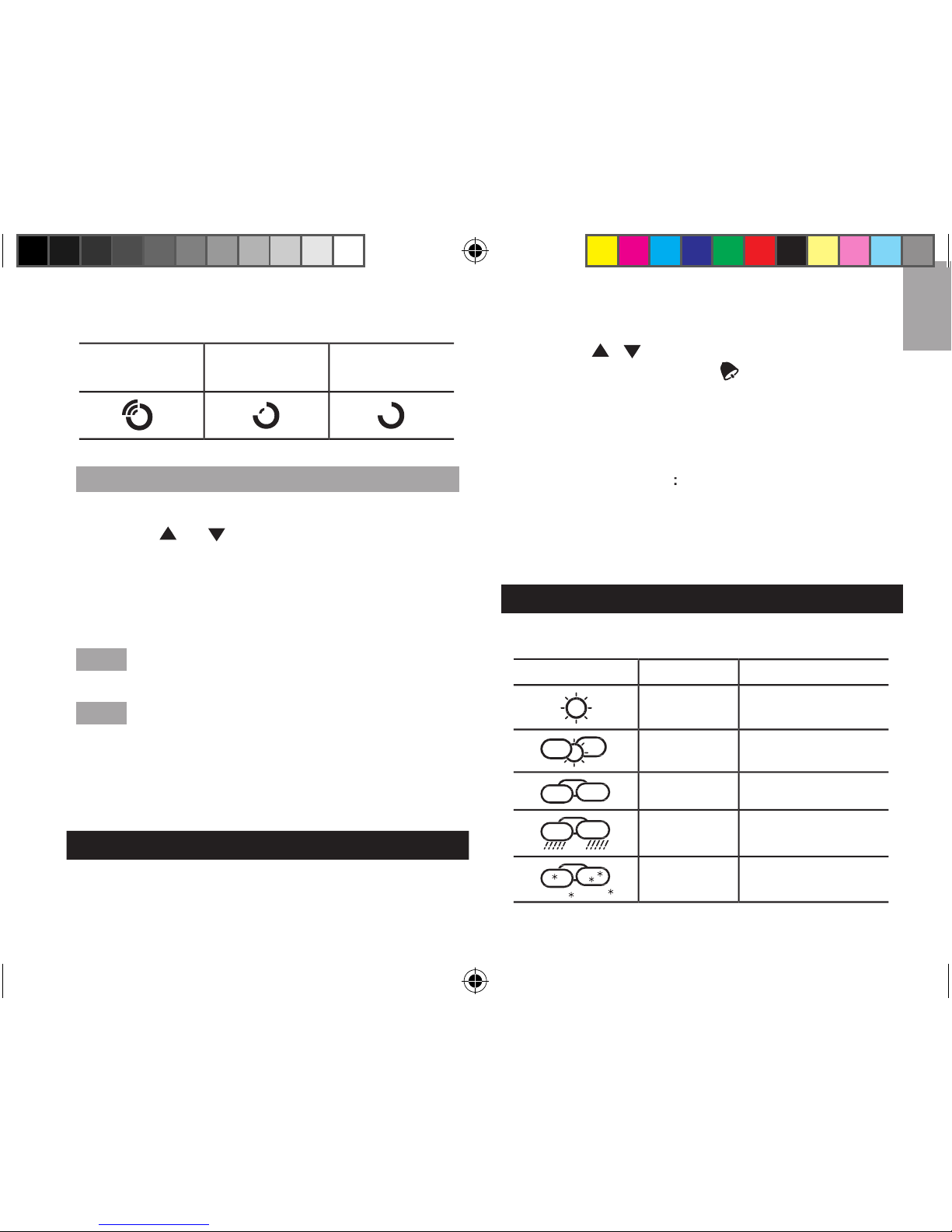

Clock signal reception indicator:

STRONG

SIGNAL

WEAK

SIGNAL

MANUALLY SET CLOCK

1. Touch and hold CLOCK for 2 seconds.

2. Touch or to change the settings.

3. Touch CLOCK to conﬁ rm.

4. The setting order is: time zone offset, 12/24-hr

format, hour, minute, year, day / month format,

month, day and language.

NOTE Time zone offset sets the clock +/- 23 hours

from the received clock signal time.

NOTE The language options are (E) English, (D) German,

(F) French, (I) Italian, and (S) Spanish.

To select display mode:

Touch CLOCK to choose between clock with seconds

and clock with weekday.

ALARM

To set the alarm:

1. Touch and hold ALARM for 2 seconds to enter

alarm-setting mode.

2. Touch / to set hour / minute.

3. Touch ALARM to conﬁ rm. indicates alarm is ON.

To toggle alarms ON / OFF:

1. Touch ALARM to display alarm time.

2. Touch ALARM again to turn alarm ON / OFF.

To silence the alarms

• Touch SNOOZE to silence it for 8 minutes

• Touch any other key to turn the alarm off and activate

it again after 24 hours.

WEATHER FORCAST

It will forecast the next 12 to 24 hours of weather within a

30-50 km (19-31 mile) radius using different colour icons.

ICON COLOUR DESCRIPTION

Red /

Orange SunnyS

Pink Partially Cloudy

Turquoise Cloudy

Purple Rainy

Green Snowy

BAR339P_M_EN_R1.indd 5 6/21/07 2:08:07 PM

P/N: 086L004766-034 REV1

6/70

• Touch repeatedly to ﬂ ip dual line projection image

by 180 degrees.

NOTE

If projection is illuminated, do not look directly

into the projector.

NOTE To save battery life, the projector and backlight

will only operate continuously when adapter is installed.

The light sensor will turn off the projector automatically

when it detects external light sources.

COLOUR

The colour function lights up the LCD screen. There are

2 different types of display:

• WEATHER FORECAST: The colour changes

according to the different weather forecast. (As

shown in Weather forecast).

• DEMO: The colour gradually changes between the

colours (rainbow display).

TEMPERATURE

To toggle temperature unit

Press °C / °F.

To toggle between outdoor / indoor sensor readings

Touch TEMP. / indicates indoor and outdoor

temperature.

To auto-scan between sensors

Touch and hold TEMP for 2 seconds to display the

sensor’s data for 5 seconds.

To deactivate auto-scan function touch TEMP.

To toggle between current, minimum and maximum

temperature records for outdoor / indoor:

Press MEM repeatedly.

To clear the records:

Press and hold MEM for 2 seconds.

PROJECTOR AND BACKLIGHT

To activate Projection function

• Slide PROJECTON switch to ON to illuminate

projection continuously.

To activate Backlight function:

• Slide LIGHT switch to ON to illuminate backlight

continuously.

• Touch SNOOZE to turn on projector and backlight

for 5 seconds.

BAR339P_M_EN_R1.indd 6 6/21/07 2:08:08 PM

P/N: 086L004766-034 REV1

7/70

To activate / deactivate the weather forecast or rainbow

display, slide the relevant switch to one of the following

options:

• WEATHER FORECAST: Colour changing weather

forecast.

• DEMO: For gradual changes between the colours.

KEY LOCK

Auto key lock will activate if no key is pressed for 1

minute. indicates key lock is engaged, touch any

key to unlock.

RESET

Press RESET to return to the default settings.

PRECAUTIONS

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items

such as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials.

• Do not tamper with the unit’s internal components.

This invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is collected

separately for special treatment.

• Placement of this product on certain types of wood

may result in damage to its ﬁ nish for which Oregon

Scientiﬁ c will not be responsible. Consult the furniture

manufacture’s care instructions for information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for special

treatment is necessary.

• Please note that some units are equipped with a

battery safety strip. Remove the strip from the battery

compartment before ﬁ rst use.

NOTE The technical speciﬁ cations for this product and

the contents of the user manual are subject to change

without notice.

BAR339P_M_EN_R1.indd 7 6/21/07 2:08:09 PM

P/N: 086L004766-034 REV1

8/70

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 177 x 56 x 112 mm

(6.97 x 2.21 x 4.41 in)

Weight 340 g (12.0 oz) without battery

Temperature Unit °C / °F

Temperature range -5°C to 50°C

(23°F to 122°F)

Resolution 0.1°C (0.2°F)

Signal frequency 433 MHz

Power 3 x UM-3 (AA) 1.5 V batteries /

4.5V AC / DC adapter

REMOTE UNIT (THN132N / THN132NH)

L x W x H 92 x 60 x 20 mm

(3.6 x 2.4 x 0.8 in)

Weight 62 g (2.2 oz)

Transmission range 30 m (98 ft) unobstructed

Temperature range -30°C to 60°C

(-22°F to 140°F)

Power 1 x UM-3 (AA) 1.5 V battery

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientiﬁ c.com) to learn

more about Oregon Scientiﬁ c products. If you’re in

the US and would like to contact our Customer Care

department directly, please visit:

www2.oregonscientiﬁ c.com/service/support

Call 1-800-853-8883.

For international inquiries, please visit:

www2.oregonscientiﬁ c.com/about/international

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientiﬁ c, declares that this Radio-

Controlled Projection Clock with Colour Weather

Forecast (Model: BAR339P) is in compliance with the

essential requirements and other relevant provisions

of Directive 1999/5/EC. A copy of the signed and dated

Declaration of Conformity is available on request via

our Oregon Scientiﬁ c Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

All EU countries, Switzerland

and Norway

BAR339P_M_EN_R1.indd 8 6/21/07 2:08:09 PM

P/N: 086L004766-034 REV1

9/70

Orologio Radiocontrollato

con Proiezione dell’Ora

e Previsioni del Tempo a Colori

Modello: BAR339P

MANUALE PER L’UTENTE

INDICE

Introduzione .............................................................2

Panoramica del prodotto ........................................2

Vista anteriore .......................................................2

Vista posteriore .....................................................2

Sensore remoto .....................................................3

Operazioni preliminari .............................................3

Alimentazione ........................................................3

Sensore remoto .......................................................4

Trasmissione dei dati del sensore .........................4

Orologio ....................................................................4

Ricezione dell’ora .................................................4

Impostazione manuale dell’ora .............................5

Sveglia ......................................................................5

Previsioni meteorologiche ......................................6

Temperatura .............................................................6

Proiezione dell’ora e retroilluminazione ................6

Colore .......................................................................7

Blocco dei tasti ........................................................7

Funzione Reset ........................................................7

Precauzioni ..............................................................7

Speciﬁ che tecniche .................................................8

Informazioni su Oregon Scientiﬁ c .........................9

Dichiarazione di conformita’ UE .............................9

BAR339P_M_IT_R1.indd 1 6/21/07 2:10:53 PM

P/N: 086L004766-034 REV1

10/70

Otros manuales para BAR339P

Tabla de contenidos

Idiomas:

Otros manuales de Reloj de Oregon Scientific

Oregon Scientific

Oregon Scientific RMR331ES Manual de usuario

Oregon Scientific

Oregon Scientific RM822 Manual de usuario

Oregon Scientific

Oregon Scientific RM818PA Manual de usuario

Oregon Scientific

Oregon Scientific RM331P Manual de usuario

Oregon Scientific

Oregon Scientific RRM902 Manual de usuario

Oregon Scientific

Oregon Scientific TW331 Manual de usuario

Oregon Scientific

Oregon Scientific BAR332ES Manual de usuario

Oregon Scientific

Oregon Scientific DP100 Manual de usuario

Oregon Scientific

Oregon Scientific RM832A Manual de usuario

Oregon Scientific

Oregon Scientific RM826 Manual de usuario

Oregon Scientific

Oregon Scientific RRM612P Manual de usuario

Oregon Scientific

Oregon Scientific BAR669H Manual de usuario

Oregon Scientific

Oregon Scientific RM313PNFA Manual de usuario

Oregon Scientific

Oregon Scientific RM313PU Manual de usuario

Oregon Scientific

Oregon Scientific FAT101 Indianapolis Manual de usuario

Oregon Scientific

Oregon Scientific BARM839 Manual de usuario

Oregon Scientific

Oregon Scientific RM328P Manual de usuario

Oregon Scientific

Oregon Scientific JM889N Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA G RRM222P Instrucciones de instalación

Oregon Scientific

Oregon Scientific RM303P Manual de usuario

Oregon Scientific

Oregon Scientific JM200 Manual de usuario

Oregon Scientific

Oregon Scientific MSR939A-01 Manual de usuario

Oregon Scientific

Oregon Scientific Jumbo JMR828A Manual de usuario

Oregon Scientific

Oregon Scientific EMR801 Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario
