Optica D122 Manual de usuario

Optica HD Dome Network Camera

Installation Guide

Indoor/Outdoor

Ver. 1.3

Table of Contents

1.Indoor Camera Installation..................................................................................................... 3

1.1Hard Ceiling................................................................................................................... 3

2.Outdoor Camera Installation with Sunshield Housing & Pendant Mount ....................... 13

2.1Standard/Compact Pendant Mounting........................................................................ 13

3.Cable Gland Installation....................................................................................................... 18

1. Indoor Camera Installation

1.1 Hard Ceiling

The Dome IP Camera can be installed directly on a wall or ceiling. Please note

that the wall or ceiling must have enough strength to support the IP Dome

Camera.

Items Needed:

zVandal Proof/Indoor Dome IP Camera

zEthernet Cable

zDC Jack Cable (supplied; only necessary if not using PoE)

zSelf-tapping Screws (supplied)

zRubber Washers (supplied)

zPlastic Screw Anchors (supplied)

Tools Needed:

zTool for drilling

z(+,–) Screw Driver

Follow the steps below to install the IP Dome Camera:

Step 1:

Unpack the Vandal Proof/ Indoor Dome IP Camera package and take out the

IP Dome Camera.

Step 2:

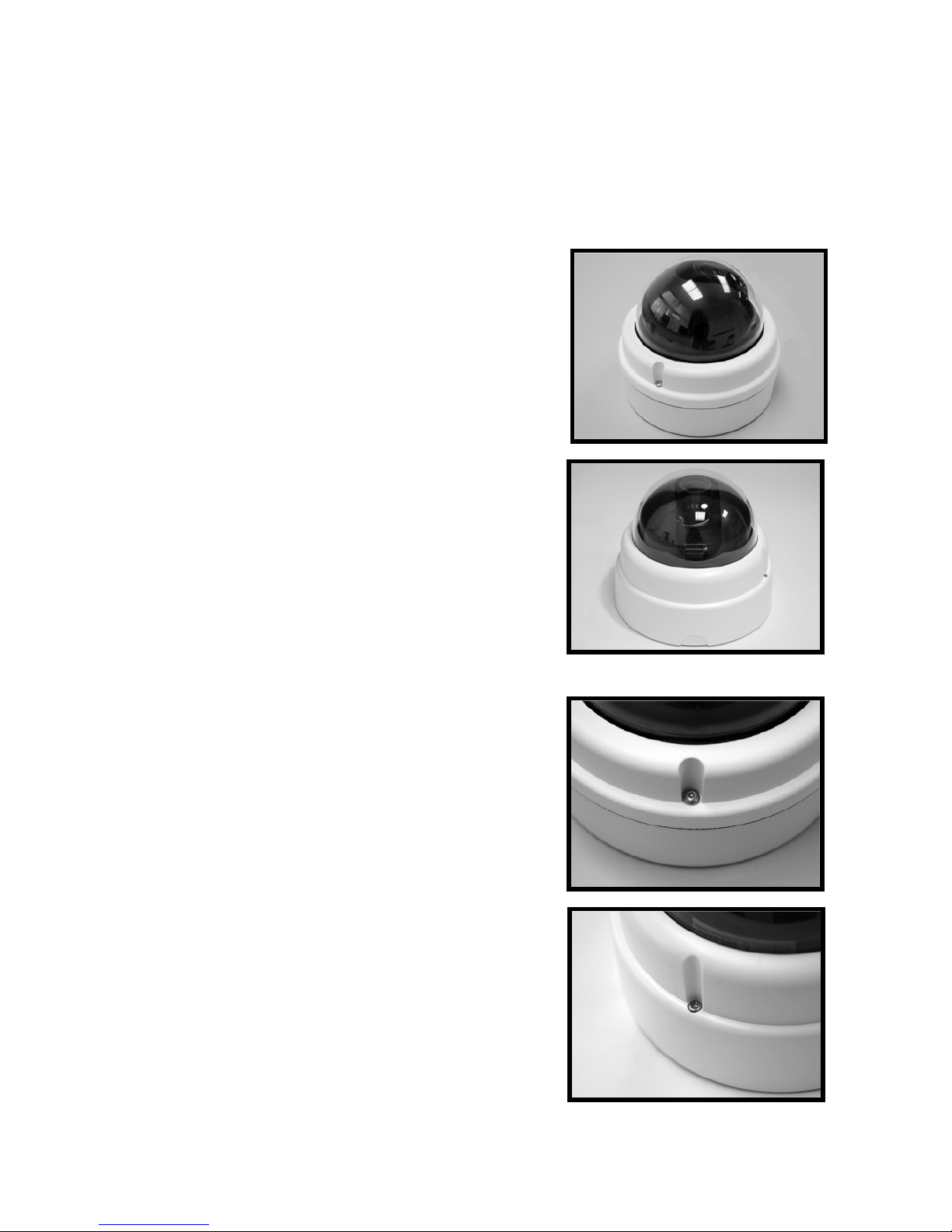

Release the 2 captive Security Screws with

the supplied Security Torx and open the

Dome Cover.

Figure-1:

Captive Security Screw

Step 3:

Press both sides of the Inner Cover and

remove it from the Camera Module.

Step 4:

Unscrew the Module-fastened Screw, as

indicated in the figure, with the screw

driver.

Step 5:

Press the sides of the Snap-on Camera

Module, as indicated in the figure, and

detach it from the Dome Camera’s

Housing/ Plate.

Step 6:

Mark the positions of the four screw holes on the base of the Dome Camera at

the chosen installation location.

Vandal Proof IP Dome Camera

Type1 Type2

Indoor Dome IP Camera

Step 7:

In the marked locations, drill each hole slightly smaller than the supplied

Screw Anchors.

Step 8:

Put supplied Anchors into these drilled holes.

Step 9:

Fasten the Dome Camera’s Housing/

Plate with the four supplied Self-tapping

Screws.

NOTE: Be sure to fix the Self-

tapping Screws with the Rubber

Washers.

Step 10:

Thread the cables (Power/ Ethernet/

Audio/ Alarm) through either the side

conduit entry or back conduit entry, as

illustrated. Users may use a coin to

screw off the conduit entry block for

Vandal Proof IP Dome Camera.

NOTE: The Power Cable is

omitted if using PoE.

Connect the Cable(s) to the Unit

Connect the ports (on the Camera

Module) with their cables/wires

respectively, as shown in the figures.

Step 11:

Attach the Snap-on Camera Module

into/ on the Dome Camera Housing/

Plate, and screw the Module-fastened

Screw tightly with the screw driver to

secure the Camera Module.

NOTE: The terminal blocks

should face the side conduit

entry for Vandal Proof IP Dome

Camera, as shown in the figure.

Vandal Proof

Indoor

Step 12:

Connect the power and network outputs.

NOTE: The Power Cable is omitted if using PoE.

STEP 13:

Access the Camera Browser-viewer for viewing images. Please refer to

User’s Manual for further details. Users can also use the Camera’s BNC

Connector for video output while choosing BNC as one streaming in

advance.

Step 14:

Adjust the Camera's zoom level and

focal length via Zoom and Focus Ring

Screws.

NOTE: The zoom level and focal

length might be different with the

Dome Cover on, in this case,

adjusting zoom level and focal

length through the Dome Cover

is recommended.

Adjust the Zoom Ring Screw to set the

desired zoom; subsequently, modifying

the Focus Ring Screw to set the desired

focal length.

Step 15:

Adjust the Camera’s Pan/Tilt holder to a desired angle, as shown below. Pan

adjustment range is nearly 360°; rotation angle range approaches to 270°.

Tilt is adjustable between ﹣10° ~ 90°.

PanAdjustment TiltAdjustment

NOTE: Adjust the Lens carefully within the limits mentioned above, or

the cables underneath would be harmed.
