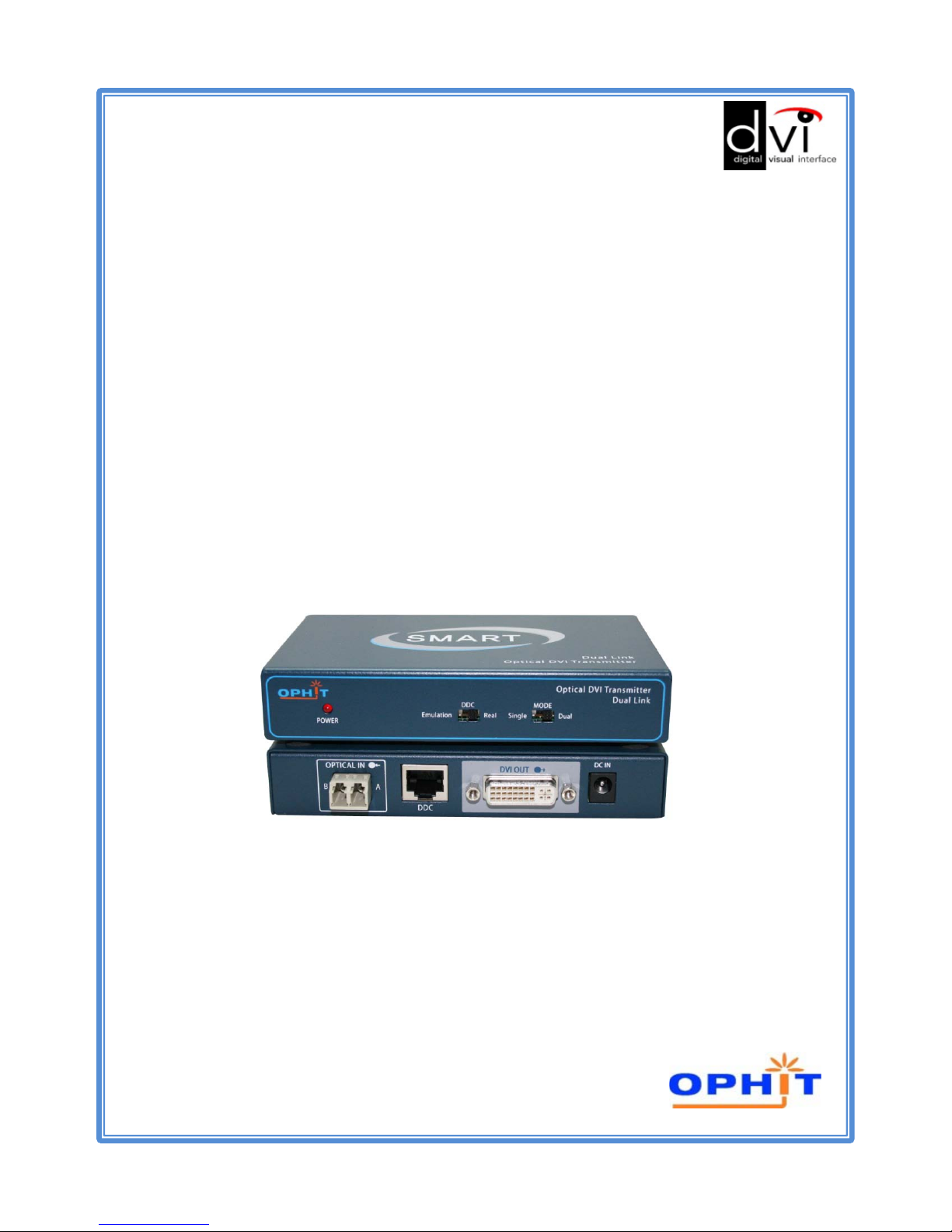

Dual link
Extension System
DQSL
USER’S manual
Table of Contents
1. Introduction ……………….....................................…2
2. Features ….…………………….............………………....2
3. Model name …………...............………………….………2
4. Panel Descriptions …..............………………….………3
5. Package contents .……….............…………….……….3
6. Installation .………………............……………………….4
7. Specification ………………………..............……………..5
8. Precaution .……………………………..............………….6
9. Warranty .……………………………...…............……….7
10. Contact us..............................................................8
www.ophit.com 1
Introduction
2
DQSL with fiber optical system let your dual link flat panel display extend
up to 100M(330ft) away from the host.
Maximum resolution is WQXGA.
•High Speed and long distance transmission by LC type 2ch multi-mode
fiber optic cable
•Extends up to 100M(330ft)
•Self detecting function for EDID information
•Supports Single link and Dual link by selectable function switch
•Supports up to WQXGA (2560x1600) resolution for Dual link,
WUXGA(1920x1200) resolution for Single link
•Supports two mode for DDC
-Real mode : Uses one CAT-5 cable for DDC
-Emulation : Pseudo-DDC detection function for EDID information
Features
Model Name
DQSL
www.ophit.com
Panel Descriptions
3
Package contents
Before you start installing DQSL, please check the package contents.
•DQSL Transmitter & Receiver
•User’s Manual
•2 x Power adapter(5V,2A)
www.ophit.com
UTP port for
DDC DVI Input
port Powerjack
Optical 2ch LC
port
UTP port for
DDC DVI Output
port Powerjack
Optical 2ch LC
port
DDC function
switch Single/Dual mode
selectingswitch
Power
LED indicator
Transmitter
Front
Receiver
Rear
Transmitter
Rear
Installation
Function Switch
Installation
1. Connect a source device to DVI input port on DQSL Transmitter.
2. Connect 2ch of LC type optic fiber cables to optical port.
3. Connect the display device to DVI output port on DQSL Receiver.
4. Connect UTP cable between TX and RX for DDC communication. (Optional)
5. Plug the power adapter to both Transmitter and Receiver.
4www.ophit.com
EDID Switch in front of Transmitter
-REAL : EDID data of connected monitor is transmitted betweeb Tx and Rx in real
time through UTP cable.
-Emulation : Certain EDID data pre-set in the Tx is used in signal transmission.
UTP cable is not necessary.
MODE Switch in front of Transmitter
-Single : When you use Single link display, select ‘Single’ switch.
-Dual : When you use Dual link display, select ‘Dual’ switch.
Specifications
Specifications
•Connector
-Using connector : DVI 24pin(female) & LC type
-Link : RJ-45 Jack(female)
•Video Bandwidth : 1.65Gbps(Single link)
•Maximum Supporting Resolution
-Single Link : WUXGA (1920 x 1200)
-Dual Link : WQXGA (2560 x 1600)
•Power Consumption : Tx –1.4W(Single link), 1.0W(Dual link)
Rx –1.5W(Single link, Dual link)
•Power Supply : 100~240V with DC 5V 2A adaptor for Tx and Rx
•Dimension : 135W x 85D x 25H (mm)
•Environment
-Operating Temperature Range : 0 to 50°C
-Storage Temperature Range : -20 to 70°C
www.ophit.com 5
Precaution
WARNING
•Do not dismantle the housing or modify the product.
Dismantling the housing or modifying the product may result in electrical
shock or burn.
•Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing
housing may expose you to dangerous voltage or other hazards.
•Keep the product away from liquids.
Spillinginto the housing may result in fire, electricalshock, or equipment
damage. If an object or liquid falls/spillsinto the housing, unplug the
product immediately.
Have the product checked by a qualified service engineer before using it
again.
•Do not touch the Product with wet hands.
Touching the housing and plug with wet hands is dangerous and can
cause electricalshock.
www.ophit.com
6
Warranty
We, OPHIT hereby warrant the final purchase of our product as follows.
In the case of troubles on our products, please contact the shop purchased.
One(1) year limited warranty
Our customers have right to be served with free charge when there is trouble
in this product during one(1) year from the day purchased.
Out of warranty services
Whenyou request services (in the case of non manufacturing defect but the
troublesby misusage), may served with charge of follows.
•Defects of products caused by accident , disaster.
•Damages of products caused by the customer’s carelessnessor
mistaken application.
•Damages of products caused by the applicationof parts or
products not suppliedor sold by our company.
•Damages of products and related defects caused by not our staff
or the man or group not nominated by us for services.
www.ophit.com 7
Contact us
www.ophit.com
OPHIT CO., LTD.
www.ophit.com
Head office
908~911/103 Digital EmpireⅡ, 486 Sin-Dong, Youngtong-
Gu,
Suwon-City, Kyunggi-Do 443-734, KOREA
TEL : +82-31-695-5543 FAX : +82-31-695-5545
E-mail : support@ophit.com
Factory
3F/5F, Suntechnovil, 5-27, Mangpo-Dong, Youngtong-Gu,
Suwon-City, Kyunggi-Do 443-440, KOREA
TEL : +82-31-205-4191 FAX : +82-31-205-4197
Rev. 1.0
8
Copyrightⓒ2011 OPHITAll right reserved
