FB-3500 BI-DIRECTIONAL ELECTROMAGNETIC FLOW METER

Installation and Operation Guide

12-150718-5 / 18611

FLOW

AND

ENERGY

MEASUREMENT

FB-3500

236251

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 2

SAFETY INFORMATION

This meter was calibrated at the factory before shipment. To ensure correct use of the meter, please read

this manual thoroughly.

Regarding this Manual:

• This manual should be passed on to the end user.

• Before use, read this manual thoroughly to comprehend its contents.

• The contents of this manual may be changed without prior notice.

ONICON’s written permission.

• ONICON makes no warranty of any kind with regard to this material, including, but not

limited to, implied warranties of merchantability and suitability for a particular purpose.

• All reasonable effort has been made to ensure the accuracy of the contents of this manual.

However, if any errors are found, please inform ONICON.

• ONICON assumes no responsibilities for this product except as stated in the warranty.

• If the customer or any third party is harmed by the use of this product, ONICON assumes

no responsibility for any such harm owing to any defects in the product which were not

predictable, or for any indirect damages.

Safety Precautions:

The following general safety precautions must be observed during all phases of installation,

operation, service, and repair of this product. Failure to comply with these precautions or with

specic WARNINGS given elsewhere in this manual violates safety standards of design,

manufacture, and intended use of the product. ONICON Incorporated assumes no liability for the

customer’s failure to comply with these requirements. If this product is used in a manner not

specied in this manual, the protection provided by this product may be impaired.

The following symbols are used in this manual:

WARNING

Messages identied as “Warning” contain information regarding the personal safety of

individuals involved in the installation, operation or service of this product.

CAUTION

Messages identied as “Caution” contain information regarding potential damage to the

product or other ancillary products.

IMPORTANT NOTE

Messages identied as “Important Note” contain information critical to the proper operation of

the product.

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 3

TABLE OF CONTENTS

1.0 INTRODUCTION .................................................................................................5

1.1 PURPOSE OF THIS GUIDE .......................................................................5

1.2 TYPICAL INSERTION ELECTROMAGNETIC FLOW METER ................5

1.3 STANDARD FEATURES AND SPECIFICATIONS....................................6

1.4 ADDITIONAL REQUIRED HARDWARE...................................................7

1.5 ADDITIONAL HARDWARE THAT MAY BE REQUIRED.........................8

1.5.1 Grounding Rings..........................................................................8

2.0 UNPACKING ......................................................................................................9

2.1 CHECKING THAT YOU HAVE RECEIVED EVERYTHING ......................9

3.0 INSTALLATION, REMOVAL & ADJUSTMENT ................................................10

3.1 INSTALLATION SITE SELECTION ........................................................10

3.1.1 General Site Selection Guidelines ............................................10

3.1.2 Insufcient Straight Run Site Selection Guidelines.................11

3.2 MECHANICAL INSTALLATION.............................................................12

3.2.1 Installation Kit ...........................................................................13

3.2.2 ONICON Standard Installation Hardware Kit ..........................13

3.2.3 ONICON Hot Tap Installation Hardware Kit ............................13

3.2.4 Customer Supplied Installation Hardware ...............................14

3.2.5 Conrming the Stack Height .....................................................15

3.2.6 Installing the Flow Meter ..........................................................16

3.3 INSERTION OF THE METER ..................................................................17

3.3.1 Inserting the Flow Meter ...........................................................17

3.4 REMOVAL OF THE METER....................................................................18

3.5 WIRING CONNECTIONS ........................................................................20

3.5.1 Signal & Power Wiring Connections.........................................21

3.5.2 Earth Connections......................................................................22

4.0 START-UP & COMMISSIONIING FOR ONICON INSERTION

ELECTROMAGNETIC FLOW METERS.............................................................23

4.1 HELPFUL HINTS FOR START-UP AND COMMISSIONING.................23

4.2 START-UP AND COMMISSIONING .......................................................24

4.3 START-UP AND COMMISSIONING WORKSHEET...............................25

4.4 TROUBLESHOOTING GUIDE.................................................................26

4.4.1 Earth Connections & Electrical Noise Reduction .....................26

APPENDIX

Conditions of Sale

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 4

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 5

This guide is the basic reference tool for all ONICON FB-3500 Bi-Directional Electromagnetic

Flow Meters. If you have not purchased all of the options, there will be references in this manual

which are not applicable to your meter(s).

1.2 TYPICAL INSERTION ELECTROMAGNETIC FLOW METER

Faraday’s Law of electromagnetic induction states that a voltage will be induced in a conductor

when it passes through a magnetic eld, and the induced voltage will be directly proportional to

the velocity of the conductor.

ONICON FB-3500 Bi-Directional Electromagnetic Flow Meters generate pulsating magnetic elds

that are used to induce a voltage into the conductive uid owing through the pipe. Electrodes

located on the ow meter sensor head measure the induced voltage. Circuitry within the ow

meter electronics enclosure then converts the voltage to digital and analog signals that convey

ow rate and total data via connecting the cable to any of ONICON’s display devices, Btu meters

and/or to a data acquisition system.

Typical Meter Installation

(New construction or scheduled shutdown)

½" FNPT

conduit connection

Insertion depth

gage provided

with each meter

FLOW

Customer provided

conduit and adapters

Output signal(s)

to control

system

ONICON

Display or

BTU Meter

(Optional)

Allow enough slack

in the flexible conduit

to permit the meter

to be removed

from the valve.

Typically

30" - 40"

depending on

pipe size and

height of valve

assembly.

CLEARANCE

REQUIRED

FOR INSTALLATION

Standard Installation

Kit for Steel Pipe

1" Full port ball valve

1" Close nipple

1" Branch outlet

1¼" for

hot tap

Minimum Hole Size = 1"

Must be centered

Note: Installation kits vary based on pipe material and application. For installations in pressurized (live)

systems, use "Hot tap" 1¼ inch installation kit and drill hole using a 1 inch wet tap drill.

• Install in vertical or horizontal pipe

• For horizontal pipe position meter

anywhere in upper 240˚

SECTION 1.0: INTRODUCTION

We, at ONICON Incorporated, would like to thank you for purchasing our quality American made

FB-3500 Bi-Directional Electromagnetic Flow Meter. As our valued customer, our commitment to you

is to provide fast reliable service, while continuing to offer you quality products to meet your growing

ow measurement needs.

1.1 PURPOSE OF THIS GUIDE

We have written this guide to provide the persons responsible for the installation, operation and

maintenance of your ow meter with the most specic equipment information they will need.

This is NOT an electrical or plumbing trade manual.

WARNING

Please do not permit persons to install, operate or maintain this equipment unless they have a

complete knowledge of their trade skills and are competent to work on high pressure hot and cold

water and steam systems, according to their individual trades. Death or permanent injury may

result from accidents with these systems.

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 6

1.3 STANDARD FEATURES AND SPECIFICATIONS

Accuracy

± 1.0% of reading from 2 to 20 ft/sec

± 0.02 ft/sec below 2 ft/sec

Sensing Method

Electromagnetic, no moving parts

Pipe Size Range

3” through 72” nominal

Input Power

20 - 28 VAC 50/60 Hz, 250 mA maximum

20 - 28 VDC, 250 mA maximum

Liquid Temperature Range

15° to 250° F

Ambient Temperature Range

-5° to 150° F

Operating Pressure

400 PSI maximum

Pressure Drop

Less than 0.1 psi at 12 ft/s velocity in 3” and larger pipes

Materials of Construction

Wetted metal components - 316L stainless steel

Sensor head - Polypropylene

Electronics enclosure - Powder coat painted cast aluminum

Enclosure Rating

Weathertight, NEMA 4

Electrical Connections

10’ of PVC jacketed cable with ½” NPT conduit connection

OUTPUT SIGNALS PROVIDED

Analog Output (Isolated)

Selectable: 4-20 mA, 0-10 V or 0-5 V

Frequency Output

0 – 15 VDC, 0 – 500 Hz

Pulse/Contact Closure Outputs (four)

Isolated solid state dry contact

Contact maximum ratings: 100 mA, 50 VDC

Scalable Pulse Outputs (two)

Forward & Reverse Flow Totalization

Pulse Duration: 0.5, 1, 2 or 6 seconds

Directional Contact Output:

Switch closed when ow is in direction of ow arrow on enclosure

Latches at 0.2 ft/s

Switches within 20 seconds of direction change

Master Alarm Output:

Switch closed indicates alarm condition

This product is covered by one or more of the following patents: 6,431,011 and 6,463,807.

ELECTROMAGNETIC INSERTION FLOW METER

NSF/ANSI 61 <MH60590>

ALSO CLASSIFIED

IN ACCORDANCE WITH

NSF/ANSI 372

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 7

1.4 ADDITIONAL REQUIRED HARDWARE

All ONICON insertion type meters can be installed and removed via

a 1” or larger full port ball valve without system shutdown. The

terms “Standard” and “Hot Tap” refer to the installation method of

the isolation valve kit only.

Standard Installation Hardware: For new construction or

scheduled shutdown, once kit is installed, the ow meter can

be installed or removed without system shutdown.

Hot Tap Installation Hardware: For applications which require the

access hole in the pipe to be drilled through the valve using a

wet tap drilling machine while the hydronic system is

pressurized and operating.

NOTE: Installation hardware materials vary greatly based on pipe material, pipe size and

standard vs. hot tap versions.

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 8

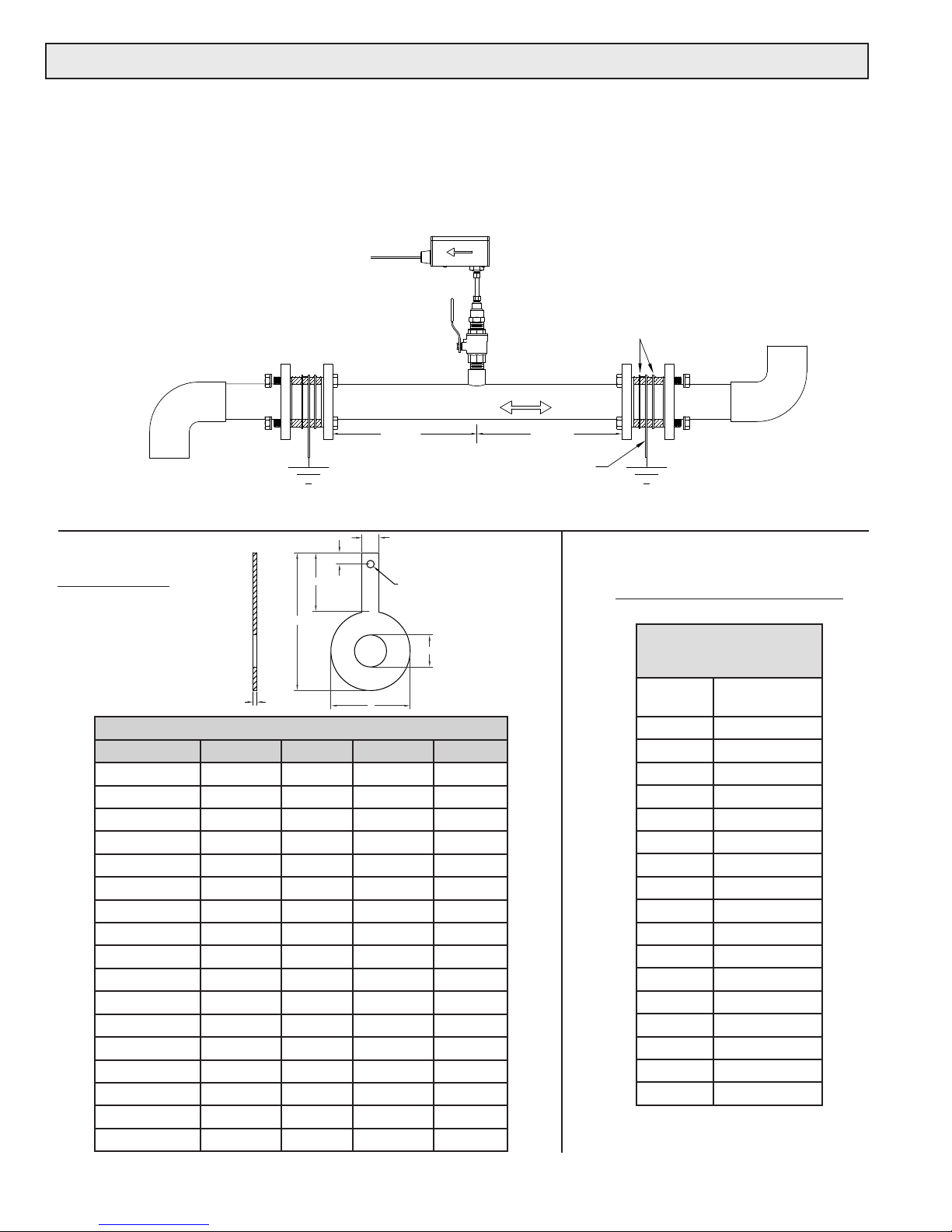

1.5 ADDITIONAL HARDWARE THAT MAY BE REQUIRED

1.5.1 Grounding Rings

Grounding rings may be required whenever meters are installed in non-metallic or lined pipes.

Grounding rings placed before and after the meter eliminate electrical noise that will interfere

with the proper operation of the meter. ONICON provides grounding rings as an optional

accessory. Grounding ring dimensional information and part numbers are listed below. For proper

operation, grounding rings are required before and after the meter.

ORDERING INFORMATION

ANSI Class 150

316 Stainless Steel

Grounding Rings (pair)

Nominal

Size

ONICON Part

Number

1” 19265

1½” 19266

2” 19267

3” 19268

4” 19269

6” 19270

8” 19271

10” 19272

12” 19273

14” 19274

16” 19275

18” 19276

20” 19277

24” 19278

30” 19279

36” 19280

42” 19281

Grounding Ring Dimensions

Nominal Size Bore A C D

1” 1 - 1/16 2 - 5/8 4 - 9/16 1 - 15/16

1.5” 1 – 9/16 3 – 3/8 5 - 5/16 1 - 15/16

2” 2 – 1/16 4 – 1/8 6 - 1/16 1 - 15/16

3” 3 – 1/16 5 – 3/8 7 - 5/16 1 - 15/16

4” 4 – 1/16 6 – 7/8 8 - 13/16 1 - 15/16

6” 6 8 – 3/4 10 - 11/16 1 - 15/16

8” 8 11 12 - 15/16 1 - 15/16

10” 9 – 1/2 13 – 3/8 15 - 5/8 2 - 1/4

12” 11 – 9/16 16 – 1/8 18 - 9/16 2 - 7/16

14” 13 – 1/2 17 – 3/4 20 - 3/8 2 - 5/8

16” 15 – 1/4 20 – 1/4 22 - 7/8 2 - 5/8

18” 17 – 3/8 21 – 5/8 24 - 1/4 2 - 5/8

20” 19 23 - 7/8 26 - 11/16 2 - 13/16

24” 23 28 – 1/4 31 - 1/8 2 - 7/8

30” 29 34 – 3/4 38 3 - 1/2

36” 35 41 – 1/4 45 - 1/4 4

42” 41 48 52 - 1/2 4 - 1/2

3/8

5/8

Bore

1/4

1/8”

10 DIA

Gasket (4PL)

Grounding Ring (2PL)

Flow Direction

10 DIA

Typical Installation

Non-conductive Pipe

DIMENSIONS

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 9

SECTION 2.0: UNPACKING

ONICON insertion magnetic ow meters are packed and shipped in individual cartons. An optional

installation hardware kit INSTL 1 or INSTL 2, if ordered, will be packaged with each meter. All other

installation hardware and peripheral devices, including Btu meters and display modules, will be packaged

and shipped separately.

Please open all packages with care to prevent damage to their contents. Carefully inspect each item for

signs of damage in transit. The ow meter stem should be straight and free of blemishes or abrasions. The

sensor head should have a smooth continuous surface that is free of abrasions.

All ONICON products are shipped insured unless the customer specically requests otherwise. Please

notify the shipping company and ONICON immediately if any items are damaged in transit. Save all

packing material for inspection by the shipper.

2.1 CHECKING THAT YOU HAVE RECEIVED EVERYTHING

• Standard Documentation

Enclosed with each meter is a comprehensive documentation package that includes the

following items:

Installation and Operation Guide

Flow Meter Certicate of Calibration

Please notify the ONICON if any of these documents are missing.

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter

Optional INSTL1 or INSTL2 Installation Hardware Kit, if ordered

11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • [email protected]

FB-3500 Bi-Directional Insertion Electromagnetic Flow Meter Manual 12/15 - 0718-5 Page 10

SECTION 3.0: INSTALLATION, REMOVAL AND ADJUSTMENT

WARNING

Insertion ow meters may be installed in pipes which are under high pressure. Accidents with

these systems can cause serious injury or death. Only persons experienced with high pressure

systems and related knowledge in the heating, cooling and uid metering elds should attempt

to install, adjust, or remove the ow meter. Please read all instructions before attempting to

insert or remove a ow meter.

ONICON will be happy to assist with technical recommendations and to provide guidance by

telephone or e-mail. On-site eld engineering, installation and service is also available at additional cost.

3.1 INSTALLATION SITE SELECTION

Install the ow meter where it will be accessible for personnel to perform necessary periodic

maintenance. The clearance required for installation is typically 30”- 40” from the pipe wall to

the nearest obstruction above the valve assembly. This clearance dimension will increase with

large diameter pipes. The environment should be free of corrosive liquids/fumes, temperature

extremes and heavy vibration. The following diagrams should be used as a guide to the proper

location for installing the meter.

3.1.1 General Site Selection Guidelines

GENERAL PRACTICES:

1. For best results, install the ow meter in a straight run of pipe, free of bends, tees,

valves, transitions and obstructions.

2. Straight run recommendations vary based on the nature of the upstream obstruction.

See the table below for guidelines in determining upstream straight run

recommendations based on the nature of the obstruction. Please note that depending

upon specic location details, more or less straight run may be required to produce a

satisfactory ow prole.

For 3” and larger pipe diameters

Obstruction on either side of meter Straight run distance recommended

between meter and obstruction

Single bend preceded by ≥ 9 diameters of

straight pipe

10 Diameters

Pipe size reduction / expansion in straight

pipe run

10 Diameters

Single bend preceded by ≤ 9 diameters of

straight pipe

15 Diameters

Outowing tee / pump outow 20 Diameters

Multiple bends out of plane 30 Diameters

Inowing tee 30 Diameters

Control / modulating valve 30 Diameters

Tabla de contenidos

Otros manuales de Instrumento de medición de Onicon

Onicon

Onicon Fox Thermal FT1 Manual de usuario

Onicon

Onicon FT-3000 Series Manual de usuario

Onicon

Onicon F-1100 Series Manual de usuario

Onicon

Onicon F-1000 SERIES Manual de usuario

Onicon

Onicon System-10 BTU Meter Instrucciones de funcionamiento

Onicon

Onicon SYSTEM-30 Instrucciones de funcionamiento

Onicon

Onicon F-4300 Instrucciones de montaje

Onicon

Onicon SeaMetrics AG90 Manual de usuario

Onicon

Onicon F-4400 Manual de usuario

Onicon

Onicon SeaMetrics EX90 Manual de usuario

Onicon

Onicon System-10 BTU Meter Instrucciones de funcionamiento

Onicon

Onicon SYSTEM-30 Instrucciones de funcionamiento

Onicon

Onicon D-100 Instrucciones de funcionamiento

Onicon

Onicon SYSTEM-20 Instrucciones de funcionamiento

Onicon

Onicon F-1000 SERIES Guía de configuración

Onicon

Onicon F-1000 SERIES Instrucciones de funcionamiento

Onicon

Onicon System-10 BTU Meter Instrucciones de funcionamiento

Onicon

Onicon F-4600 Series Instrucciones de funcionamiento

Onicon

Onicon F-4300 Instrucciones de funcionamiento originales

Onicon

Onicon F-3500 Instrucciones de funcionamiento

Onicon

Onicon F-2500 series Instrucciones de funcionamiento

Onicon

Onicon System-10 BTU Meter Manual de usuario

Onicon

Onicon FT-3400 Instrucciones de funcionamiento

Onicon

Onicon FT-3400 Instrucciones de funcionamiento

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
