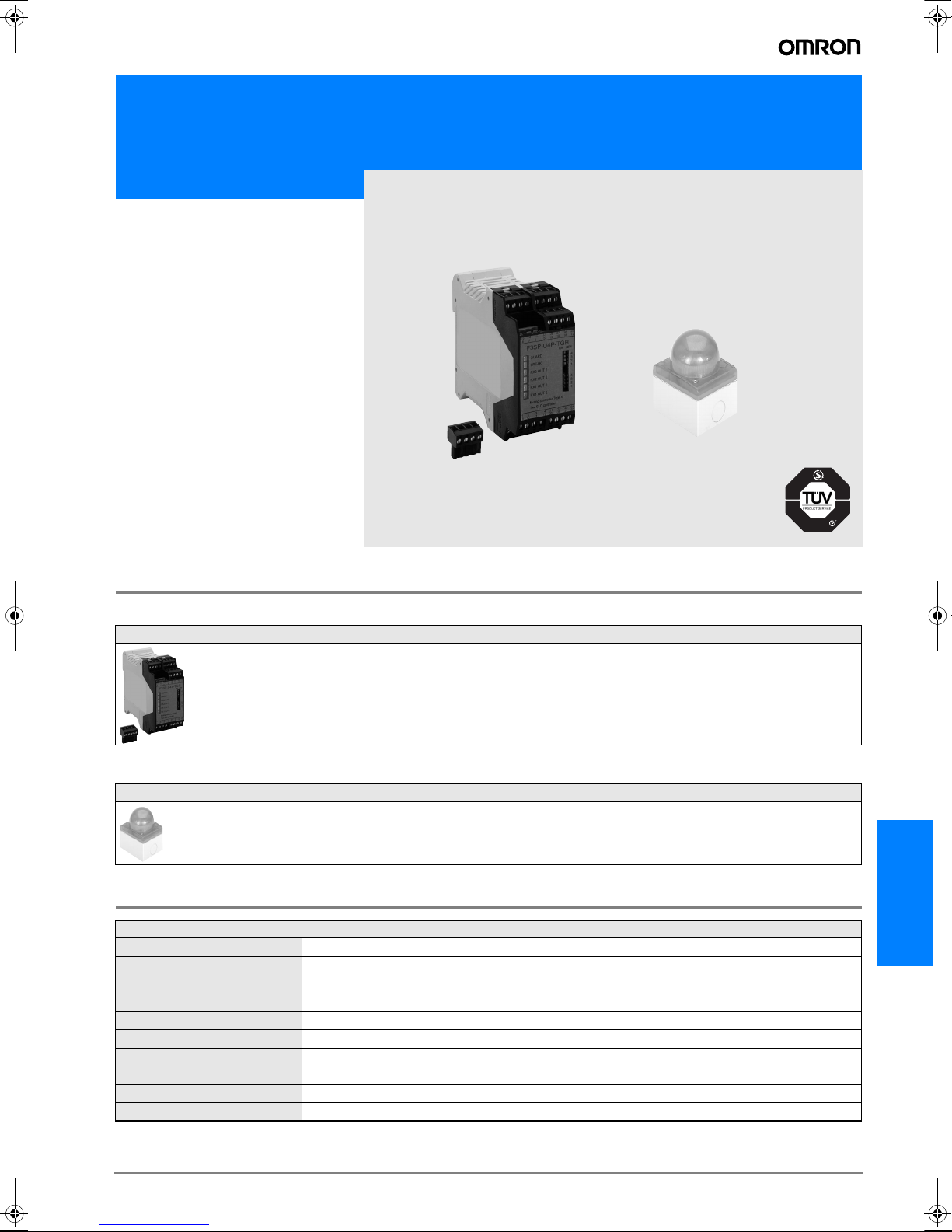

Muting Controller for Safety Light Curtain

F3SP-U4P

●High functionality

(two independent muting

functions, override function,

automatic and manual reset).

●Category 2 or 4 depending on

safety light curtain.

●Only 45 mm width

●Double output safety relay.

●6 LED for status and diagnostics.

●Detachable terminals for easy

installation.

●Controlls 1 or 2 safety light curtains

●TÜV approved

Muting controller for one or two Safety

Light Curtain.

Functional

Safety

tested

Production

monitored

List of Models

Controller

Accessories

Rating / performance

Description Model

Muting Controller for Safety Light Curtain F3S-B, F3SN and F3SH F3SP-U4P-TGR

Description Model

Muting lamp F39-A11

F3SP-U4P-TGR

Power supply voltage 24 VDC ±10%

Power consumption 420 mA max. (excl. SLC power consumption)

Output contacts 2 NO 2,5 A (protected by fuse)

Indicators 6 LEDs for status and diagnostics.

Enclosure rating IP20

Terminal 32 screw terminals (1,5 mm²), detachable blocks with 4 screws each

Response time ≤30 ms

Ambient temperature Operating: -10 °C +55 °C

Housing material Plastic, DIN rail mounting

Weight 0,6 kg

F502-EN2-04.book Seite 73 Dienstag, 26. Juli 2005 5:48 17

G-74 Safety Sensors / Components

Pin Overview

F502-EN2-04.book Seite 74 Dienstag, 26. Juli 2005 5:48 17

F3SP-U4P

G-75F3SP-U4P

Wiring Example

Control unit F3SP-U4P-TGR in a mixed configuration that allowes the use of several OMRON safety light cur-

tains and perimetrical guards.

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MAIN

SUPPLYER

24 V

LMS

GND

Muting

sensor

contact

N.O.

F3SP-U4P-TGR

control unit

Safety out

number 2

Safety out

number 1

Muting

D C

first

Safety sensor

F3SN, F3SH,

F3S-B, F3SL

F3S-TGR-SB

Out 1

Out 2

Out 1

Out 2

+Vcc

0 V

+Vcc

0 V

+Vcc

0 V

+Vcc

0 V

second

Safety sensor

F3SN, F3SH,

F3S-B, F3SL

F3S-TGR-SB

F502-EN2-04.book Seite 75 Dienstag, 26. Juli 2005 5:48 17

G-76 Safety Sensors / Components

Dimensions

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. E28E-EN-01
