Omron NV3W-MR20L-V1 Manual de usuario

Advanced Usage

Ctiith

Connecting with

CPIE PLC

Designing Screens

Preparation

NV-series PT

Simple Operation

Handbook

- A case of connection to a CP1E PLC -

Table of Contents

Preparation

Required Devices 2

Wiring and Connection 4

Turning on the Power 6

Displaying the NV System Menu 7

Setting the CPIE Serial Port 8

Designing Screens

Creating New Screen Data 12

Setting the NV Communications 15

Creating Switch Parts 16

Creating Lamp Parts 19

Creating Data Parts 21

Creating Keyboard Screens 23

Creating Character Stings26

Connecting with CP1E PLC

Transferring Screen Data  28

Checking Operation 31

Advanced Usage

Switching Screens from CP1E 32

Changing Backlight Colors

from CP1E 34

Connecting PC and PLC via NV 35

The NV3W-V1 is added.

These are the devices required to connect an NV-series PT to a CP1E PLC.

Required Devices

Application Models

CP1E-NxxS1-type (built-in 3 ports), CP1E-NxxS-type (built-in 2 ports)

-RS-232C type (24 VDC) -

NV3Q-MR21 NV3Q-SW21

-RS-422A type (24 VDC) -

NV3Q-MR41 NV3Q-SW41

Power supply for Programmable Terminals

Use a 24-VDC power supply unit for an NV3W-V1 (24-VDC type), NV4W or NV3Q.

A power supply unit is not necessary for an NV3W-V1 RS-232C type (5-VDC type), since the 5-

V power is supplied from the PLC via the cable (XW2Z-200T-4).

PT: NV Series

PLC: CP1E Series

Compact Horizontal Models: NV3W-V1 (3.8 inch)

- RS-232C type (5 VDC) -

NV3W-MR20L-V1 NV3W-MG20L-V1

- RS-232C type (24 VDC) -

NV3W-MR20-V1 NV3W-MG20-V1

- RS-422A type (24 VDC) -

NV3W-MR40-V1 NV3W-MG40-V1

QVGA Models: NV3Q (3.6 inch)

Package PLCs with Exceptional Cost: CP1E

Three color LED backlight

of white, pink and red

NV3W-MRxx(x)-V1

Three color LED backlight

of green, orange and red

NV3W-MGxx(x)-V1

Three color LED backlight

of white, pink and red

NV3Q-MRxx

STN color

(Display colors: 4096 colors)

NV3Q-SWxx

-RS-232C type (5 VDC) -

XW2Z-200T-4 (2 m with 5-V Line)

-RS-232C type (24 VDC) -

XW2Z-200T-3 (2 m without 5-V Line)

XW2Z-500T-3 (5 m without 5-V Line)

-RS-422A type (24 VDC) -

Prepare one by referring to the Manual.

PT-to-PLC Connecting Cable

Compact Horizontal Models: NV4W (4.6 inch)

- RS-232C type (24 VDC) -

NV4W-MR21 NV4W-MG21

- RS-422A type (24 VDC) -

NV4W-MR41 NV4W-MG41

Three color LED backlight

of white, pink and red

NV4W-MRxx

Three color LED backlight

of green, orange and red

NV4W-MGxx

Note: E-type CP1E CPU Units (Basic Models) can not be used with an NV-series

PT, since they do not have a RS-232C port.

< Renewal type >

NV-series PT Simple Operation Handbook

Advanced Usage

Ctiith

Connecting with

CPIE PLC

Designing Screens

Preparation

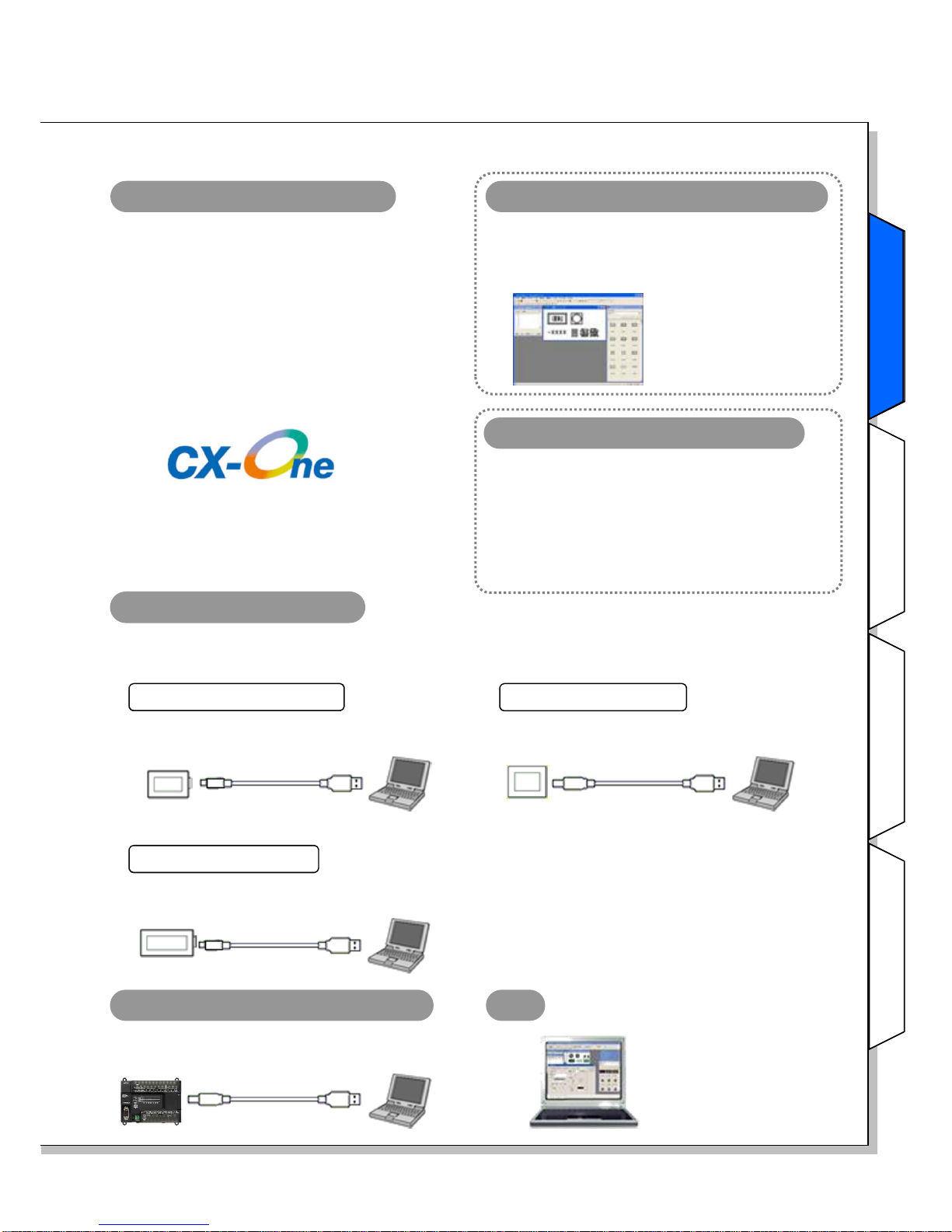

FA Integrated Tool Package

CX-One Ver.4.x (4.03 or higher)

The CX-One is a package that integrates the

Support Software for OMRON PLCs and

components.

CX-One Lite Ver.4.x (4.03 or higher)

The CX-One Lite is a subset of the complete CX-

One package that provides only the Support

Software required for micro PLC applications.

Select from two packages: Included in both packages of CX-One Lite Ver.4 and CX-

One Ver.4.

* It cannot be purchased individually.

NV-Designer Ver.1.1 or higher

Screen designing software for NV

Programming software for PLC

Included in a package of CX-One Lite Ver.4.

Micro PLC Edition CX-Programmer Ver.9.

Included in a package of CX-One Ver.4.

CX-Programmer Ver.9

Select from two types of software:

NV-PC connection cable

Use a commercially available USB cable (Mini-B) to connect the NV3W-V1 or NV4W to a PC.

Use a commercially available USB cable (Type B) to connect the NV3Q to a PC.

Preparation

Use a commercially available USB cable.

CP1E PLC-PC connection cable

CP1E

Type B Type A

NV4W

Connecting an NV4W

Mini-B Type A

Use a commercially available USB cable (Mini-B).

* Supporting Windows 7

(32-bit version)!

NV3Q

Connecting an NV3Q

Use a commercially available USB cable (Type B).

Type B Type A

NV3W-V1

Connecting an NV3W-V1

Mini-B Type A

Use a commercially available USB cable (Mini-B).

Note: The NV-Designer

Ver.2.0 or higher is

required to use the

NV3W-V1.

Wiring and Connection

Connect the devices.

* This section explains the procedure to connect an NV3W-V1 (5-VDC type) PT to a CP1E PLC.

Connecting example

Commercially available USB cable

(Type A connector – Type B connector) XW2Z-200T-4

(2 m with 5-V Line)

Connecting the NV and CP1E

Connecting an NV3W-V1 (5-VDC type) PT to the USB port on a PC

5 V power (green)

Name (color)

RD (orange)

SD (blue)

SG (pink)

NV3W-V1 (5-VDC)

* The NV3W-V1 (5-VDC type) does not need a power supply unit. The 5-V power is supplied from the PLC through the XW2Z-200T-4

Special Cable.

NV3W-MR20L-V1

CP1E-N30SDx-x

Wiring for the CP1E AC power supply

Wire for the CP1E AC power supply.

Connect the NV and the CP1E with the XW2Z-200T-4 Special Cable.

FG (black)

Ground to 100 ohm or less

XW2Z-200T-4

Special Cable

(2 m with 5-V Line)

Upper terminal block

100 to 240 VAC, 50/60 Hz

Commercially available USB cable (Mini-B)

NV-series PT Simple Operation Handbook

Advanced Usage

Ctiith

Connecting with

CPIE PLC

Designing Screens

Preparation

The NV3W-V1 and NV4W PTs can be mounted vertically.

Mount the PT with the serial communications/power supply

connector on top.

Using a Vertically Mounted PT (NV3W-V1 and NV4W only)

When the CP1E uses a 24-VDC power supply

Wire the 24-VDC power supply as shown below.

XW2Z-200T-3

(2 m, without 5-V Line)

XW2Z-500T-3

(5 m, without 5-V Line)

When the NV3W-V1 (24-VDC type), the NV4W, or the NV3Q is connected

with a RS-232C cable

Wire the NV and the PLC as follows. The power is supplied from the external supply unit to

the PT. Name (color)

RD (orange)

SD (blue)

SG (pink)

NV3W-V1 (24-VDC)/NV4W/NV3Q

FG (black)

Ground to 100 ohm or less

24-VDC power supply

Upper terminal block

24-VDC power supply

Preparation

Turning on the Power

Turn on the power to the CP1E. The power is also supplied to the NV

through the RE-232C serial port on the CP1E.

If you turn ON the power to the NV after you change the DIP switch pins on the NV back face to

any setting other than default setting, the NV starts up in a special operation mode. You can use

the functions to prohibit accessing the System Menu and to clear the F-ROM.

* Do not use the NV in any settings other than shown below.

Normal operation

(default ) Prohibiting moving to

System Menu F-ROM clear

Note 1: The data saved in the F-ROM includes screen data and NV configuration data.

Note 2: Other than the DIP switch setting, you can clear the F-ROM from the System Menu.

Turning on the power to the CP1E

NV startup mode

Turn on the power to the CP1E. The POWER LED indicator on the front of the CP1E lights in

green. The NV screen shows a message as follows:

Note: The message “No Screen data” is shown when the NV has no screen data.

As the NV contains no data at factory shipping, This message is shown accordingly.

Turn OFF all pins. Turn ON pin 2. Turn ON pins 2, 3, and 4.

POWER

LED

XW2Z-200T-4

NV-series PT Simple Operation Handbook

Advanced Usage

Ctiith

Connecting with

CPIE PLC

Designing Screens

Preparation

Displaying the NV System Menu

The System Menu is the special screen that is used to configure the NV.

Some settings such as touch switch adjustment can only be done on the

System Menu.

Accessing the System Menu

Follow the steps below to access the System Menu.

1. Touch the touch panel on the PT as shown below.

(This is common for the entire NV Series.)

1) Touch the upper left corner (A) for at least 2

seconds.

2) Then immediately touch the upper right

corner (B) and lower right corner (C) in order.

Note: Touch the points A, B, and C, one at a time in order. Do not press these points at the

same time.

2. The startup screen of the System Menu will be displayed.

The startup screen of the System Menu will be

displayed.

The next screen will be displayed if you touch

the Setting Menu or Test Menu Key.

To return to normal operating status, touch the

ESC Key.

Note: The system version is the version of the system ROM in the PT.

The default language for the System Menu is English, if there is no screen data in the PT.

The System Menu depends on the PT model. The default System Menu for the NV3W-V1

is used here.

Changing the System Menu language

The language is switchable between English and Japanese on the NV System Menu.

Select Setting Menu -Language.

Touch A for at least 2 seconds, then press B and C in order.

Preparation

Setting the CP1E Serial Port

To have the NV and the CP1E communications, the both serial ports must

have the same setting. Use the PLC programming tool CX-Programmer to

set the communications on the CP1E.

Be sure to change the stop bit on the PLC from the default 2 to 1

The stop bit for the NV serial communications is fixed to 1 . Therefore, the stop bit of the

PLC serial port must be changed from the default 2 to 1.

NV-CP1E communications setting example

Both the NV and the CP1E support the high speed communication of 115,200 bps.

Connect them in this baud rate.

Set the RS-232C serial ports on both of the NV and the CP1E as follows:

Mode: Host Link

Baud rate: 115,200 bps

Data length: 7

Stop bit: 1

Parity bit: Even

Communications setting for the RS-232C serial port built in the CP1E

Use the PLC programming tool CX-Programmer. Follow the steps below to set the RS-232C

serial port built in the CP1E.

* After this setting is completed, turn OFF and then ON the power of the CP1E.

Connect the CX-Programmer and the

CP1E online using a USB cable.

Change the CP1E operation mode to

“Program Mode” (Stopped).

Upload the PLC settings (including the

built-in RS-232C serial port setting)

from the CP1E.

Set the built-in RS-232C serial port on

the PLC Settings.

Write the PLC settings (including the

built-in RS-232C serial port setting) into

the CP1E.

Turn OFF and then ON the power of

the CP1E. (The settings are reflected

only after the power is turned ON.)

Note: Communications may be enabled, even when the stop bit on the PLC is 2 while the bit on the NV is 1. However,

be sure to set the both to 1.

NV-series PT Simple Operation Handbook

Advanced Usage

Ctiith

Connecting with

CPIE PLC

Designing Screens

Preparation

Online connection of the CX-Programmer and CP1E

1. Select Program – OMRON – CX-One – CX-Programmer – CX-Programmer from the

Windows Start Menu to start the CX-Programmer.

2. Select PLC – Auto Online – Direct Online from the menu bar.

3. In the Direct Online Dialog Box, select USB connection for the PC – PLC (CP1E)

connection type. Click the Connect Button.

Connection Type:

Select either

Serial connection or

USB connection.

1) Click the No Button.

* Click the Yes Button to upload

the program to the PC.

4. When the PC is connected with the CP1E, a new project will start.

Preparation

Changing the CP1E operation mode into Program

1. Select PLC – Operation Mode – Program from the menu bar.

1) Confirm that stopping the ladder

program do not cause any

problem. Click the Yes Button.

2. The CP1E operation mode changes to the Program Mode.

“Stopped” is displayed.

“Program Mode” is displayed.ｚｚｚｚｚ

Transferring, setting and writing the PLC settings

1. Double-click Settings in the project tree.

Double-click!!

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Omron

Omron

Omron SYSMAC CS Series Manual del propietario

Omron

Omron CK3E-1210 Instrucciones de uso

Omron

Omron CJ - REFERENCE 07-2009 Manual de usuario

Omron

Omron Z500 Series Guía del usuario

Omron

Omron TJ2-MC64 Guía rápida de usuario

Omron

Omron MECHATROLINK-II MP2100 Manual de usuario

Omron

Omron F3SX-N-B1R Manual de usuario

Omron

Omron MP2300 MECHATROLINK-II Manual de usuario

Omron

Omron CK5M-CPU1 1 Series Guía del usuario

Omron

Omron CK3E Series Guía del usuario

Omron

Omron NS600 Manual de usuario

Omron

Omron NX701-1 series Manual de usuario

Omron

Omron CJ - INSTRUCTIONS Manual de usuario

Omron

Omron OMNUC G5 R88M-K series Manual de usuario

Omron

Omron CJ - PROGRAMMING 08-2008 Manual de usuario

Omron

Omron Trajexia TJ1-MC16 Manual de usuario

Omron

Omron G9SP-N20S Manual de instrucciones

Omron

Omron SYSMAC C200H Manual de usuario

Omron

Omron NB-series Manual de usuario

Omron

Omron CJ - 08-2008 Manual de usuario

Omron

Omron Q2A Series Manual de usuario

Omron

Omron SYSMAC C200HS Manual de usuario

Omron

Omron SYSMAC CJ - REFERENCE 01-2008 Manual de usuario

Omron

Omron E5AN Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
