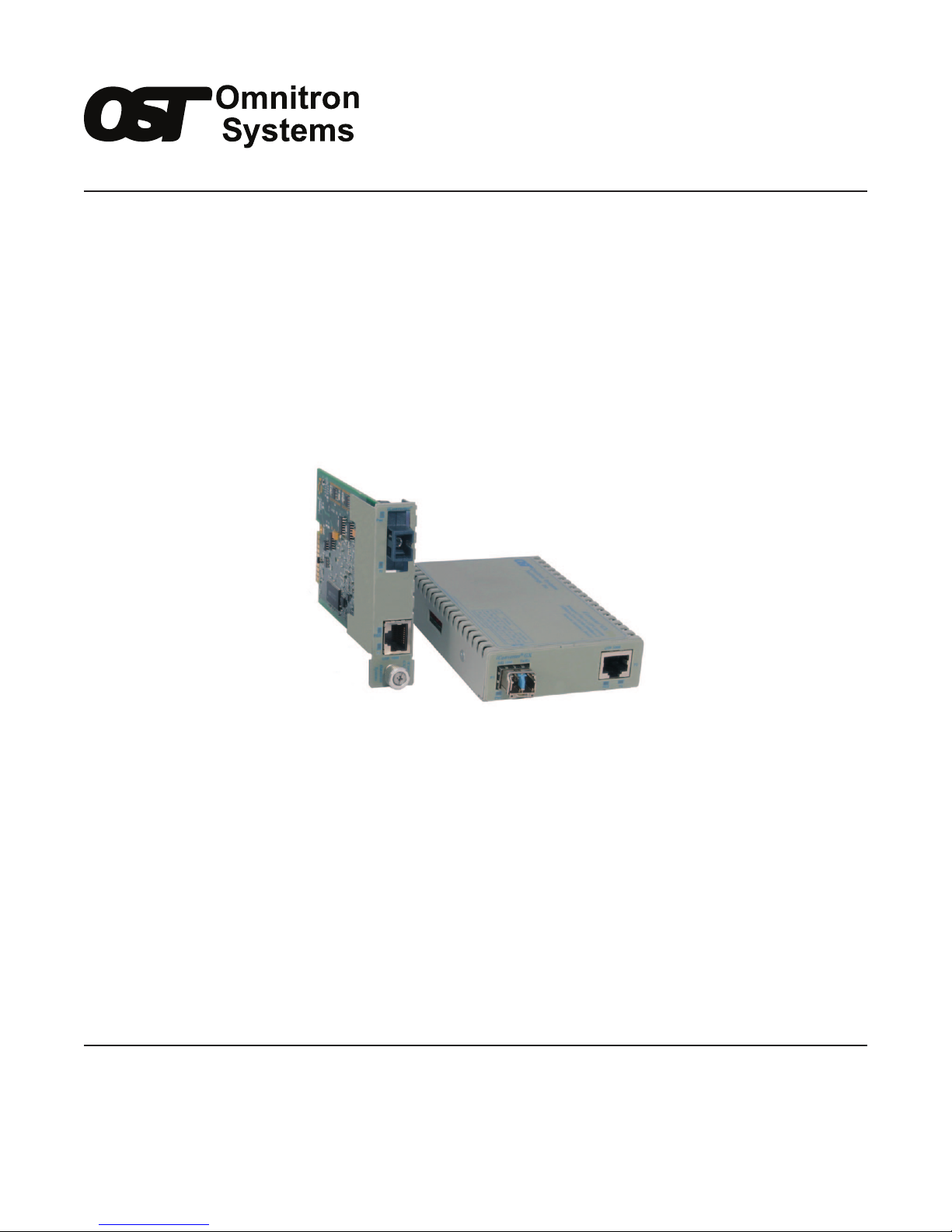

iConverter®Gx AN Media Converter

STANDALONE AND PLUG-IN MODULE

USER MANUAL

Page 2

Table of Contents

1.0 Overview...........................................................................................................................3

1.1 General Description..................................................................................................3

2.0 Port Structure....................................................................................................................3

2.1 Overview...................................................................................................................3

2.1.1 RJ-45 and Fiber Ports ..................................................................................3

3.0 Installation Procedure.......................................................................................................4

3.1 Overview...................................................................................................................4

3.2 ConguringDIP-switches ......................................................................................4

3.2.1 DIP-switchSettings ......................................................................................4

3.3 InstallingtheModuleandConnectingCables ..........................................................6

3.3.1 Plug-InModules ..............................................................................................6

3.3.2 StandaloneModules .......................................................................................7

3.4 VerifyingOperation ...................................................................................................8

4.0 ConguringtheModuleviaCommandLineInterface.......................................................8

4.1 Overview...................................................................................................................8

4.2.1 SFP Status ....................................................................................................12

5.0 GxANSpecications ......................................................................................................14

6.0 TroubleshootingGuide ...................................................................................................15

6.1 Overview.................................................................................................................15

6.1.1 Power Issues.................................................................................................15

6.1.2 Fiber Issues...................................................................................................15

6.1.3 RJ-45 Issues .................................................................................................16

7.0 Warranty .........................................................................................................................17

8.0 CustomerServiceInformation ........................................................................................18

1.0 OVERVIEW

This document describes the installation and conguration of the iConverter Gx AN standalone and plug-in

modules.

1.1 GENERAL DESCRIPTION

The Omnitron iConverter® Gx AN provides 1000BASE-T copper to 1000BASE-X ber media conversion.

The ber optic port supports auto and forced negotiation conguration via DIP-switches. The RJ-45 port

automatically detects and advertises the Duplex and Pause abilities of connected copper devices.

The iConverter Gx AN models with xed-ber connectors are available with multimode (MM) dual-ber,

single-mode (SM) dual-ber and single-mode single-ber (SF) options. They support ST, SC and LC

connectors with distances up to 2km over MM ber, 140km over SM ber and 40km over SF. The Gx AN

Small Form Pluggable (SFP) model supports a wide variety of 1000BASE-X SFP transceivers.

The Gx AN plug-in module is a managed media converter when installed in a chassis with a management

module such as the Network Management Module (NMM2) or a module with integrated management. The

standalone module is an unmanaged media converter supporting DIP-switches for conguration options.

2.0 PORT STRUCTURE

2.1 OVERVIEW

The front panel of the Gx AN provides access to the copper and ber ports. The ber port will vary

depending on the connector type; ST, SC, LC or SFP supporting 1000BASE-X transceivers.

2.1.1 RJ-45 and Fiber Ports

The ber interface supports the 1000BASE-X protocol. The ber interface operates in manual mode or

auto-negotiation and supports Full-Duplex operation.

The RJ-45 port supports 1000BASE-T protocols, auto-negotiation mode for Half and Full-Duplex. When

the ber port is operating in manual mode, the RJ-45 port can be congured to negotiate to a specic

duplex mode.

Page 3

3.0 INSTALLATION PROCEDURE

3.1 OVERVIEW

The following steps outline the installation and conguration procedures for the Gx AN. Refer to the

specied sections for detailed instructions.

• Conguring DIP-switches (Section 3.2)

• Installing the Module and Connecting Cables (Section 3.3)

• Verifying Operation (Section 3.4)

When the setup and conguration procedures are completed, the Gx AN has been congured with the basic

setup requirement for standard operation. To congure the module with additional features, see Section

4.0, “Detailed Module Conguration”.

3.2 CONFIGURING DIP-SWITCHES

The Gx AN module has one bank of DIP-switches. The locations of the DIP-switches are illustrated below.

Left

Switch 1

Switch 8

Bank 1

Right

Figure A: DIP-switch Locations

3.2.1 DIP-switch Settings

SW1 - Port 1 Auto/Manual Negotiation “AN MAN”

When this DIP-switch is in the Auto-Negotiate “AN” position (factory default), the ber optic port is

transparent to the network and allows the end devices connected to the module to advertise through the

module and establish negotiated settings between the end devices. If Port 2 (RJ-45) is not connected, the

ber port will not be able to establish a ber link. In the AN mode, the DIP-switches for Pause, Port 2

(RJ-45) and link modes RFD and SFD are ignored.

If two Gx AN modules are linked together and Port 1 is congured for auto-negotiation, the mode of

operation will be determined by the devices connected to Port 2 (RJ-45). Port 1 is transparent to the process.

Page 4

When this DIP-switch is in the Manual “MAN” position, the advertised auto-negotiation capabilities of

Port 2 is controlled by DIP-switches SW2 through SW5.

Switch Left / Down

(Factory Default) Right / Up

SW1 P1 AN:

Port1FiberAuto-negotiation

P1MAN:

Port1FiberManualnegotiation

SW2 -SW3 Port2(P2)advertisedauto-negotiationcapability-SeeFigureC

SW4 - SW5 PauseAdvertisementMode-SeeFigureD

SW6 - SW8 LinkModes-SeeFigureE

Figure B: DIP-Switches

SW2 and SW3 - Port 2 (RJ-45) Settings “AN MAN” “FDX HDX”

These DIP-switches are only valid when Port 1 is set to “MAN”. Port 2 is always congured for auto-

negotiation and DIP-switches SW2 and SW3 dene what modes are advertised by auto-negotiation. See

Figure C: Port 2 (RJ-45) Modes.

SW2 SW3 Port 2 (RJ-45) Mode of Operation

Left/Down Left/Down

ConguredforAuto-Negotiation

Itadvertisesandnegotiatesinthisorder:

1000FDX, 1000HDX

Right/Up Left/Down

ConguredforAuto-Negotiation

Itadvertisesandnegotiatesinthisorder:

1000FDX

Left/Right

Down/Up Right/Up

ConguredforAuto-Negotiation

Itadvertisesandnegotiatesinthisorder:

1000HDX

Figure C: Port 2 (RJ-45) Modes

SW4 and SW5 - Port 2 Pause Advertisement “OFF PAUSE” “OFF ASYM”

These DIP-switches are only valid when Port 1 is set to “MAN”. The PAUSE modes advertised by auto-

negotiation will be based on the conguration of DIP-switches SW4 and SW5.

SW4 SW5 Port 2 (RJ-45) Pause Modes

Left/Down Left/Down NoPAUSEadvertised

Left/Down Right/Up AsymmetricPAUSEtowardslinkpartner

Right/Up Left/Down SymmetricPAUSE

Right/Up Right/Up BothSymmetricandAsymmetricPAUSEtowardslocaldevice

Figure D: Pause Modes

SW6, SW7, SW8 - Link Modes

These three DIP-switches congure the link mode settings. DIP-switch SW6 is valid when Port 1 is set to

“AN” or “MAN”. DIP-switches SW7 and SW8 are ignored when Port 1 is set to “AN”. The following

table details possible Link Mode DIP-switch congurations.

Page 5

SW1 SW6 SW7 SW8 Results

Left/Down

(AN) Left/Down Left/Down Left/Down EnablesLinkSegmentmode(LSAN)

Left/Down

(AN) Right/Up Left/Down Left/Down EnablesLinkPropagatemode(LPAN)

Right/Up

(MAN) Left/Down Left/Down Left/Down EnablesLinkSegmentmode(LSMAN)

Right/Up

(MAN) Right/Up Left/Down Left/Down EnablesLinkPropagatemode(LPMAN)

Right/Up

(MAN) Left/Down Right/Up Left/Down EnablesRemoteFaultDetectionmode+Link

Segment(RFD+LS)

Right/Up

(MAN) Right/Up Right/Up Left/Down EnablesRemoteFaultDetectionmode+Link

Propagate(RFD+LP)

Right/Up

(MAN) Left/Down Left/Down Right/Up EnablesSymmetricalFaultDetectmode(SFD)

Right/Up

(MAN) Right/Up Left/Down Right/Up EnablesLinkSegmentmode(LSMAN)

Right/Up

(MAN) Left/Down Right/Up Right/Up EnablesLinkSegmentmode(LSMAN)

Right/Up

(MAN) Right/Up Right/Up Right/Up EnablesLinkSegmentmode(LSMAN)

Figure E: Link Modes Table

NOTE: Connecting two converters set to any of the RFD modes is illegal and will cause a “deadly

embrace” lockup.

NOTE: It is recommended to keep the LS setting (default) until initial conguration is complete.

For detailed information on the operation of the different Link Modes, download the application note

“iConverter Link Modes” available on Omnitron’s web page:

https://www.omnitron-systems.com/documentation

3.3 INSTALLING THE MODULE AND CONNECTING CABLES

3.3.1 Plug-In Modules

a. Carefully slide the module into an open slot in the chassis. Align the module with the installation guides

and ensure that the module is rmly seated against the backplane. Secure the module by fastening the

front panel thumbscrew (push in and turn clockwise to tighten) to the chassis front. Verify the “Pwr”

LED is ON (indicating the chassis is powered).

b. When using a Gx AN SFP model, insert the SFP Fiber transceiver into the Port 1 SFP receptacle on

the Gx AN.

NOTE: The release latch of the SFP Fiber transceiver must be in the closed (up) position before

insertion.

c. Connect the RJ-45 port via a Category 5 or better cable to a 1000BASE-T Ethernet device.

d. Connect the appropriate multimode or single-mode ber cable to the ber port of the installed module.

It is important to ensure that the transmit (TX) is attached to the receive side of the device at the other

end and the receive (RX) is attached to the transmit side. Single-ber (SF) media converter models

operate in pairs. The TX wavelength must match the RX wavelength at the other end and the RX

wavelength must match the TX wavelength at the other end.

Page 6

3.3.2 Standalone Modules

a. The Gx AN standalone media converter is available in tabletop and wall-mounting models. For wall-

mounting, attach the Gx AN to a wall, backboard or other at surfaces. For tabletop installation, place

the unit on a at and level surface. Attach the rubber feet to the bottom of the Gx AN to prevent the

unit from sliding. Make sure the unit is placed in a safe, dry and secure location.

To power the unit using the AC/DC adapter, connect the AC/DC adapter to the AC outlet. Then

connect the barrel plug at the end of the wire on the AC/DC adapter to the 2.5mm DC barrel connector

(center-positive) on the unit. Conrm that the unit has powered up properly by checking the power

status LED located on the front of the unit.

To power the unit using a DC power source, prepare a power cable using a two-conductor insulated

wire (not supplied) with a 14 AWG gauge minimum. Cut the power cable to the length required. Strip

approximately 3/8 of an inch of insulation from the power cable wires. Connect the power cables to

the standalone unit by fastening the stripped ends to the DC power connector.

Connect the power wires to the DC power source. The Power LED should indicate the presence of

power.

WARNING: Note the wire colors used in making the positive, negative and ground connections.

Use the same color assignment for the connection at the DC power source.

NOTE: If mounting with a safety ground attachment, use the safety ground screw at the rear

of the unit.

b. When using a Gx AN SFP model, insert the SFP Fiber transceiver into the Port 1 SFP receptacle on

the Gx AN.

NOTE: The release latch of the SFP Fiber transceiver must be in the closed (up) position before

insertion.

c. Connect the RJ-45 port via a Category 5 or better cable to a 1000BASE-T Ethernet device.

d. Connect the appropriate multimode or single-mode ber cable to the ber port of the installed module.

It is important to ensure that the transmit (TX) is attached to the receive side of the device at the other

end and the receive (RX) is attached to the transmit side. Single-ber (SF) media converter models

operate in pairs. The TX wavelength must match the RX wavelength at the other end and the RX

wavelength must match the TX wavelength at the other end.

Page 7

3.4 VERIFYING OPERATION

Once the module has been installed and congured, per Sections 3.2 - 3.3, verify the module is operational

by viewing the status of the LED indicators. The table below provides a description for each LED indicator.

The Power LED indicates the module is receiving power from the chassis.

The Fiber Optic “FO” LED indicates the ber optic connection between the modules has been established.

A blinking LED indicates the presence of data, an auto-negotiation problem or a link mode error indication.

The RJ-45 LEDs indicate the module has established a connection across its RJ-45 port. A blinking LED

indicates the presence of data or a link mode error indication.

Refer to Section 6.0, Troubleshooting Guide, for help in determining possible fault conditions.

LED Function

“Legend” Color OFF State ON / Blinking State

Power “Pwr” Green No Power ON:Modulehaspower

Fiber Port

“P1” Green NoFiberLink

ON:FiberLink

Blinking:FiberDataActivity

SlowBlinking:Signaldetectbutauto-negotiationhas

notcompletedorSFDerrordetected

RJ-45 Port

DuplexMode

“FDX”

Green Half-DuplexwhenP2

linkisactive

ON:WhentheRJ-45linkisactiveandnegotiatedto

Full-duplex

RJ-45 Port

“P2” Green NotLinked

ON:RJ-45linkedat1000Mbps

Blinking:RJ-45DataActivity

SlowBlinking:SFDerrordetected

4.0 CONFIGURING THE MODULE VIA COMMAND LINE INTERFACE

4.1 OVERVIEW

To congure the Gx AN plug-in module, a module with integrated management (NMM2 or M-Class

module) must be installed in the same chassis. Conguration of the module will be done through the serial

management connection on the management module.

Attach the ends of a serial cable to the serial port of the PC and the Serial Console Port on the management

module. This is a standard asynchronous serial interface.

Use a terminal emulation software such as Procomm or Putty to access the module.

Set the PC’s serial port to the following:

Bits Per Second 57,600

Stop Bits 1

Data Bits 8

Parity NONE

Hardware Flow Control NONE

Page 8

The management module may or may not have a password. If the management module does not have a

password, the Password Entry screen will be skipped and will go straight to the Management Options

screen. If a password has been set, the Password Entry screen will be displayed. Type the password and

press <ENTER>, the Management Module will respond with the Management Options screen.

Omnitron Systems Technology, Inc. iConverter

-----------------------------------------------------------------------------

Omnitron Systems Technology Technical Support: (949) 250-6510

38 Tesla Sales/Products: (800) 675-8410

Irvine, CA 92618 On the web at: www.omnitron-systems.com

-----------------------------------------------------------------------------

IP address 192.168.1.220

MAC xx-xx-xx-xx-xx-xx

[xxxxxxxx]

Please enter the password >

The Management Options screen will be displayed.

Management Options iConverter

Network Management

1: Chassis and Module Management

2: Set Module Identier

Management Module Preferences

3: IP and Control Preferences

4: SNMP Preferences

5: Other Networking Features

6: Restore to Factory Defaults

7: Restart Management Module

Management Module Maintenance

8: Firmware Update

9: Set Date/Time

01/02/2000 00:04:08 AM (sysUpTime: 8664735)

IP Address = 192.168.1.120 [MAC xx-xx-xx-xx-xx-xx]

Chassis Number = 1 Slot Number = 1

Enter Choice, (H)elp, E(x)it >

The Gx AN can be congured from the Module conguration screen. The Module conguration screen

is accessible by selecting the module slot number from the Chassis View screen. To access the Module

conguration menu, select 1at the Management Options screen, press <ENTER>. The Chassis Selection

screen will be displayed. From the Chassis Selection screen, select the chassis number where the Gx AN

module is installed.

Page 9

NOTE: Module conguration is also available using NetOutlook.

Chassis Selection iConverter

Number Chassis Name

1 NMM2

2 Not Available

3 Not Available

4 Not Available

5 Not Available

6 Not Available

7 Not Available

8 Not Available

9 Not Available

10 Not Available

11 Not Available

12 Not Available

13 Not Available

14 Not Available

15 Not Available

16 Not Available

17 Not Available

18 Not Available

19 Not Available

Connected to Chassis Number 1

Chassis Number(1-19), Management Options(0), (H)elp, E(x)it >

By selecting Chassis Number 1, from the Chassis Selection screen, the Chassis View screen will be displayed.

Chassis View 19 Slot iConverter

Chassis Number = 1

Slot Model Type | Slot Model Type

1 8000N-0 NMM2 | 16 N/A

2 8903N-1 10/100M2 | 17 N/A

3 8911N-1 10/100M2 | 18 N/A

4 N/A | 19 N/A

5 8519N-1 Gx AN | 20 N/A

6 N/A | 21 8200-9 Power Supply

7 N/A | 22 N/A

8 N/A |

9 N/A |

10 N/A |

11 N/A |

12 N/A |

13 N/A |

14 N/A |

15 N/A |

Module to View(1-22), Chassis Selection(0), (R)eset, (H)elp, E(x)it > 5

From the Chassis View menu, select the desired module, press <ENTER>. The Module conguration

screen will be displayed for the selected module.

Page 10

Otros manuales para iConverter Gx AN

Tabla de contenidos

Otros manuales de Convertidor de medios de Omnitron Systems Technology

Omnitron Systems Technology

Omnitron Systems Technology miConverter Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter 2GXM2 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter GX/T2 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter 10FL/T Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter 2GXM Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology OmniRepeater AS400/3X Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology Plug-in Module iConverter 2FXM Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology Fiber-to-Fiber Converter 1000FF Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology Omnitron 8000-0 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology OmniRepeater 400 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter CWDM/X Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter 2GXM Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology FlexPointTM OC12FF Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology 4/16 Token Ring Fiber Converter OmniHawk Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology 10/100/1000 UTP to 100/1000X Ethernet Media Converter FlexPoint... Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology Serial RS-422 and RS-485 to Fiber Media Converter... Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology Omnitron iConverter GX/TM2 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology E1 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter X21 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology 8249-0 iConverter Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology OmniConverter GPoE+/SX Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology Omnitron iConverter 10/100M2 Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter XGT+ Manual de usuario

Omnitron Systems Technology

Omnitron Systems Technology iConverter GM4-PoE+ Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario

Omnitron Systems Technology iConverter Gx AN Manual de usuario

Manuales populares de Convertidor de medios de otras marcas
