Omcan BS-BR-3150-SS Manual de usuario
Revised - 07/21/2021
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com
Bandsaws
Models BS-BR-3150-SS, 2820-SS
Items 20236, 20237
Instruction Manual
2
Page
---------------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------------- 4 - 7
--------------------------------------------------------------------------------- 8
---------------------------------------------------------------------------------------------- 8 - 9
-------------------------------------------------------------------------------------------------- 10
---------------------------------------------------------------------------------------- 11 - 13
------------------------------------------------------------------------------------ 13 - 14
----------------------------------------------------------------------------------- 14 - 16
---------------------------------------------------------------------------------- 17 - 22
---------------------------------------------------------------------------------- 23
------------------------------------------------------------------------------------------------- 24 - 26
---------------------------------------------------------------------------------- 27
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting
Figure Drawings
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model BS-BR-3150-SS / Model BS-BR-2820-SS
3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
4
General Information
Safety and Warranty
SAFETY
If and when the Band Saw is not correctly used it is a potentially DANGEROUS machine. Cleaning,
maintenance and any other service in the machine shall be carried out by duly trained people and only while
unplugged. The instructions below must be always followed to avoid ACCIDENTS:
• Remove the electric plug from its socket, before removing any moving part, cleaning, maintenance or any
other kind of service.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de
operación y seguridad.
Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para
guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje
para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.
5
Safety and Warranty
• Never use any kind of tools not belonging to the Saw to help during operation.
• Never touch the blade #08 (Pic.01) when the saw is in operation.
• Never wear loose clothes with wide sleeves mainly around the wrists during operation.
• Never adjust the Thickness Guide #13 (Pic.01) with the saw blade in movement.
• Keep hands away from moving parts.
• Never switch on the Saw with wet clothes or wet feet.
• Ground machine properly during installation.
• The saw has a Thermal Protector for the motor protection. Motor and the operator are protected in case
of over heating. Therefore if the equipment suddenly STOPS, wait a few minutes, then reset the Thermal
Protector pressing the Button #01 (Pic.02).
IMPORTANT: In order to improve user safety the Band Saw is equipped with a safety system, which refrain
itself from being activated if the upper door #04 (Pic.01), the lower door #15 (Pic.01) and the blade guard #17
(Pic.01) are not properly in place.
IMPORTANT: This equipment must not be used by children or any persons with reduced physical or mental
capability, lack of experience or knowledge, unless they are under supervision or have received from the
person responsible for safety, proper instructions on how to use the equipment.
IMPORTANT: The cord shall be in perfect conditions for the use, check it carefully, and change a damaged
cord using a new one designed in accordance with the technical specications. The changing shall be made by
qualied professionals and shall respect local safety rules.
IMPORTANT: In case of emergency use emergency switch #03 (Pic.01). To switch the machine back ON push
green button of ON/OFF Switch #02 (Pic.01).
GENERAL SAFETY PRACTICES
IMPORTANT: If any recommendation is not applicable to your equipment, please ignore it.
The following safety instructions are addressed to both the operator of the machine as well as the person in
charge of maintenance. The machine has to be delivered only in perfect conditions of use by the Distributor
to the user. The user shall operate the machine only after being well acquainted with the safety procedures
described in the present manual. READ THIS MANUAL WITH ATTENTION.
BASIC OPERATION PRACTICES
DANGERS
Some areas of the electric device have parts that are connected or have parts connected to high voltage.
These parts when touched may cause severe electrical shocks or even be lethal. Never touch manual
commands such as switches, buttons, turning keys and knobs with your hands wearing wet clothes and/or wet
shoes. By not following these instructions operator could be exposed to severe electrical shocks or even to a
lethal situation.
6
Safety and Warranty
WARNINGS
• The operator has to be well familiar with the position of ON/OFF Switch to make sure the Switch is easy to
be reached when necessary.
• Before any kind of maintenance, physically remove plug from the socket.
• Provide space for a comfortable operation thus avoiding accidents.
• Water or oil spilled on the oor will become a slip hazard. Make sure the oor is clean and dry.
• Before using any commands (switch, buttons, lever), be sure it is the correct one. In case of doubt, consult
this manual.
• Never touch any manual commands (switch, buttons, lever) unadvisedly.
• If any work is to be made by two or more persons, coordination signs will have to be given for each
operation step. Every step of the operation shall be taken only if a sign has been made and responded.
ADVICE
• In case of power shortage, immediately switch the machine o.
• Use recommended or equivalent lubricants, oils or greases.
• Avoid mechanical shocks, once they may cause damages or bad functioning.
• Avoid water, dirt or dust contact to the mechanical and electrical components of the machine.
• DO NOT change the standard characteristics of the machine.
• DO NOT remove, tear o or damage any safety or identication labels stuck on the machine. If any labels
have been removed or are no longer legible, contact your nearest dealer for replacement.
SAFETY PROCEDURES AND NOTES BEFORE SWITCHING THE MACHINE ON
IMPORTANT: Carefully read ALL INSTRUCTIONS of this manual before turning the machine ON. Be sure to
fully understand all the information contained in this manual. If you have any question contact your supervisor
or your nearest Dealer.
DANGER
An electric cable or electric wire with damaged jacket or bad insulation might cause electrical shocks as well as
electrical leak. Before use, check the conditions of all wires and cables.
ADVICE
Be sure to fully understand all the information contained in this manual. Every operation function or procedure
has to be thoroughly clear. Before using any commands (switch, buttons, lever), be sure it is the correct one. In
case of doubt, consult this manual.
PRECAUTIONS
The electric cable has to be compatible with the power required by the machine. Cables touching the oor or
close to the machine need to be protected against short circuits. The oil reservoirs have to be lled until the
indicated level. Check and rell if necessary.
ROUTINE INSPECTION
ADVICE
When checking the tension of the belts or chains, DO NOT insert your ngers between the belts and the
7
Safety and Warranty
pulleys and nor between the chain and the gears.
PRECAUTIONS
Check the motor and sliding or turning parts of the machine in case of abnormal noises. Check the tension
of the belts and chains and replace the set when belts or chains show signs of wearing. When checking the
tension of belts or chains DO NOT insert your ngers between belts and pulleys, nor between the chains and
gears. Check protections and safety devices to make sure they are working properly.
WARNING
Electrical or mechanical maintenance has to be undertaken by qualied personnel. The person in charge of
maintenance has to be sure that the machine is under TOTAL SAFETY conditions when working.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
8

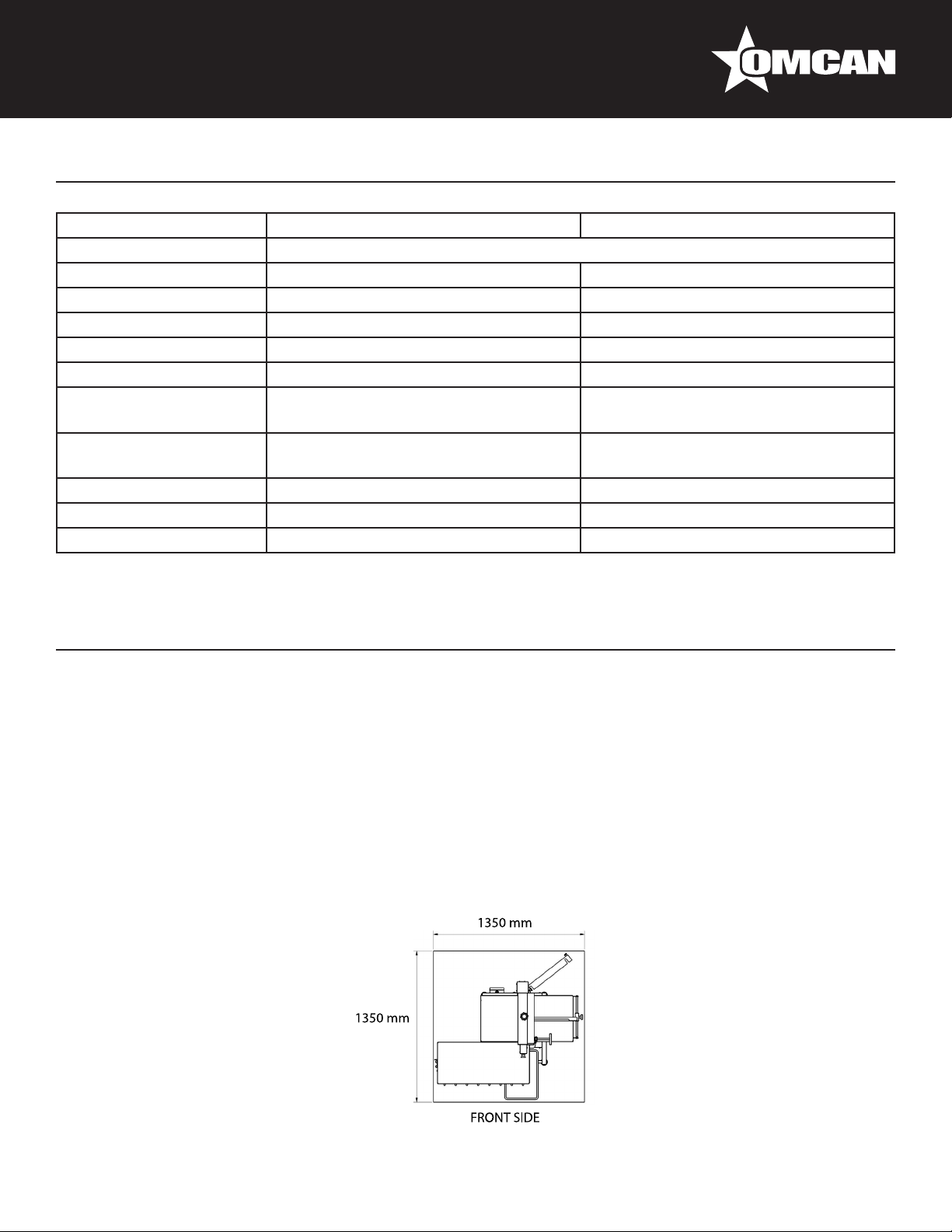

Model BS-BR-3150-SS BS-BR-2820-SS
Electrical 230V / 60Hz / 1
Current 14.7A 9.5A
Power 3 HP 2 HP
Consumption per Hour 2.2 kW 1.47 kW
Max Cutting Height 14.1” / 359mm 12.75” / 324mm
Max Cutting Width 12.25” / 311mm 10” / 254mm
Dimensions 72.9” x 42.1” x 36.3”
1851 x 1070 x 921mm
73.6” x 36.3” x 38.6”
1870 x 921 x 981mm
Packaging Dimensions 81.9” x 47.6” x 49.2”
2080 x 1210 x 1250mm
81.9” x 43.7” x 44.9”
2080 x 1110 x 1140mm
Weight 264 lbs. / 119.7 kgs. 240 lbs. / 108.9 kgs.
Packaging Weight 407 lbs. / 184.6 kgs. 339 lbs. / 153.8 kgs.
Item Number 20236 20237
RECEIVING AND UNPACKING
As soon as the equipment is received check the packaging integrity. If packaging is damaged, check if
there has been some damage to the equipment during transportation. If damage has been found, keep the
packaging and contact immediately the transporter.
INSTALLATION
PLACING THE SAW
The Saw must be installed over a rm working surface. See below drawing the recommended area.
Technical Specications
Installation
53.1”
53.1”
9
Installation
ELECTRIC INSTALLATION
The equipment has been designed to operate 230 Volts. When you receive the equipment check the voltage
indicated on the cord label. The power plug has 3 pins the middle pin is the ground. All the 3 pins must be
properly connected.
IMPORTANT: Make sure the network voltage is the same as indicated on the cord label.
BLADE
The Blade shall be installed with the teeth turned toward the saw front side, and downward. To stretch the
blade #08 (Pic.01) turn clockwise the Blade Tension Regulator Handle #01 (Pic.01) until it stops. The quantity
of teeth in a band saw will inuence both, the cutting speed and the quantity of remains produced during the
cutting procedure.
BLADE GUIDE
With the saw switched OFF turn the Handle #06 (Pic.01) counter clockwise to loose the Blade Guide #07
(Pic.01). Adjust the Blade Guide height to meet the meat piece thickness, and not more. Then tighten the
handle #06 (Pic.01).
TRAY
The Saw has a Tray #16 (Pic.01) placed under the saw, to collect residues. To remove the tray pull it sideways
until it is completely out. To replace it follow the inverse procedure and push until it is completely in.
SCRAPERS
The saw has two scrapers, the wheel scraper #18 (Pic.01) and the blade scraper #19 (Pic.01).
The Wheel Scraper: This scraper cleans the bone dust or the residues from the Lower Wheel during
operation. The scraper may be removed for cleaning (see Cleaning).
The Blade Scraper: This scraper cleans the bone dust or the residues from the blade during the operation.
The scraper may be removed for cleaning (see Cleaning).
LOWER WHEEL
The Lower Wheel is assembled on the lower bearing shaft and xed by the staple #10 (Pic.01). The staple
shall always be placed in the shaft slit. The lower wheel may be removed for cleaning after removing the blade
(see Cleaning).
UPPER WHEEL
The Upper Wheel #05 (Pic.01) frame has its own shaft and bearings. Therefore the Upper Wheel has to be
removed with the shaft and bearing for cleaning (see Cleaning), only after the Blade has been taken o.
10
Operation
PRE-OPERATION
Check if the saw is standing rm in its position.
Adjust the Blade Guide #07 (Pic.01) height to meet the meat piece thickness.
DOORS AND BLADE GUARD
The upper door #04 (Pic.01), the Lower Door #15 (Pic.01) and the Blade Guard #17 (Pic.01) shall be closed
and in their right position while the saw is operating.
THICKNESS GUIDE
To obtain several slices with the same thickness, adjust the Thickness Guide #13 (Pic.01) as desired. Turn the
Thickness Guide Handle counter clockwise loosing the Thickness Guide, and drive it to the desired thickness.
Then tighten back the handle.
CONTROL BOARD
The ON/OFF Switch #02 (Pic.01) and the Emergency Button Switch #03 (Pic.01) are placed on a control
board, on the motor housing upper front side. To turn ON the saw press the ON/OFF Switch (green) button to
position “I”. To stop the saw operation press the ON/OFF Switch (red) button to position “O”. If an emergency
case arises, press the EMERGENCY button, immediately stopping the saw operation.
OPERATING PROCESS
BEFORE TO START THE SAW
• Pull totally the Movable Table #09 (Pic.01) toward the saw front side.
• Place the meat on the Movable Table.
• Choose the slice thickness and adjust the Thickness Guide #13 (Pic.01).
• Adjust the Blade Guide #07 (Pic.01) height to meet the meat piece thickness.
• Take place in front of the saw, to have a frontal view of the blade.
STARTING THE SAW
• To start the saw press the ON/OFF Switch green button.
• Push the meat toward the Thickness Guide, touching it.
• Place the left hand on the table protection guard and slide the Movable Table against the Blade, slicing the
meat at a constant and uniform speed.
• After cutting the slice remove it using the right hand. The slice must always be removed behind the blade to
avoid the hand to touch the blade cutting side.
IMPORTANT: Do never remove the slices by the blade front side.
• Place and store the slices on the Fixed Table #14 (Pic.01).
• Bring back the Movable Table toward the front side of the machine and repeat the above mentioned steps
until the whole meat has been sliced.
• After to have nished the last slice switch OFF the saw pressing the red button “0”.
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Sierra de Omcan
Omcan
Omcan BS-VE-2489-E Manual de usuario
Omcan
Omcan BS-VE-3200-SS Manual de usuario
Omcan
Omcan BS-CN-1651 Manual de usuario
Omcan
Omcan BS-IT-1651 Manual de usuario
Omcan
Omcan BS-IT-1981-S Manual de usuario
Omcan
Omcan BS-VE-3200-S Manual de usuario
Omcan
Omcan B34 Manual de usuario
Omcan
Omcan Elite Series Manual de usuario
Omcan
Omcan BS-IT-1524 Manual de usuario
Omcan
Omcan BS-CN-1651-T Manual de usuario
