Installation Manual

OLYMPUS LC30

Microscope Digital Camera

English

Optical Microscope Accessory

To obtain optimum performance of this camera and to ensure the

safety, study this manual thoroughly before operating the camera

and keep it on hand during operation of the camera.

Keep this instruction manual in a safe place.

Any copyrights relating to this manual shall belong to Olympus Soft Imaging Solutions GmbH.

We at Olympus Soft Imaging Solutions GmbH have tried to make the information contained in

this manual as accurate and reliable as possible. Nevertheless, Olympus Soft Imaging

Solutions GmbH disclaims any warranty of any kind, whether expressed or implied, as to any

matter whatsoever relating to this manual, including without limitation the merchantability or

fitness for any particular purpose. Olympus Soft Imaging Solutions GmbH will from time to time

revise the software described in this manual and reserves the right to make such changes

without obligation to notify the purchaser. In no event shall Olympus Soft Imaging Solutions

GmbH be liable for any indirect, special, incidental, or consequential damages arising out of

purchase or use of this manual or the information contained herein.

No part of this document may be reproduced or transmitted in any form or by any means,

electronic or mechanical, for any purpose, without the prior written permission of

Olympus Soft Imaging Solutions GmbH.

All brands are Trademark or registered Trademark of their respective owners.

The software that can be used in combination with the camera may contain 3rd party

components, including open source software. The license information and the source code of

open source software components can be retrieved separately. Please contact your local

customer support for information on how to get the data.

Printed in Germany

510_UMA_LC30_en_03__02March2020

Olympus Soft Imaging Solutions GmbH, Johann-Krane-Weg 39, D-48149 Münster,

Tel. (+49)251/79800-0, Fax.: (+49)251/79800-6060

Contents

1 The OLYMPUS LC30 color camera . . . . . . . . . . . . . . . . . . . 4

1.1 Scope of supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.3 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.4 Operating and storage conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 Explanation of the symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.2 Avoiding personal injuries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.3 Avoiding device damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3 System environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1 General remarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.2 Microscopes and camera adapters . . . . . . . . . . . . . . . . . . . . . . . . .12

3.3 PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.4 Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Step 1: Insert USB 3.0 PCI express card . . . . . . . . . . . . . . . . . . . . .15

4.2 Step 2: Install the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

4.3 Step 3: Connect the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

5 Care and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.1 Contacting Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

7 Notes on conformity and disposal . . . . . . . . . . . . . . . . . . 21

CMOS color camera OLYMPUS LC30

1 The OLYMPUS LC30 color camera

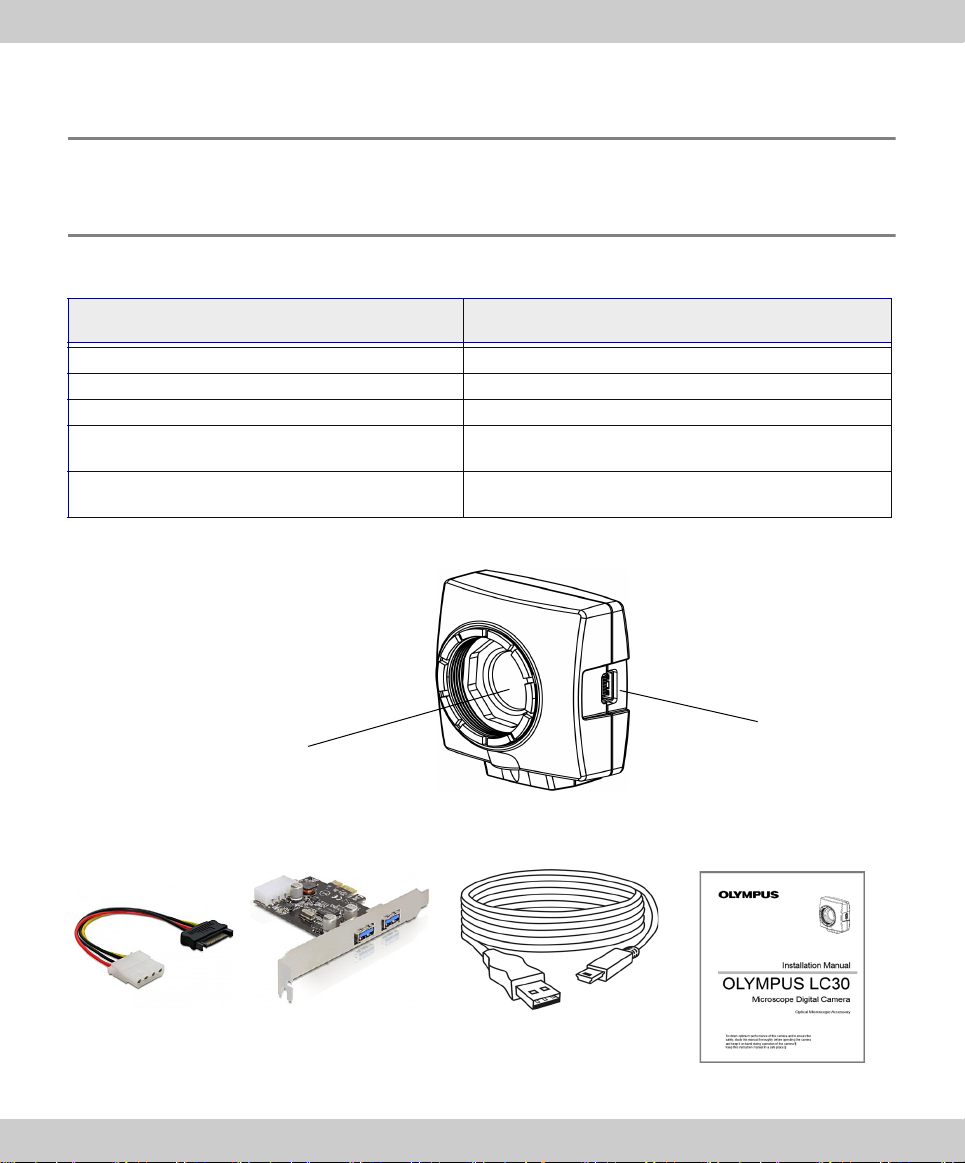

1.1 Scope of supply

The camera's scope of supply comprises:

Item name: CAM-LC30 (E9700777)

for America / Europe / Africa

Item name: CAM-LC30-CH (E9700798)

for Japan / Asia / Australia

Camera with protective cap Camera with protective cap

USB 2.0 cable USB 2.0 cable

Installation Manual Installation Manual

USB 3.0 PCI express card with driver on CD and

power supply cable

not included in the scope of supply

1 adapter cable for the USB 3.0 PCI express

card's power supply (SATA to IDE)

not included in the scope of supply

CMOS sensor

USB port type B

Camera

USB plug type A

USB plug type B

USB 3.0 PCI express card USB 2.0 cable Installation Manual

adapter cable

1 The OLYMPUS LC30 color camera

Other essential

components

To be able to use the camera, you'll also need the following components:

Computer with MS-Windows operating system

Light microscope with camera adapter or something similar, for example a

macro stand

Software to operate the camera (see chapter 3.4 on page 14).

1.2 Intended use

This camera is intended to be used for the acquisition of digital images, but not for

clinical diagnostic purposes.

1.3 Specifications

Properties of the

OLYMPUS LC30

The OLYMPUS LC30 is a CMOS color camera with a high frame rate. It was

specially developed for acquisitions using light microscopy. The LC30 is of a

compact design and can be connected to all common types of light microscope by

a C-mount. The ICC profile technology guarantees an optimal color mapping.

Binning modes The OLYMPUS LC30 has three binning modes. In binning mode, the camera's

CMOS sensor combines neighboring pixels into pixel blocks. This results in a higher

sensitivity and a shorter processing time, but also in a lower resolution.

Technical data OLYMPUS LC30

Chip type CMOS

Chip size Type 1/2 Inch

Effective area (width x height) 6.55 mm x 4.92 mm

Pixel size 3.2 µm x 3.2 µm

Maximum resolution 2048 x 1532 pixels

Bit depth 24 bit (8 bit per color channel)

Read-out speed 5 – 40 MHz

Interface USB 2.0

Camera mount Standard C-Mount

Binning Resolution Max. frame rate Exposure times

Maximum reso-

lution

2048 x 1532 pixels 10 frames per second 57 µs - 750 ms

Binning 2x 1024 x 768 pixels 28 frames per second 41 µs - 268 ms

Binning 3x 680 x 512 pixels 37 frames per second 46 µs - 200 ms

Binning 4x 508 x 384 pixels 49 frames per second 46 µs - 150 ms

CMOS color camera OLYMPUS LC30

1.4 Operating and storage conditions

Please operate and store your camera under the following conditions:

The maximum permissible range for the ambient temperature during camera

operation is +5°C to +40°C.

The maximum permissible relative humidity during camera operation is 80 %

(condensation free).

When the camera is stored or transported, the ambient temperature must be

kept between -20°C and +60°C.

Indoor use only.

Maximum altitude: 2000 m.

2 General safety instructions

The camera has been developed and produced in conformity with recognized safety

regulations. However, it is not possible to entirely rule out possible hazards for the

user, damage to the camera or microscope, or impairments of the camera's

functionality. For this reason, always read and follow the general safety instructions

and warnings before and during the installation.

2.1 Explanation of the symbols used

Personal injuries

Device damage

General notes

The warning sign and the word WARNING indicate dangerous situations that can

lead to serious injuries or even death if ignored.

The warning sign and the word CAUTION indicate dangerous situations that can

lead to light injuries if ignored.

WARNING

CAUTION

The exclamation mark and the word ATTENTION indicate situations, where

irreparable damage to the product can occur if ignored.

ATTENTION

This symbol indicates useful advice, tips for the user and important information

about the product.

CMOS color camera OLYMPUS LC30

2.2 Avoiding personal injuries

Electric shock due to damaged cable!

When a cable is frayed or damaged, a person touching it risks the danger of an

electric shock.

Shut off the hardware and replace the cable immediately!

Poisoning due to toxic gases!

In the case of a fire, the material of the camera can give off toxic gases. When

these are inhaled, it can cause irritation of the respiratory passages and damage

to them.

Wear respiratory protection when fighting the fire!

Tripping hazard!

Cables laid across a room can be a dangerous tripping hazard. This can cause

injuries to people and damage to equipment.

Wherever possible, lay cables along the wall or behind furniture. Fix cables that run

across the room.

WARNING

CAUTION

2 General safety instructions

2.3 Avoiding device damage

Never open the camera housing!

The camera's CMOS chip is extremely sensitive. Electrostatic discharge can

permanently damage the camera.

Therefore, never, under any circumstances, open the camera housing!

Avoid vibration shocks!

Mechanical shocks and strong vibrations can damage the camera.

Don't drop the camera during installation. Make sure it is securely mounted on the

microscope. When it's not in use, store it in a safe place!

Secure microscopes with additional components!

A top-heavy microscope can tip over or fall down and result in damage to both the

camera and the microscope.

If the microscope is top-heavy or otherwise unstable, fix it to the wall!

Don't touch the protective glass!

The protective glass over the CMOS chip is extremely sensitive and must not come

into contact with bare hands or any other objects, otherwise the acquisitions will be

impaired by fingerprints or scratches.

Remove dust from the protective glass carefully with compressed air. For the

removal of dust stuck due to static electricity, ionized air is recommended.

Observe the operating conditions!

Exposure to high temperatures or humidity can damage component parts of the

camera.

Always observe the operating and storage conditions (see chapter 1.4 on page 6).

Don't expose the camera to strong light!

Exposure to strong light can cause the camera to overheat, which may cause

damage to its component parts.

Do not expose the camera to strong light (such as sunlight) for long periods of time.

Only use the USB cable that is delivered with your camera

Operate the camera only with the USB cable that is part of the camera's scope of

supply. This ensures that the EMC basic standards are fulfilled.

ATTENTION

CMOS color camera OLYMPUS LC30

3 System environment

3.1 General remarks

To acquire images with best possible quality, the microscope has to be configured

correctly. The illumination for example must be set in a way to enable image

acquisitions with appropriate exposure times.

This camera installation manual does not contain explanations on how to setup the

microscope. Please refer to the microscope manual for this information. Additionally,

the online help of OLYMPUS Stream and cellSens contains detailed information on

image acquisition.

Using the OLYMPUS LC30 in special application contexts

Using the camera with non-Olympus microscopes

The OLYMPUS LC30 can be used in combination with many available micro-

scopes. However, its performance in combination with non-Olympus microscopes

has not been tested.

Application context Explanation Countermeasure

Using objectives with

low magnification

(< 10x)

Depending on the microscope configuration,

vignetting might occur in the image if objectives

with a magnification of less than 10x are used.

Switch on the shading

correction or use a camera

adapter with a higher

magnification.

Using objectives with

high magnification

(> 40x)

The maximum exposure time might not be suffi-

cient to acquire a correctly exposed image.

Increase illumination intensity

or use a camera adapter with

a lower magnification.

Darkfield and

fluorescence

microscopy

The OLYMPUS LC30 is not suitable for

darkfield or fluorescence microscopy due to its

limited exposure range.

No countermeasure

available.

Tabla de contenidos

Otros manuales de Cámara digital de Olympus

Olympus

Olympus FE-4010 Manual de usuario

Olympus

Olympus Stylus 840/ 840 Manual de usuario

Olympus

Olympus CAMEDIA C-2 ZOOM Manual de usuario

Olympus

Olympus E-P1 - Digital Camera - Prosumer Instrucciones de montaje

Olympus

Olympus C-2020ZOOM - CAMEDIA - Digital Camera Manual de usuario

Olympus

Olympus STYLUS 9000 Guía de configuración

Olympus

Olympus IS-5 Deluxe Manual de usuario

Olympus

Olympus CAMEDIA C-7000 Zoom Manual de usuario

Olympus

Olympus XA Instrucciones de funcionamiento

Olympus

Olympus Stylus 500 Guía de configuración

Olympus

Olympus FE-290 Manual de usuario

Olympus

Olympus D-360 R Manual de usuario

Olympus

Olympus FE 5010 Manual de usuario

Olympus

Olympus OM 101 Power Focus Manual de usuario

Olympus

Olympus PT-EP03 Manual de usuario

Olympus

Olympus CAMEDIA D-630 Zoom Guía de instalación

Olympus

Olympus VH-410 Manual de usuario

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... Manual de instrucciones

Olympus

Olympus FE-4020 Manual de instrucciones

Olympus

Olympus KIT-V00137 - Stylus 1040 Digital Camera Guía de configuración

Olympus

Olympus FE 120 - Digital Camera - 6.0 Megapixel Manual de usuario

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Guía de configuración

Olympus

Olympus E-330 - Evolt E330 7.5MP Digital SLR Camera Guía de instalación

Olympus

Olympus Stylus 830 Guía de instalación

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
