Olympus IS-2DLX Manual de usuario
INSTRUCTIONS
BeforeusingyourIS-2DLX,readthismanual
carefullytoensurecorrectuse.
Werecommendthatyoutaketestshotstoget
accustomedtoyourIS-2DLXbeforetaking
importantphotographs.
Thank you for purchasing the Olympus IS-2DLX.
MAIN FEATURES
Built-in 35mm ~ 135mm approx. 4X zoom lensfor increased shooting range.
Full-fledged macro functions includeZoom Macro for subjects as close as 0.6
m (2 ft), Super Macro for subjects as close as 0.39 m (1.3 ft), and 1:1 Macro*
which captures life-size images of small subjects on film.
ED (extraordinary dispersion) glass is used in the lens, achieving crisp, clear
images with high contrast.
The standard shooting mode lets anyone take beautiful pictures easily.
Panorama photographs are possible when the optional panorama adapter
is
attached.
Other various easy-to-use functions include versatile flash, subject, drive, and
exposure modes and more.
* The optional IS/L LENS A-LIFE SIZE MACRO H.Q. CONVERTER f=13cm is required.
Symbols used in this manual:
Incorrect
Indicator on
Indicator
blinking
Attention
Depress
halfway
Automatic
operation
Operation
order
Manual
operation
22
PREPARATIONS
Names and functions of parts 4
Viewfinder display/LCD panel 6
Attaching the strap 7
Loading the batteries 8
BASIC OPERATIONS
Loadingthefilm 13
Takingpictures
16
Unloading the film 19
Using the focus lock 20
Flash photography 21
Selftimer 27
Macro photography 29
Using the subject modes 32
Using the drive modes 38
Using the exposure modes 43
Exposure compensation 49
PF (powerfocus) 50
Spotmetering
51
Flash 52
Effects of zoom and its advantages 55
Autofocus(AF) 57
Exposure 59
Metering the amount of light 61
Exposure compensation 62
Film speed 62
Macro photography 63
Panorama photography 66
Accessories 67
Care and storage 68
Battery handling 69
Troubleshooting 70
Questions and answers 73
Specifications 74
ADDITIONAL
FUNCTIONS
TAKING BETTER
PICTURES
CAMERA
MAINTENANCE
Checking the batteries 9
Points to remember 10
Resetoperation 12
33
NAMES AND FUNCTIONS OF PARTS
Hot shoe cover
Shift buttons
Selects the exposure
compensation level, aperture
setting and shutter speed.
Shutter release button
AF
illuminator
Also blinks when the selftimer
is activated.
Power ON/OFF switch
Flash
Flash release (See p. 21.)
Strap attachment stud
Zoom(T/W)buttons
(See
p.
17.)
Become the focus buttons
in the PF mode.
4
PREPARATIONS
Viewfinder
(See
p. 6.)
PF button
Flash mode button*
Selftimer button
Drive mode button*
+/- button
Exposure mode button*
Macro button
Subject mode button*
Mid-roll rewind button
Date
MODE,
SET
and
ADJUST buttons
Spot button
(See
p.
51.)
— Film window
For confirmation of
film ISO speed
Back cover
release
-Remotecord
jack
For connecting to
the optional
M-Remote Cord
1.2m
or 5m
•
Battery
compartment
cover
Tripod socket
Function button (Seep. 22/32/38/43.)
Switches to the modes indicated by *.
Reset button
Restores the standard shooting mode and
checks the battery condition.
5
VIEWFINDER DISPLAY/LCD PANEL
VIEWFINDER DISPLAY
Spot frame
Autofocusframe
Flash
Panorama marks*
*Optional
IS/L
PANORAMA
ADAPTERis required.
LCD PANEL
Shutter speed
Selftimer
Single-frameadvance
Continuous-frameadvance
Double exposure
Program auto-exposure
Exposure compensation
indicator
Aperture-preferredauto
exposure
Manual exposure
Exposure counter/Exposure
compensation level
Date-time indicator
* The optional IS/L LENS A-LIFE
SIZE MACRO H.Q. CONVERTER
f=13cm is required in the 1:1
ESP
metering
Single-frameadvance
Super Macro
1:1
Macro*
Night scene
Portraitmode
Sports mode
Fill-in flash
Auto-S flash
Auto flash
Spot metering
Power focus (autofocus
override)
Manual flash
Battery check
Aperture setting/1:1 Macro* information
Displays the aperture setting except when in the
1:1 Macro mode, in which the correctworking
1:1 Macroadjustmentmark*
distance is displayed.
Exposure compensation/
Manual exposure
Spot metering
Aperture setting
Shutter speed
Macro
Autofocus
6
ATTACHING THE STRAP
Put the strap mount into the guide hole.
Push the strap mount onto the camera's strap attachment stud, and pull it
to adjust the strap's length.
7
LOADINGTHEBATTERIES

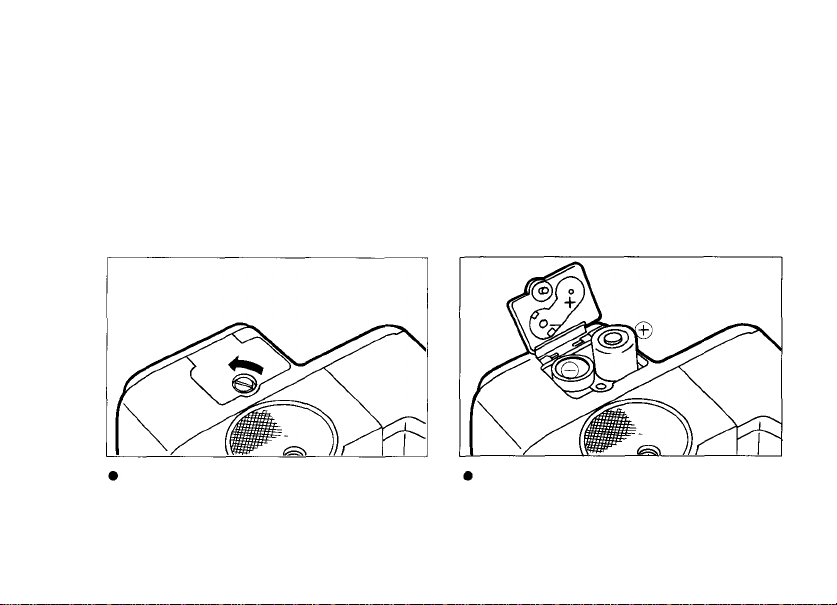

Use two 3V lithium batteries (CR123A or DL123A).
Turn the lock screw on the
bottom ofthe camera
counter-clockwise to
open the battery cover.
Insert the batteries as
shown and replace the
cover, turning the lock
screw clockwise.
The types of batteries that can be
used are also shown inside the battery
cover.
Read "Battery Handling" on page 69.
2.
1.
8
CHECKINGTHEBATTERIES
Turn the
power switch
ON.
Press the reset
button to
check the
batteries.
2.
1.
Blinks
Lights
Batteries are OK.
The mark disappears
when the finger is
released from the
button.
Batteries are
low.
Have spares
handy.
Batteries
should be
replaced
immediately.
9
POINTS TO REMEMBER
Hold the Camera Correctly.
Correct.
Correct.
Incorrect.
Note: As the focal length becomes larger, shaking the
camera becomes more noticeable. Hold the camera
firmly with both hands to keep from shaking the camera.
Caution:
Keep your fingers away
fromthe lens, AF
illuminator and flash.
10
