Before you start to use your new camera, please read the “Safety Precautions” section in this

manual.

We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

The screen and camera illustrations shown in this manual were produced during the development

stages and may differ from the actual product.

The contents in this manual are based on firmware version 1.0 for this camera. If there are addition

and / or modification of functions due to firmware update for the camera, the contents will differ. For

the latest information, please visit the Olympus website.

DIGITAL CAMERA

INSTRUCTION

MANUAL

Printed in Germany · OIME · 7.01 · 10/2007 · Hab. · E0460212

INSTRUCTION MANUAL

Basic guide P. 2

Review the camera part names and the

basic steps for shooting and playback.

Table of Contents P. 20

Camera

Hot shoe

P. 8 1 , 8 4

(Exposure

compensation) button

P. 47

LIGHT

button

P. 14

Self-timer / Remote control lamp /

Remote control receiver

P. 60, 61

Mirror

Lens release button

P. 12

Lens attachment mark

P. 12

Mount

(Attach the lens after removing the body cap

from the camera to prevent dust and dirt from

entering the camera body.)

Shutter button

P. 16, 34

Lens lock pin

Sub dial (

)

P. 26 – 30

Built-in flash

P. 78

(Flash) button

P. 77

(Flash intensity control) button

P. 79

Remote cable connector

P. 131

Strap eyelet

P. 10

button

P. 52

(Metering) button

P. 46

COPY

(Copy / Print) button

P. 92, 111

MODE

button

P. 40 – 44

(Remote control / Self-timer /

Sequential shooting) button

P. 59 – 61

White balance sensor

P. 68, 107

ISO

button

P. 50

(White balance) button

P. 68

Control panel

P. 6

External flash connector

P. 84

(Flash pop-up)

button

P. 78

USB

connector

P. 11 2

, 116

VIDEO OUT jack (

VIDEO OUT

)

P. 90

-IN jack

P. 133

Connector cover

Preview button

P. 45

Basic guide

LCD monitor

P. 8

9, 31

Viewfinder

P. 5

(Erase) button

P. 18, 94

button

P. 29

(Playback) button

P. 1 8 , 8 5

AEL

AFL

button

P. 48, 98

(Protect) button

P. 93

Card cover

P. 13

CF card slot

P. 13

Eject button

P. 13

xD-Picture Card slot

P. 13

(Live view) button

P. 30

Eyecup

P. 131

Tripod socket

Battery compartment lock

P. 11

Battery compartment cover

P. 11

(Image stabilizer) button

P. 63

button

P. 9 9

(AF target) button

P. 5 5

Card access lamp

P. 13, 16, 118

Diopter adjustment dial

P. 14

Eyepiece shutter lever

P. 61

Illumination sensor

P. 107

INFO

(Information display)

button

P. 31, 88

Main dial (

)

P. 26 – 30

Power switch

P. 14

Card cover lock

P. 1 3

SSWF indicator

P. 14, 129

Arrow pad (

acbd

)

P. 29

button

P. 29

Names of parts and functions

Direct buttons

You can set the following functions. Turn the dials while pressing the direct buttons.

“Using the direct buttons” (P. 26)

Flash mode #

P. 7 7

Reset F+ ISO

P. 33

AF mode AF

P. 52

AF target P g

P. 55

Image stabilizer o

P. 63

Exposure compensation F

P. 47

ISO sensitivity ISO

P. 50

Shooting mode MODE

P. 40 – 44

AE bracketing MODE + AF

P. 48

White balance WB

P. 68

WB compensation WB + F

P. 69

WB bracketing WB + MODE

P. 71

Remote control / Self-timer / Sequential

shooting </ Y/ j

P. 59 – 61

Metering G

P. 46

Flash intensity control w

P. 79

Sub dial

Main dial

Basic guide

Viewfinder

AF target

P. 55

Super FP flash

P. 81

Metering mode

P. 46

Aperture value

P. 40 – 43 Shooting mode

P. 40 – 45

Number of storable sequential

pictures

P. 59

Image stabilizer

P. 63

ISO sensitivity

P. 50

Flash

P. 78

(blinks: charging in progress, lights up: charging completed)

AF confirmation mark

P. 16, 58

Flash intensity control

P. 79

AE lock

P. 48

White balance

(Displayed when set to a

setting other than auto

white balance.)

P. 67

Exposure level indicator

P. 43

Exposure compensation indicator

P. 47

Auto bracket

P. 48, 51, 71, 80

ISO sensitivity value

P. 50

Shutter speed

P. 40 – 43

Spot metering area

P. 46

Battery check

P. 14

Names of parts and functions

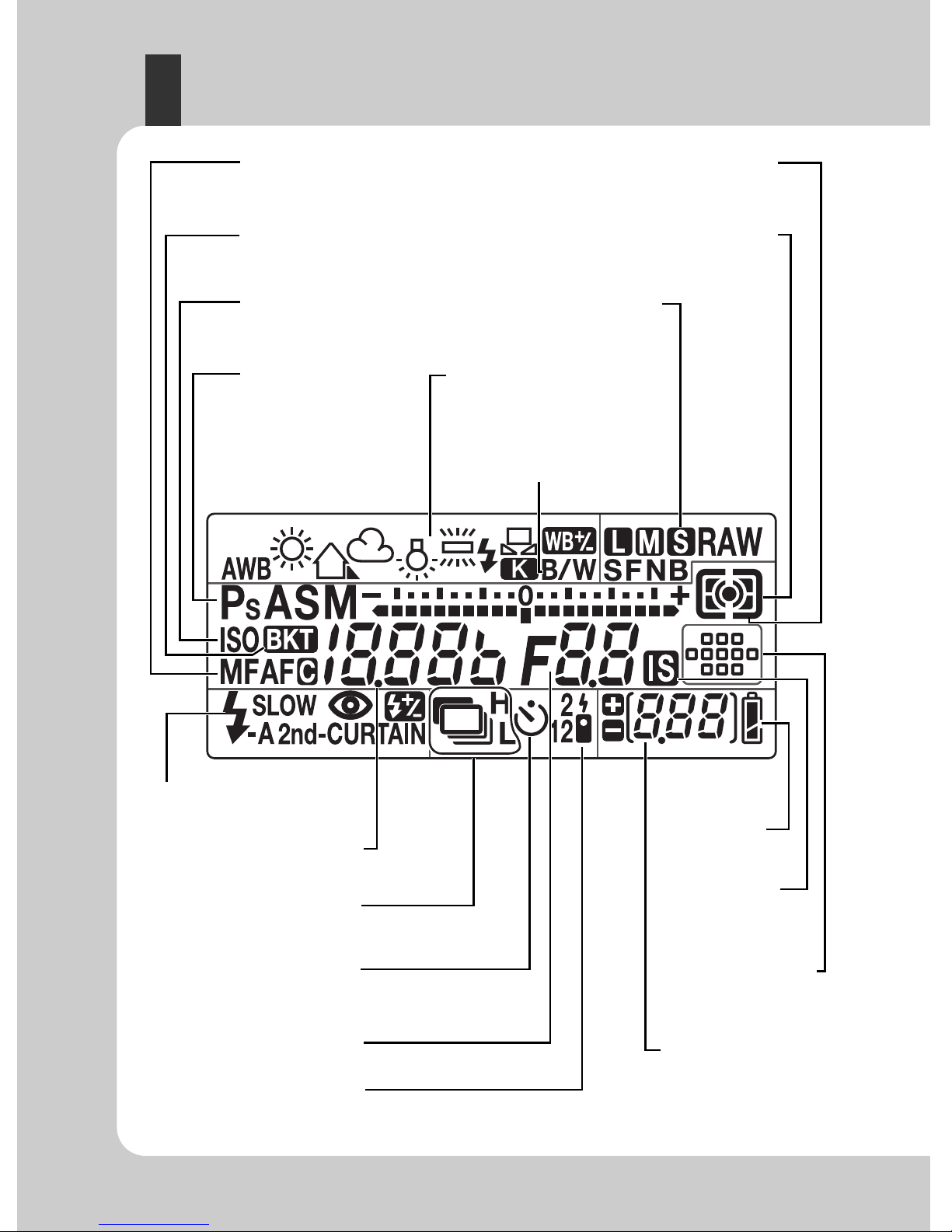

Control panel

White balance

P. 67, 69

Shooting mode

P. 40 – 45

ISO sensitivity

P. 50

Auto bracket

P. 48, 51, 71, 80

Record mode

P. 65

Aperture value

P. 40 – 43

AF mode

P. 52

Flash mode

P. 75

Sequential shooting

P. 59

Noise reduction

P. 74

Self-timer

P. 60

Image stabilizer

P. 63

Battery check

P. 14

Number of storable still pictures

P. 141

Remote control

P. 61

Shutter speed

P. 40 – 43

Picture mode (Monotone)

P. 72

Exposure level indicator

P. 43

Exposure compensation indicator

P. 47

AF target

P. 55

Metering mode

P. 46

Basic guide

Super control panel

The following screen allows the display and setting of shooting settings at the same time and is

called the super control panel. Press the

INFO

button to display the super control panel on the

LCD monitor.

“Using the super control panel” (P. 28)

250 F5.6

+2.0

2007. 12.16

RC FP

arge

BKT

AF1

Normal

Battery check

P. 14

Flash charging

P. 78

My Mode

P. 44 Shutter speed

P. 40 – 43

Exposure compensation indicator

P. 47

Exposure level indicator

P. 43

Flash intensity control indicator

P. 79

Aperture value

P. 40 – 43

Exposure

compensation value

P. 47

Exposure level

P. 43

Sharpness

P. 72

Contrast

P. 72

Saturation

P. 72

Gradation

P. 73

B&W filter

P. 72

Picture tone

P. 72

Shooting mode

P. 40 – 44

RC mode

P. 82

Super FP flash

P. 81

Auto bracket

P. 48

51, 71, 80

Image stabilizer

P. 63

Noise reduction

P. 74

AF illuminator

P. 96

Internal temperature warning

P. 127

White balance,

White balance compensation

P. 67, 69

ISO sensitivity

P. 50 Metering mode

P. 46

AF mode

P. 52

AF target

P. 55

Record mode

P. 65

Flash intensity control

P. 79

Number of storable still pictures

P. 141

Date

P. 15

Remote control / Self-timer / Sequential shooting

P. 59 – 61

Card

P. 132

Picture mode

P. 72

Color space

P. 104

Flash mode

P. 75

The functions within this area can be set on the

super control panel.

Names of parts and functions

LCD monitor (Live view)

You can use the LCD monitor to view the subject while shooting. Press the

button to use

live view.

“Using live view” (P. 30)

250250250 F5.6F5.6 +2.0+2.0

AELBKTFPRCHP

ISIS

WBWB

AUTOAUTO

ISOISO

AUTOAUTO

3 838

Battery check

P. 14

Shooting mode

P. 40 – 44

Home position

P. 57

RC mode

P. 82

Flash intensity control

P. 80

Super FP flash

P. 81

Auto bracket

P. 48, 51, 71, 80

AE lock

P. 48

Shutter speed

P. 40 – 43

Aperture value

P. 40 – 43

Exposure

compensation value

P. 47

My Mode

P. 44

Internal temperature warning

P. 127

AF target

P. 5 5

AF confirmation mark

P. 31, 58

Histogram

P. 125

Spot metering area

P. 46

ISO sensitivity

P. 50

Record mode

P. 65

Number of storable still pictures

P. 141

Flash

P. 78

(blinks: charging in progress,

lights up: charging completed)

Image stabilizer

P. 6 3

Flash mode

P. 75

Metering mode

P. 46

Sequential shooting

P. 59

Self-timer

P. 60

Remote control

P. 61

White balance

P. 67

Card

P. 1 3 2

Basic guide

LCD monitor (Playback)

You can switch the monitor display using the

INFO

button.

“Information display” (P. 88)

1/250 F5.6250 F5.6

+2.0 45mm+2.0 45mm

ISO 100ISO 100

0.00.0

A : 0A: 0

WB : AUTOWB : AUTO

G : 0G: 0

NATURALNATURAL

sRGBsRGB

[3648x2736,1/8]

x1 0

x10

’07.12.16

21:56

100-0015

1 5

Battery check

P. 14

Card

P. 132

Print reservation

Number of prints

P. 109

Protect

P. 93

Record mode

P. 65

Date and time

P. 15

File number

P. 88

Single-frame playback information

Frame number

P. 88

ISO sensitivity

P. 50

Shooting mode

P. 40 – 44

Focal distance

P. 134

(The focal distance is displayed in 1 mm units.)

Flash intensity control

P. 79

White balance compensation

P. 69

Picture mode

P. 72

Color space

P. 1 0 4

Shooting

information

Record mode

P. 65

Aperture value

P. 40 – 43

Shutter speed

P. 40 – 43

Metering mode

P. 46

AF target

P. 55

White balance

P. 67

Histogram

P. 88

Exposure

compensation

P. 47

Names of parts and functions

Unpack the box contents

The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you purchased the camera.

Camera Body cap Strap BLM-1 Lithium ion battery

BCM-2 Lithium ion charger USB cable Video cable

Warranty cardInstruction manualOLYMPUS Master 2

CD-ROM

Thread the strap as indicated

by the arrows (

Lastly, pull the strap tight

making sure that it is fastened

securely (

Attaching the strap

Attach the other end of the

strap to the other eyelet in

the same way.

Otros manuales para E-3

Tabla de contenidos

Otros manuales de Cámara digital de Olympus

Olympus

Olympus 225755 - Stylus 700 7.1MP Digital Camera Manual de usuario

Olympus

Olympus T-10 Guía de configuración

Olympus

Olympus STYLUS 700 Guía de configuración

Olympus

Olympus Camedia D-575ZOOM Manual de usuario

Olympus

Olympus STYLUS VERVE S Guía de configuración

Olympus

Olympus E-M1 MARK II Manual de usuario

Olympus

Olympus i-SPEED Manual de usuario

Olympus

Olympus SP 570 - UZ Digital Camera Guía de configuración

Olympus

Olympus C-3000 - 3.2MP Digital Camera Manual de usuario

Olympus

Olympus FE-45 - Digital Camera - Compact Guía de configuración

Olympus

Olympus CAMEDIA C-350ZOOM Manual de usuario

Olympus

Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... Manual de instrucciones

Olympus

Olympus SH-50 Manual de usuario

Olympus

Olympus FE-46 Guía de configuración

Olympus

Olympus CAMEDIA C-470 Zoom Guía de instalación

Olympus

Olympus E-PL3 Manual de usuario

Olympus

Olympus E-600 Instrucciones de montaje

Olympus

Olympus FE 280 - Digital Camera - Compact Manual de usuario

Olympus

Olympus E-PL3 Instrucciones de montaje

Olympus

Olympus FE 360 - Digital Camera - Compact Manual de usuario

Olympus

Olympus Digital Vision D-220L Manual de usuario

Olympus

Olympus STYLUS VERVE S Guía de instalación

Olympus

Olympus DIGITAL CAMERA TG-805 Manual de usuario

Olympus

Olympus E-20 - Dual Monaural Earphones Guía de inicio rápido

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
