Read the Following Before Use

This section provides important information about using this digital camera. Before using

the camera, please be sure to read the following.

About this manual

The information contained in this manual may be subject to change

without notice. For the latest information on the product names, model numbers,

etc., please consult authorized Olympus service center.

The information contained in this manual has been compiled by taking all possible

measures to ensure its accuracy. However, if you find any errors or incomplete

information, please contact authorized Olympus service center.

It is prohibited by copyright laws to duplicate in part or in whole the

information contained in this manual, except for personal use. Reproduction

without permission of the copyright owner is prohibited.

Olympus will not assume any liability for damages, loss of profit or claim from a

third party due to improper use of this product.

Olympus will not assume any liability for damages and loss of profit due to loss of

image data resulting from servicing by a third party who is not designated by

Olympus or from other causes.

The quality of the images shot with this product differs from that of the images shot

with ordinary film-based cameras.

Radio and Television Interference

Change or modifications not expressly approved by the manufacturer may void the

user’s authority to operate this equipment. This equipment has been tested and

found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Adjust or relocate the receiving antenna.

• Increase the distance between the camera and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

Only the USB cable should be used to connect the camera to a personal computer (PC).

147

Declaration of Conformity

Model Number: D-150Zoom

Trade Name: OLYMPUS

Responsible Party: Olympus America Inc.

Address: 2 Corporate Center Drive, Melville, New York 11747-3157 USA

Telephone Number: 631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Trademarks



Microsoft products, such as Windows and Internet Explorer, are registered trademarks or

trademarks of Microsoft Corporation in the United States of America and in other countries.



Macintosh and Apple are registered trademarks of Apple Computers, Inc.

Other brand names and product names mentioned in this manual are trademarks or

registered trademarks of their respective owners.

The DCF (Design rule for Camera File system) is a standard established by JEITA

(Japan Electronics and Information Technology Association).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer protection.

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

CONTENTS

Read the Following Before Use 2

PREPARATION

Names of Parts 5

Attaching the Provided Strap 7

Inserting the Memory Card (SmartMedia) 7

Loading the Battery 8

Setting the Date and Time 9

SHOOTING OPERATIONS

Shooting Pictures 10

Shooting Using the Monitor 11

Deciding Whether to Use the Viewfinder or Monitor According to Working Distance

Checking the Camera Status Indication Next to the Viewfinder or on the Monitor (in Shooting Mode)

Selecting the Image Quality

(Record Mode)

Using the Flash 16

Magnifying the Subject (Zooming) 17

Shooting a Close Subject (Macro Shooting) 19

Using the Self-Timer 20

Shooting Images Sequentially (Sequential Shooting) 21

Varying the Image Brightness (Exposure Compensation) 22

Varying the Image Color Tone (White Balance Control) 23

Muting the Beep Tones 24

VIEWING OR ERASING IMMEDIATELY AFTER SHOOTING

Viewing Pictures 25

Image Playback Operations 26

Erasing Pictures (One-Frame Erase) 28

Erasing All Pictures (All-Frame Erase) 29

Viewing Multiple Images Automatically in Sequence (Slide Show) 30

Preventing Accidental Erasure (Protection) 31

Adjusting the Monitor Brightness 32

VIEWING OPTIONS

If an Alarm Message Is Displayed 33

Making the Most of Your Digital Camera 34

Specifications 36

REPARATION

Card cover

(For insertion and removal of the SmartMedia card)

Shutter button

Zoom lever

Lens barrier

(Open this to turn the camera on

in the Shooting mode)

DC IN jack

(Connect the AC adapter)

Video output jack

(Connect to a TV with a video cable)

USB connector

(Connect to a PC with a USB cable)

Tripod socket

(Attach the tripod here)

Connector cover

Battery compartment cover

Card cover

Strap eyelet

Names of Parts

Flash

(Pops up automatically when you

open the lens barrier. Push it down

after you close the lens barrier)

Lens

(Comes out automatically when you

open the lens barrier)

Viewfinder eyepiece

Arrow pad

(For use in menu selection, frame number

advance, etc.)

Monitor

(LCD panel displaying the image to be shot,

played-back image and other various menu

information)

Green lamp

(For checking autofocus status)

(Turns on the camera is connected to a PC)

Orange lamp

(For checking flash charging/emission)

(Blinks while the card is being accessed)

AF target mark

(Position this over the subject you want to focus on)

Monitor button

(Switches the monitor display and

the Playback mode ON/OFF)

OK/menu button

(Switches the menu screens

or settings)

Self-timer lamp

(Indicates activation of the self-timer)

Viewfinder

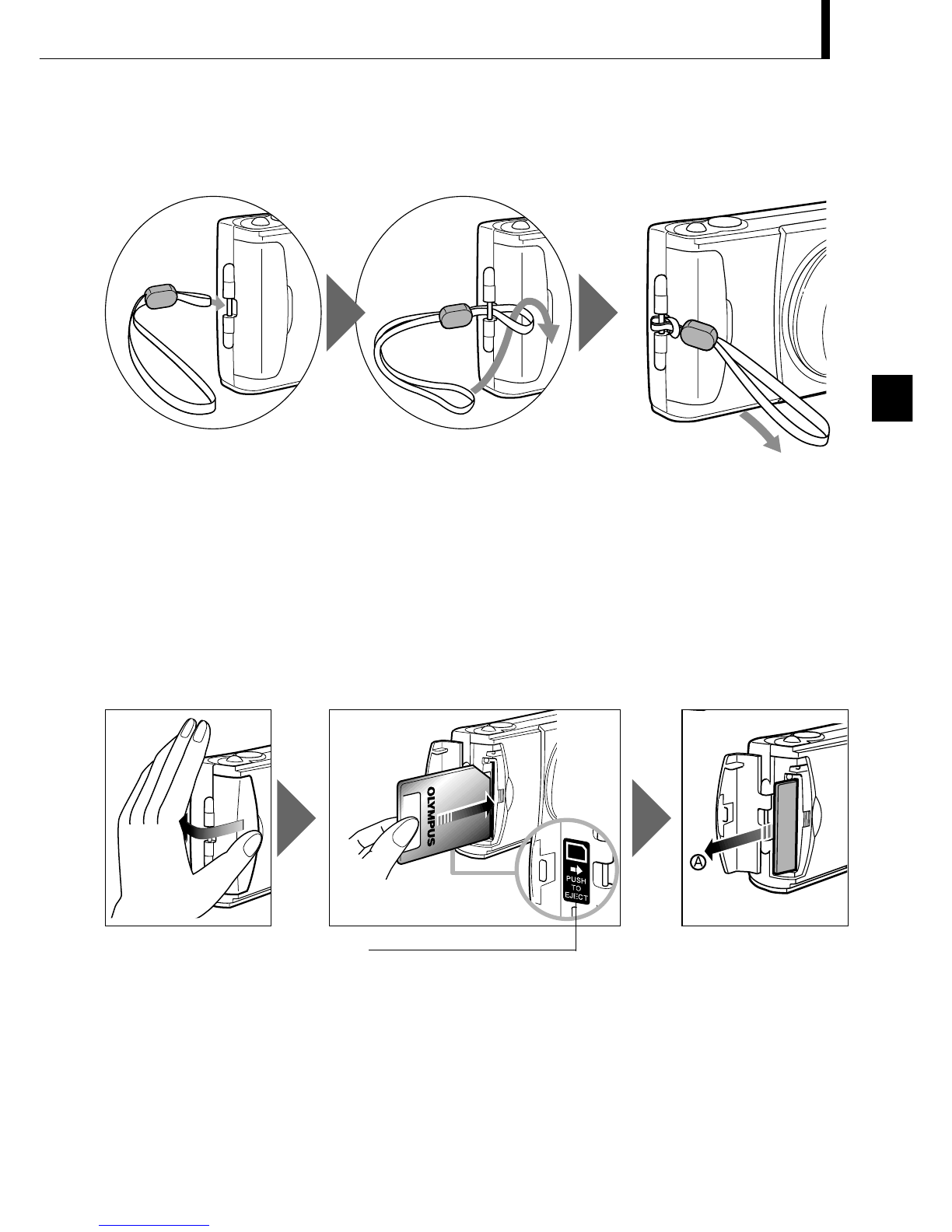

Attaching the Provided Strap

1. Attach the strap as shown.

Inserting the Memory Card (SmartMedia)

1. Make sure the lens barrier is closed and nothing is displayed on the monitor.

2. Open the card cover.

3. Insert the card in the direction shown in the figure.

4. Close the card cover until it clicks.

Card insertion direction marking

CAUTION ..................................................................................

Be sure to hold the card so that the cut corner is positioned correctly. There is an

arrow inside the card cover, indicating the insertion direction.

To remove the card, press the card gently. When the card ejects slightly, pull out the

card straight out as shown in the direction of A.

Loading the Battery

1. Make sure the lens barrier is closed and nothing is

displayed on the monitor.

2. Slide the battery compartment cover in the

direction of the arrow , and lift the cover in the

direction of the arrow .

3. Insert the battery in the direction shown in the

figure.

4. Close the battery compartment cover in the

direction of the arrow , and press the cover in

the direction of the arrow until it clicks.

This camera can be powered by a single long-life

lithium battery pack.

The CR-V3 lithium battery pack (Olympus LB-01)

features a long service life, lasting many times longer

than conventional batteries, offering great convinience

when traveling.

Insert the battery pack correctly.

SET OK

SELECT

.1.11

Date/time setup screen

Setting the Date and

Time

Operating Procedure

1. Check that the camera is set to the

Playback mode by holding down the

monitor button for a moment.

2. Press the OK/menu button.

The Playback mode menu 1/3 is displayed on

the monitor.

3. Press the or arrow pad key to

display the menu 3/3, and select .

4. Display the date/time setting menu by

pressing the or arrow pad key.

5. Select one of the following date/time display

formats by pressing the or arrow pad

key.

Y—M—D (Year·Month·Day)

M—D—Y (Month·Day·Year)

D—M—Y (Day·Month·Year)

Then press the arrow pad key.

The cursor moves to the figure setting field.

6. Set the first figure by pressing the or

arrow pad key, and then press the arrow

pad key.

The cursor moves to the next figure.

7. Repeat the above steps to set the hour and

minutes.

8. When the actual time reaches zero seconds,

press the OK/menu button.

The date and time are set and the screen

returns to the Playback mode menu 3/3.

Arrow pad

OK/menu button

Playback mode menu 1/3 screen

1/3

SET OK

SELECT

OFF

SET OK

SELECT END OK

SELECT

Date/time setup screen

3/3

END OK

SELECT

Playback mode menu 3/3 screen

Shooting Pictures

Operating Procedure

1. Open the lens barrier until the flash pops up.

The camera turns on, and the lens comes out.

2. Hold the camera, and look through the viewfinder.

3. Press the shutter button halfway (half-press) to make

sure the green lamp on the right of the viewfinder

lights.

 When lights : The subject is in focus. You can shoot.

 When blinking : The subject is out of focus. Half-press

the shutter button again.

 To view a recorded image immedlately after it has been shot while the

lens barrier is open (Quick-View Playback):

1. Press the monitor button twice (double clicking).

This switches the camera to the Playback mode; the

image is displayed on the monitor.

2. Press the shutter button or monitor button.

 This returns the camera to the Shooting mode; you can

resume shooting.

3. Close the lens barrier.

 The monitor and camera turn off.

HOOTING OPERATIONS

4. Press the shutter button all the way (full-press)

to take the picture.

 The shutter is released and the picture is taken.

Once the picture has been taken, it is displayed

on the monitor for a short time.

Green lamp

Double clicking

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Olympus

Olympus

Olympus Camedia D-510 Zoom Manual de usuario

Olympus

Olympus Stylus-7000 Guía de instalación

Olympus

Olympus D630 - CAMEDIA D 630 Zoom Digital Camera Guía de configuración

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Manual de usuario

Olympus

Olympus C-2020ZOOM - CAMEDIA - Digital Camera Manual de usuario

Olympus

Olympus FE 170 - Digital Camera - 6.0 Megapixel Manual de usuario

Olympus

Olympus Stylus 730 Guía de inicio rápido

Olympus

Olympus CAMEDIA C-460 Zoom Guía de instalación

Olympus

Olympus IM005 Manual de usuario

Olympus

Olympus VG-140 Manual de usuario

Olympus

Olympus 1030SW - Stylus Digital Camera Guía de configuración

Olympus

Olympus DIGITAL CAMERA TG-805 Manual de usuario

Olympus

Olympus VG-160 Guía de configuración

Olympus

Olympus SP 310 - Digital Camera - 7.1 Megapixel Manual de usuario

Olympus

Olympus STYLUS TOUGH-8010 Manual de usuario

Olympus

Olympus Tough TG-810 Instrucciones de montaje

Olympus

Olympus STYLUS 400 Digital Manual de usuario

Olympus

Olympus E-500 - EVOLT Digital Camera Manual de usuario

Olympus

Olympus FE-47 Manual de usuario

Olympus

Olympus 120355 - Stylus Epic Zoom 170 QD Guía de configuración

Olympus

Olympus E10 - CAMEDIA E 10 Digital Camera SLR Guía de instalación

Olympus

Olympus FE-25 Guía de configuración

Olympus

Olympus SZ-10 Manual

Olympus

Olympus FE 250 - Digital Camera - Compact Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
