Oki CX3641 MFP Manual de usuario

Do not begin installation

of this device

before reading

this entire Installation Guide.

Important safety warnings

follow.

CX3641 MFP Warning Icon.jpg

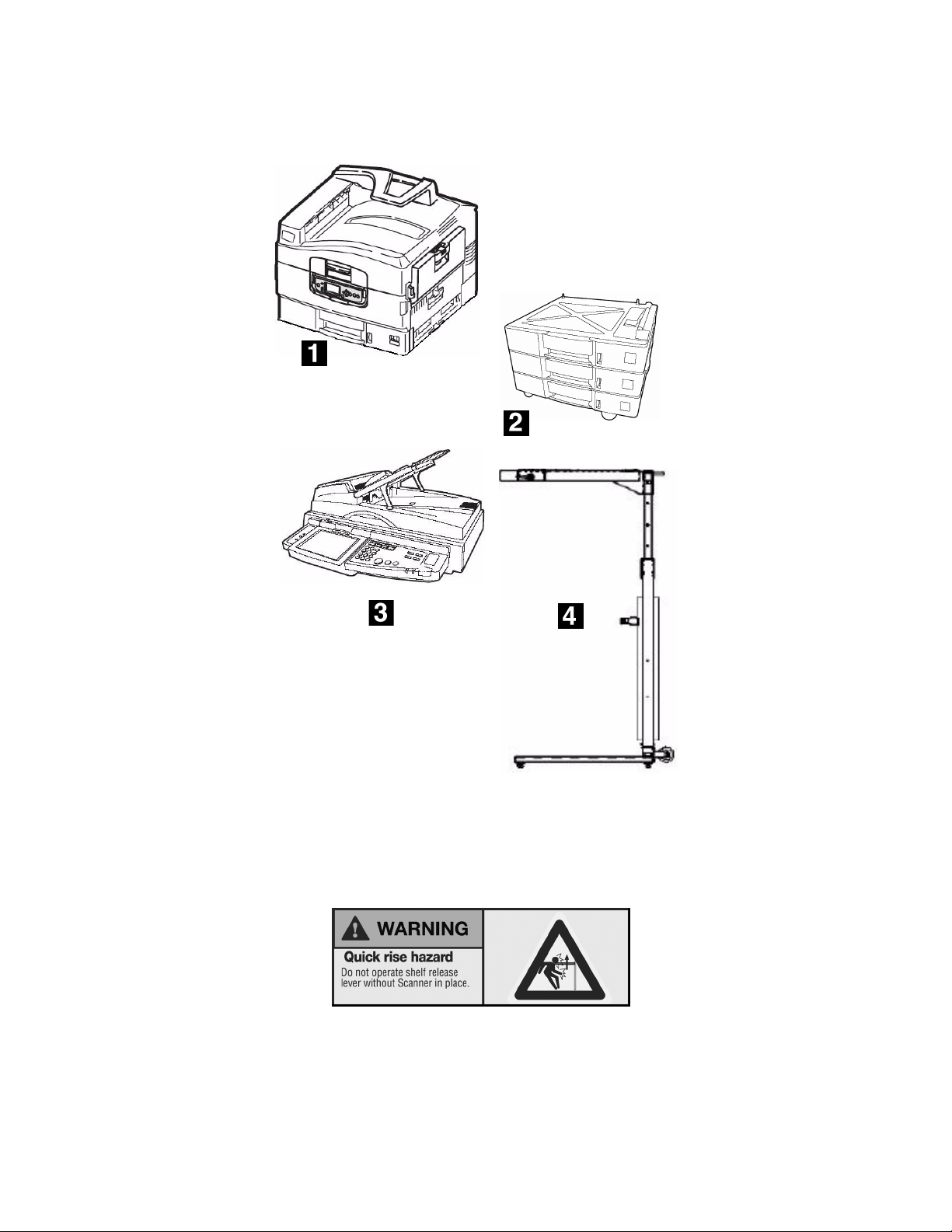

Overview

CX3641 MFP Configuration A is shipped in four units:

Printer

High-capacity Feeder

Scanner

Stand

CX3641 MFP

Basic Requirements

Space

Electrical:

Voltage: 110-127 VAC, 60 Hz

Power consumption, Operating:

•1,500 W maximum

•750 W typical

Environmental:

Temperature: 50-90°F

Humidity: 20-80% RH

Assembly

Assembly involves the following steps:

Step 1: Install the Printer on its Support:

• High Capacity Feeder

Step 2: Prepare the Printer

Step 3: Assemble the Stand

Step 4: Mount the Scanner on the Stand and

Secure it to the Shelf

Step 5: Make the Scanner Connections

Step 6: Attach the Printer to the Stand

Step 7: Finish the Installation

Step 8: Connect to the Network

Step 9: Install the Software

Minimum Height 72 inches (1.83 m)

Minimum Width

•standard

• with optional finisher

78 inches (1.98 m)

109 inches (2.77 m)

Minimum Depth 73 inches (1.85 m)

NOTE

You will need the following tools to assemble

the unit:

> 13 mm socket wrench

> Standard tip screwdriver

> Small Phillips tip screwdriver

> Larger Phillips tip screwdriver

> Tape Measure

> Wire Cutters

Screwdrv

Step 1: Install the Printer on its

Support

High Capacity Feeder

Unpack the High Capacity Feeder (HCF) and

remove any external shipping tape/restraints.

Unpack the printer and remove any external

shipping tape.

Note the location of the pins (

) on the HCF:

Lift the printer onto the HCF, aligning the holes on

the bottom of the printer with the pins on the

HCF.

Go to “Step 2 Prepare the Printer” on page 6.

Accessories in Printer Box

Paper Catcher

4 CDs

Toner Cartridges

3 Ferrite Cores: for Network Connection, USB

connection, LINE cable

3 Power Cables (printer, scanner , main)

Power Strip

2 Screws for securing Power Strip to Stand

4 Light Shield Bags (for temporary storage of drums

when outside printer)

Step 2:Prepare the Printer

Load paper in the trays.

a. Pull out the tray.

b. Squeeze the release on the paper guides and

move them apart.

c. Remove the brightly colored shipping

restraint.

d. Set the guides (a, b) for the paper size and

load paper. Note: The default is letter size,

long edge feed.

Close the tray.

Snap the Paper Catcher into the top of the printer.

Open the printer cover.

CX3641

MFP

CX3641

MFP

Lift the operator panel, open the front cover and

remove the shipping tape. Close the front cover.

Remove the colored image drum packing pieces.

For each drum, remove the tape and the

protective sheets.

Remove locks and seals for each drum.

For each color toner cartridge:

a. Shake the toner cartridge from side to side

to distribute toner.

b. Remove sealing tape and insert the cartridge

into the corresponding color drum in the

printer.

c. Lock the toner cartridge with the lever.

Close the top cover.

10.

Remove the backing from the strip on the back of

the Handy Reference Guide and apply the guide

to the printer.

CX3641 MFP 26.jpg

Step 3: Assemble the Stand

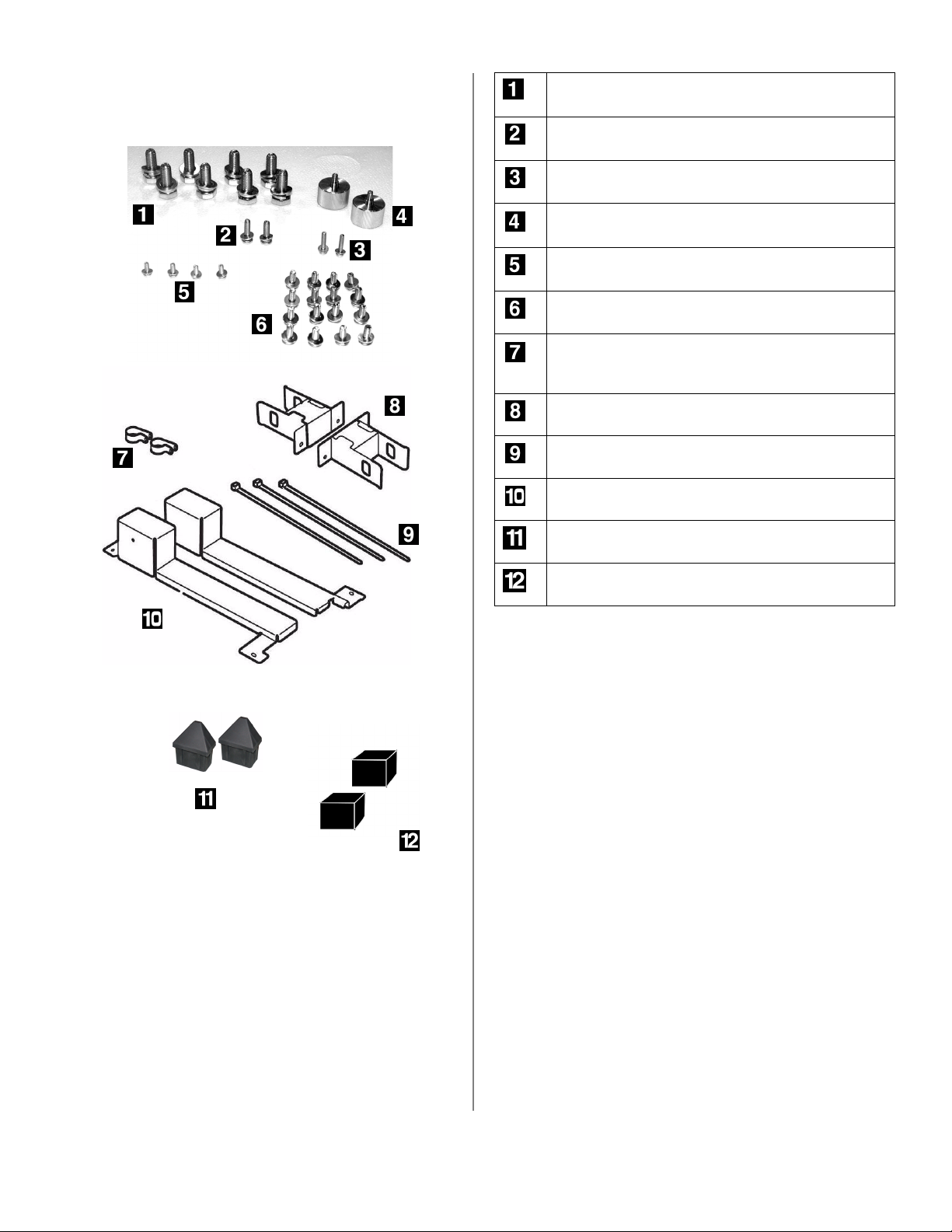

Accessories in the Stand Box

Unpack the stand, removing any shipping tape/

materials.

CX3641 MFP 99.jpg

8 Leg Bolts with Lock Washers and Flat Washers for

Stand Legs

2 Screws with Lock Washers and Flat Washers for

Bottom of Cable Clips

2 Screws with Lock Washers and Flat Washers for

Bottom of Printer Brackets

2 Thumb Screws for attaching the Printer to the

Bumper Brackets

4 Small Screws with Lock Washers and Flat Washers

for Top of Printer Brackets

16 Medium Screws with Lock Washers and Flat

Washers

2 Cable Clips for attaching DCD cable (see

“Accessories in Scanner Box”“Accessories in Scanner

Box” on page 14) to the stand.

2 Bumper Brackets

3 Tie Wraps (to secure cabling)

2 Printer Brackets

2 Rubber Caps

2 Foam Bumpers

Stand Components:

• Scanner Support Shelf (1)

• Stand Frame with Posts (2)

• Two Legs with Casters (3)

The stand includes cylinders for moving the scanner

shelf up and down. Use extreme caution when

assembling the stand.

NEVER ATTEMPT TO RAISE OR LOWER THE

SHELF WITHOUT THE SCANNER BOLTED TO

. Without the weight of the scanner on it, the

shelf could rise rapidly when released, potentially

causing severe injury.

TO PREVENT ANY POSSIBLE CRUSHING OF

FINGERS, KEEP YOUR HANDS AWAY FROM

THE POSTS AT THE BACK OF THE

SCANNER STAND WHEN MOVING THE

SCANNER SHELF DOWN
