Overview

OKIFAX 5650 MFP Option Kit

Setup Guide

2OKIFAX 5650 MFP Option Kit

Every effort has been made to ensure that the information in

this document is complete, accurate, and up-to-date. The

manufacturer assumes no responsibility for the results of

errors beyond its control. The manufacturer also cannot

guarantee that changes in software and equipment made by

other manufacturers and referred to in this guide will not

affect the applicability of the information in it. Mention of

software products manufactured by other companies does not

necessarily constitute endorsement by the manufacturer.

reserved.

Microsoft, MS-DOS and Windows are registered trademarks

of Microsoft Corporation. Energy Star is a trademark of the

United States Environmental Protection Agency

Other product names and brand names are registered

trademarks or trademarks of their proprietors.

Overview

Setup Guide: English 3

Hardware

Installation

!Warning: The fax machine must be switched off and

disconnected from the power supply before

performing this procedure.

1. Switch off the fax machine and disconnect the power cable.

2. Remove the document stacker.

3. Position the fax machine so that the rear is facing you and

the fax machine extends slightly over the edge of your

work surface.

4. Remove the two screws (1) securing the rear panel and lift

off the panel.

4OKIFAX 5650 MFP Option Kit

5. Plug the PC interface board into the socket nearest the rear

of the fax machine.

6. Make sure that the plug pins are correctly aligned with the

socket and that the holes on the mounting plate at the top

of the board align with two holes in the machine.

7. Secure the board in position with the two post screws (1)

provided.

Setup Guide: English 5

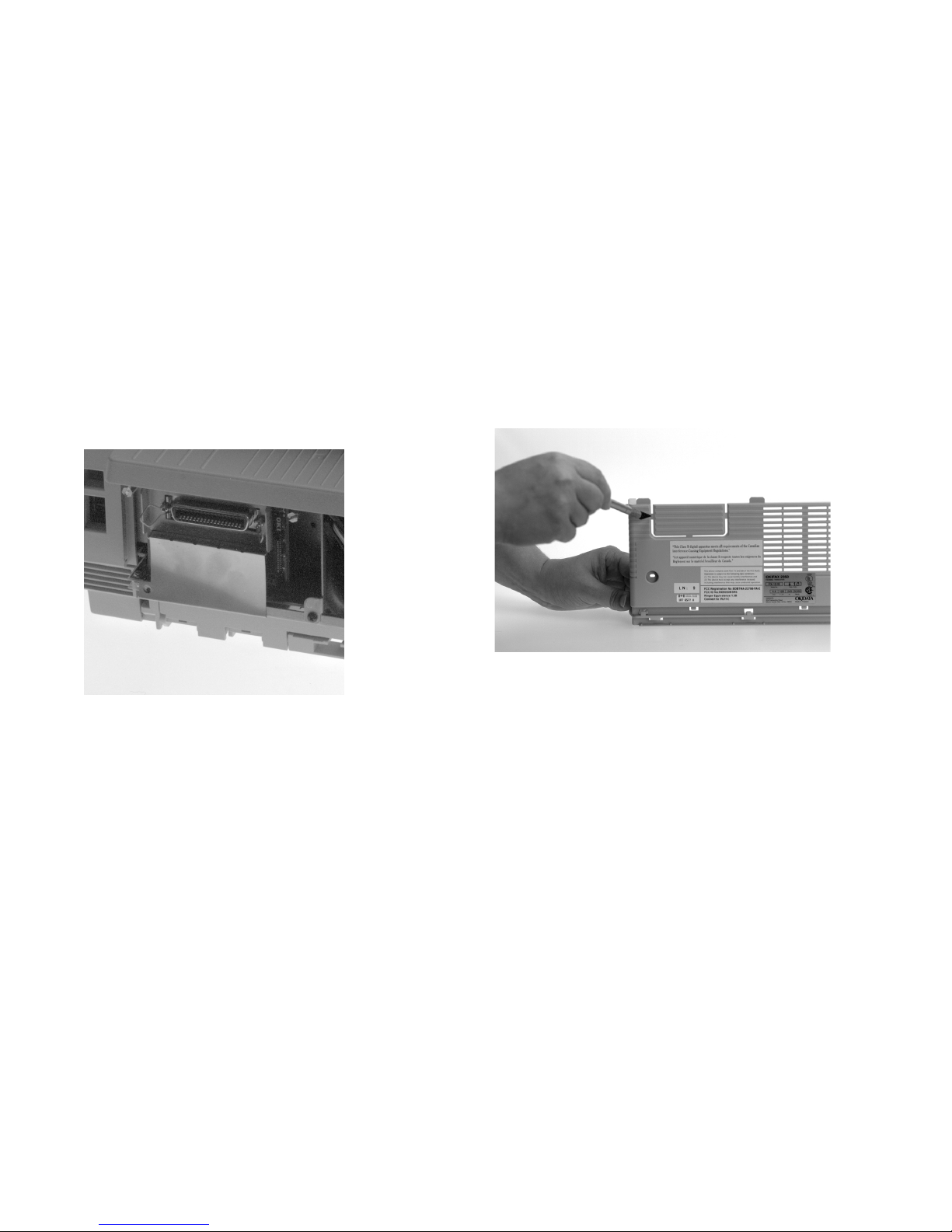

8. Fit the metal plate over the lower lip of the interface socket

mounting plate and under the rear of the machine. Be sure

to align the openings for the rear cover screw.

9. Using a sharp knife, remove the cut-out in the quarter

panel.

10. Replace the rear panel, using the screws removed in Step

4 to secure it.

Overview

6Unimessage Pro

Software Installation

Introduction

On the CD supplied with your OKIFAX 5650 MFP Kit you

will find the software that enables you to print, scan, copy

and send fax messages from your desktop using your fax

machine.

!Note: These installation instructions apply to all three

versions of Unimessage Pro: Unimessage Pro Xlite,

Unimessage Pro, and Unimessage Pro LAN.

Before starting software installation, ensure that your fax

machine is connected to the parallel printer port on your

computer and the fax machine is turned on

Save all open documents and close all other applications

before proceeding with driver installation.

!Note: Complete your installation of the driver

software before installing the PC fax application

software.

Minimum System Requirements

Before you install Unimessage Pro you should make sure that

you have an IBM-compatible PC running Windows 95, 98,

NT4 or above. The following minimum specification is

recommended:

• Pentium 120MHz, 16 MB Ram when running Windows 95

or 98 First Edition.

Microsoft Windows 95 OSR1 Service Pack 1 is

recommended.

• Pentium 120MHz, 32 MB Ram when running Windows

NT4 or 98 Second Edition.

When using Windows NT4 please ensure that Microsoft

NT4 Service Pack 4 or later is installed.

• Pentium 133MHz, 64 MB Ram when running Windows

2000 - 128 MB Ram recommended.

A 24-Bit color video card and driver is recommended.

Setup Guide: English 7

Please note that Unimessage Pro will operate on the above PC

configuration however, this is a minimum.

For each of the above systems requirements, the following

configuration is also required:

• Bi-directional parallel printer port

• IEEE1284-1994 standard parallel interface cable

• Internet Explorer 4.0 or above, to view the on-line User’s

Guide.

Driver Setup

Windows 2000

Note: Administrator’s authority is required for

installation with Windows 2000.

1. Make sure that both the printer and the computer are

turned OFF.

2. Connect the fax machine and computer with a parallel

interface cable.

3. Turn the computer ON and allow Windows to start.

4. Turn the fax machine ON. At the prompt telling that a new

device has been detected, select Cancel.

5. Insert the OKIFAX 5650 MFP Option Kit CD-ROM into

your CD-ROM drive.

6. After the setup program has automatically started, click

Setup device driver and Unimessage Pro and follow the

on-screen instructions as appropriate This installs both the

printer driver and the Unimessage Pro software.

Note: If you want to install only the driver, click Setup

device driver.

Note: If the setup program does not automatically start

or Auto insert notification is turned off, click

Start→→

→→

→Run.... Type in D:\SETUP.EXE (where D is

the drive letter of your CD-ROM drive) and click OK.

7. When the Fax Port Installation dialog appears, click OK.

8. When the Add/Remove Hardware Wizard dialog

appears, do the following:

(a) When the Welcome to the Add/Remove Hardware

Wizard dialog appears, click Next.

(b) When the Choose a Hardware Task dialog appears,

select Add/Troubleshoot a device and click Next.

8OKIFAX 5650 MFP Option Kit

select Add a new device from the device list and click

Next.

(d) When the Find New Hardware dialog appears, select

No, I want to select the hardware from a list and click

Next.

(e) When the Hardware Type dialog appears, select Ports

(COM&LPT) from the list and click Next.

(f) When the Select a Device Driver dialog appears, click

Have Disk.

(g) When the Install From Disk dialog appears, type

D:\DRIVER\SETUP\DISK1\WIN2K (where D is the drive

letter of your CD-ROM drive) in Copy manufacturer’s

files from and click OK.

(h) Select Okidata Fax Port from the list and click Next.

(i) When the Start Hardware Installation dialog appears,

click Next.

(j) When the Completing the Add/Remove Hardware

Wizard dialog appears, click Finish.

9. During copying, the Find Fax Port dialog appears and the

fax port is found; then click OK.

10.When the Modem Installation dialog appears, click OK.

11.If the Location Information dialog appears, enter

information about your current location and click OK.

12.When the Phone and Modem Options dialog appears, do

the following:

(a) Open the Modems tab and click Add.

(b) Check Don’t detect my modem; I will select it from

a list. and click Next.

appears, type D:\DRIVER\SETUP\DISK1\WIN2K (where

D: is the drive letter of your CD-ROM drive) in Copy

manufacturer’s files from and click OK.

(d) When the Install New Modem screen appears, select

the appropriate device and click Next.

(e) Check Selected ports, select the port displayed in Step

8, and click Next.

(f) When Digital Signature Not Found appears, click Yes.

(g) Click Finish and when the Modems Properties dialog

appears, click OK.

13. When Install Complete screen appears, click OK and the

setup of the driver is now complete.

Setup Guide: English 9

Windows Me/98/95

1. Make sure that both the printer and the computer are

turned OFF.

2. Connect the fax machine and computer with a parallel

interface cable.

3. Turn the fax machine and computer ON and allow

Windows to start. If you see a prompt telling you that a

new device has been detected, press Cancel.

4. Insert the OKIFAX 5650 MFP Option Kit CD-ROM into

your CD-ROM drive.

5. After the setup program has automatically started, click

Setup device driver and Unimessage Pro and follow the

on-screen instructions as appropriate.

Note: If you want to install only the driver, click Setup

device driver.

Note: If the setup program does not automatically start

or Auto insert notification is turned off, click on

Start→→

→→

→Run.... Type in D:\SETUP.EXE (where D is

the drive letter of your CD-ROM drive) and click OK.

6. When the Install Complete screen appears, click Finish.

After the computer restarts, setup of the driver is complete.

Windows NT 4.0

Note: Administrator’s authority is required for

installation with Windows NT 4.0.

1. Make sure that both the printer and the computer are

turned OFF.

2. Connect the fax machine and computer with a parallel

interface cable.

3. Turn the fax machine and computer ON and allow

Windows to start. If you see a prompt telling you that a

new device has been detected, press Cancel.

4. Insert the OKIFAX 5650 MFP Option Kit CD-ROM into

your CD-ROM drive.

5. After the setup program has automatically started, click

Setup device driver and Unimessage Pro and follow the

on-screen instructions as appropriate This installs both the

printer driver and the Unimessage Pro software.

Note: If you want to install only the driver, click Setup

device driver.

Note: If the setup program does not automatically start

or Auto insert notification is turned off, click

Start→→

→→

→Run... Type in D:\SETUP.EXE (where D is

the drive letter of your CD-ROM drive) and click OK.

10 OKIFAX 5650 MFP Option Kit

6. During copying, the Find Fax Port dialog appears and the

fax port is found.

7. When the Modem Installation dialog appears, click OK.

8. When the Install New Modem dialog appears, do the

following:

Note: If the Modems Properties dialog appears, click

Add and the Install New Modem dialog pops up.

(a) Check Don’t detect my modem; I will Select it from

a list., and click Next.

(b) Click Have Disk, and when Install From Disk dialog

appears, type D:\DRIVER\SETUP\DISK1\WINNT40

(where D is the drive letter of your CD-ROM drive) in

Copy manufacturer’s files from and click OK.

the appropriate device and click Next.

(d) Check Selected ports, then select the port displayed in

Step 6 and click Next.

(e) Click Finish, and when Modems Properties dialog

appears, click Close.

9. When the Install Complete screen appears, click OK.

10. The setup of the driver is complete.

Unimessage Setup

After the installation of the OKIFAX driver is complete, the

installation of the Unimessage Pro software should begin. If

this does not happen or you are re-installing the Unimessage

software:

a) Insert the OKIFAX 5650 MFP Option Kit CD-ROM

into your CD-ROM drive.

b) After the setup program has automatically started,

click Setup Unimessage Pro and follow the on-screen

instructions.

Note: If the setup program does not automatically start

or Auto insert notification is turned off, click

Start→→

→→

→Run.... Type in D:\SETUP.EXE (where D is

the drive letter of your CD-ROM drive) and click OK.

1. The first screen asks you to select a language. If the

highlighted language is appropriate, click OK. Otherwise,

select a language and click OK.

2. When following the on-screen instructions, make sure you

select the following when prompted: Yes, look for devices

connected to this computer and install the appropriate

drivers and CLASS 1 device

Otros manuales para OF5650

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Oki

Oki

Oki MC770x Manual de usuario

Oki

Oki MC351 Guía de referencia rápida

Oki

Oki CX2033 MFP Plus Manual de usuario

Oki

Oki MC860 MFP Guía de inicio rápido

Oki

Oki C5600 Manual de usuario

Oki

Oki MC560nMFP Guía de inicio rápido

Oki

Oki MB760dnfax Guía del usuario

Oki

Oki MB470 MFp Manual de usuario

Oki

Oki MB460 Cómo utilizar

Oki

Oki ES9476 MFP Manual de usuario

Oki

Oki C941dn Manual de usuario

Oki

Oki ES3032a4 Manual de usuario

Oki

Oki OKIOFFICE 87 Manual de lista de piezas

Oki

Oki CX3641 MFP Manual de servicio

Oki

Oki B2500 MFP Manual de capacitación

Oki

Oki C5510n MFP Guía de inicio rápido

Oki

Oki ES 1624n MFP Manual de usuario

Oki

Oki ES3640e MFP Manual de usuario

Oki

Oki OKIOFFICE 87 Manual de usuario

Oki

Oki C9800hdn Manual de instrucciones

Oki

Oki CX1145 Manual de usuario

Oki

Oki C9000 Series Guía de configuración

Oki

Oki MB760 Manual de usuario

Oki

Oki ES1624n MFP Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario
