Ohlins HO 810 Manual de usuario

Shock Absorber for Honda PCX 150-2018

HO 810

Mounting Instructions

Note!

Please note that this image is a general representation

of the product and may differ slightly from your product.

Note!

Please note that during storage and transportation,

especially at high ambient temperature, some of the oil

and grease used for assembling may leak and stain the

packaging. This is in no way detrimental to the product,

wipe off the excessive oil/grease with a cloth.

Warning!

Before installing this product, read the Öhlins Owner’s

Manual. The shock absorber is an important part of your

vehicle and will affect the stability.

Note!

Before installing this product, check the contents of

the kit. If anything is missing, please check an Öhlins

dealer.

Kit Contents

Description Part No Pcs

Shock absorber HO 810 2

Bracket, mudguard 61125-01 1

Screw M6x8 05404-11 1

Screw M8x35 00432-01 2

Screw M6x45 01046-62 2

Screw M6x14 00382-16 1

Sleeve 7/13.9-10 61123-14 2

Washer 6.4/18/1.6 00426-04 1

Tool preload adjuster 03199-03 1

Sticker set "ÖHLINS" 10207-01 1

Owners manual road & track 07241-02 1

Alternative spring

Spring 46

/200/prog 15-24N/mm

60360-03 2

MOUNTING INSTRUCTIONS

Put the motorcycle on a work stand so that the

rear wheel barely touches the ground. Make

sure the motorcycle is in a stable position.

Warning!

It is advisable to have an Öhlins dealer install the shock

absorber.

Warning!

If working on a raised vehicle, ensure it is securely

supported so that it will not tip over.

Note!

Before mounting this product clean the vehicle

thoroughly.

Note!

When working on this product, always see the Vehicle

Service Manual for vehicle specic procedures and

important data.

Open the seat by the ignition key.

MOUNTING INSTRUCTIONS

Remove the plastic cover Ⓐby loosening the

screws ①②.

Remove the grab bar Ⓑ by loosening the

screws ①②③④⑤⑥

MOUNTING INSTRUCTIONS

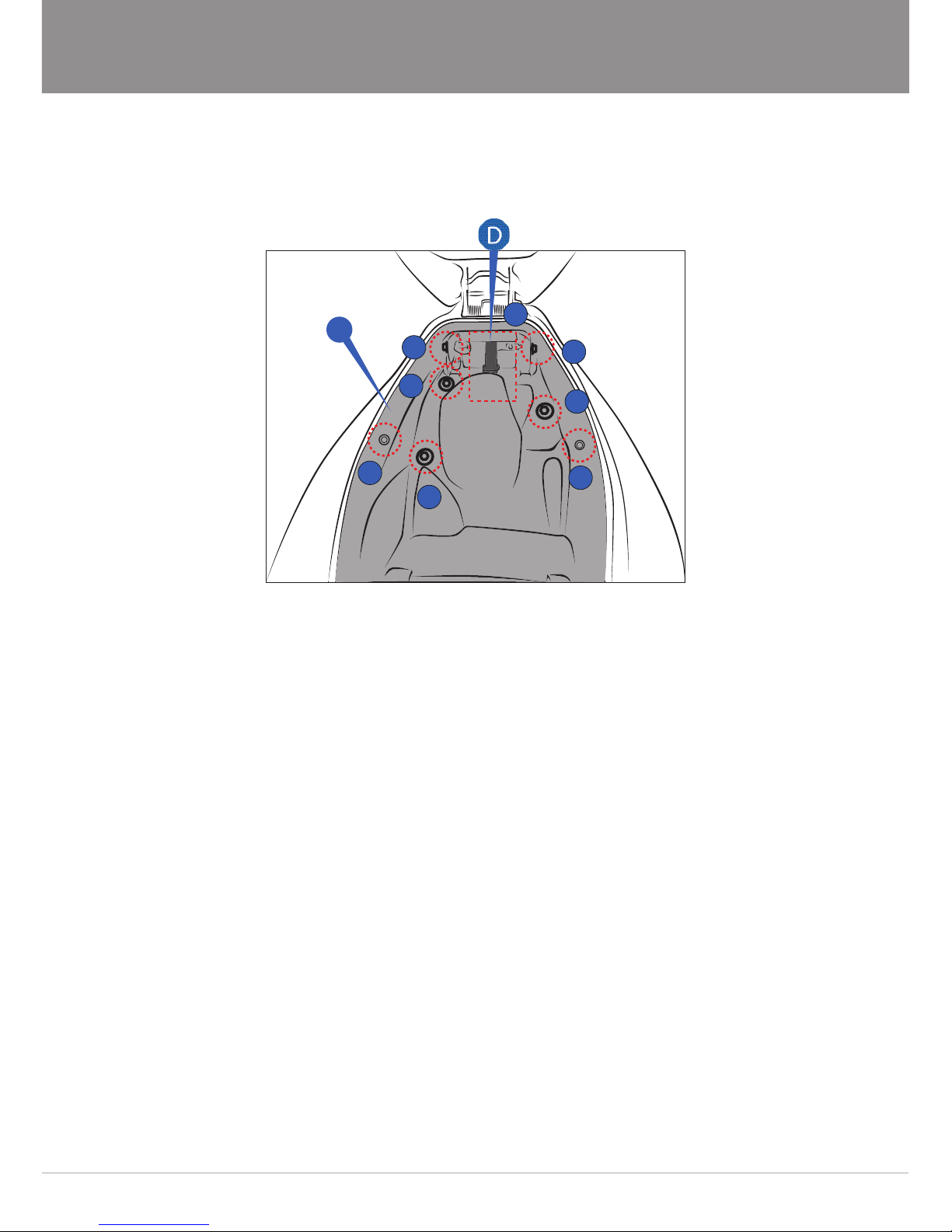

Remove the storage box Ⓒby loosening the

screws

①②③④⑤ and unlock plastic

clip lock ⑥⑦ then release the rubber band

⑧ to unlock the battery set Ⓓ.

MOUNTING INSTRUCTIONS

Remove the left plastic fairing Ⓔ as per

following instructions:

6.1 Loosen the screws

①②

6.2 Loosening the screws

③④⑤

6.3 Unclip the plastic clip lock ⑥⑦

6.4 Unplug the rear light wirings ⑧⑨

Repeat the operation 6.2, 6.3 on the

opposite side for remove the right plastic

fairing Ⓕ

MOUNTING INSTRUCTIONS

Unlock the plastic clip locks

①②

placed

underneath the rear mudguard in order to

remove the tail light Ⓖ.

Remove the rear mudguard Ⓗ by loosening

the screw

①.

MOUNTING INSTRUCTIONS

Remove the exhaust mufer Ⓙ by loosening

the screws ①②③, in order to access the

RH shock absorber lower mounting point.

Remove the plastic cover Ⓚ by loosening the

screws

①②

in order to access the air box

mounting screws located underneath.

MOUNTING INSTRUCTIONS

Release the air box Ⓛby loosening the

screws ①②③ in order to access to the

shock absorber lower mounting point.

Remove the standard shock absorber by

loosening the upper and lower mounting bolts

①②

MOUNTING INSTRUCTIONS

Install the Öhlins shock absorber by tightening

the upper

①

and lower

②

mounting bolts.

Tighten at a torque value as specied in the

vehicle service manual.

Note!

Lower the vehicle so that the suspension is slightly

compressed before tightening the screws.

Caution!

Ensure that all screws are tightened to the correct

torque and that nothing fouls or restricts movement

of the shock absorber when the suspension is fully

compressed or extended.

MOUNTING INSTRUCTIONS

01046-02 (2x)

Screw M6x45

61123-12 (2x)

Sleeve 7/13.9/10

01046-62 (2x)

Screw M6x45

61125-01

Bracket

00426-04

Washer 6.4/18/1.6

05404-01

Screw M6x8

00382-16

Screw M6x14

Reverse all procedure as necessary.

In order to ensure proper clearances between

the airbox and the Öhlins shock absorber:

14.1 Reinstall the airbox by placing the

sleeve 61123-12 between airbox and gearbox.

Tighten by using the screw 01046-02 at the

torque value recommended in the vehicle

service manual (see diagram P1)

14.2 Join the airbox Ⓜand the rear

mudguard Ⓝby using the bracket 61125-01

and the screws mentioned in the diagram P2
